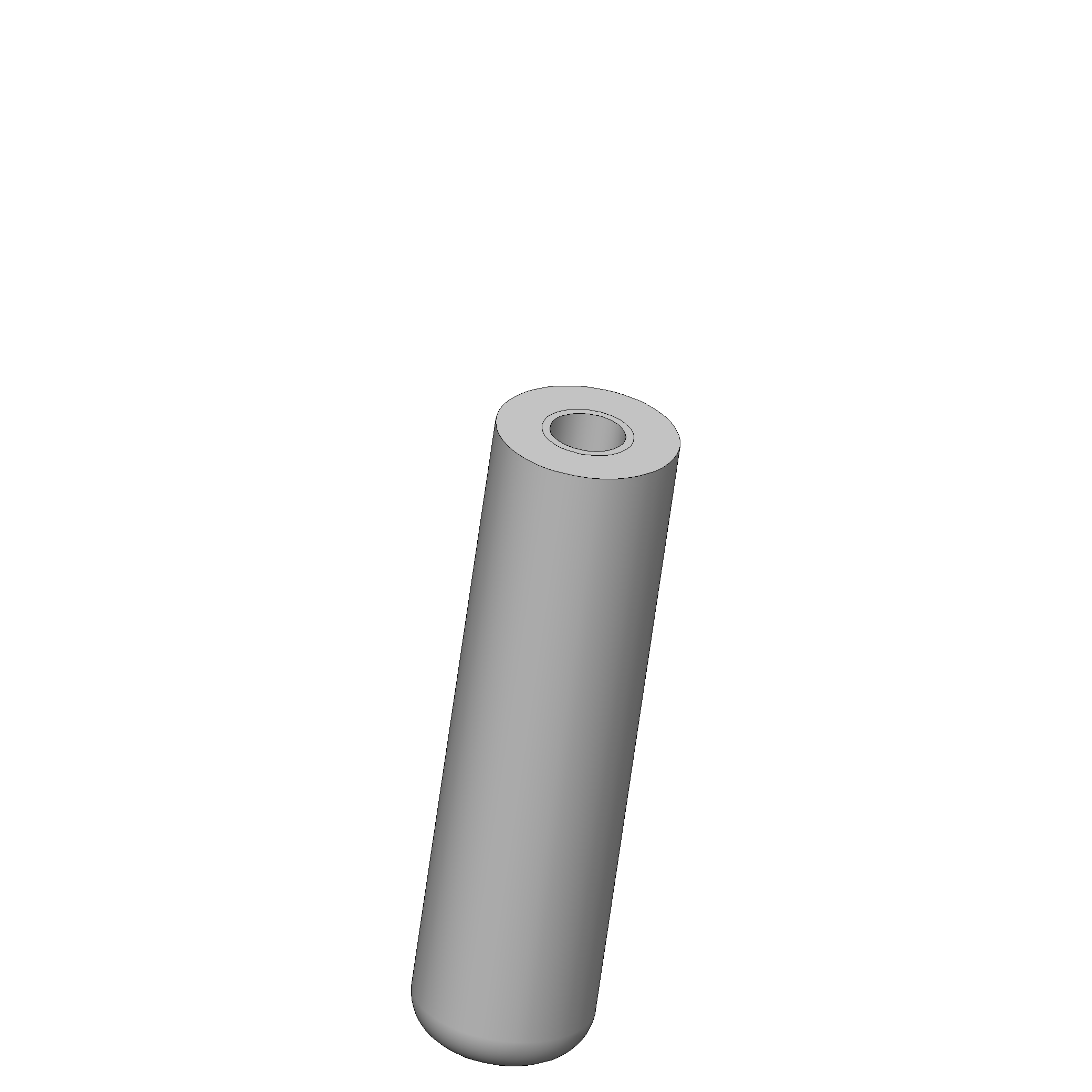

Product information "FUS-08-30-ST-M4"
- High-precision guiding pin
- Precise, low-friction contacting
- Centring accuracy of +/- 0.075 mm in combination with guide bush #2196
- Quick, easy installation
| Accessory type: | Customising accessories |
|---|---|
| Diameter: | 8 mm [.314 in] |
| Installation: | Thread M4 |
| Length: | 30 mm [1.18 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx |
| Manual test fixtures (MA): | MA 2009, MA 2011, MA 2012, MA 2013, MA 2013T, MA 2014 |
| Material: | 1,07 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Mechanical accessory |
| RoHS-compliant: | Yes |
| Series: | FU |
| Type: | Guide pin |
| Vacuum test fixtures (VA): | VA 40xx, VA 3070 |
| Version: | Without flange |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product Details
- High-precision guiding pin
- Precise, low-friction contacting
- Centring accuracy of +/- 0.075 mm in combination with guide bush #2196
- Quick, easy installation
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA 2014
- Manual test fixtures (MA): MA 2009
- Vacuum test fixtures (VA): VA 40xx
- Manual test fixtures (MA): MA 2013
- Manual test fixtures (MA): MA 2011
- Vacuum test fixtures (VA): VA 3070
- Manual test fixtures (MA): MA 2013T
- Manual test fixtures (MA): MA 2012
- MA exchangeable kits (ATS MA): ATS MAxx
General data
- Max. temperature: 60 °C [140 °F]
- Type: Guide pin
- Material: 1,07
- Accessory type: Customising accessories
- Series: FU
- Product group: Mechanical accessory
- Min. temperature: 10 °C [50 °F]
- RoHS-compliant: Yes
- Version: Without flange
- Weight: 0.01 kg [.022 lbs]

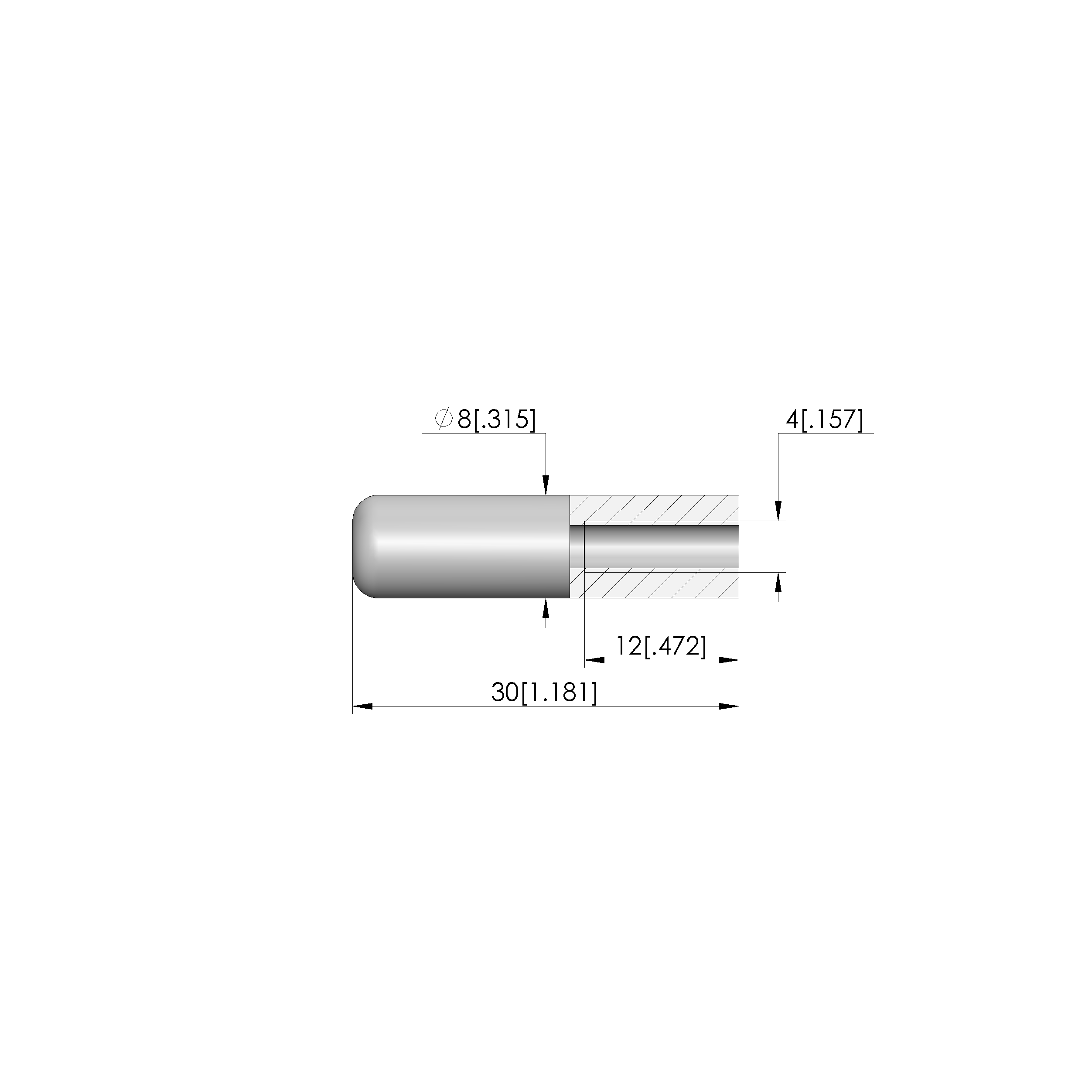

Technical data
- Length: 30 mm [1.18 in]
- Installation: Thread M4
- Diameter: 8 mm [.314 in]
