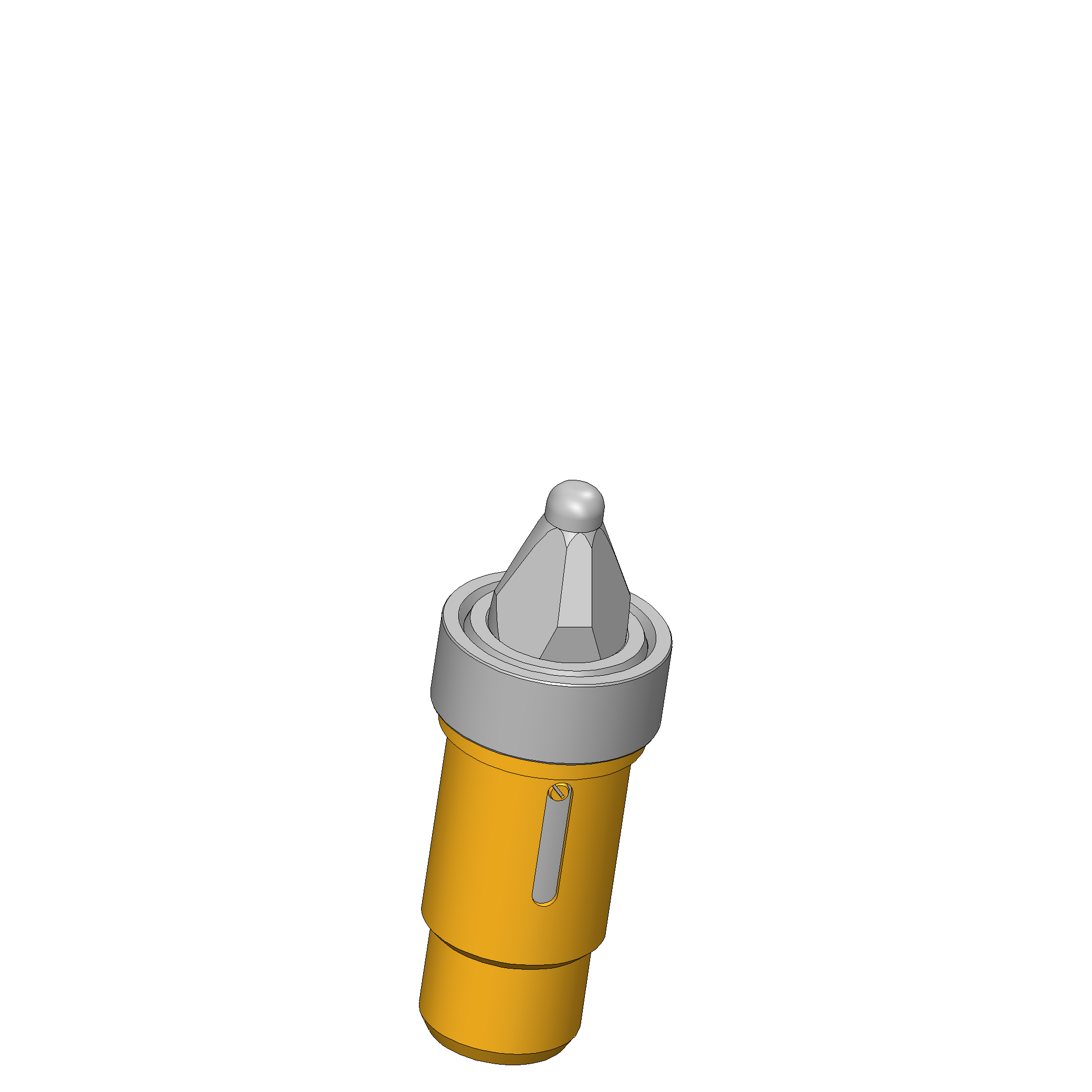

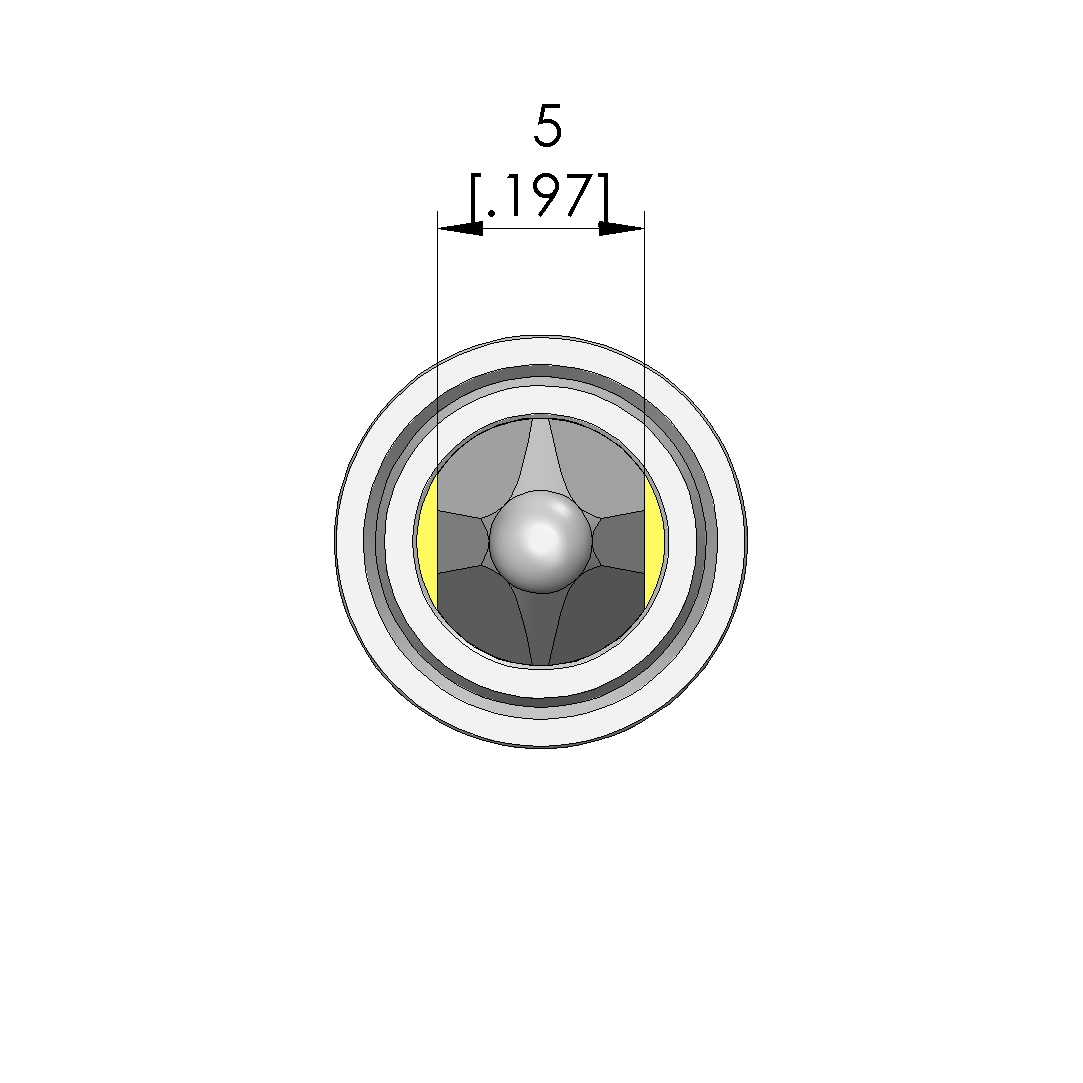

Product information "GFS-5,98-SW-12-08-B-G"
- Trusted tooling pin for reliable, spring-loaded mounting of the PCB via the guide holes
- High-precision and low-wear
- Optimum tolerance compensation
- Compact design with internal spring
| Accessory type: | Customising accessories |
|---|---|
| Diameter: | 10 mm [.393 in] |
| Exchangeable kits version: | No limitations |
| Force: | 3 N [10.7 ozf] |
| For dual-stage contacting: | Yes |
| Installation: | Plugged |

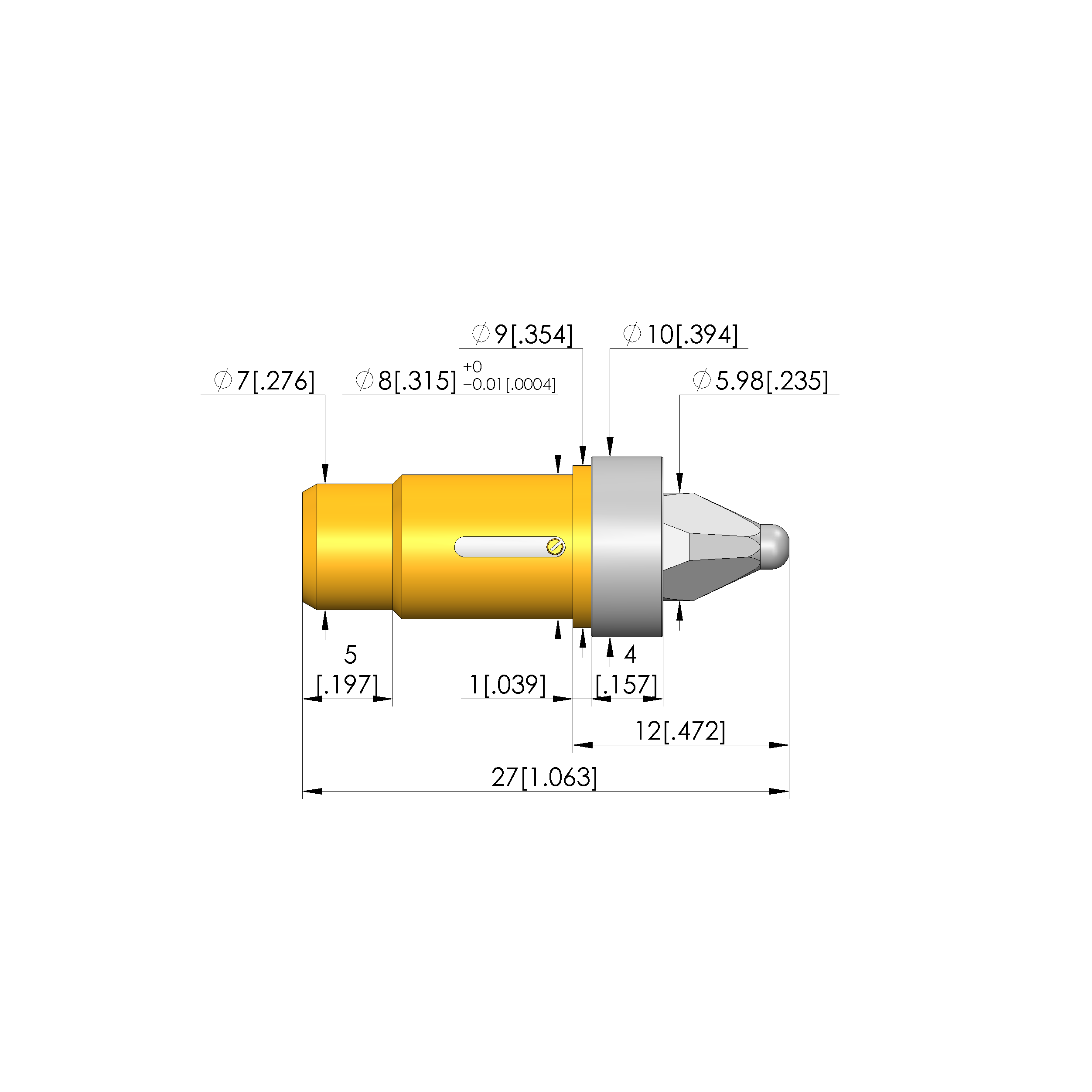

| Length: | 27 mm [1.06 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx, ATS MAxxx |
| Manual test fixtures (MA): | MA 2009, MA 2011, MA 2012, MA 2013, MA 2013T, MA 2014 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| PA exchangeable kits (ATS PA): | ATS PAZxxx, ATS PAxxxx |
| Pin diameter: | 8 mm [.314 in] |
| Product group: | Tooling pins |
| RoHS-compliant: | Yes |
| Scope of delivery: | Incl. friction bearing |
| Series: | FS-GF |
| Spring force: | 3 N [10.7 ozf] |
| Stroke: | 5 mm [.196 in] |
| Tip diameter: | 5.98 mm [.235 in] |

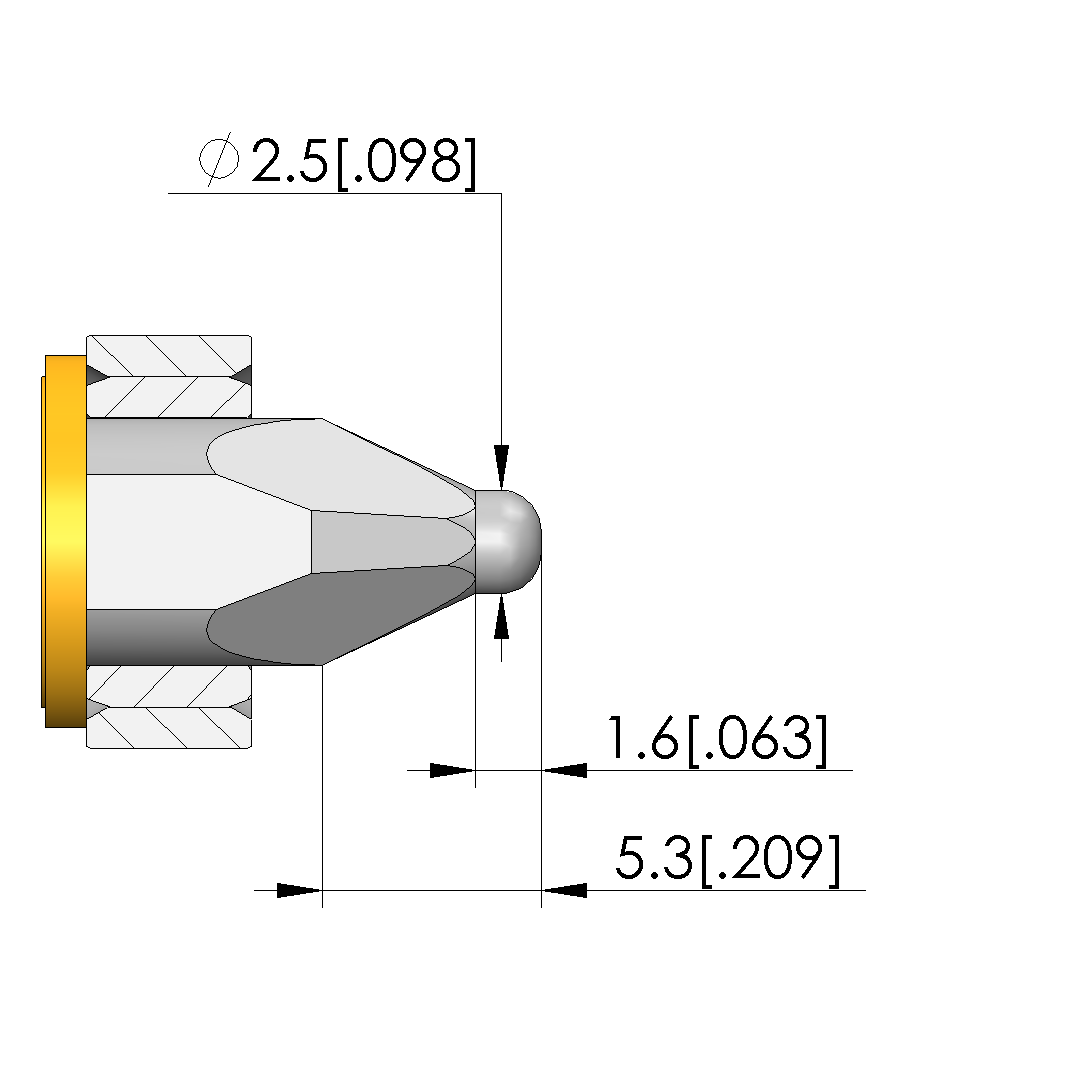

| Tip height: | 5.3 mm [.208 in] |
| Type: | Spring-loaded |
| Vacuum test fixtures (VA): | VA 30xx, VA 40xx |
| Version: | Sword with collar (D9x1), moving plate (ADP) |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product Details
- Trusted tooling pin for reliable, spring-loaded mounting of the PCB via the guide holes
- High-precision and low-wear
- Optimum tolerance compensation
- Compact design with internal spring
Other products in this series:
Technical data
Technical data
- Diameter: 10 mm [.393 in]
- Spring force: 3 N [10.7 ozf]
- Tip height: 5.3 mm [.208 in]
- Force: 3 N [10.7 ozf]
- Installation: Plugged
- Pin diameter: 8 mm [.314 in]
- Length: 27 mm [1.06 in]
- Stroke: 5 mm [.196 in]
- Tip diameter: 5.98 mm [.235 in]
Compatible with
- Manual test fixtures (MA): MA 2014
- Manual test fixtures (MA): MA 2009
- Vacuum test fixtures (VA): VA 40xx
- MA exchangeable kits (ATS MA): ATS MAxxx
- Manual test fixtures (MA): MA 2013
- Exchangeable kits version: No limitations
- PA exchangeable kits (ATS PA): ATS PAxxxx
- Manual test fixtures (MA): MA 2011
- Vacuum test fixtures (VA): VA 30xx
- PA exchangeable kits (ATS PA): ATS PAZxxx
- Manual test fixtures (MA): MA 2013T
- For dual-stage contacting: Yes
- Manual test fixtures (MA): MA 2012
- MA exchangeable kits (ATS MA): ATS MAxx
General data
- Max. temperature: 60 °C [140 °F]
- Accessory type: Customising accessories
- Version: Sword with collar (D9x1), moving plate (ADP)
- Product group: Tooling pins
- Series: FS-GF
- Min. temperature: 10 °C [50 °F]
- Type: Spring-loaded
- RoHS-compliant: Yes
- Scope of delivery: Incl. friction bearing
- Weight: 0.01 kg [.022 lbs]
