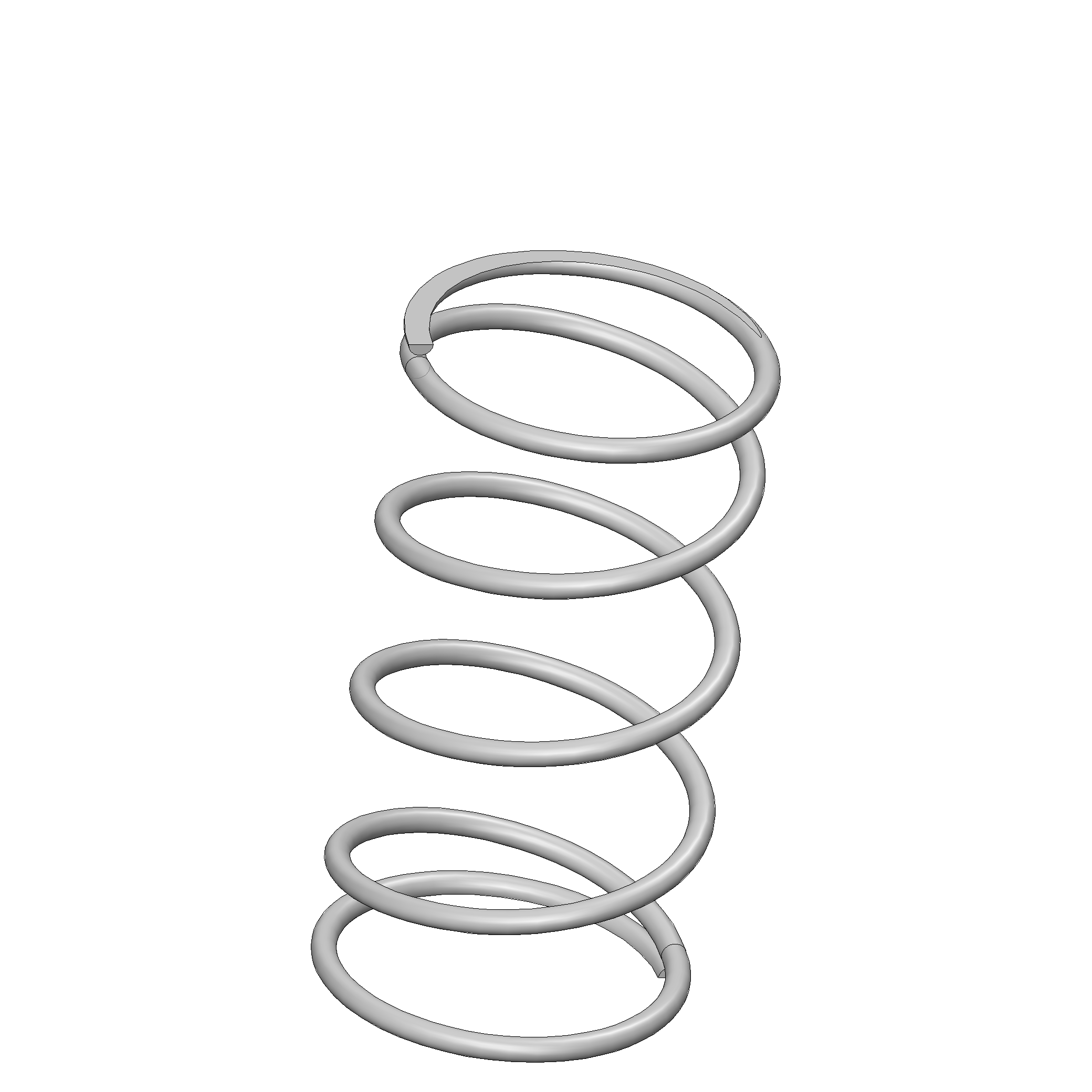

Product information "FED-12,0-23,0-15N-05,5"
- Bewährte, rechts gewickelte, Druckfeder
- Highest spring steel quality for maximum breakage resistance
- Gleichbleibende, konstante Steigung
- Lineare Federkennlinie
| Accessory type: | Customising accessories |
|---|---|

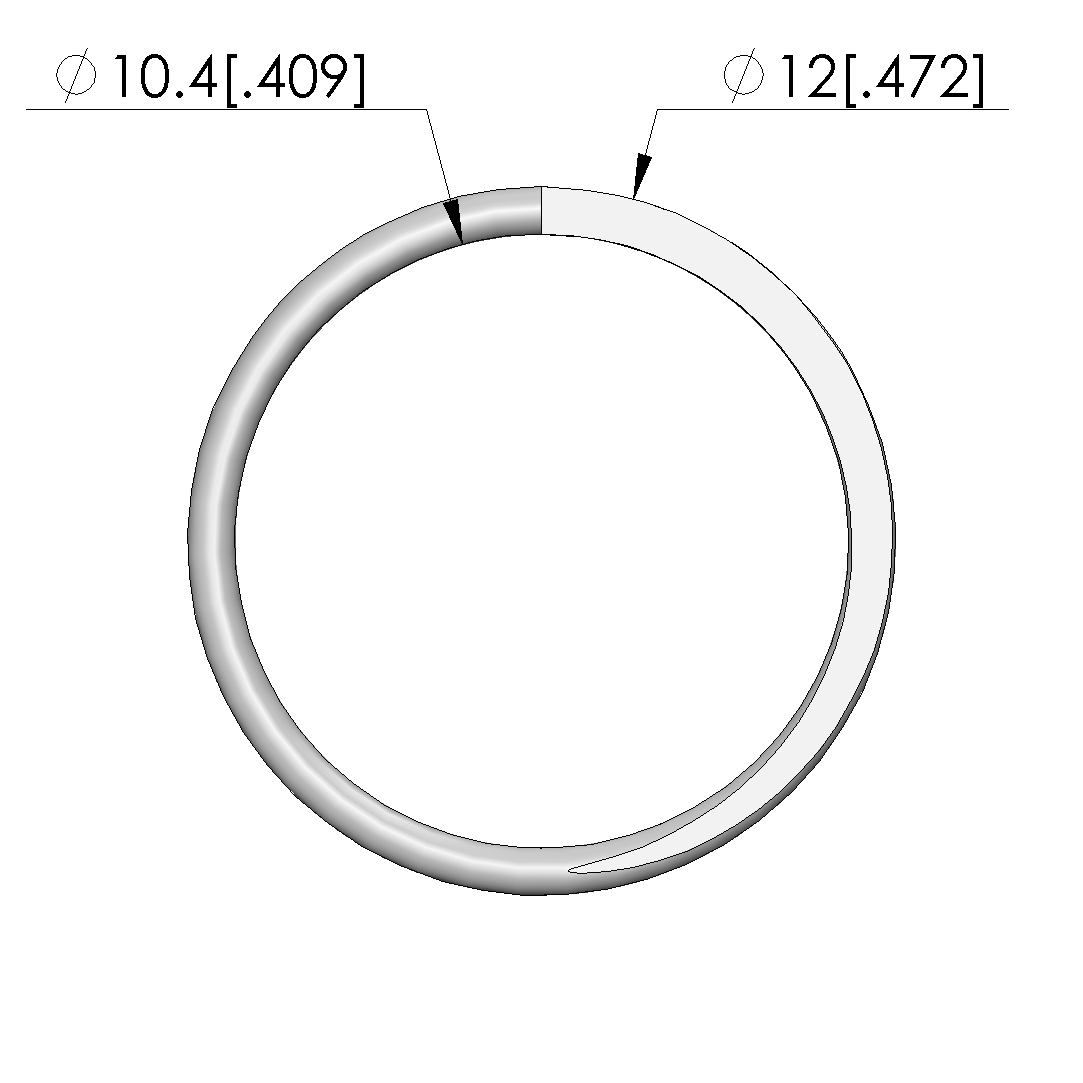

| Diameter: | 12 mm [.472 in] |
| Force: | 15 N [53.9 ozf] |

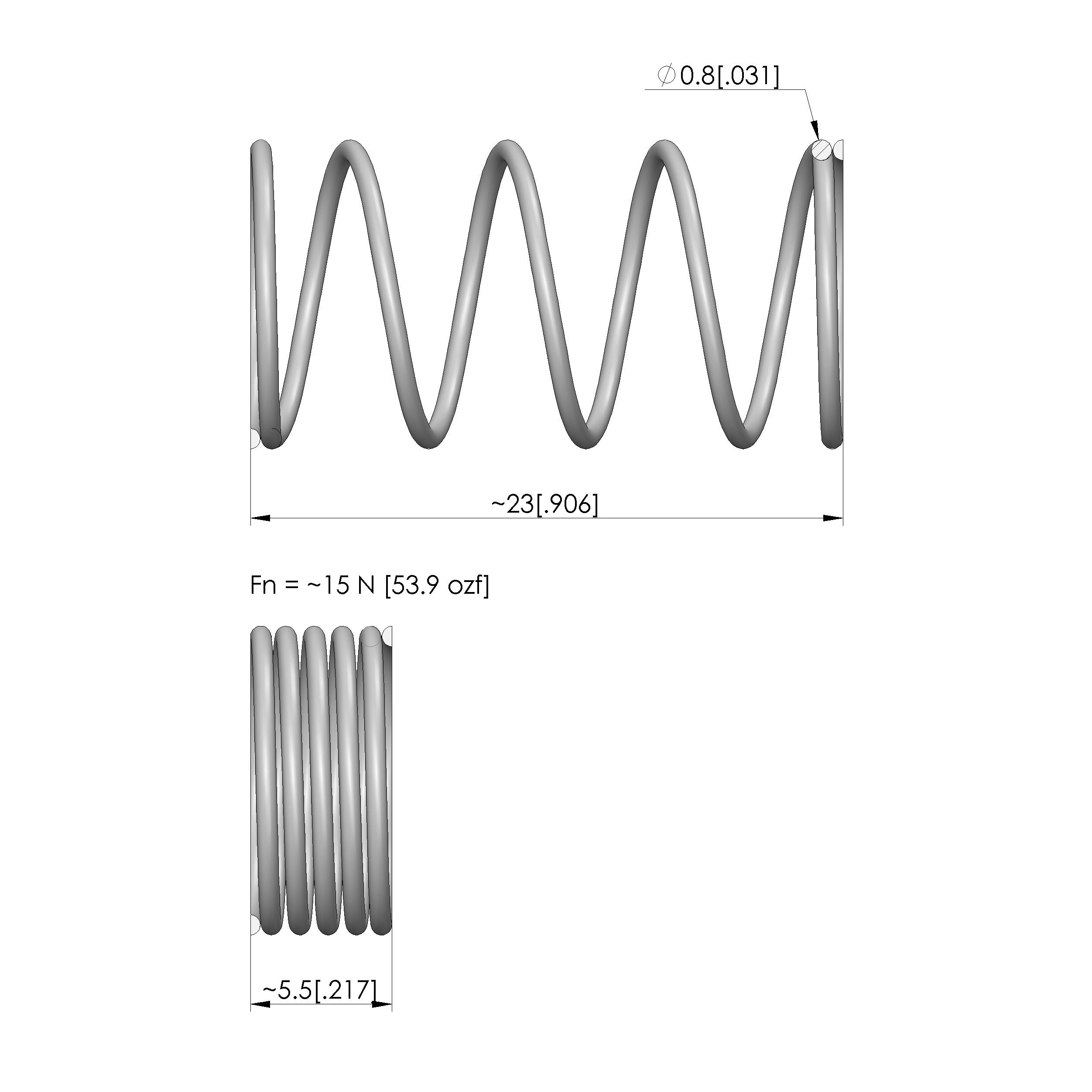

| Height: | 23 mm [.905 in] |
| Length: | 5.5 mm [.216 in] |
| MA exchangeable kits (ATS MA): | ATS MAxxx |
| Material: | EN 10270-1-DH |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Pressure springs |
| RoHS-compliant: | Yes |
| Series: | FED |
| Type: | Pressure spring |
| Version: | Zylindrisch |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product Details
- Bewährte, rechts gewickelte, Druckfeder
- Highest spring steel quality for maximum breakage resistance
- Gleichbleibende, konstante Steigung
- Lineare Federkennlinie
Other products in this series:
Technical data
General data
- Material: EN 10270-1-DH
- Max. temperature: 60 °C [140 °F]
- Accessory type: Customising accessories
- Series: FED
- Type: Pressure spring
- Product group: Pressure springs
- Min. temperature: 10 °C [50 °F]
- Version: Zylindrisch
- Height: 23 mm [.905 in]
- RoHS-compliant: Yes
- Weight: 0.01 kg [.022 lbs]
Compatible with
- MA exchangeable kits (ATS MA): ATS MAxxx
Technical data
- Force: 15 N [53.9 ozf]
- Diameter: 12 mm [.472 in]
- Length: 5.5 mm [.216 in]
