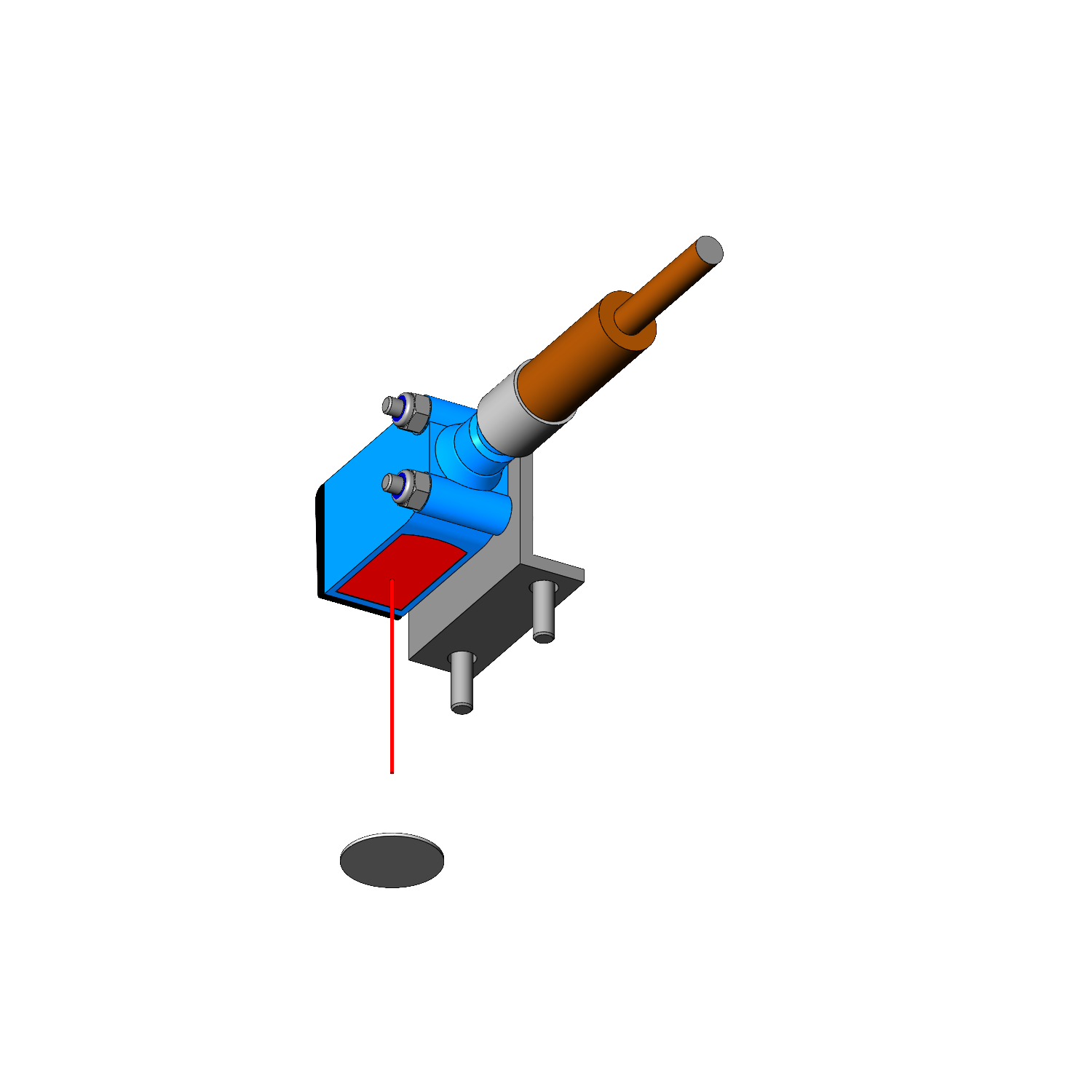

Product information "FB-ABF-A-O-10-30VDC"
- Detectiion of PCB - present
- Functional unit for individually configurable upgrade
- Suitable for inline interchageable kits WS ASYS/ATH01/173,5 and WS ASYS/ATH01/210,5
- Quick, easy installation on the pressure frame plate
| Accessory type: | Additional function |
|---|---|
| Cable length: | 2,000 mm [78.7 in] |
| Height: | 25 mm [.984 in] |
| Installation: | Thread M3 |
| Interchangeable kits (WS): | WS ASYS/ATH01/... |
| Length: | 41.8 mm [1.64 in] |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 30 VDC |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 41.8 x 28 x 25 mm [1.64 x 1.1 x .984 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Must be installed upon delivery, installation accessories included |
| Series: | FB-WS |
| Type: | Detection unit |
| Version: | DUT detection, photoelectric sensor |
| Weight: | 0.02 kg [.044 lbs] |
| Width: | 28 mm [1.1 in] |
Login
Product Details
- Detectiion of PCB - present
- Functional unit for individually configurable upgrade
- Suitable for inline interchageable kits WS ASYS/ATH01/173,5 and WS ASYS/ATH01/210,5
- Quick, easy installation on the pressure frame plate
Other products in this series:
Technical data
Technical data
- Installation: Thread M3
- Max. voltage: 30 VDC
- Length: 41.8 mm [1.64 in]
- Cable length: 2,000 mm [78.7 in]
- Outer dimensionS (WxDxH): 41.8 x 28 x 25 mm [1.64 x 1.1 x .984 in]
General data
- Product group: Functional units
- Series: FB-WS
- Type: Detection unit
- Version: DUT detection, photoelectric sensor
- Accessory type: Additional function
- Scope of delivery: Must be installed upon delivery, installation accessories included
- Width: 28 mm [1.1 in]
- Height: 25 mm [.984 in]
- Weight: 0.02 kg [.044 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Interchangeable kits (WS): WS ASYS/ATH01/...
