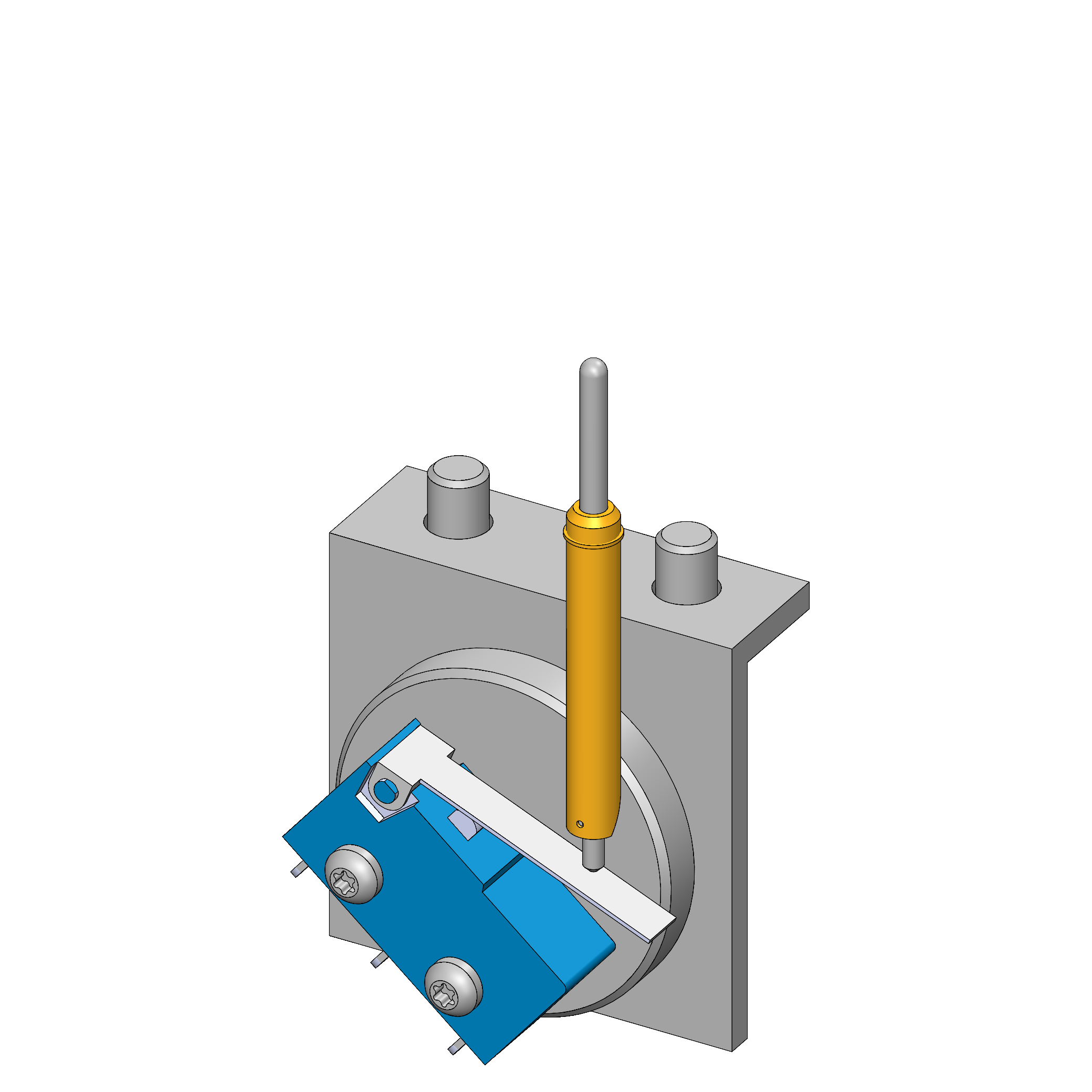

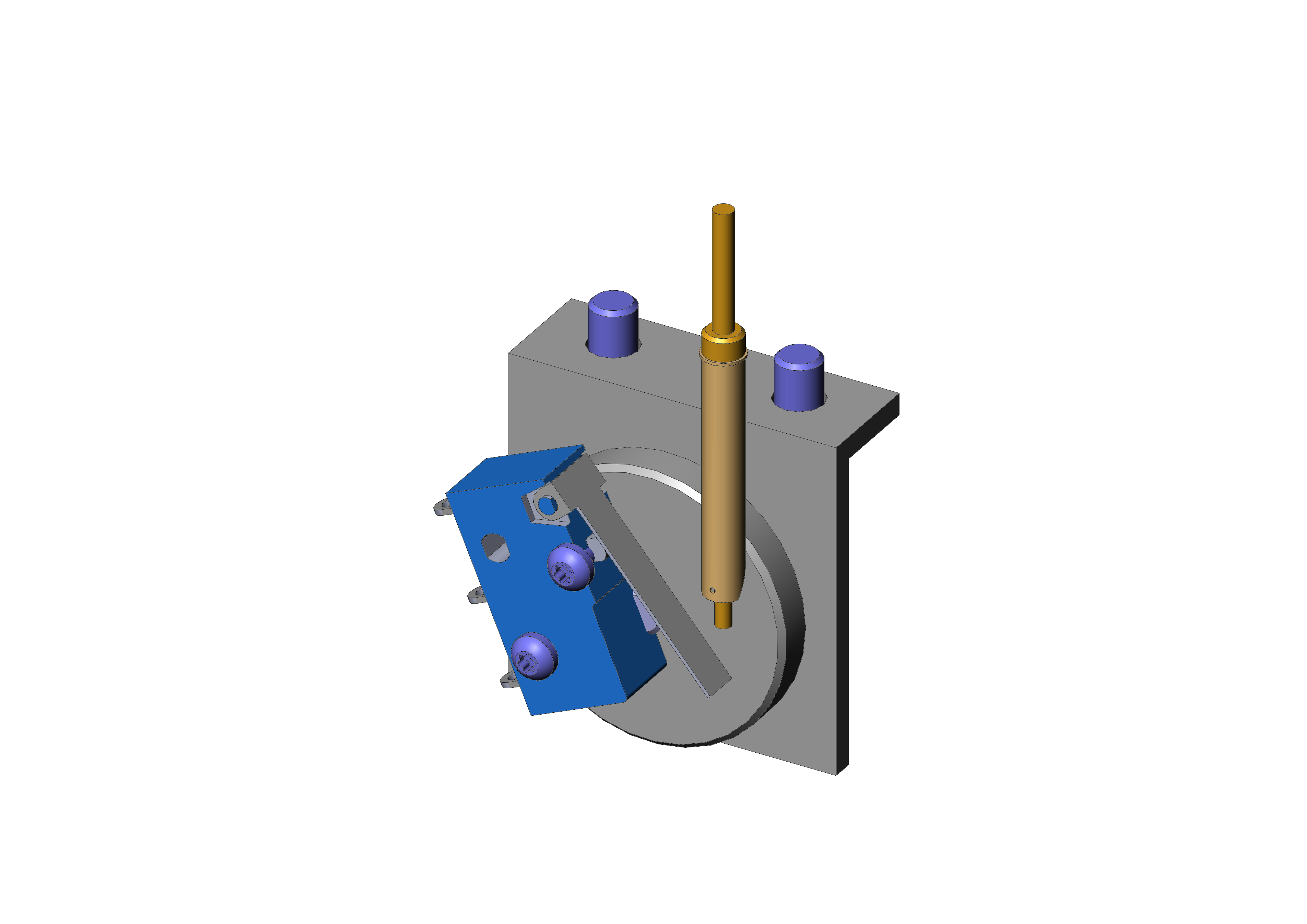

Product information "FB-ABF-K-HMK-VAxxxx"
- Detection - PCB contacted
- Reliable status detection
- Quick, easy installation
| Accessory type: | Additional function |
|---|---|
| Connection: | Solder eyelet |
| Force: | 1 N [3.59 ozf] |
| Height: | 53.2 mm [2.09 in] |
| Installation: | M4 |
| Length: | 30 mm [1.18 in] |
| Max. current: | 1 A |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 12 V |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 3 |

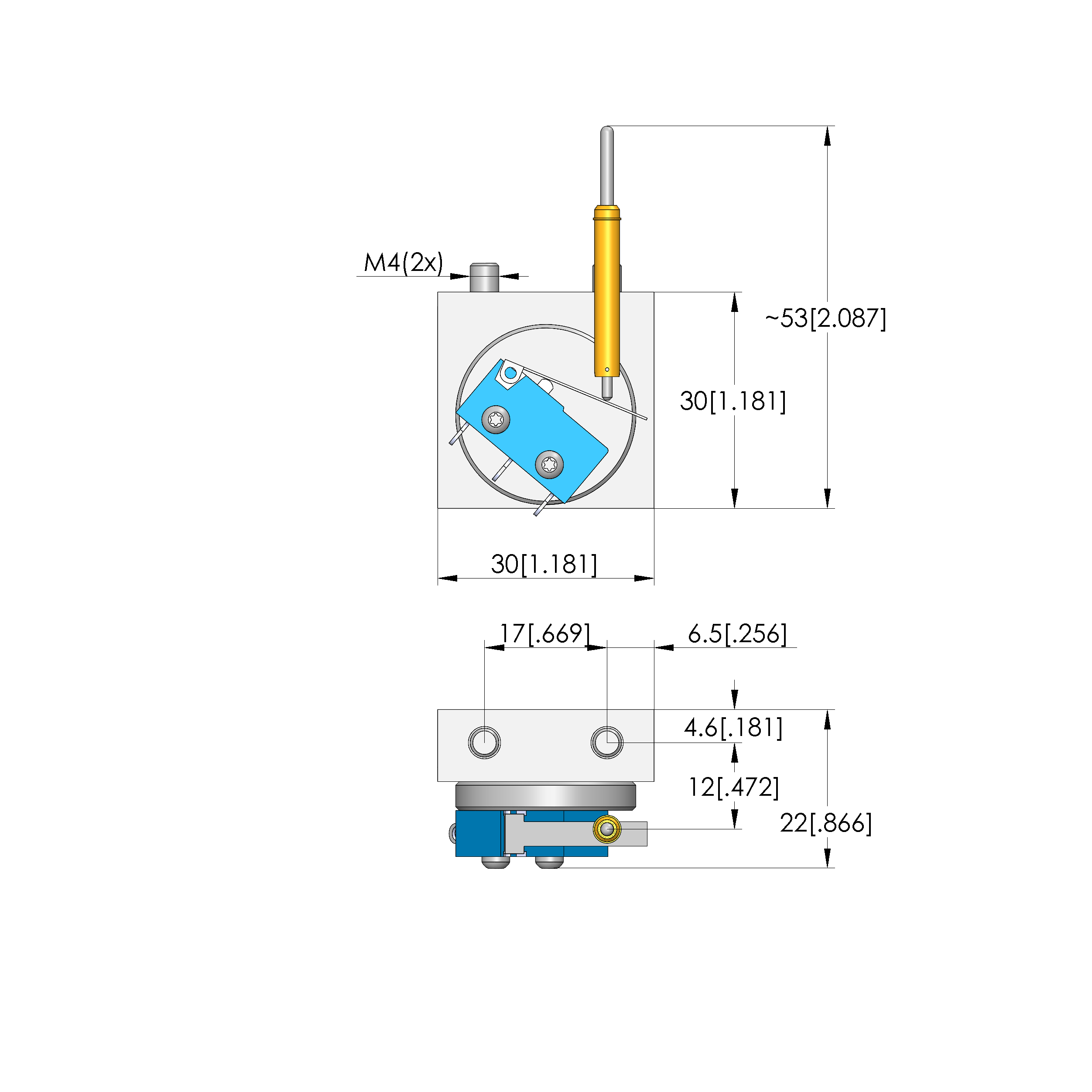

| Outer dimensionS (WxDxH): | 22 x 30 x 53.2 mm [.866 x 1.18 x 2.09 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Switch incl. GKS-503-0006 |
| Series: | FB-VAxxxx |
| Stroke: | 6 mm [.236 in] |
| Type: | Detection - contacted |
| Vacuum test fixtures (VA): | VA 20xx |
| Version: | Stroke sensor |
| Weight: | 0.02 kg [.044 lbs] |
| Width: | 22 mm [.866 in] |
Login
Product Details
- Detection - PCB contacted
- Reliable status detection
- Quick, easy installation
Other products in this series:
Technical data
General data
- Max. temperature: 60 °C [140 °F]
- Type: Detection - contacted
- Width: 22 mm [.866 in]
- Accessory type: Additional function
- Version: Stroke sensor
- Scope of delivery: Switch incl. GKS-503-0006
- Min. temperature: 10 °C [50 °F]
- Height: 53.2 mm [2.09 in]
- Product group: Functional units
- RoHS-compliant: Yes
- Weight: 0.02 kg [.044 lbs]
- Series: FB-VAxxxx
Compatible with
- Vacuum test fixtures (VA): VA 20xx
Technical data
- Stroke: 6 mm [.236 in]
- Installation: M4
- Number of poles: 3
- Connection: Solder eyelet
- Length: 30 mm [1.18 in]
- Force: 1 N [3.59 ozf]
- Max. voltage: 12 V
- Max. current: 1 A
- Outer dimensionS (WxDxH): 22 x 30 x 53.2 mm [.866 x 1.18 x 2.09 in]
