Product information "FB-VER-G-P-MAxxxx"
- Secure locking of closed pressure frame during contacting
| Accessories: | ATE MAxxxx, ATE VAxxxx |
|---|---|
| Accessory type: | Additional function |
| Compressed air connection: | 1-10 bar |
| Connection: | QSM-M5-4 |
| Height: | 31 mm [1.22 in] |
| Installation: | Thread M4 |
| Length: | 147 mm [5.78 in] |
| Manual test fixtures (MA): | MA xxxx, MA xxxxT |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 40 x 147 x 31 mm [1.57 x 5.78 x 1.22 in] |
| Product group: | Locking units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Stroke: | 10 mm [.393 in] |
| Type: | NDH-Geschlossen-Verriegelung |
| Version: | Pneumatic |
| Weight: | 0.3 kg [.661 lbs] |
| Width: | 40 mm [1.57 in] |
Login
Product Details

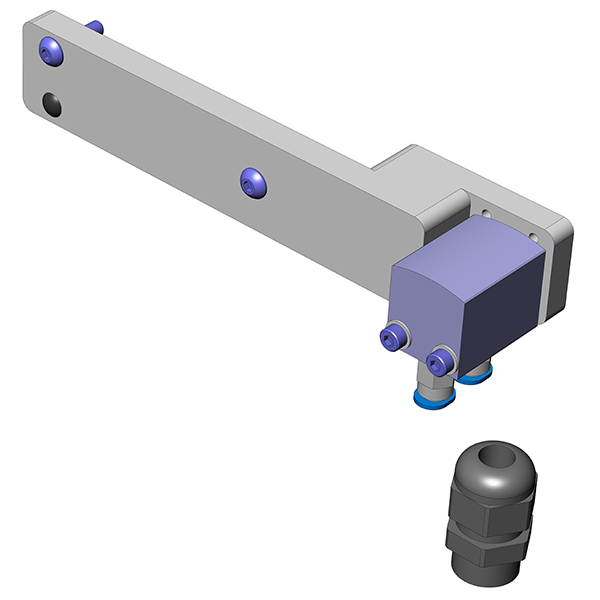

- Secure locking of closed pressure frame during contacting
Other products in this series:
Technical data
Compatible with

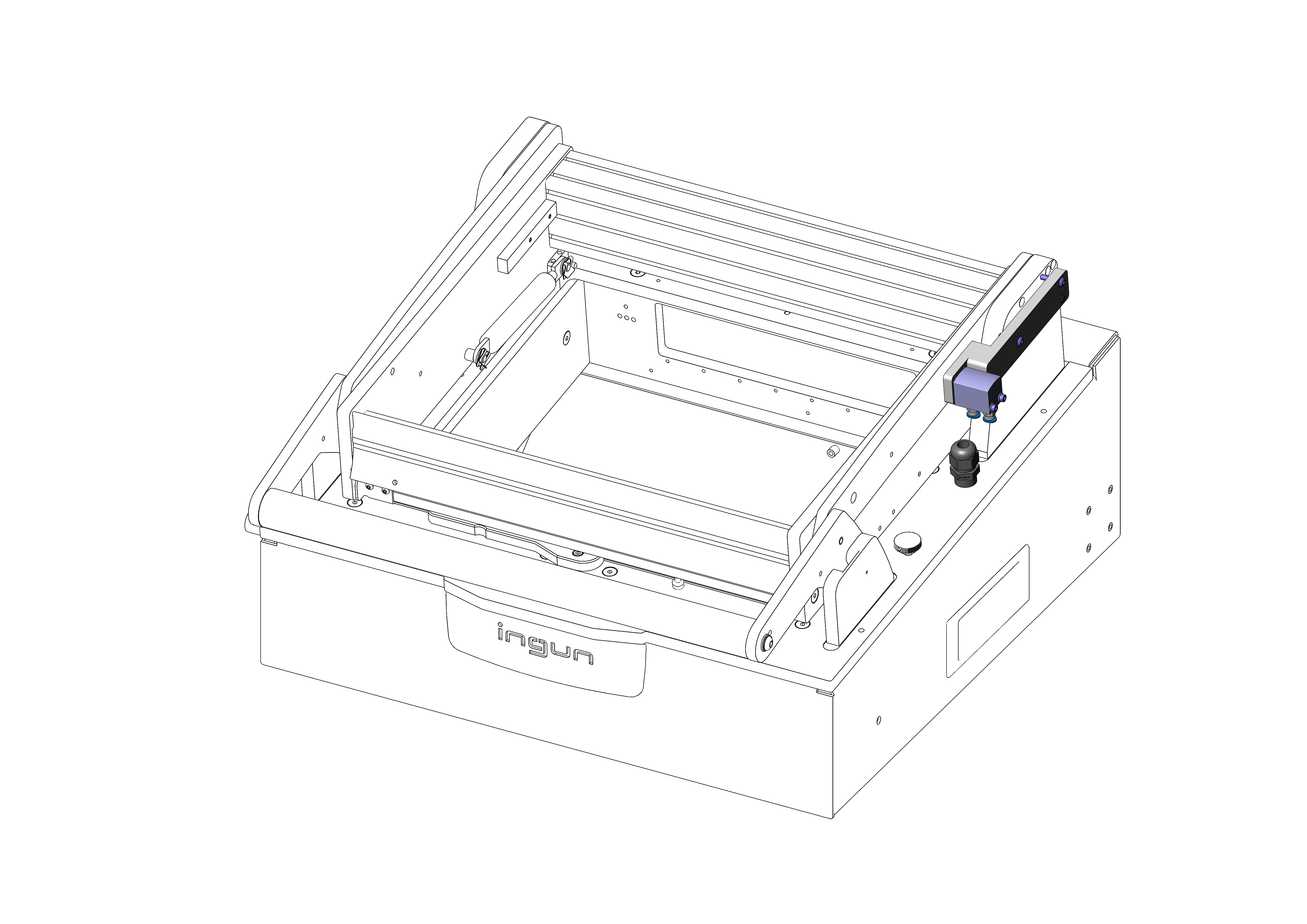

- Manual test fixtures (MA): MA xxxxT
- Accessories: ATE MAxxxx
- Manual test fixtures (MA): MA xxxx
- Accessories: ATE VAxxxx
General data
- Max. temperature: 60 °C [140 °F]
- Weight: 0.3 kg [.661 lbs]
- Scope of delivery: Unassembled
- Type: NDH-Geschlossen-Verriegelung
- Accessory type: Additional function
- Product group: Locking units
- Version: Pneumatic
- Height: 31 mm [1.22 in]
- Min. temperature: 10 °C [50 °F]
- Width: 40 mm [1.57 in]
- RoHS-compliant: Yes
- Series: FB-MAxxxx
Technical data
- Compressed air connection: 1-10 bar
- Length: 147 mm [5.78 in]
- Outer dimensionS (WxDxH): 40 x 147 x 31 mm [1.57 x 5.78 x 1.22 in]
- Connection: QSM-M5-4
- Stroke: 10 mm [.393 in]
- Installation: Thread M4
