Product information "FB-SIS-BM-MAxx14"

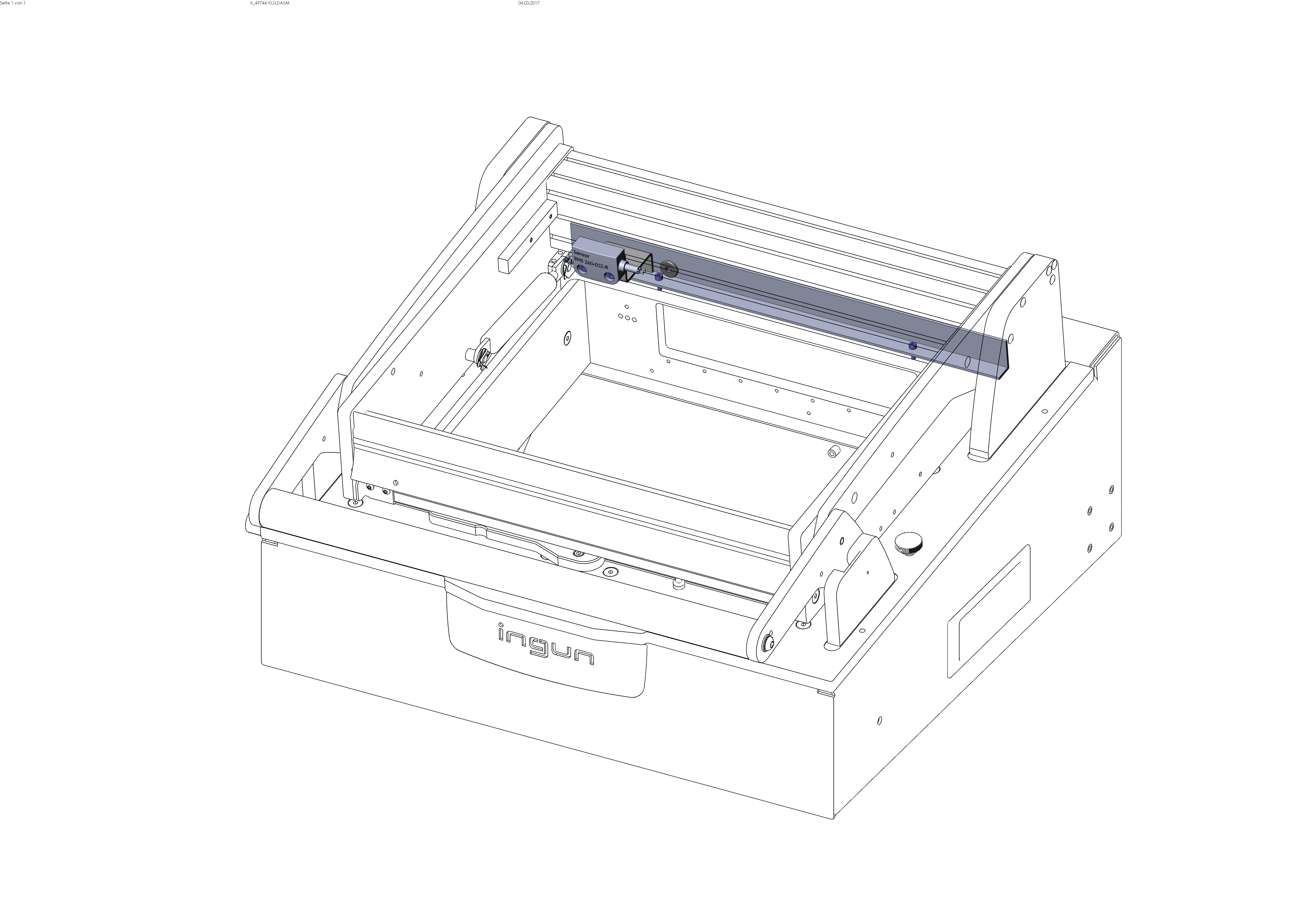

- Safety switch for locking the closed pressure frames
- Easy installation on MA xxxx basic unit
- Cable cross-section 0.25 mm²
- Actuator (part 41552) is available seperately
| Accessory type: | Additional function |
|---|---|
| Cable length: | 1 mm [.039 in] |
| Connection: | Cable |
| Exchangeable kits version: | No limitations |
| Height: | 51 mm [2 in] |
| Length: | 606 mm [23.8 in] |
| Manual test fixtures (MA): | MA xx14 |
| Material: | PVC (cable) |
| Max. temperature: | 70 °C [158 °F] |
| Min. temperature: | -25 °C [-13 °F] |
| Outer dimensionS (WxDxH): | 69 x 606 x 51 mm [2.71 x 23.8 x 2 in] |
| Product group: | Safety switch / actuator |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Safety switch |
| Version: | Magnetic |
| Width: | 69 mm [2.71 in] |
Login
Product Details
- Safety switch for locking the closed pressure frames
- Easy installation on MA xxxx basic unit
- Cable cross-section 0.25 mm²
- Actuator (part 41552) is available seperately
Other products in this series:
Technical data
Technical data
- Outer dimensionS (WxDxH): 69 x 606 x 51 mm [2.71 x 23.8 x 2 in]
- Connection: Cable
- Length: 606 mm [23.8 in]
- Cable length: 1 mm [.039 in]
General data
- Version: Magnetic
- Scope of delivery: Unassembled
- Height: 51 mm [2 in]
- Accessory type: Additional function
- Max. temperature: 70 °C [158 °F]
- Material: PVC (cable)
- Min. temperature: -25 °C [-13 °F]
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Width: 69 mm [2.71 in]
- Product group: Safety switch / actuator
- Type: Safety switch
Compatible with
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA xx14
