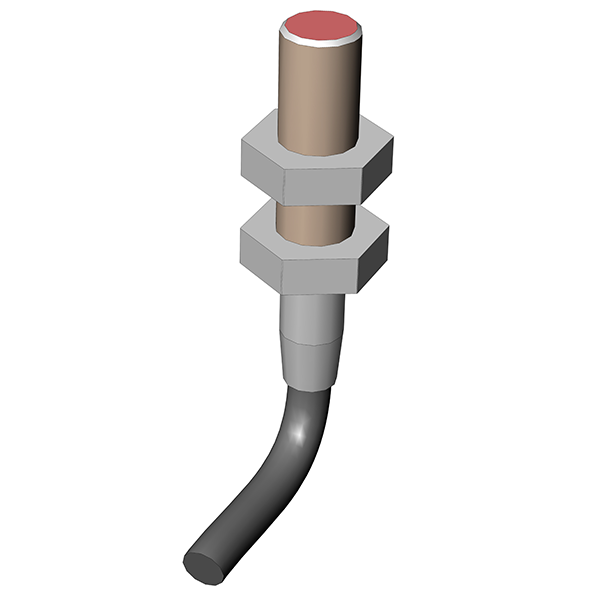

Product information "FB-ABF-G-I-MA2xxx"
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times

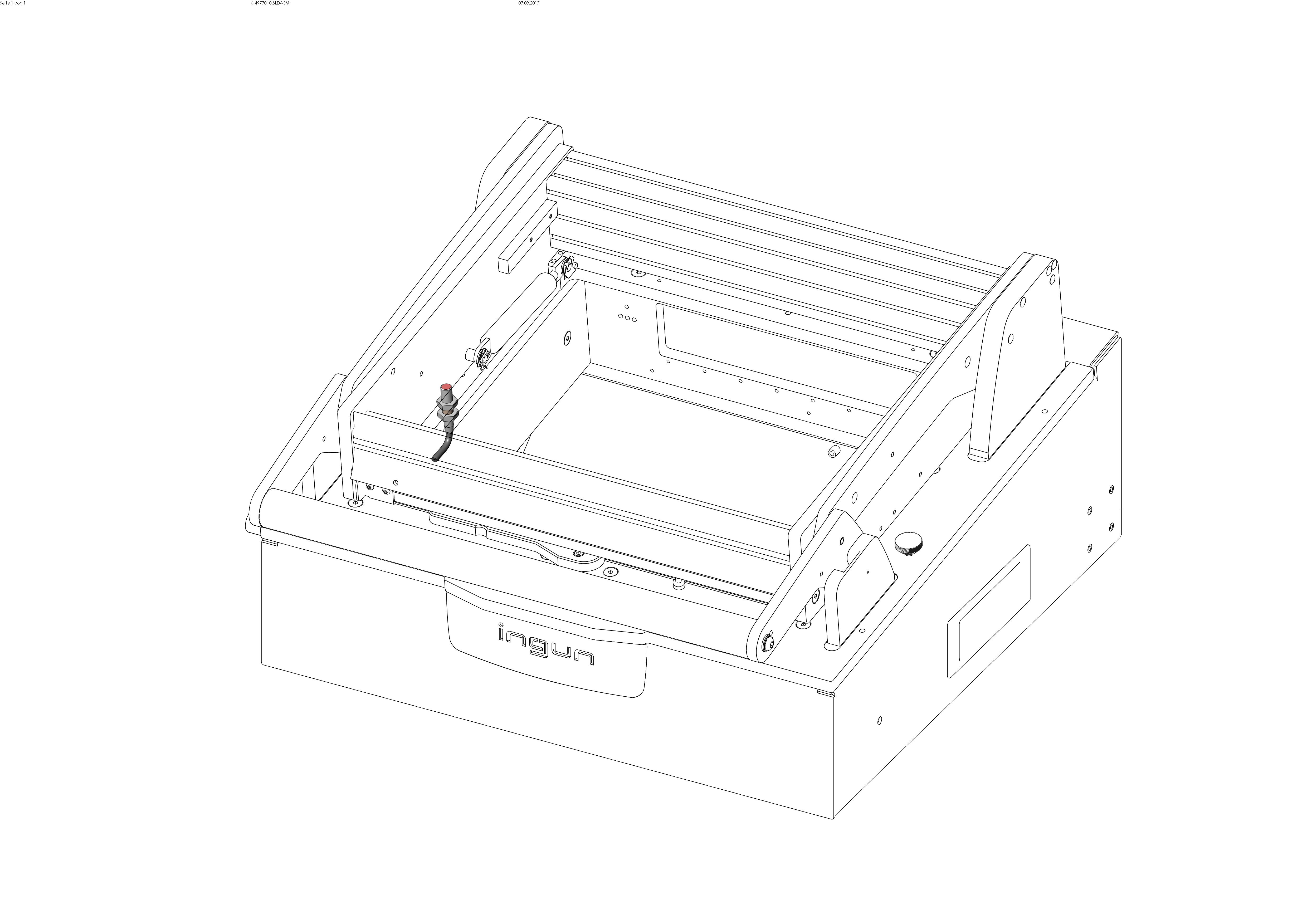

- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
| Accessory type: | Additional function |
|---|---|
| Diameter: | 8 mm [.314 in] |
| Exchangeable kits version: | No limitations |
| For dual-stage contacting: | No |
| Installation: | Thread M8 x 1 |
| Length: | 40 mm [1.57 in] |
| Product group: | Detection units |
| RoHS-compliant: | Yes |
| Series: | FB-MAxxxx |
| Type: | Inductive sensor |
| Version: | Contacted |
Login
Product Details
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
Other products in this series:
Technical data
Technical data
- Installation: Thread M8 x 1
- Diameter: 8 mm [.314 in]
- Length: 40 mm [1.57 in]
Compatible with
- Exchangeable kits version: No limitations
- For dual-stage contacting: No
General data
- Accessory type: Additional function
- Type: Inductive sensor
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Product group: Detection units
- Version: Contacted
