Product information "FB-ABF-G-S-MA2xxx"
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| For dual-stage contacting: | No |
| Height: | 37 mm [1.45 in] |
| Length: | 20 mm [.787 in] |

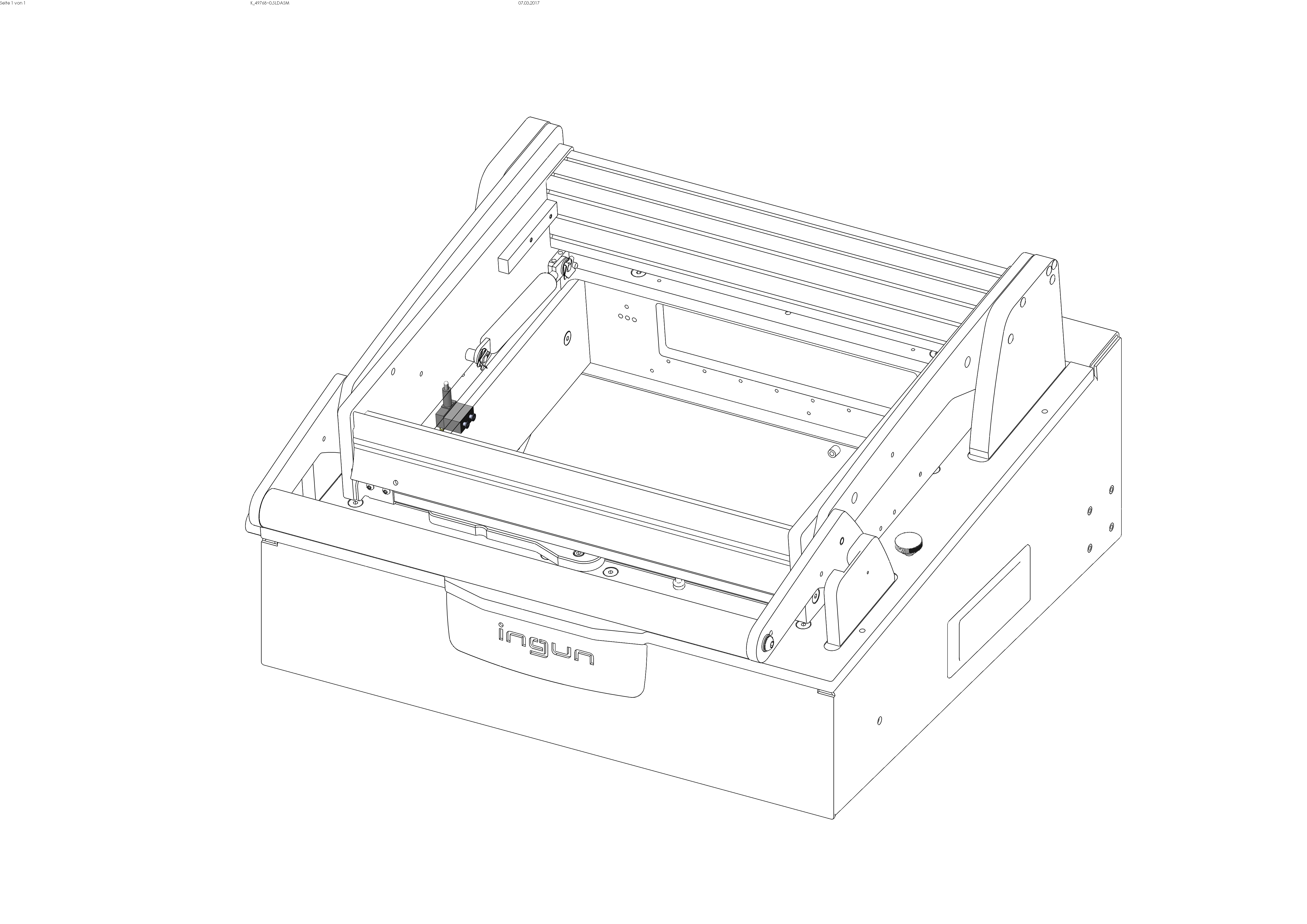

| Manual test fixtures (MA): | MA 2x09, MA xx11, MA xx12, MA xx13, MA xx13T, MA xx14 |
| Outer dimensionS (WxDxH): | 22 x 20 x 37 mm [.866 x .787 x 1.45 in] |
| Product group: | Detection units |
| RoHS-compliant: | Yes |
| Series: | FB-MAxxxx |

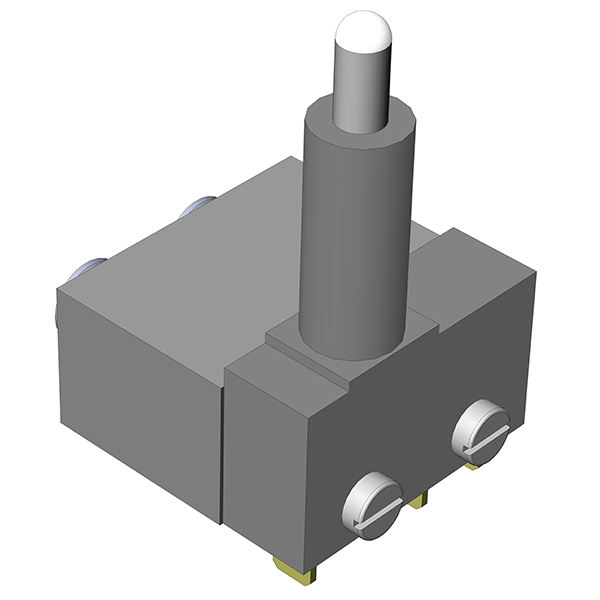

| Type: | Micro switch |
| Version: | Presssure frame (NDH) closed |
| Width: | 22 mm [.866 in] |
Login
Product Details
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA xx11
- Manual test fixtures (MA): MA xx13
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA xx12
- Manual test fixtures (MA): MA xx13T
- For dual-stage contacting: No
- Manual test fixtures (MA): MA xx14
- Manual test fixtures (MA): MA 2x09
General data
- Type: Micro switch
- Width: 22 mm [.866 in]
- Version: Presssure frame (NDH) closed
- Height: 37 mm [1.45 in]
- Accessory type: Additional function
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Product group: Detection units
Technical data
- Outer dimensionS (WxDxH): 22 x 20 x 37 mm [.866 x .787 x 1.45 in]
- Length: 20 mm [.787 in]
