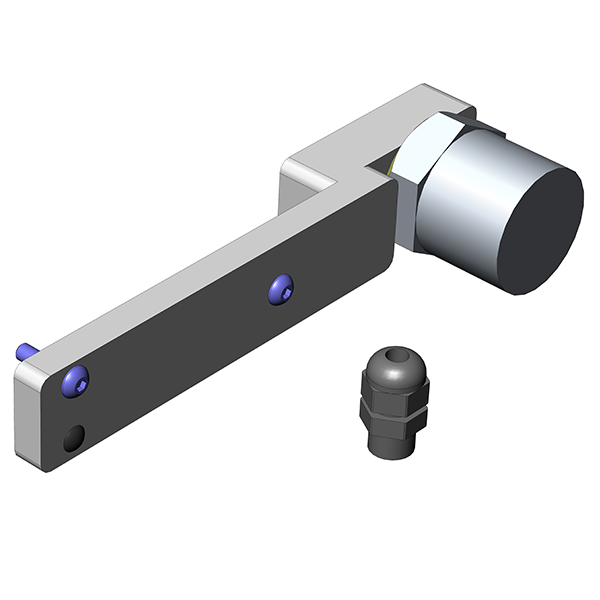

Product information "FB-VER-G-ESG-MAxxxx"
- Secure locking of closed pressure frame during contacting
| Accessories: | ATE MAxxxx, ATE VAxxxx |
|---|---|
| Accessory type: | Additional function |
| Height: | 37 mm [1.45 in] |
| Installation: | Thread M4 |
| Length: | 153 mm [6.02 in] |
| Manual test fixtures (MA): | MA xxxx, MA xxxxT |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 24 VDC (11 W) |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 50 x 153 x 37 mm [1.96 x 6.02 x 1.45 in] |
| Product group: | Locking units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Must be installed upon delivery |
| Series: | FB-MAxxxx |
| Stroke: | 5 mm [.196 in] |
| Type: | NDH-Geschlossen-Verriegelung |
| Version: | Elektrisch geschlossen (NC) |
| Weight: | 0.3 kg [.661 lbs] |
| Width: | 50 mm [1.96 in] |
Login
Product Details
- Secure locking of closed pressure frame during contacting
Other products in this series:
Technical data
General data
- Width: 50 mm [1.96 in]
- Max. temperature: 60 °C [140 °F]
- Weight: 0.3 kg [.661 lbs]
- Height: 37 mm [1.45 in]
- Type: NDH-Geschlossen-Verriegelung
- Accessory type: Additional function
- Version: Elektrisch geschlossen (NC)
- Product group: Locking units
- Min. temperature: 10 °C [50 °F]
- Scope of delivery: Must be installed upon delivery
- RoHS-compliant: Yes
- Series: FB-MAxxxx

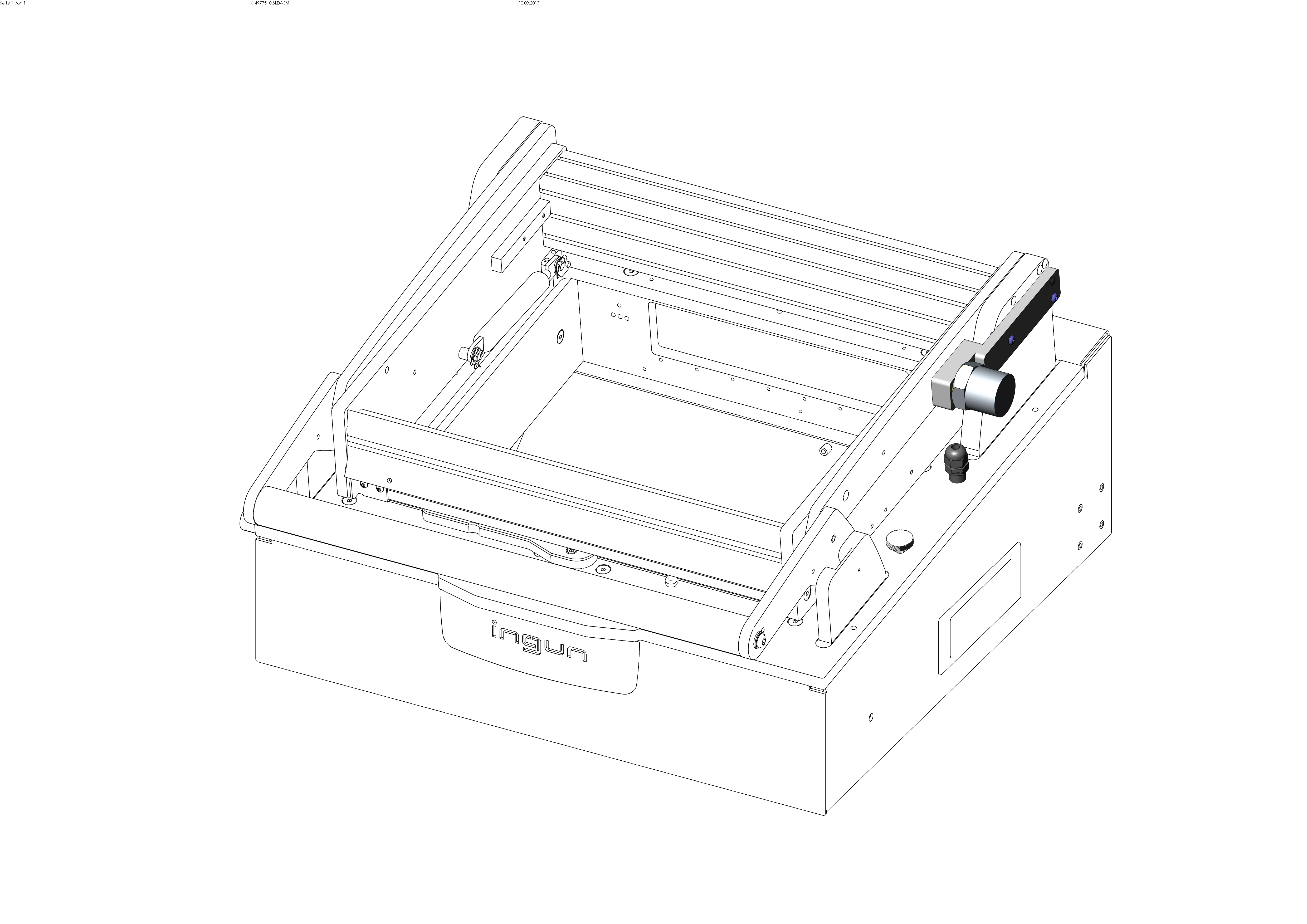

Compatible with
- Manual test fixtures (MA): MA xxxxT
- Accessories: ATE MAxxxx
- Manual test fixtures (MA): MA xxxx
- Accessories: ATE VAxxxx
Technical data
- Outer dimensionS (WxDxH): 50 x 153 x 37 mm [1.96 x 6.02 x 1.45 in]
- Installation: Thread M4
- Length: 153 mm [6.02 in]
- Max. voltage: 24 VDC (11 W)
- Stroke: 5 mm [.196 in]
