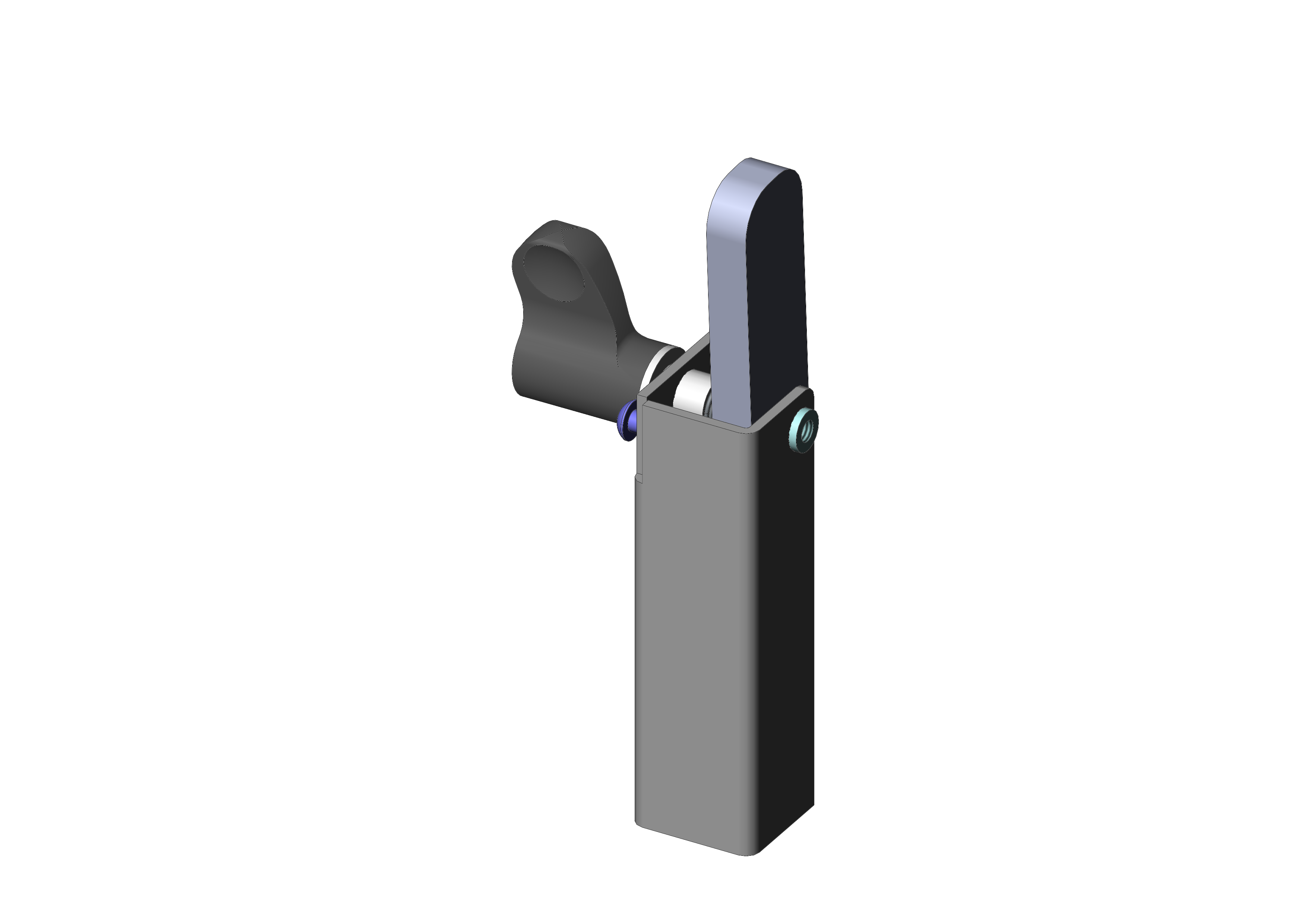

Product information "FB-KSG-MAxxxx"
- Safety of operating staff ensured during maintenance operations

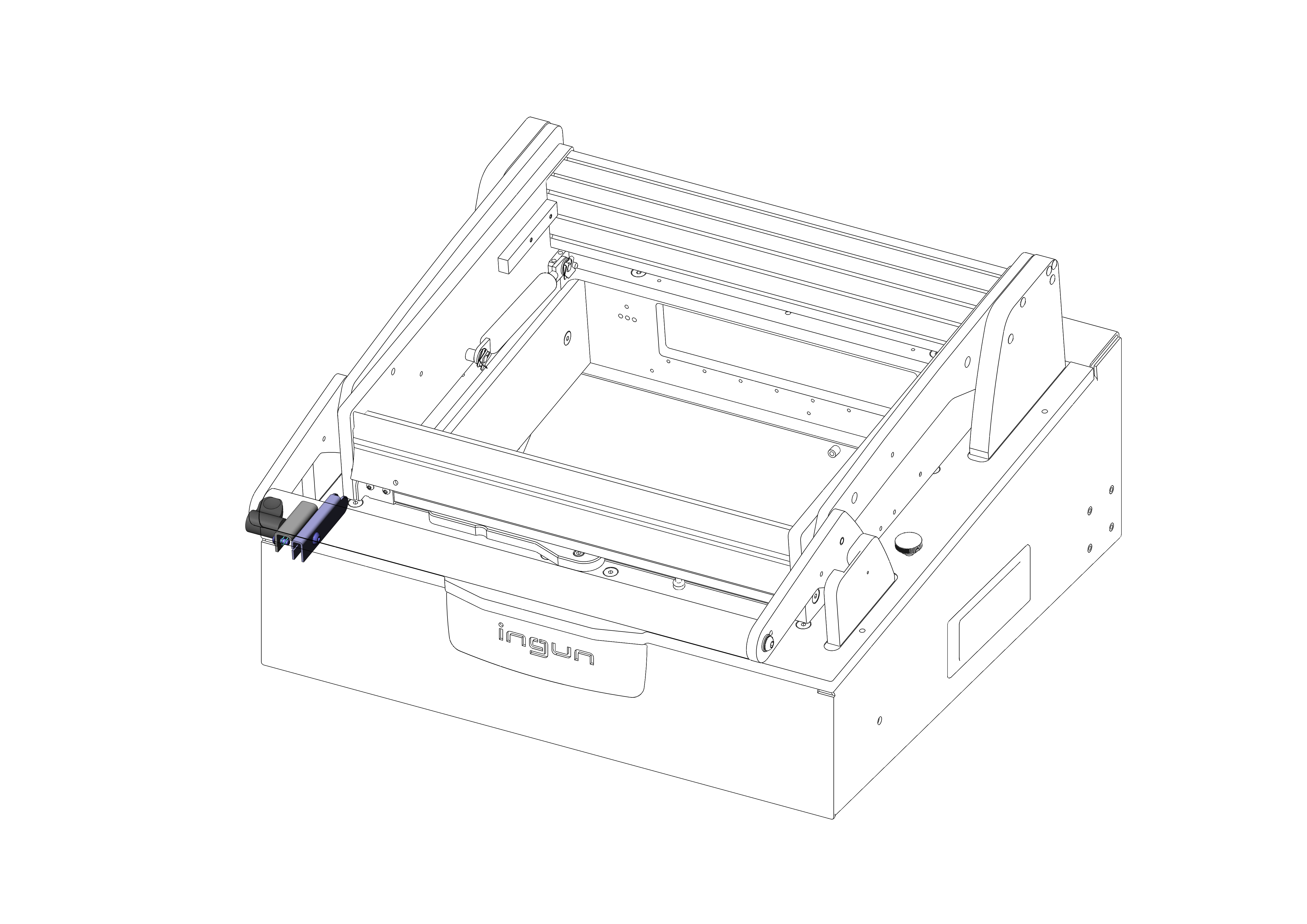

- Installed as standard on xx12, xx13, xx13T, and xx14 test fixtures
- Can be upgraded to double-sided anti-pinch protection with optional anti-pinch protection extension
- Quick, easy installation with minimum rework on housing required
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| Height: | 130 mm [5.11 in] |
| Length: | 36 mm [1.41 in] |
| Manual test fixtures (MA): | MA xxxx, MA xxxxT |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 57.7 x 36 x 130 mm [2.27 x 1.41 x 5.11 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Anti-pinch protection |
| Version: | Set |
| Weight: | 0.04 kg [.088 lbs] |
| Width: | 57.7 mm [2.27 in] |
Login
Product Details
- Safety of operating staff ensured during maintenance operations
- Installed as standard on xx12, xx13, xx13T, and xx14 test fixtures
- Can be upgraded to double-sided anti-pinch protection with optional anti-pinch protection extension
- Quick, easy installation with minimum rework on housing required
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA xxxxT
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA xxxx
General data
- Max. temperature: 60 °C [140 °F]
- Weight: 0.04 kg [.088 lbs]
- Height: 130 mm [5.11 in]
- Scope of delivery: Unassembled
- Accessory type: Additional function
- Width: 57.7 mm [2.27 in]
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Type: Anti-pinch protection
- Version: Set
Technical data
- Outer dimensionS (WxDxH): 57.7 x 36 x 130 mm [2.27 x 1.41 x 5.11 in]
- Length: 36 mm [1.41 in]
