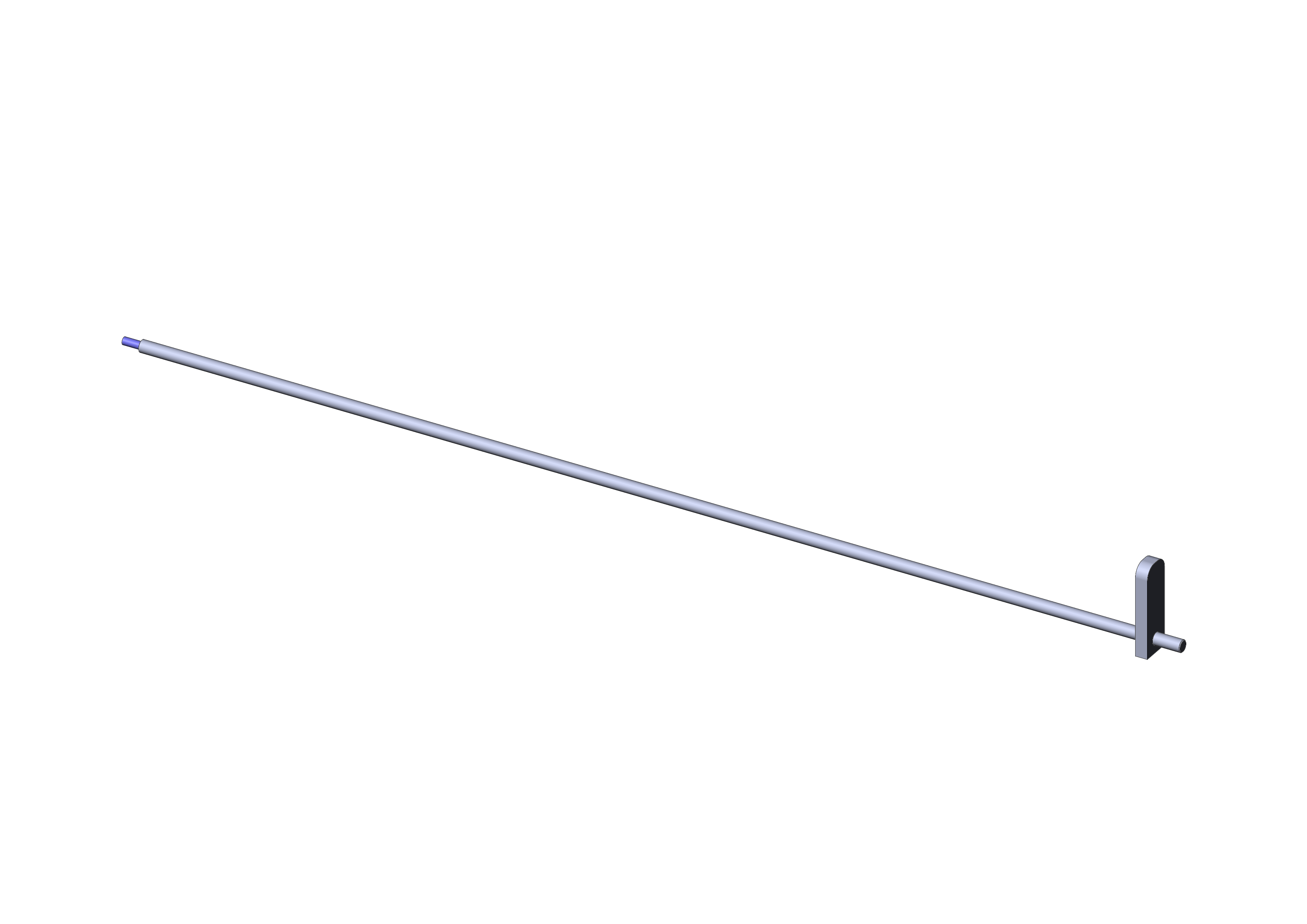

Product information "FB-KSG-ER-MAxx14"
- Functional unit for individually configurable anti-pinch protection upgrade
- Increased safety for operators during maintenance operations
- Warping of housing in case of incorrect usage is avoided as much as possible
- Quick, easy installation with minimum rework on housing required
| Accessory type: | Additional function |
|---|---|
| Diameter: | 8 mm [.314 in] |
| Height: | 60 mm [2.36 in] |
| Installation: | Thread M5 |
| Length: | 20 mm [.787 in] |
| Manual test fixtures (MA): | MA xx14 |
| Material: | 3,32 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 692 x 20 x 60 mm [27.2 x .787 x 2.36 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxxx |
| Type: | Anti-pinch protection extention |
| Version: | Set |
| Weight: | 0.12 kg [.264 lbs] |
| Width: | 692 mm [27.2 in] |
Login
Product Details
- Functional unit for individually configurable anti-pinch protection upgrade
- Increased safety for operators during maintenance operations
- Warping of housing in case of incorrect usage is avoided as much as possible
- Quick, easy installation with minimum rework on housing required
Other products in this series:
Technical data
General data
- Max. temperature: 60 °C [140 °F]
- Weight: 0.12 kg [.264 lbs]
- Scope of delivery: Unassembled
- Accessory type: Additional function
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- Material: 3,32
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Height: 60 mm [2.36 in]
- Version: Set
- Type: Anti-pinch protection extention
- Width: 692 mm [27.2 in]
Technical data
- Outer dimensionS (WxDxH): 692 x 20 x 60 mm [27.2 x .787 x 2.36 in]
- Length: 20 mm [.787 in]
- Diameter: 8 mm [.314 in]
- Installation: Thread M5
Compatible with
- Manual test fixtures (MA): MA xx14
