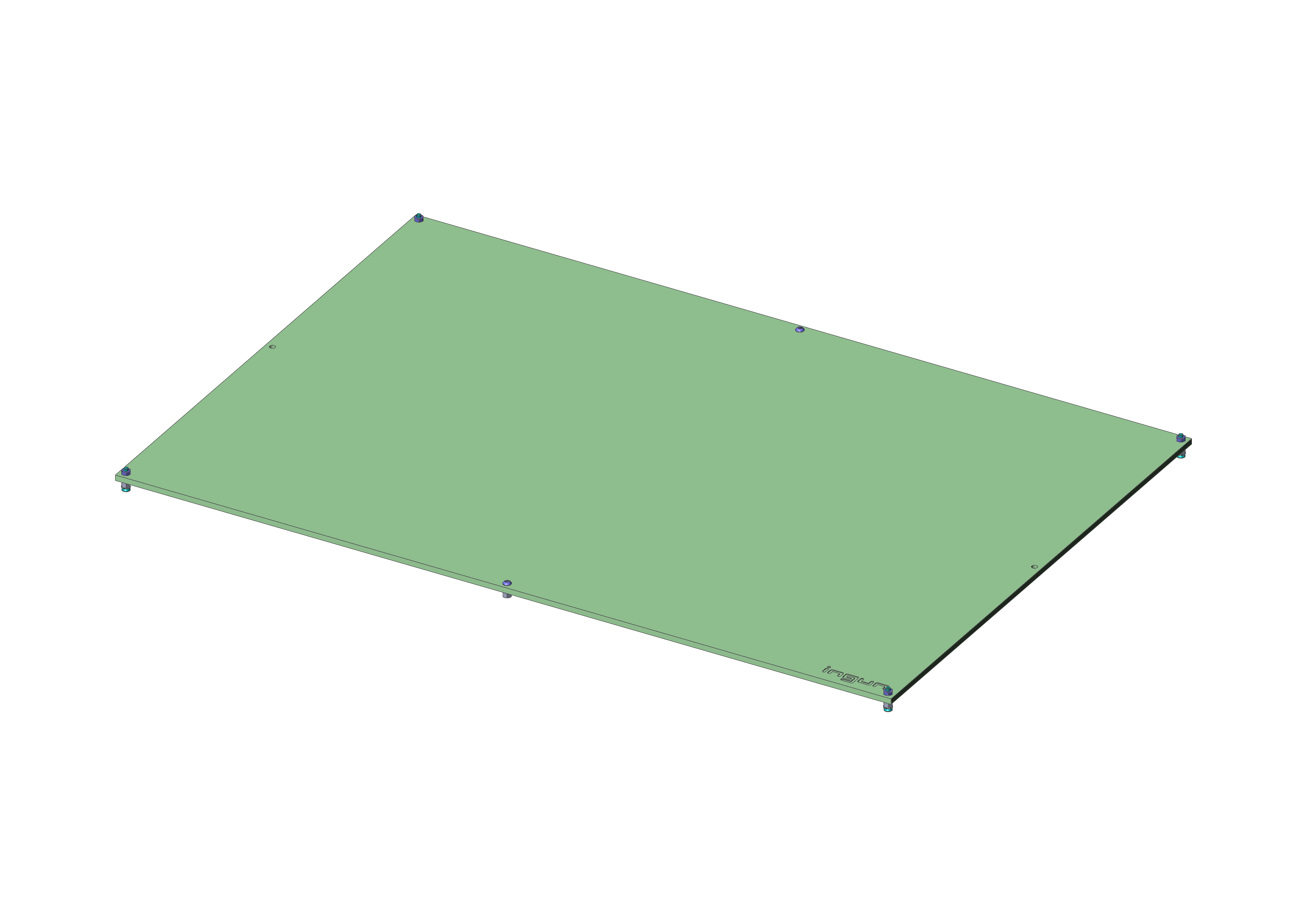

Product information "FB-MPZ-MAxx14"
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
| Accessory type: | Additional function |
|---|---|
| Height: | 16 mm [.629 in] |
| Length: | 566 mm [22.2 in] |
| Manual test fixtures (MA): | MA xx14 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 566 x 380 x 16 mm [22.2 x 14.9 x .629 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Incl. installation accessories |
| Series: | FB-MAxxxx |
| Type: | FR4, 4 mm |
| Version: | Mounting plate for additional electronics |
| Width: | 380 mm [14.9 in] |
Login
Product Details
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
Other products in this series:
Technical data
General data
- Height: 16 mm [.629 in]
- Max. temperature: 60 °C [140 °F]
- Width: 380 mm [14.9 in]
- Scope of delivery: Incl. installation accessories
- Accessory type: Additional function
- Version: Mounting plate for additional electronics
- Type: FR4, 4 mm
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- RoHS-compliant: Yes
- Series: FB-MAxxxx
Technical data
- Outer dimensionS (WxDxH): 566 x 380 x 16 mm [22.2 x 14.9 x .629 in]
- Length: 566 mm [22.2 in]
Compatible with
- Manual test fixtures (MA): MA xx14
