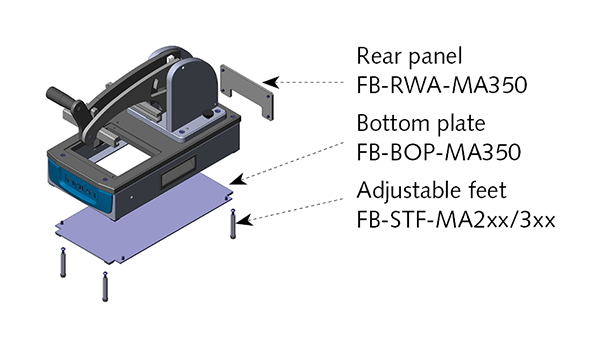

Product information "FB-BOP-MA350"
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| Height: | 5.2 mm [.204 in] |
| Installation: | Screw, M4 |
| Length: | 312 mm [12.2 in] |
| Manual test fixtures (MA): | MA 350 |
| Material: | 3.3535, RAL 9006 |
| Outer dimensionS (WxDxH): | 164 x 312 x 5.2 mm [6.45 x 12.2 x .204 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxx |
| Version: | Base plate |
| Width: | 164 mm [6.45 in] |
Login
Product Details
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
Other products in this series:
Technical data
General data
- Scope of delivery: Unassembled
- Series: FB-MAxxx
- Version: Base plate
- Height: 5.2 mm [.204 in]
- Accessory type: Additional function
- Product group: Functional units
- RoHS-compliant: Yes
- Width: 164 mm [6.45 in]
- Material: 3.3535, RAL 9006
Technical data
- Installation: Screw, M4
- Outer dimensionS (WxDxH): 164 x 312 x 5.2 mm [6.45 x 12.2 x .204 in]
- Length: 312 mm [12.2 in]
Compatible with
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA 350
