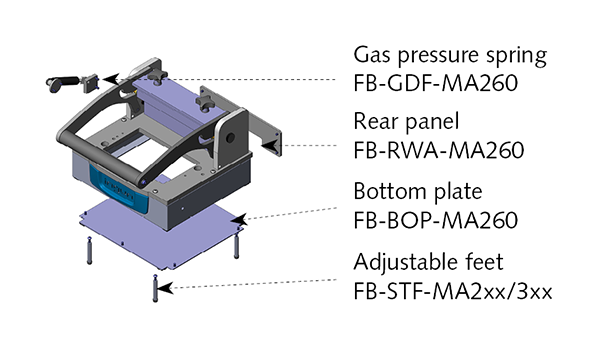

Product information "FB-GDF-MA260"
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No limitations |
| Force: | 50 N [179 ozf] |
| Gas pressure spring length, home position: | 105 mm [4.13 in] |
| Height: | 86.1 mm [3.38 in] |
| Length: | 139 mm [5.47 in] |
| Manual test fixtures (MA): | MA 260 |
| Outer dimensionS (WxDxH): | 28.2 x 139 x 86.1 mm [1.11 x 5.47 x 3.38 in] |
| Plunger length, home position: | 49 mm [1.92 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | FB-MAxxx |
| Stroke: | 40 mm [1.57 in] |
| Type: | Pressure plate unit locking clip (open) |
| Version: | Gas spring |
| Width: | 28.2 mm [1.11 in] |
Login
Product Details
- Upgrade kits to make operation easier, increase the testing reliability, and to reduce handling times
- Available for manual test fixtures and exchangeable kits
- Wide range of varying functions
Other products in this series:
Technical data
General data
- Scope of delivery: Unassembled
- Series: FB-MAxxx
- Version: Gas spring
- Accessory type: Additional function
- Product group: Functional units
- RoHS-compliant: Yes
- Type: Pressure plate unit locking clip (open)
- Height: 86.1 mm [3.38 in]
- Width: 28.2 mm [1.11 in]
Technical data
- Gas pressure spring length, home position: 105 mm [4.13 in]
- Length: 139 mm [5.47 in]
- Force: 50 N [179 ozf]
- Plunger length, home position: 49 mm [1.92 in]
- Outer dimensionS (WxDxH): 28.2 x 139 x 86.1 mm [1.11 x 5.47 x 3.38 in]
- Stroke: 40 mm [1.57 in]
Compatible with
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA 260
