Product information "FB-VSL-KIT-KTE-ATSMA15"

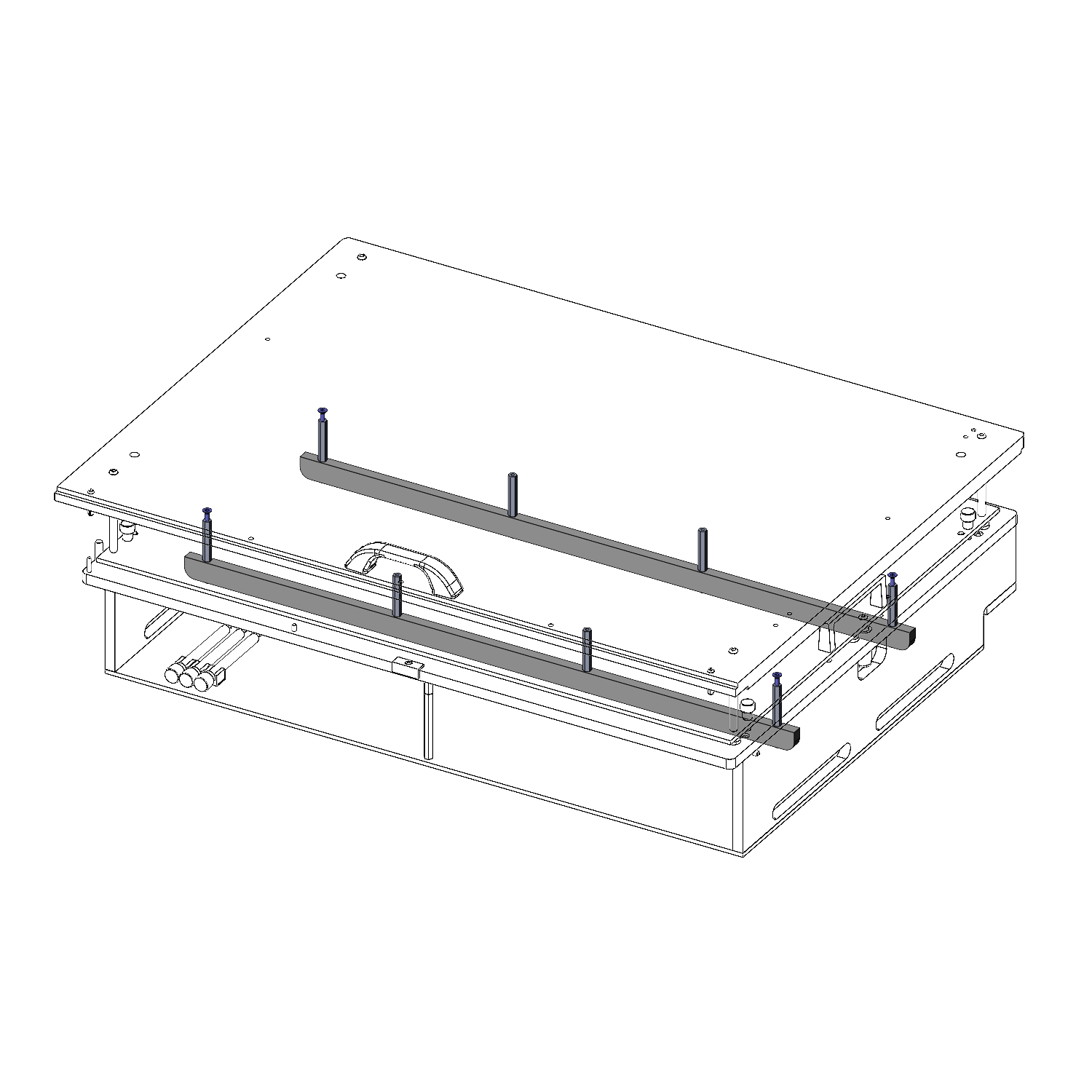

- To be installed under the probe plate (KTP)
- Recommended for customisations with more than 300 test probes or a force greater than 500 N
- The scope of delivery includes one strip with fixing material in each case
| Accessory type: | Additional function |
|---|---|
| Exchangeable kits version: | No RF |
| Height: | 60 mm [2.36 in] |
| Installation: | Thread M4 |
| Length: | 610 mm [24 in] |
| MA exchangeable kits (ATS MA): | ATS MA15 |
| Material: | 1.0037, galvanised |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 10 x 610 x 60 mm [.393 x 24 x 2.36 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | 1 x reinforcement bar |
| Series: | FB-ATSMAxx |
| Type: | Reinforcement bar for probe plate (KTP) |
| Version: | Set including installation accessories |
| Weight: | 1 kg [2.2 lbs] |
| Width: | 10 mm [.393 in] |
Login
Product Details
- To be installed under the probe plate (KTP)
- Recommended for customisations with more than 300 test probes or a force greater than 500 N
- The scope of delivery includes one strip with fixing material in each case
Other products in this series:
Technical data
General data
- Product group: Functional units
- Series: FB-ATSMAxx
- Type: Reinforcement bar for probe plate (KTP)
- Version: Set including installation accessories
- Accessory type: Additional function
- Scope of delivery: 1 x reinforcement bar
- Material: 1.0037, galvanised
- Width: 10 mm [.393 in]
- Height: 60 mm [2.36 in]
- Weight: 1 kg [2.2 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Exchangeable kits version: No RF
- MA exchangeable kits (ATS MA): ATS MA15
Technical data
- Installation: Thread M4
- Length: 610 mm [24 in]
- Outer dimensionS (WxDxH): 10 x 610 x 60 mm [.393 x 24 x 2.36 in]
