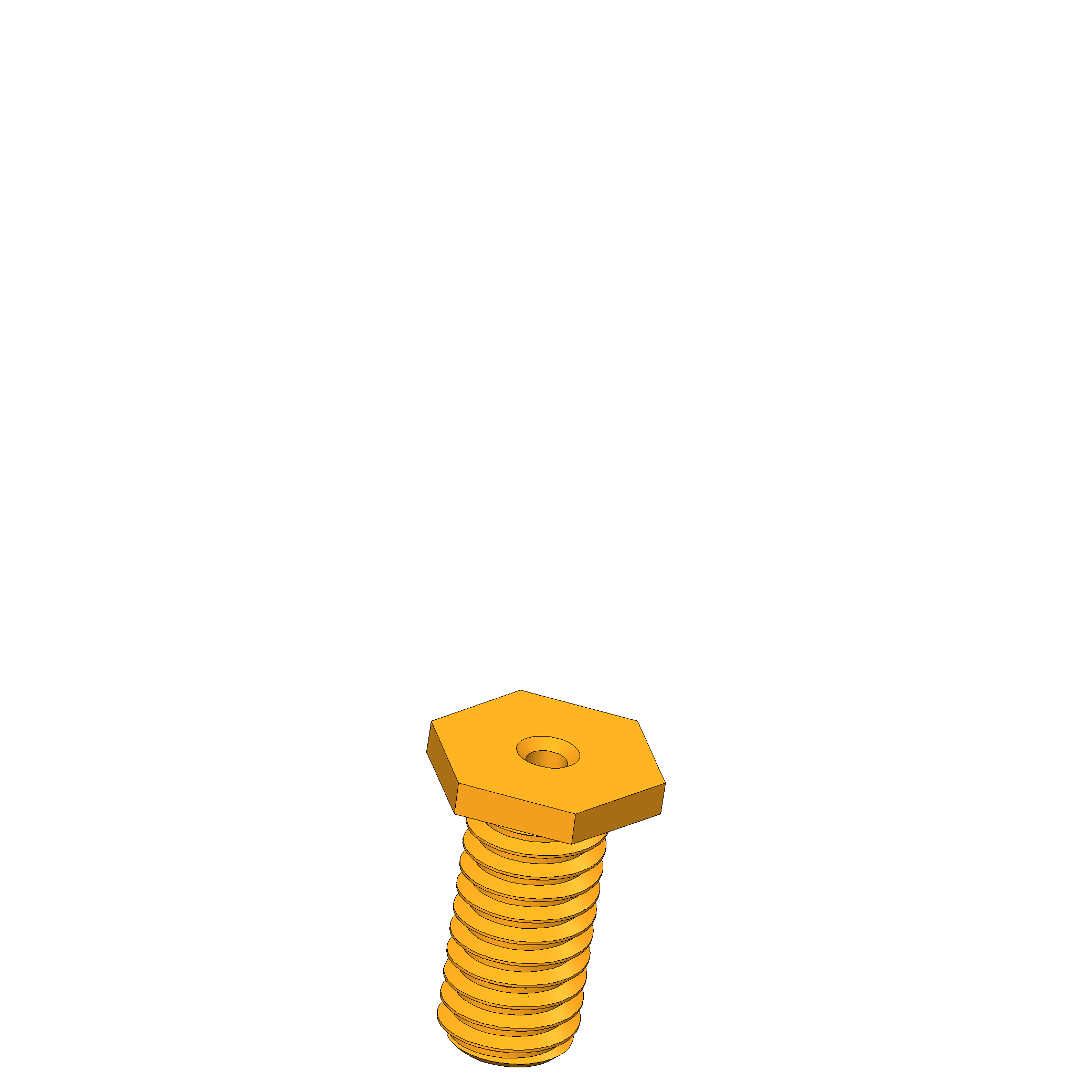

Product information "EKT-MS-M4-09,3-SW06-B"
- Earth screw for safe electrical connection
- Ideally designed for internal ATS interface
| Accessory type: | Customising accessories |
|---|---|
| Exchangeable kits version: | No limitations |
| Installation: | Thread M4 |
| Length: | 9.3 mm [.366 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx |
| Material: | 2.0402 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | EKT |
| Type: | ESD-Masseschraube |
| Version: | KTE ATSMAxx |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product details
- Earth screw for safe electrical connection
- Ideally designed for internal ATS interface
Other products in this series:
Technical data
General data
- Product group: Electric accessory
- Series: EKT
- Type: ESD-Masseschraube
- Version: KTE ATSMAxx
- Accessory type: Customising accessories
- Scope of delivery: Unassembled
- Material: 2.0402
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Exchangeable kits version: No limitations
- MA exchangeable kits (ATS MA): ATS MAxx
Technical data

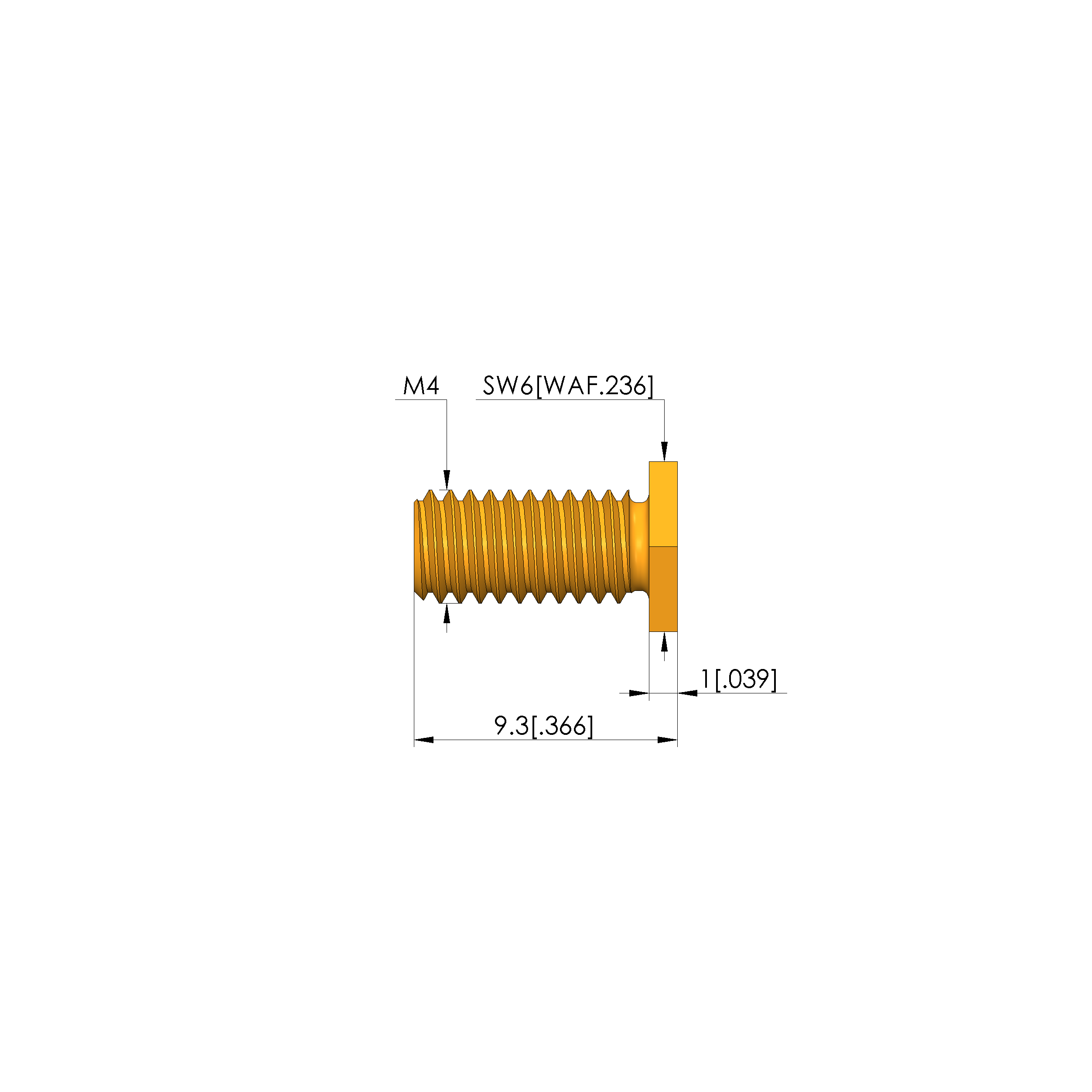

- Installation: Thread M4
- Length: 9.3 mm [.366 in]
