Product information "EKT-F-015A-L-GR228x"
| Accessories: | SST-GR228x-xx/xx |
|---|---|
| Accessory type: | Customising accessories |
| Connection: | Solder connection D = 1.25 mm |
| Installation: | Plugged |

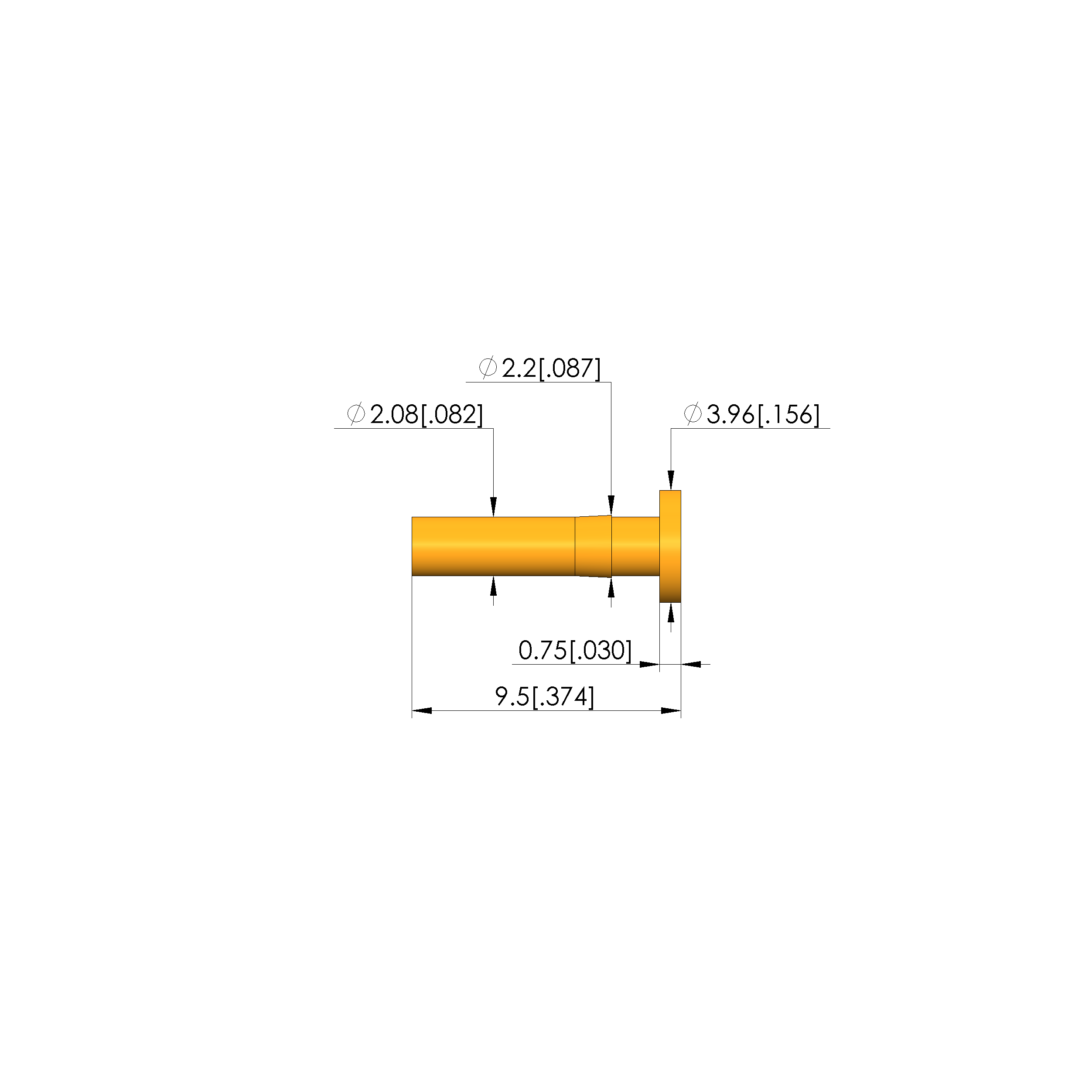

| Length: | 9.5 mm [.374 in] |
| Material: | Bronze, gold-plated |
| Max. current: | 15 A |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Series: | EKT |
| Type: | Power contact terminal |
| Version: | Interface plate |
| Weight: | 0.01 kg [.022 lbs] |
Login
Other products in this series:
Technical data
General data
- Product group: Electric accessory
- Series: EKT
- Type: Power contact terminal
- Version: Interface plate
- Accessory type: Customising accessories
- Material: Bronze, gold-plated
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Connection: Solder connection D = 1.25 mm
- Max. current: 15 A
- Installation: Plugged
- Length: 9.5 mm [.374 in]
Compatible with
- Accessories: SST-GR228x-xx/xx
