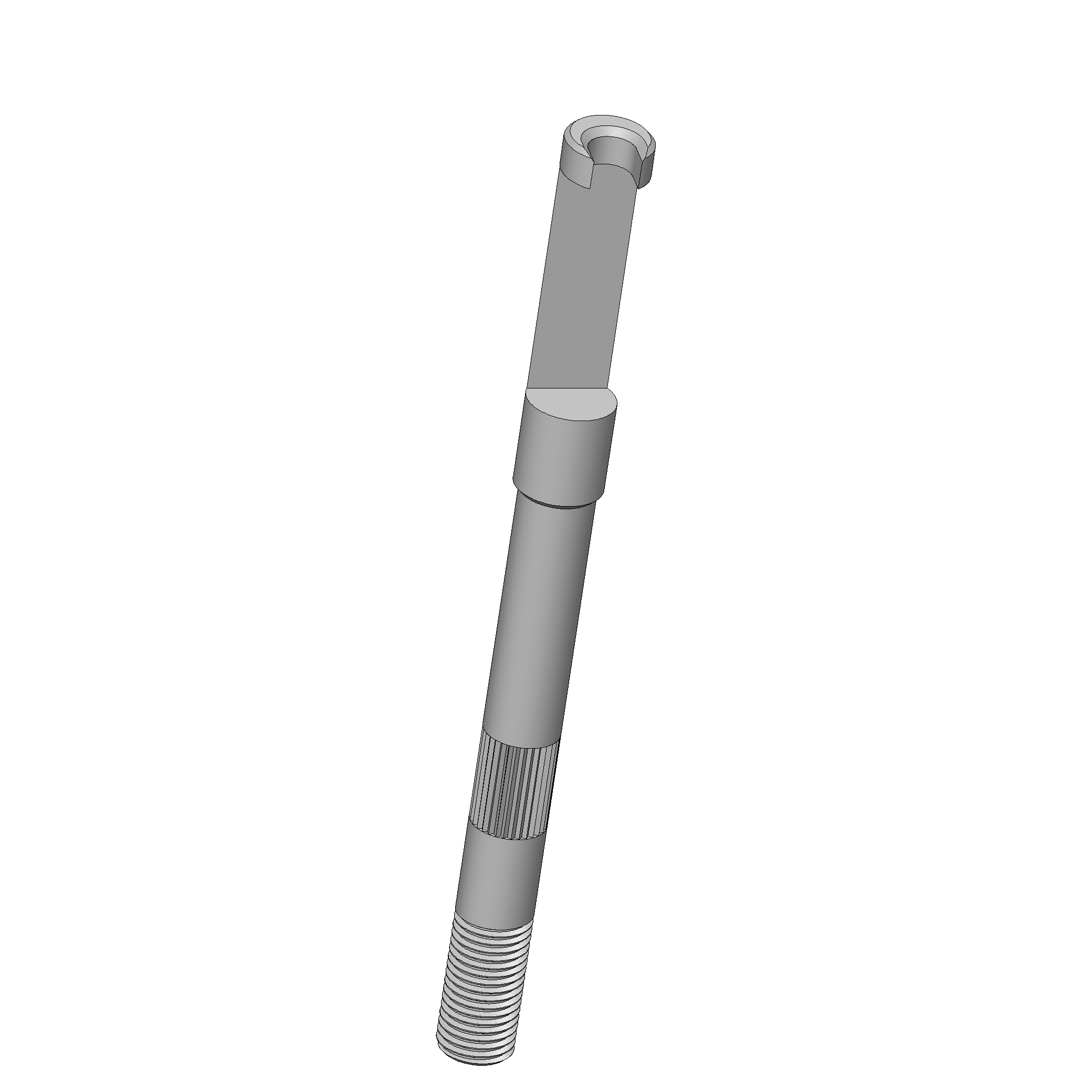

Product information "E-SW-ZW-GKS-103"
| Compatible test probe(s) / receptacle(s): | 504 BCP-113, BCP-120, GKS-103, GKS-113, GKS-503, GKS-913, HSS-120, HSS-520, SKS-415, SKS-425 |
|---|---|
| Max. tip diameter: | 2.5 mm [.098 in] |
| Min. tip diameter: | 0 mm [0 in] |
| Product group: | Uses (E) |
| RoHS-compliant: | Yes |
| Series: | E-SW-GKS |
| Test probe installation type: | Plug-in |
| Tool for receptacle (KS): | No |
| Tool for test probe (GKS): | Yes |
Login
Other products in this series:
Technical data
General data
- Product group: Uses (E)
- Series: E-SW-GKS
- RoHS-compliant: Yes
- Tool for test probe (GKS): Yes
- Min. tip diameter: 0 mm [0 in]
- Max. tip diameter: 2.5 mm [.098 in]
- Compatible test probe(s) / receptacle(s): GKS-103
- Compatible test probe(s) / receptacle(s): HSS-520
- Compatible test probe(s) / receptacle(s): HSS-120
- Compatible test probe(s) / receptacle(s): GKS-113
- Compatible test probe(s) / receptacle(s): BCP-120
- Tool for receptacle (KS): No
- Compatible test probe(s) / receptacle(s): SKS-415
- Compatible test probe(s) / receptacle(s): SKS-425
- Compatible test probe(s) / receptacle(s): 504 BCP-113
- Compatible test probe(s) / receptacle(s): GKS-913
- Compatible test probe(s) / receptacle(s): GKS-503
- Test probe installation type: Plug-in
