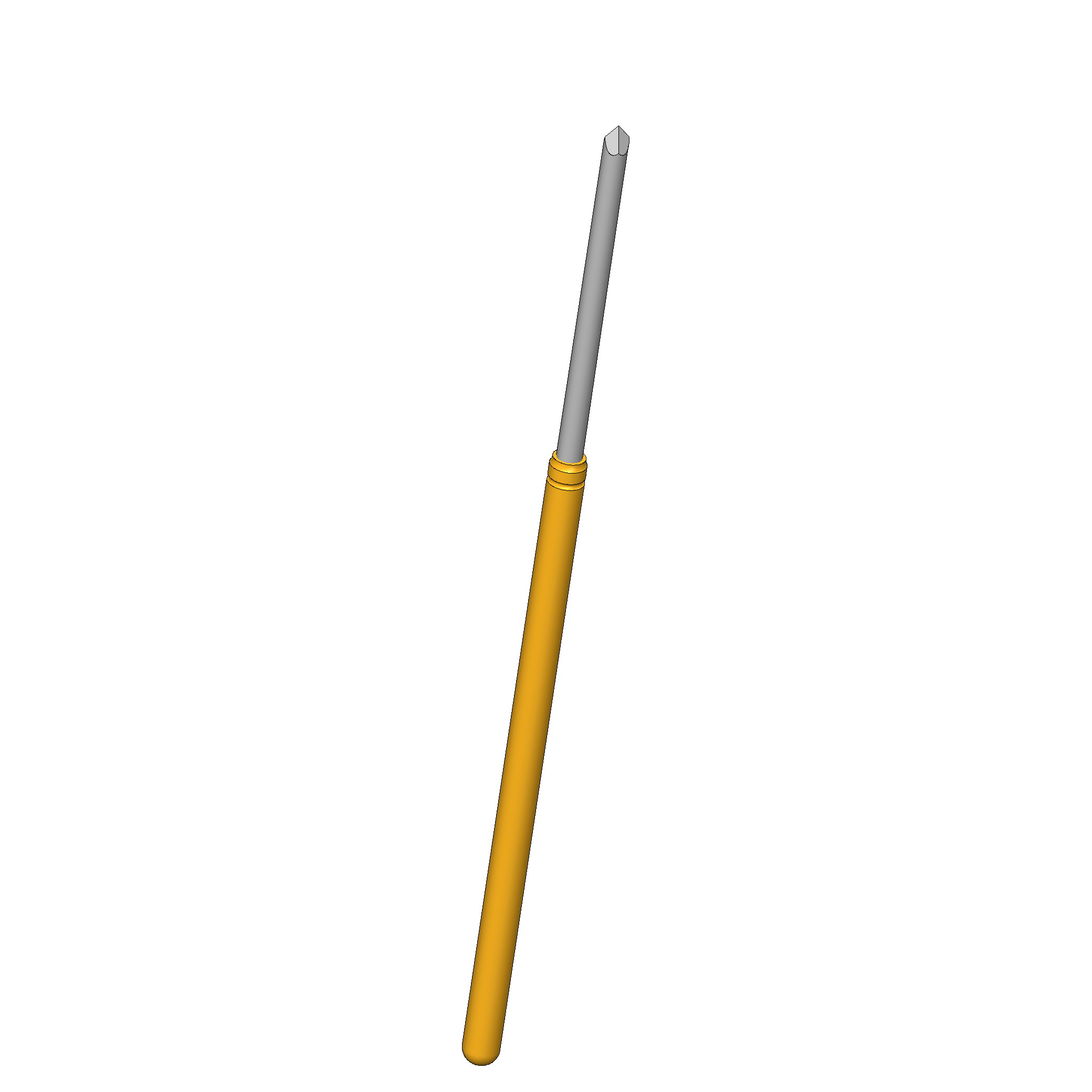

Product information "E-135 297 090 E 2800"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.37 mm [.053 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-100 |
| Contacting from: | Pad, Via |
| Current load capacity / rated current: | 5 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 11.5 mm [.452 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , INGUN E-TYPE® |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | E-135 |
| Spring force at working stroke: | 2.8 N [10 ozf] |
| Spring pre-load: | 0.78 N [2.8 ozf] |
| Sub-product group: | INGUN E-TYPE® |
| Tip diameter: | 0.9 mm [.035 in] |

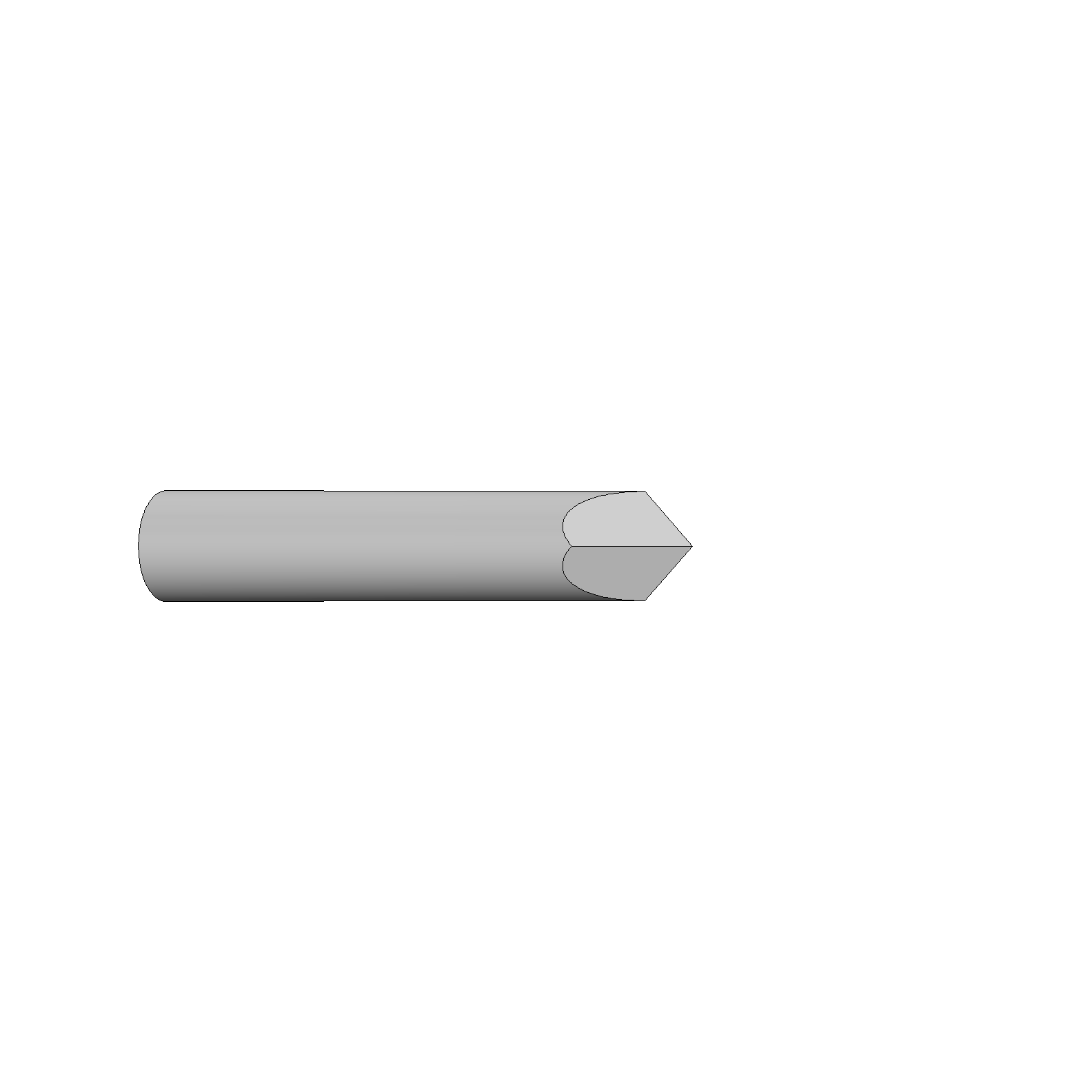

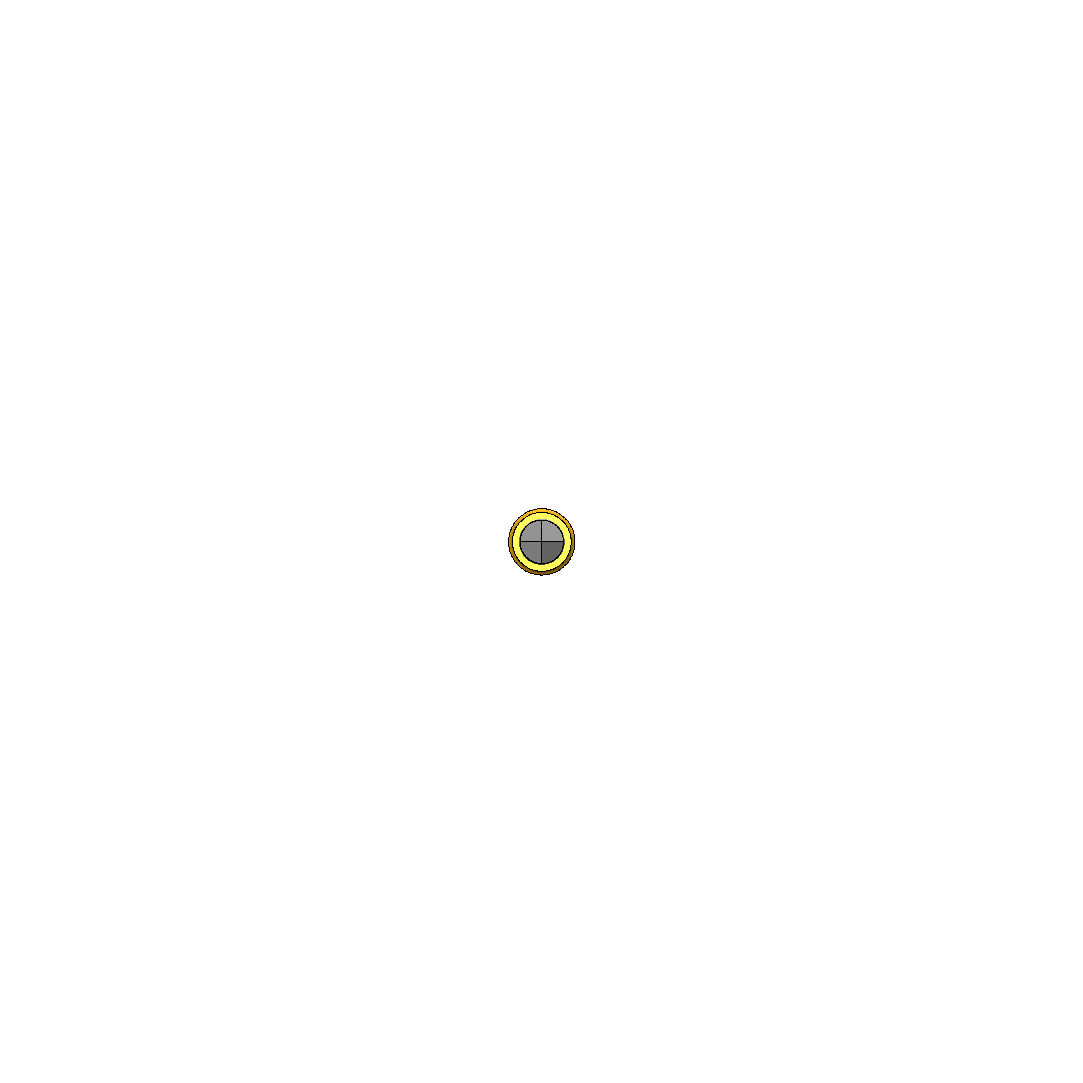

| Tip style: | 97 4-edged 90° dagger, self-cleaning |
| Tip style material: | 2 steel |
| Tip style surface: | E palladium / nickel |

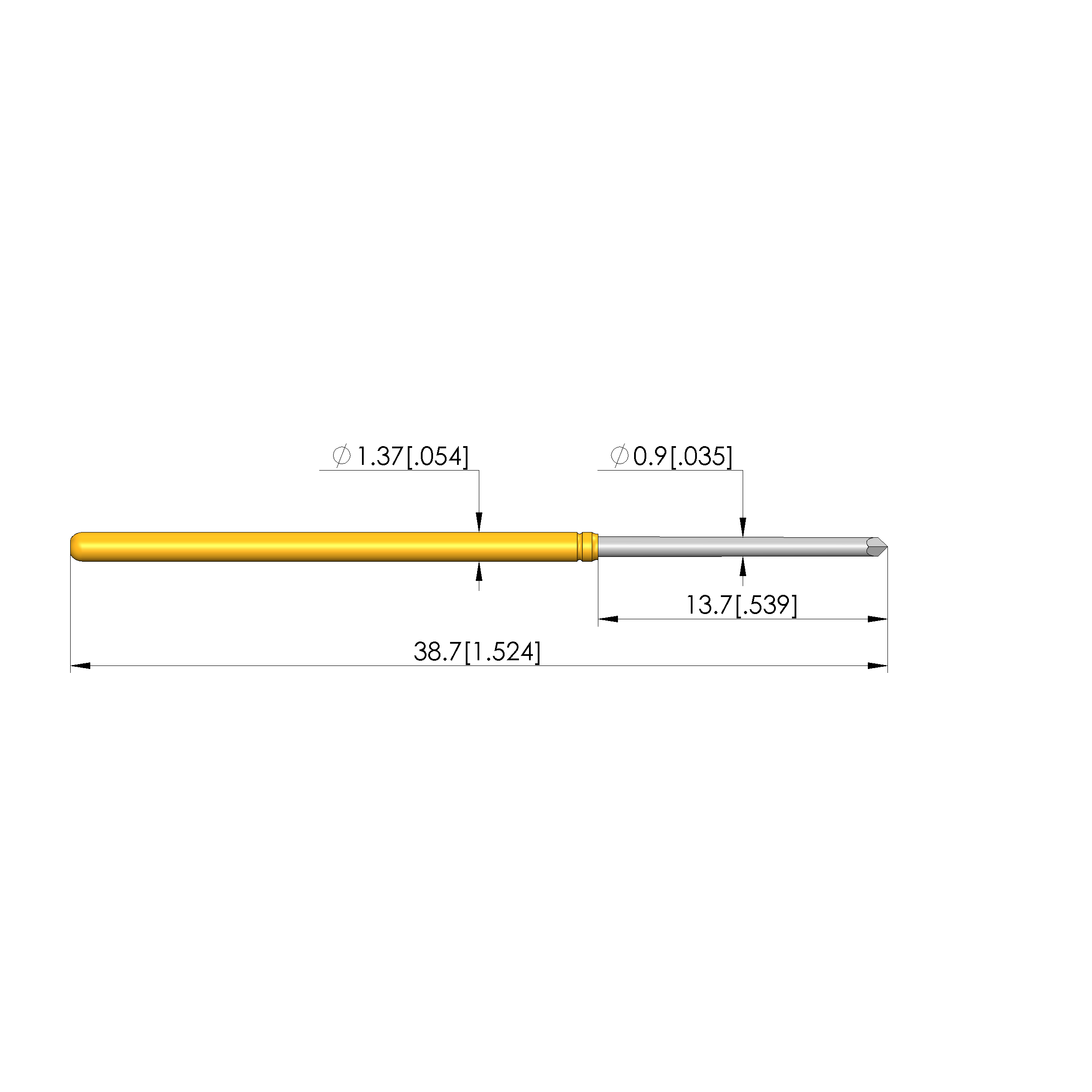

| Total length: | 38.7 mm [1.52 in] |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 9.3 mm [.366 in] |
Login
Other products in this series:
Technical data
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 30 mOhm
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Product group: INGUN E-TYPE®
- Series: E-135
- Non-rotating: No
- Adjustable installation height: No
- Compatible receptacle(s): KS-100
- Grid: 2.54 mm [100 mil]
- Sub-product group: INGUN E-TYPE®
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Contacting from: Pad
- Contacting from: Via
Mechanical data
- Maximum stroke: 11.5 mm [.452 in]
- Working stroke: 9.3 mm [.366 in]
- Spring pre-load: 0.78 N [2.8 ozf]
- Total length: 38.7 mm [1.52 in]
- Collar height: no name
- Barrel diameter: 1.37 mm [.053 in]
- Spring force at working stroke: 2.8 N [10 ozf]
Tip style data
- Tip diameter: 0.9 mm [.035 in]
- Tip style surface: E palladium / nickel
- Tip style material: 2 steel
- Tip style: 97 4-edged 90° dagger, self-cleaning
