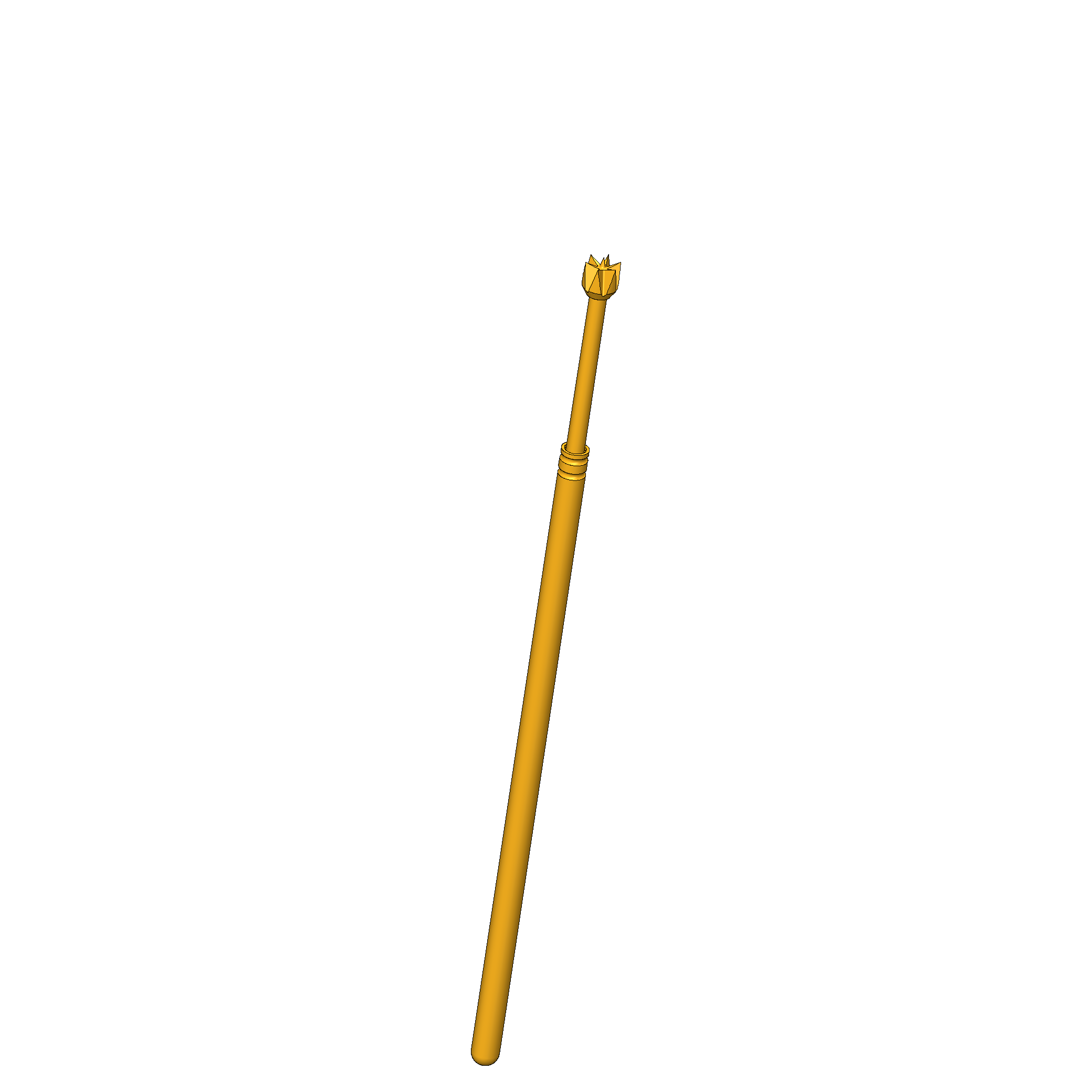

Product information "E-075 224 130 A 2000"
- Highest contact reliability under challenging test conditions without additional stress on the DUT: up to 25% larger contact surface between test probe and DUT
- When hitting the test surface a spring force up to 100% higher than a standard GKS is available, but the same spring force as a standard GKS is achieved at the working stroke.
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.02 mm [.04 in] |
| Collar height: | 00 |
| Compatible receptacle(s): | KS-075 |
| Contacting from: | Pad, Pin, Via |
| Current load capacity / rated current: | 3 A |
| Grid: | 1.91 mm [75.1 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , INGUN E-TYPE® |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | E-075 |
| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 1.11 N [3.99 ozf] |
| Sub-product group: | INGUN E-TYPE® |
| Tip diameter: | 1.3 mm [.051 in] |
| Tip style: | 24 6-point crown, higher middle point, self cleaning |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 33.3 mm [1.31 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Highest contact reliability under challenging test conditions without additional stress on the DUT: up to 25% larger contact surface between test probe and DUT
- When hitting the test surface a spring force up to 100% higher than a standard GKS is available, but the same spring force as a standard GKS is achieved at the working stroke.
Other products in this series:
Technical data
General data
- Product group: INGUN E-TYPE®
- Product group: ICT / FCT (in-circuit test and function test
- Sub-product group: INGUN E-TYPE®
- Series: E-075
- Grid: 1.91 mm [75.1 mil]
- Contacting from: Pin
- Contacting from: Pad
- Contacting from: Via
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-075
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes

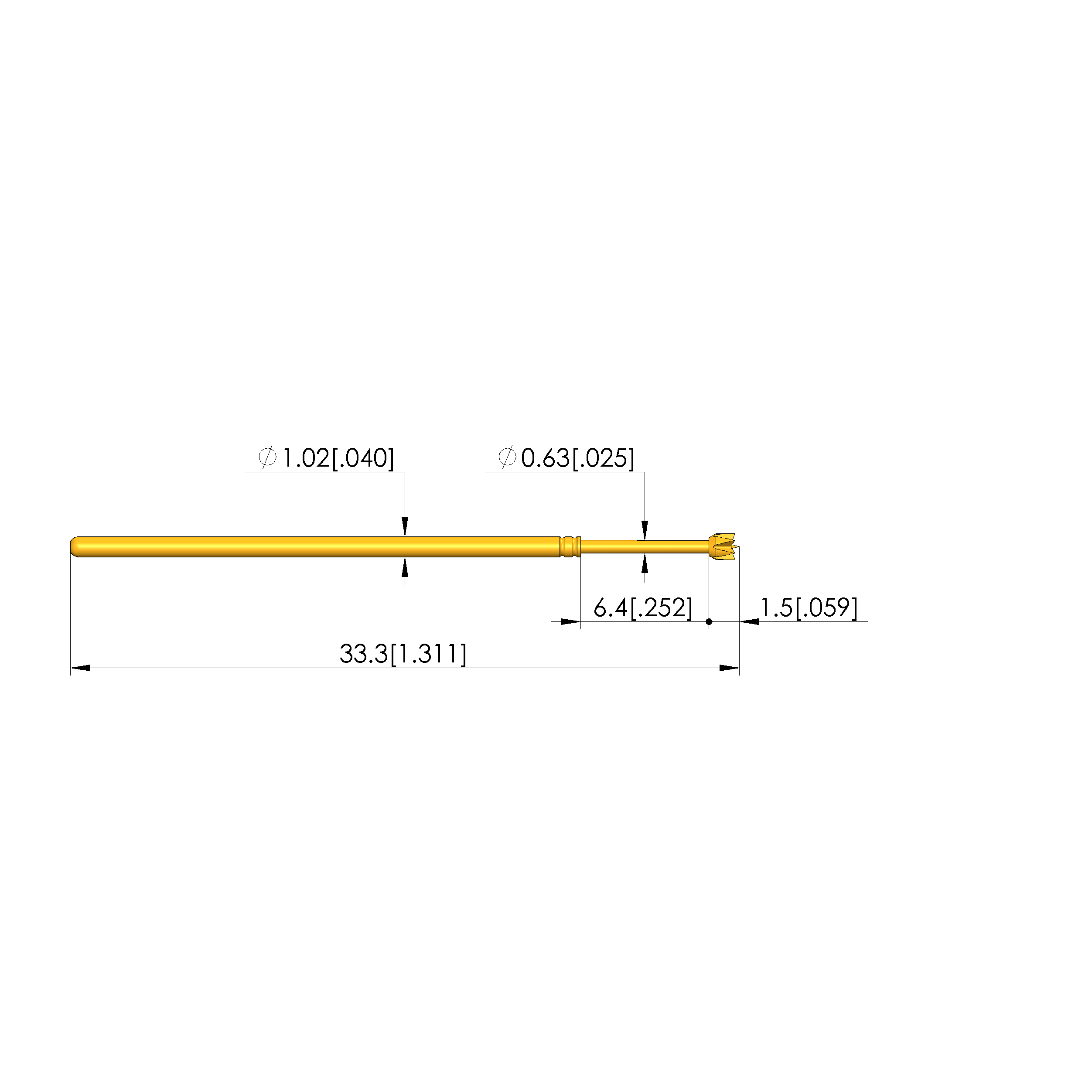

Mechanical data
- Total length: 33.3 mm [1.31 in]
- Barrel diameter: 1.02 mm [.04 in]
- Maximum stroke: 6.35 mm [.25 in]
- Spring pre-load: 1.11 N [3.99 ozf]
- Collar height: 00
- Spring force at working stroke: 2 N [7.19 ozf]
- Working stroke: 4.3 mm [.169 in]

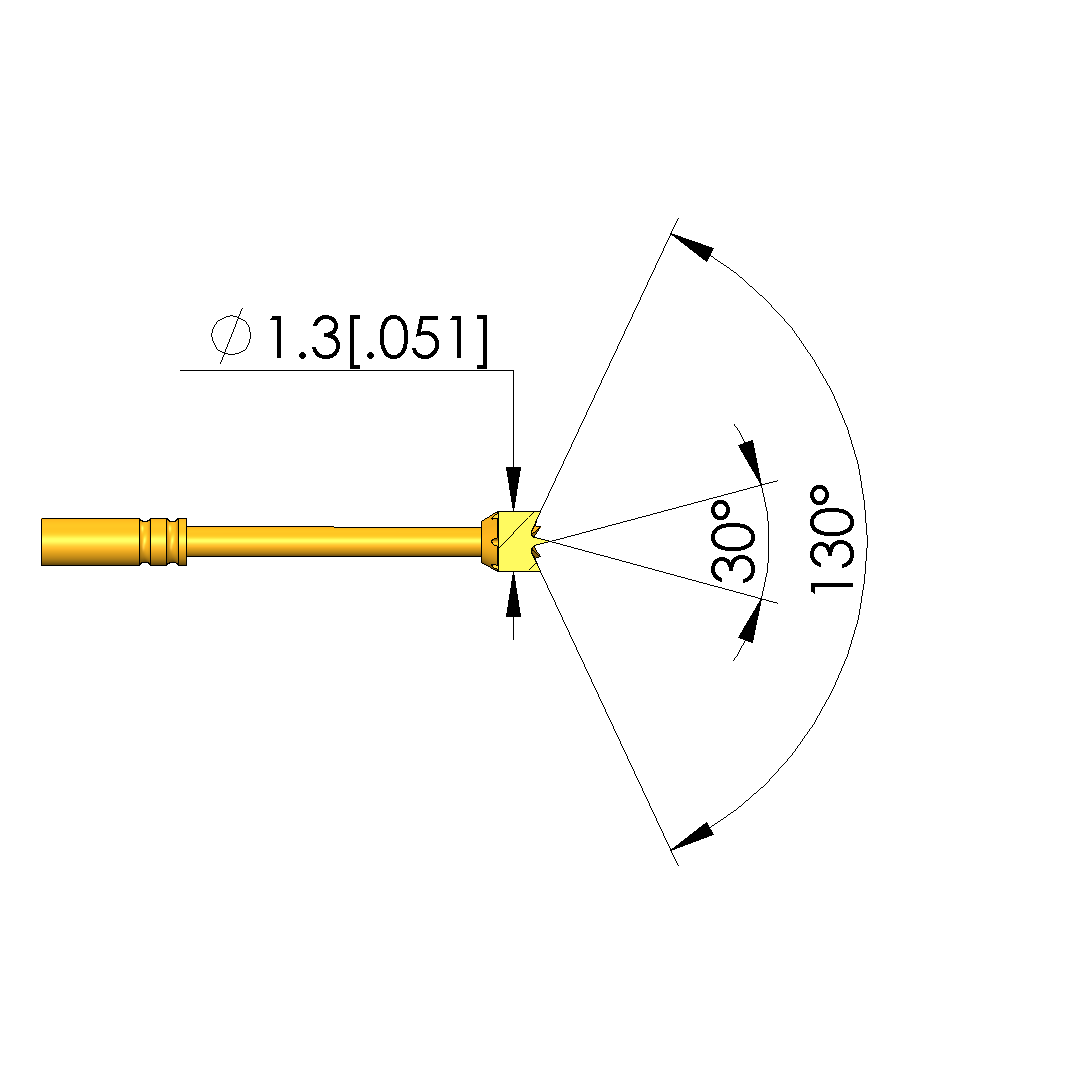

Tip style data

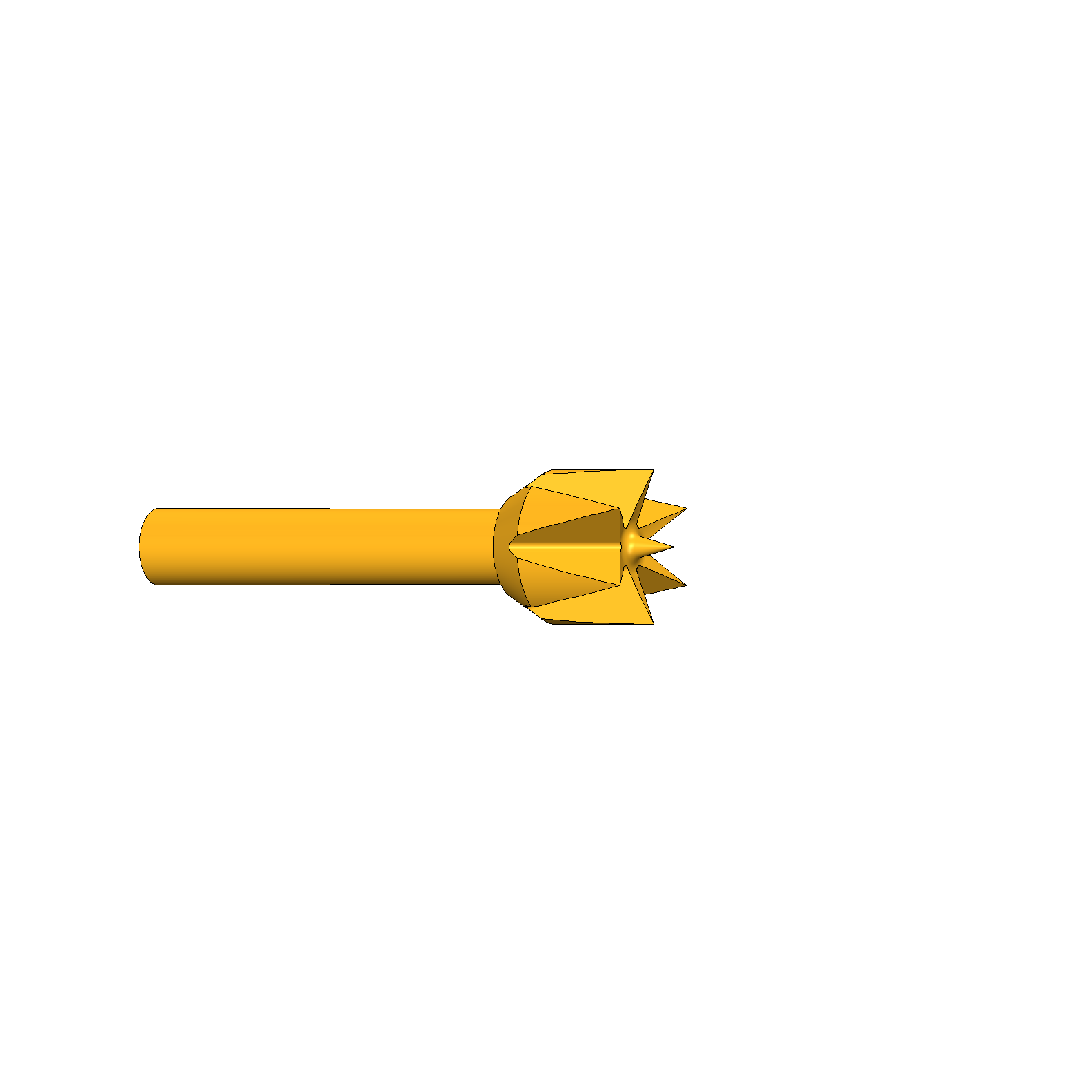

- Tip style: 24 6-point crown, higher middle point, self cleaning
- Tip diameter: 1.3 mm [.051 in]
- Tip style surface: A gold
- Tip style material: 2 steel
Electrical data
- Current load capacity / rated current: 3 A
- Typical resistance (Ri): 20 mOhm
