Product information "E-035 291 064 E 1200"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.02 mm [.04 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-075 |
| Contacting from: | Pad, Via |
| Current load capacity / rated current: | 3 A |
| Grid: | 1.91 mm [75.1 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 10 mm [.393 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , INGUN E-TYPE® |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | E-035 |
| Spring force at working stroke: | 1.2 N [4.31 ozf] |
| Spring pre-load: | 0.59 N [2.12 ozf] |
| Sub-product group: | INGUN E-TYPE® |
| Tip diameter: | 0.64 mm [.025 in] |
| Tip style: | 91 dagger, self-cleaning |
| Tip style material: | 2 steel |
| Tip style surface: | E palladium / nickel |
| Total length: | 36.8 mm [1.44 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 8 mm [.314 in] |
Login
Other products in this series:
Technical data
Tip style data
- Tip diameter: 0.64 mm [.025 in]
- Tip style: 91 dagger, self-cleaning
- Tip style surface: E palladium / nickel
- Tip style material: 2 steel
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Grid: 1.91 mm [75.1 mil]
- Product group: INGUN E-TYPE®
- Non-rotating: No
- Adjustable installation height: No
- Compatible receptacle(s): KS-075
- Sub-product group: INGUN E-TYPE®
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Product group: ICT / FCT (in-circuit test and function test
- Series: E-035
- Magnetic: Yes
- Contacting from: Pad
- Contacting from: Via
Electrical data
- Current load capacity / rated current: 3 A
- Typical resistance (Ri): 20 mOhm
Mechanical data

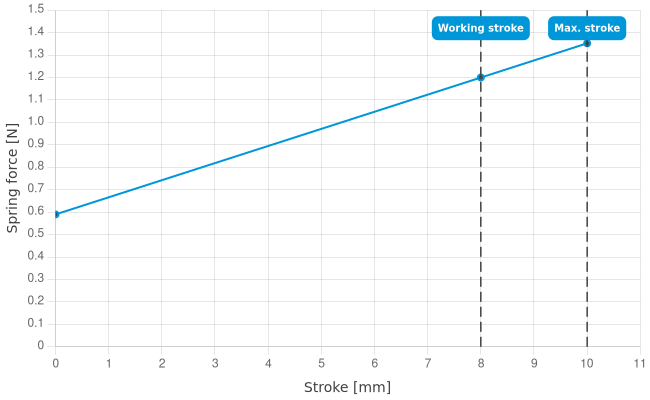

- Spring force at working stroke: 1.2 N [4.31 ozf]
- Barrel diameter: 1.02 mm [.04 in]
- Spring pre-load: 0.59 N [2.12 ozf]
- Maximum stroke: 10 mm [.393 in]
- Collar height: no name
- Working stroke: 8 mm [.314 in]
- Total length: 36.8 mm [1.44 in]
