Product information "DS-810 04 N"
| Compatible test probe(s): | DS-810 |
|---|---|
| Grid: | 6 mm [236 mil] |
| Inner diameter: | 5.05 mm [.198 in] |
| Magnetic: | Yes |
| Material: | 1 brass |
| Outer diameter: | 5.8 mm [.228 in] |
| Product group: | Spacer sleeves (DS) |
| RoHS-compliant: | Yes |
| Series: | DS-810 |
| Surface area: | N nickel |
| Total length: | 4 mm [.157 in] |
Login
Other products in this series:
Technical data

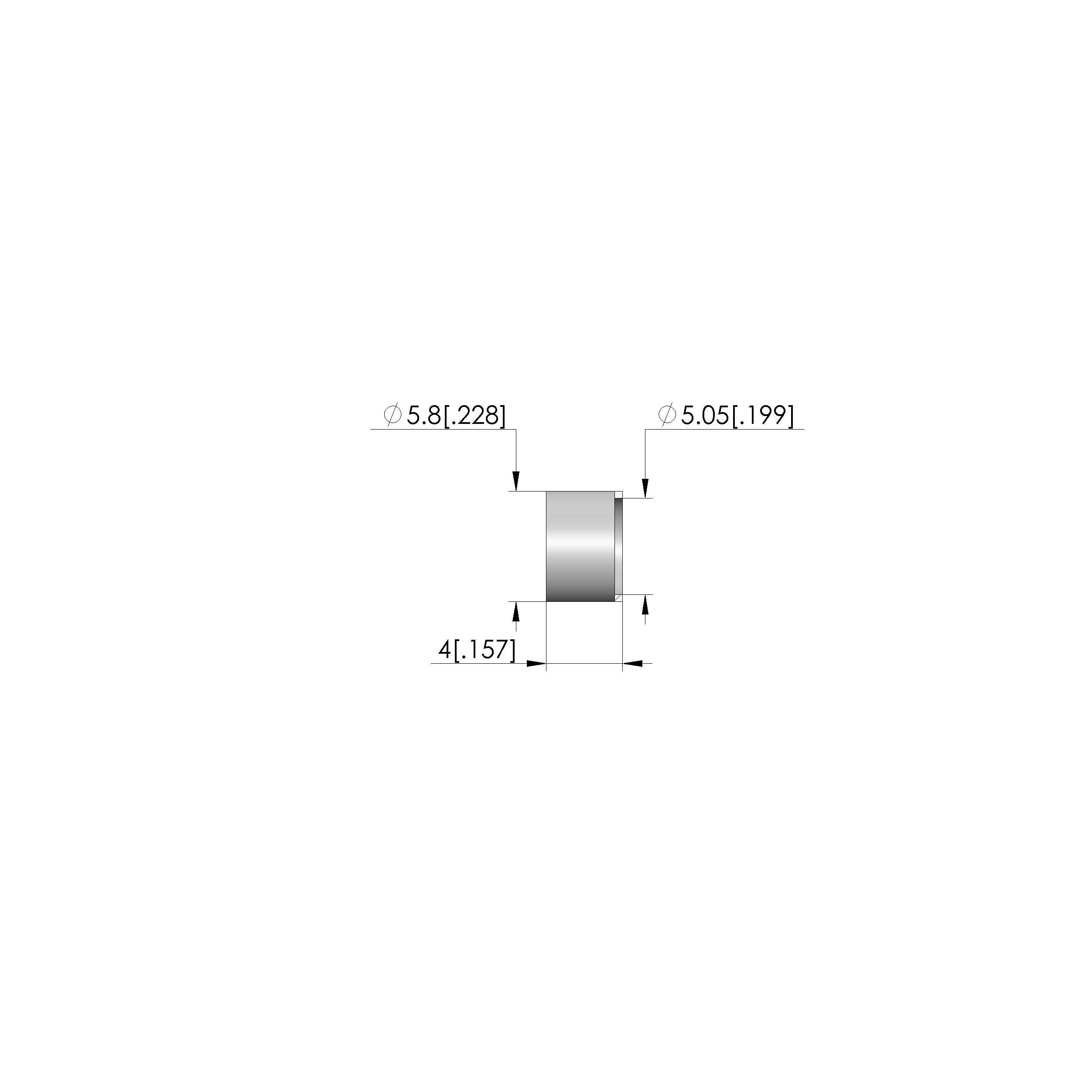

Mechanical data
- Total length: 4 mm [.157 in]
- Inner diameter: 5.05 mm [.198 in]
- Outer diameter: 5.8 mm [.228 in]
General data
- Product group: Spacer sleeves (DS)
- Series: DS-810
- Compatible test probe(s): DS-810
- Grid: 6 mm [236 mil]
- Material: 1 brass
- Magnetic: Yes
- Surface area: N nickel
- RoHS-compliant: Yes
