Product information "DS-102 03"
| Compatible test probe(s): | DS-102 |
|---|---|
| Grid: | 3 mm [118 mil] |
| Inner diameter: | 2.05 mm [.08 in] |
| Magnetic: | Yes |
| Material: | 1 brass |
| Outer diameter: | 2.9 mm [.114 in] |
| Product group: | Spacer sleeves (DS) |
| RoHS-compliant: | Yes |
| Series: | DS-102 |
| Surface area: | A gold |
| Total length: | 3 mm [.118 in] |
Login
Other products in this series:
Technical data
General data
- Product group: Spacer sleeves (DS)
- Series: DS-102
- Grid: 3 mm [118 mil]
- Magnetic: Yes
- RoHS-compliant: Yes
- Surface area: A gold
- Material: 1 brass
- Compatible test probe(s): DS-102

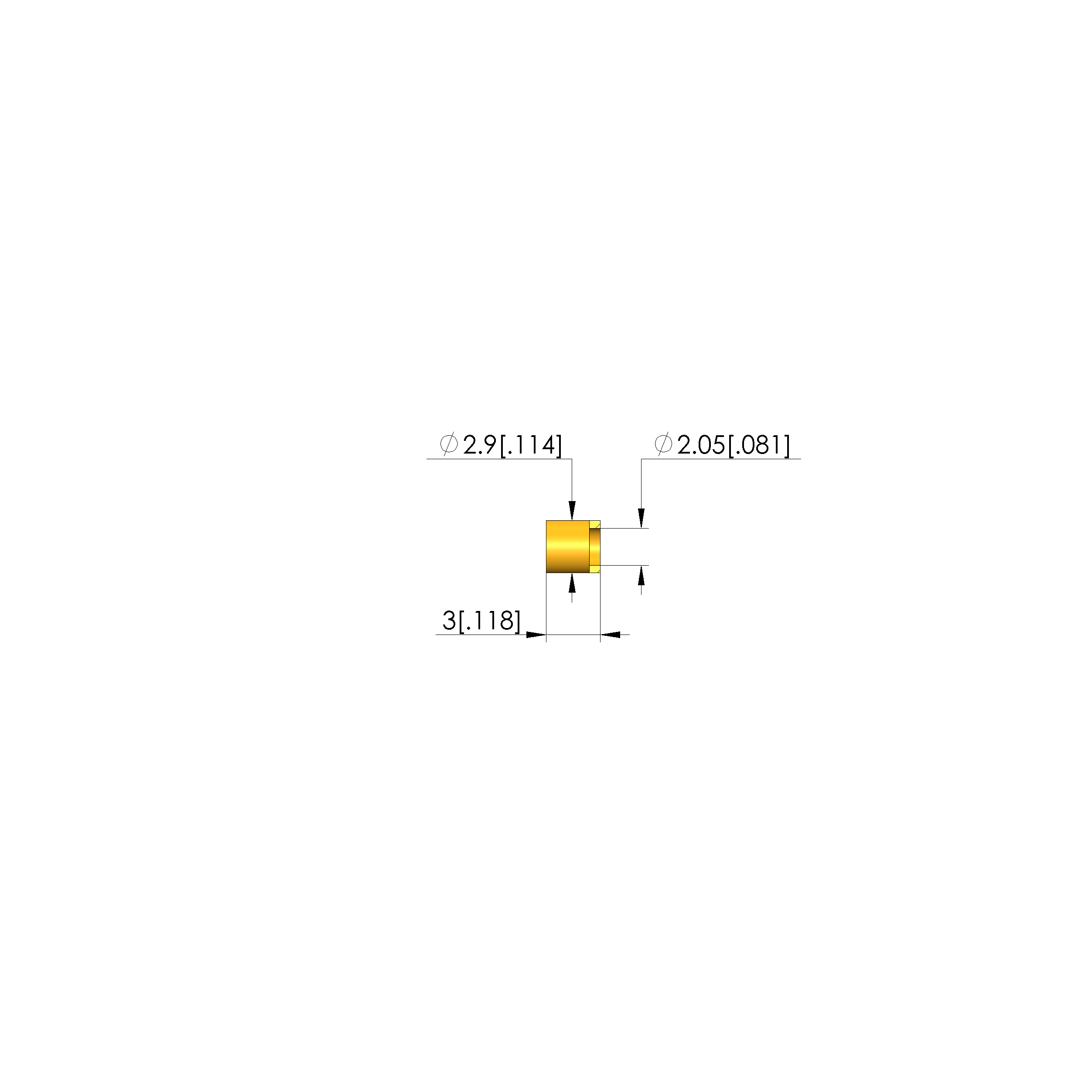

Mechanical data
- Total length: 3 mm [.118 in]
- Inner diameter: 2.05 mm [.08 in]
- Outer diameter: 2.9 mm [.114 in]
