Technical data
  • Product group: Rotating test probes, ICT / FCT (in-circuit test and function test
  • Sub-product group: Rotating test probes

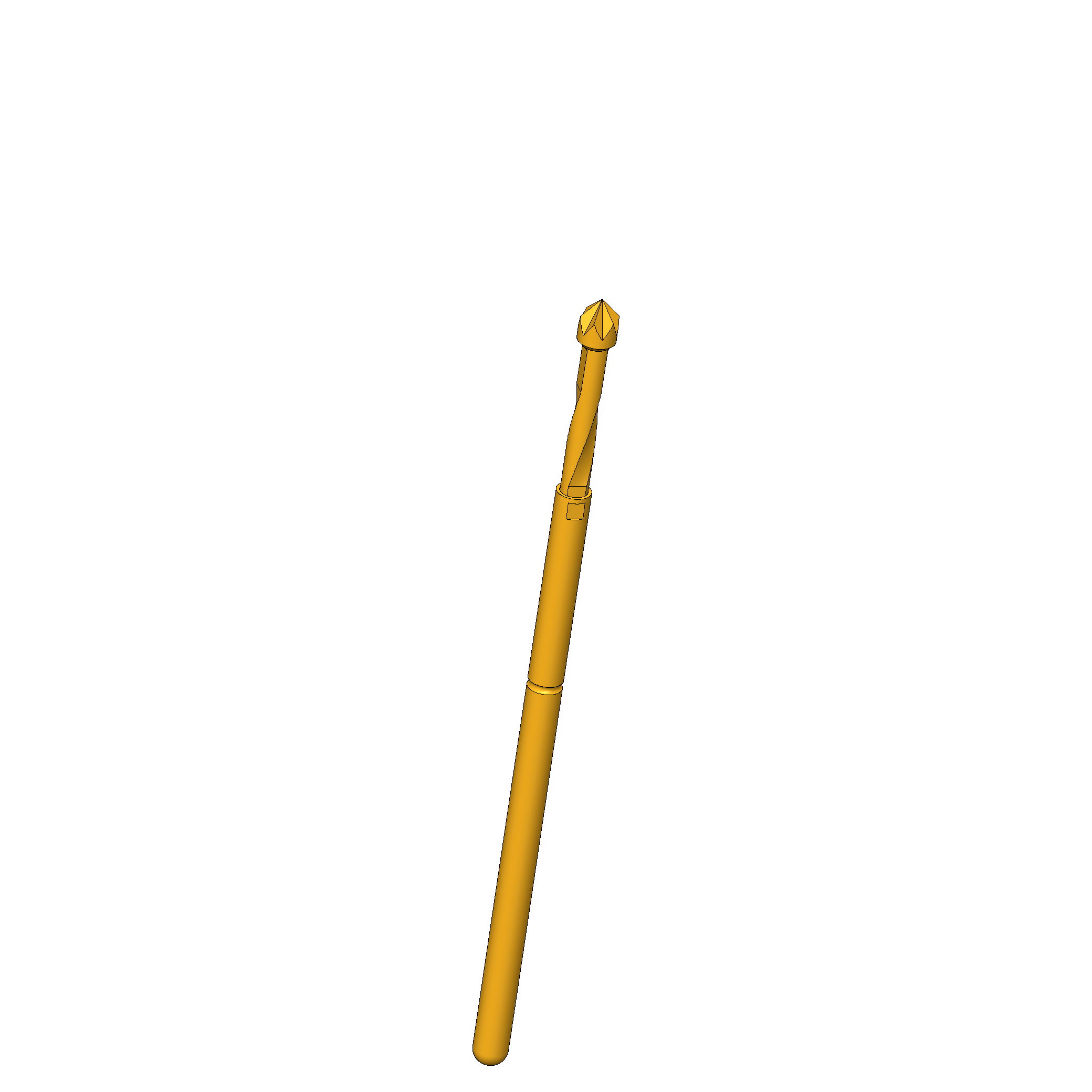

  • Series: DKS-100
  • Grid: 2.54 mm [100 mil]
  • Contacting from: Female connector, Pad, Via
  • Magnetic: yes
  • Installation type: Plug-in
  • Quick-exchange system: yes
  • Adjustable installation height: no
  • Non-rotating: no
  • Compatible receptacle(s): KS-100
  • Min. temperature: -40 °C [-40 °F]
  • Max. temperature: 80 °C [176 °F]
  • RoHS-compliant: yes

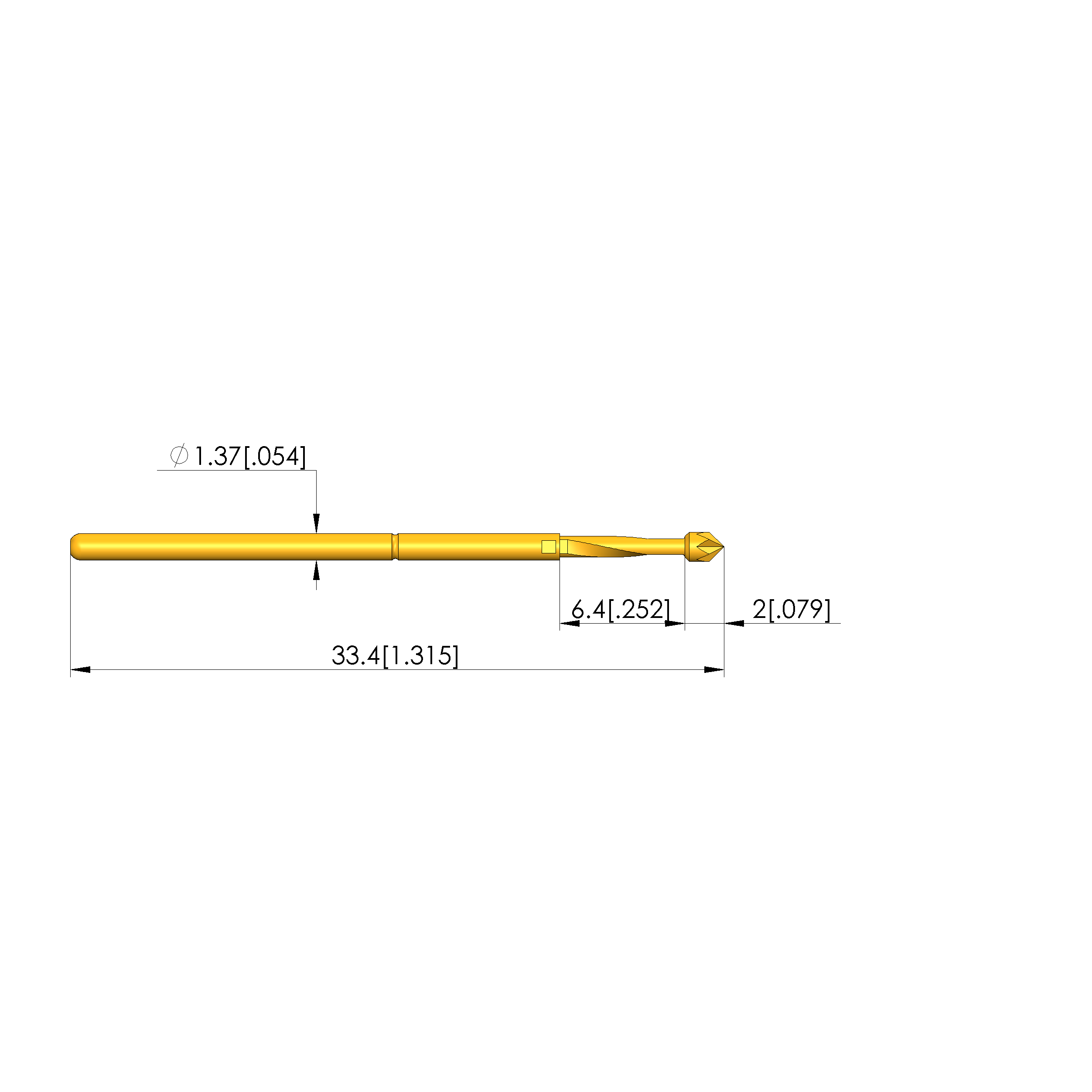

  • Total length: 33.4 mm [1.31 in]
  • Barrel diameter: 1.37 mm [.053 in]
  • Maximum stroke: 6.35 mm [0.25 in]
  • Spring pre-load: 0.93 N [3.34 ozf]
  • Collar height: 00
  • Spring force at working stroke: 2 N [7.19 ozf]
  • Working stroke: 4.3 mm [.169 in]

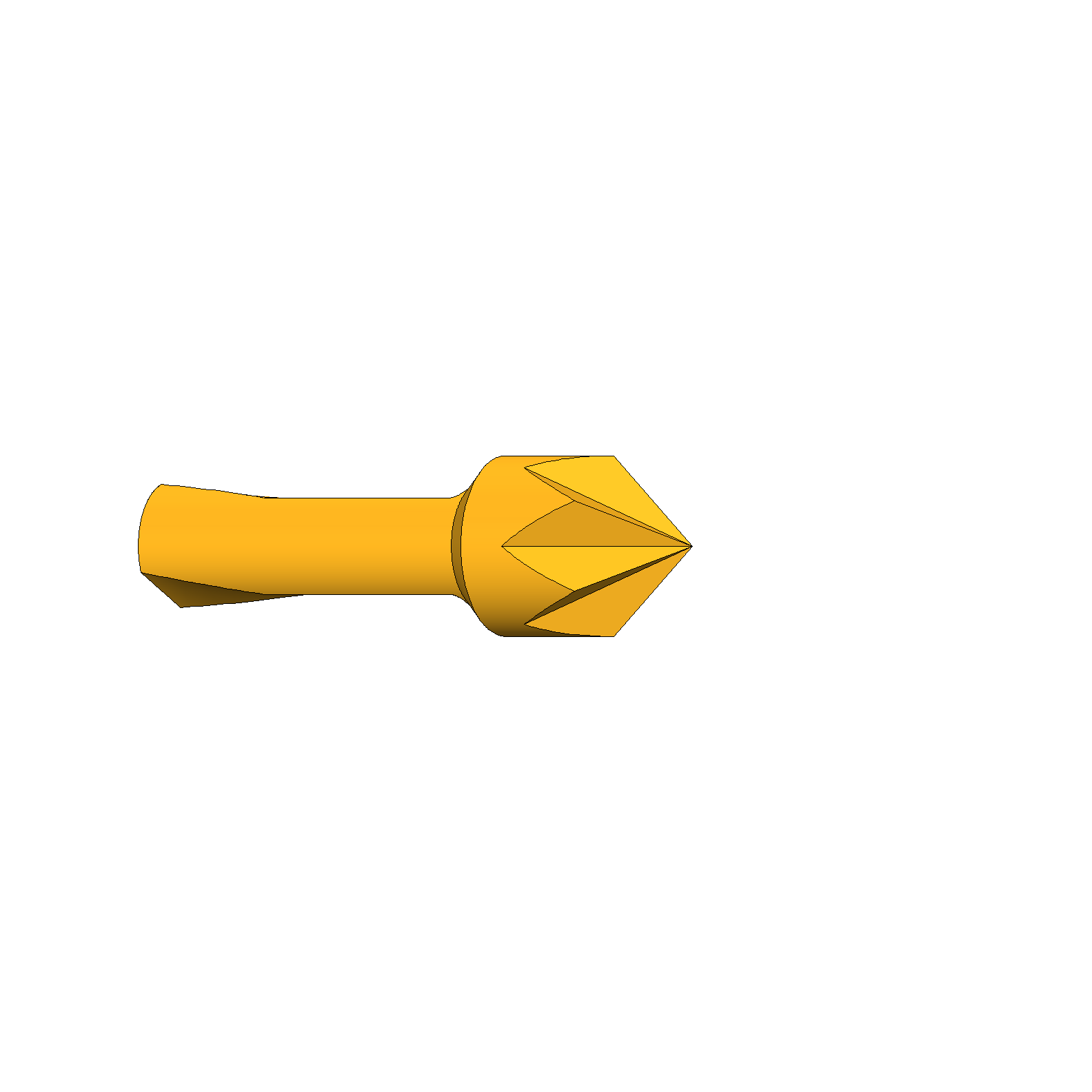

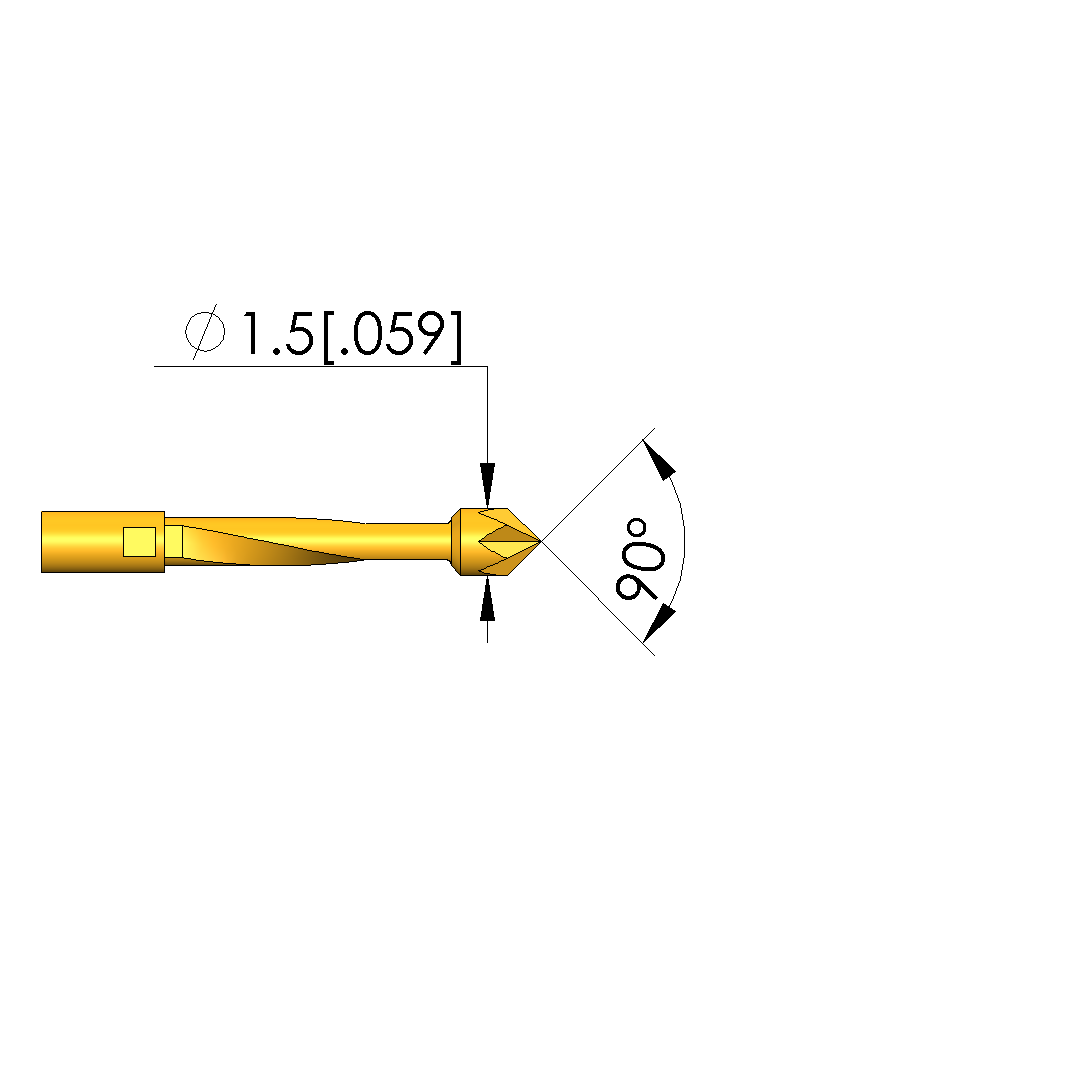

  • Tip style: 17 hexagonal pyramid with cutting edges, self-cleaning
  • Tip diameter: 1.5 mm [.059 in]
  • Tip style surface: G aurun
  • Tip style material: 2 steel
  • Current load capacity / rated current: 5 A
  • Typical resistance (Ri): 20 mOhm
