Downloads
Product information sheets

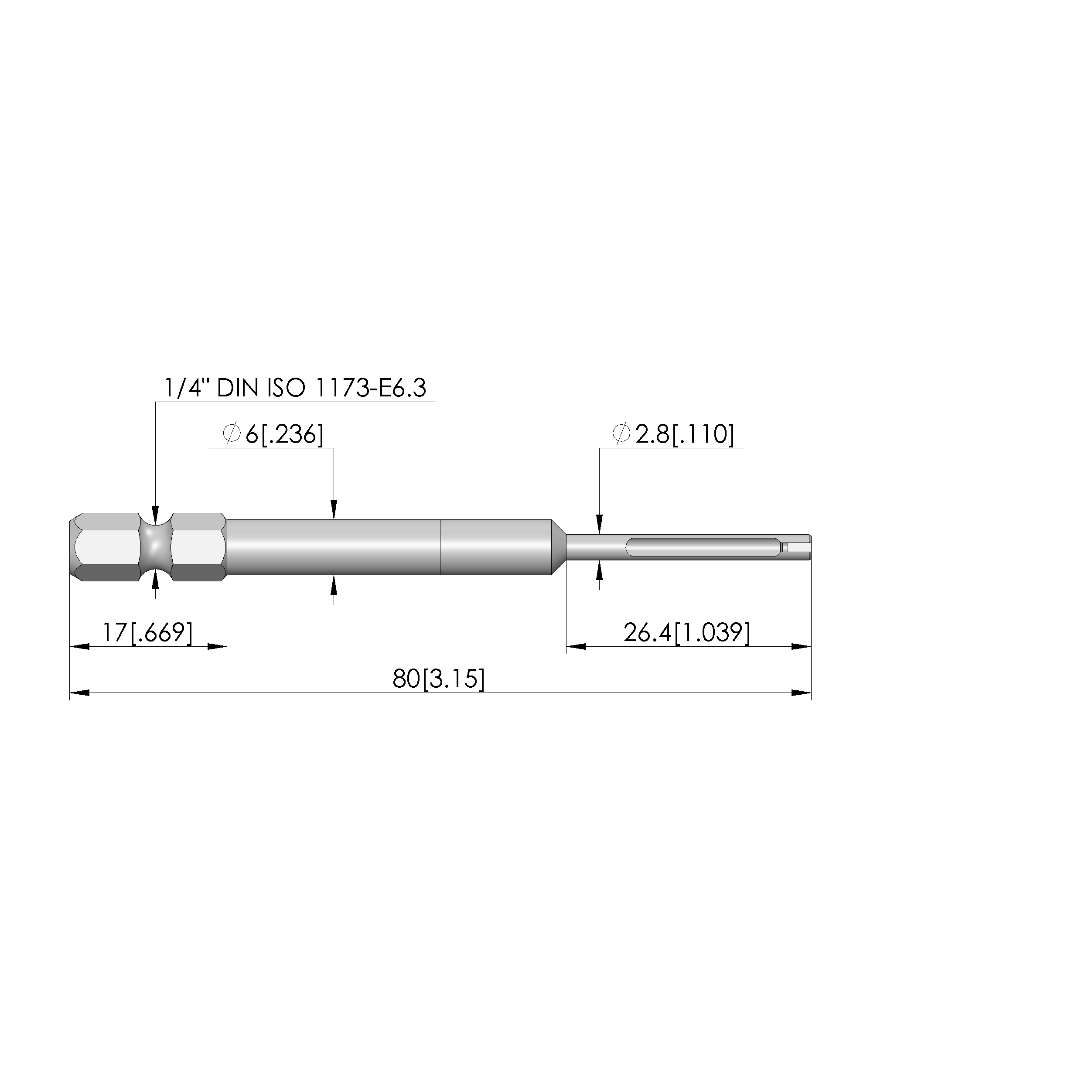

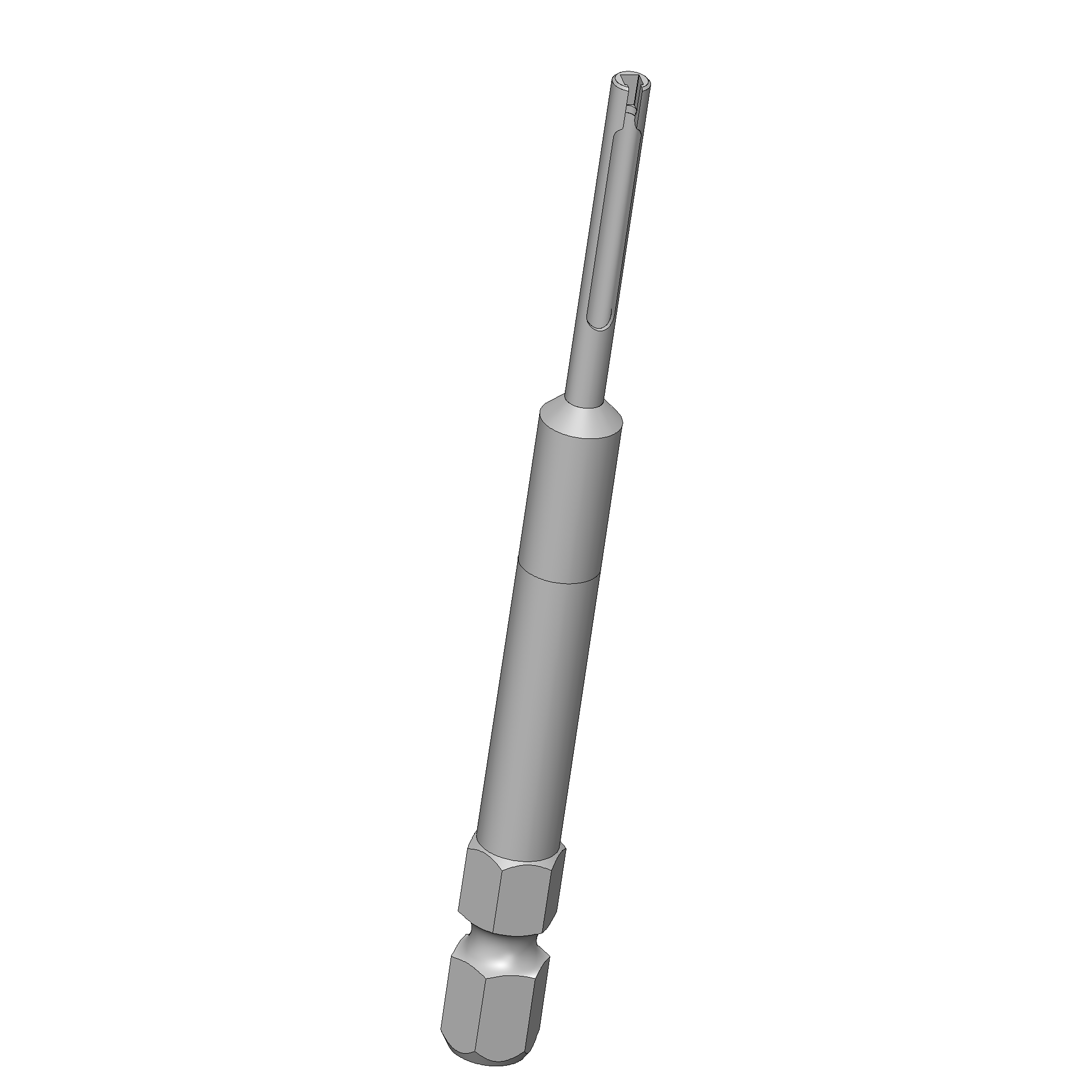

Product information "BIT-GKS-899 M"
| Compatible test probe(s) / receptacle(s): | 018 GKS-899 |
|---|---|
| Max. tip diameter: | 2 mm [.078 in] |
| Min. tip diameter: | 0 mm [0 in] |
| Product group: | Bit inserts (BIT) |
| RoHS-compliant: | Yes |
| Screw-in torque: | 2 – 3 cNm [.177 – .265 lbf·in] |
| Screw-in torque max.: | 3 cNm [.265 lbf·in] |
| Screw-in torque min.: | 2 cNm [.177 lbf·in] |
| Series: | BIT-GKS |
| Test probe installation type: | Screw-in |
| Tool for receptacle (KS): | No |
| Tool for test probe (GKS): | Yes |
| Tool version: | Rigid |
Login
Other products in this series:
Technical data
General data
- Screw-in torque min.: 2 cNm [.177 lbf·in]
- Screw-in torque max.: 3 cNm [.265 lbf·in]
- Product group: Bit inserts (BIT)
- Compatible test probe(s) / receptacle(s): 018 GKS-899
- Series: BIT-GKS
- Tool for receptacle (KS): No
- Tool for test probe (GKS): Yes
- Test probe installation type: Screw-in
- Min. tip diameter: 0 mm [0 in]
- Max. tip diameter: 2 mm [.078 in]
- Tool version: Rigid
- Screw-in torque: 2 – 3 cNm [.177 – .265 lbf·in]
- RoHS-compliant: Yes
