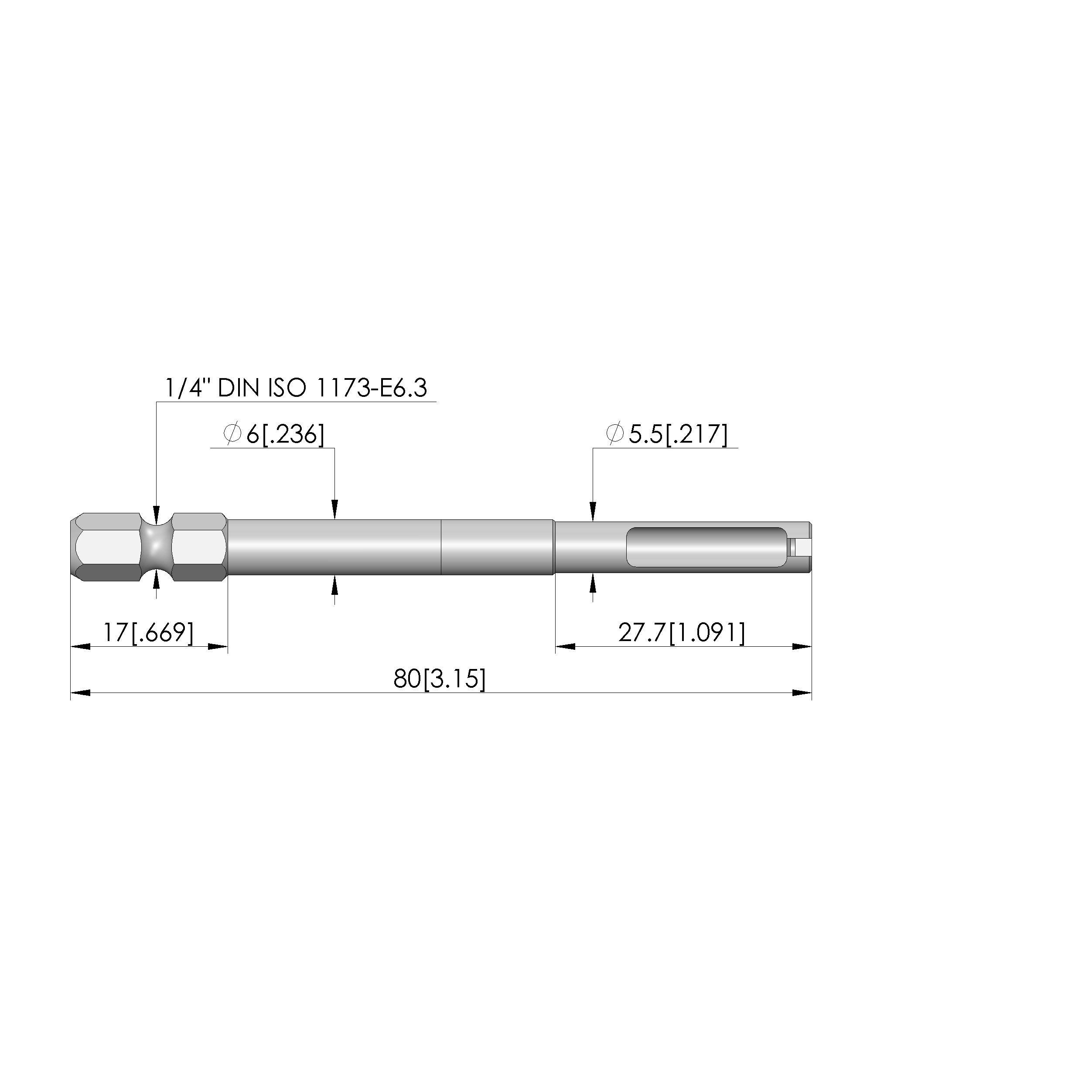

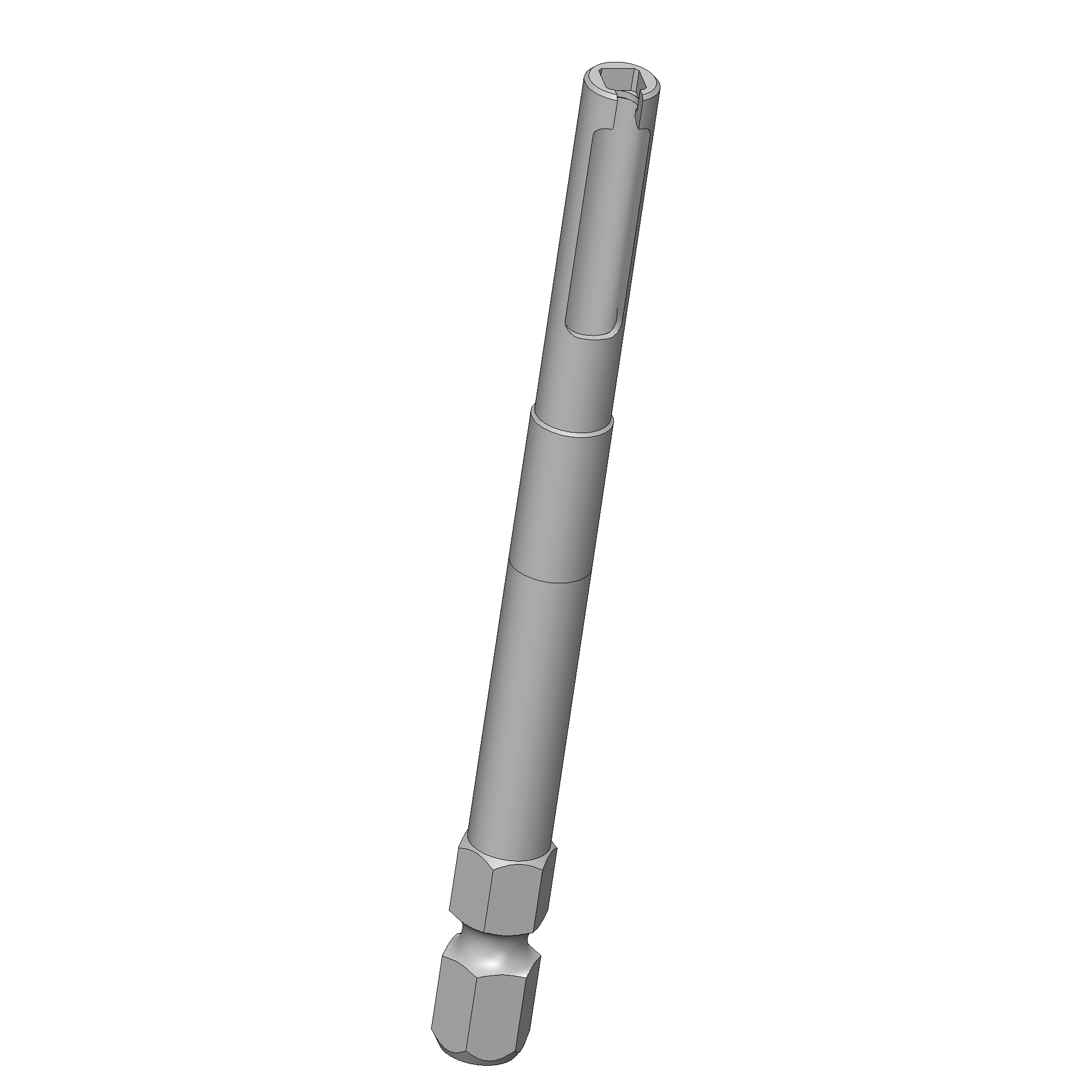

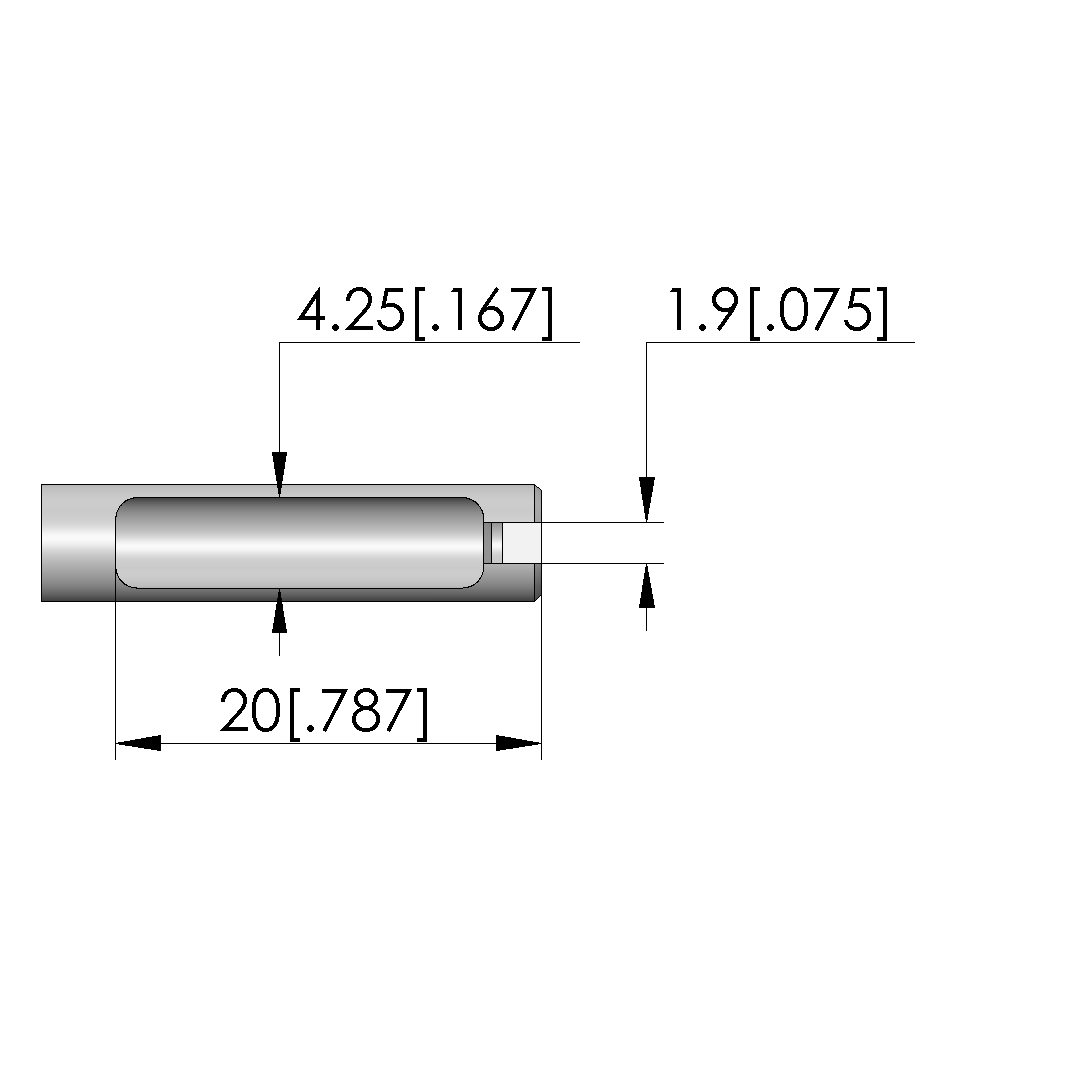

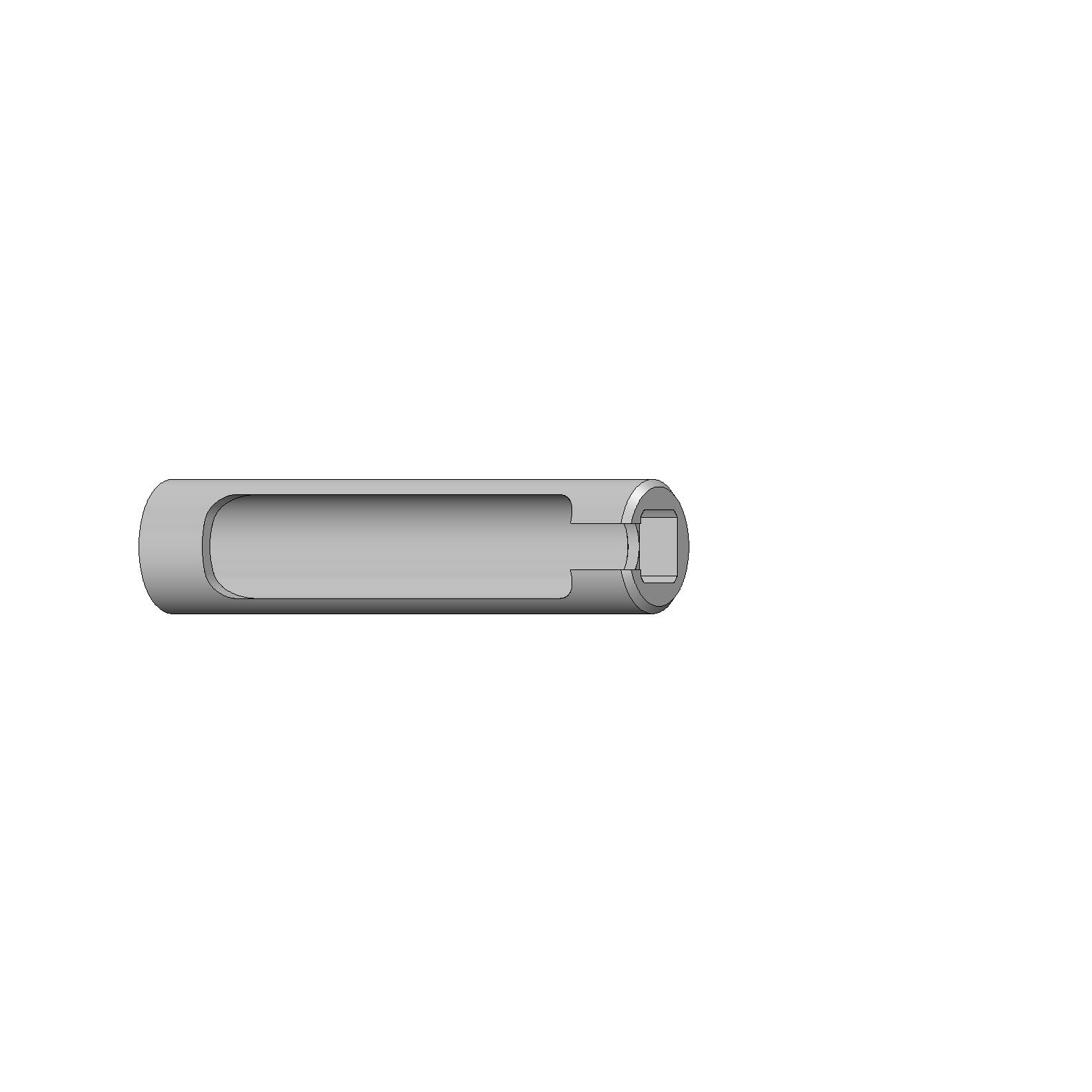

Product information "BIT-GKS-503 M"
| Compatible test probe(s) / receptacle(s): | 013 GKS-103, GKS-503, GKS-803, SKS-435 |
|---|---|
| Max. tip diameter: | 4.1 mm [.161 in] |
| Min. tip diameter: | 0 mm [0 in] |
| Product group: | Bit inserts (BIT) |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |
| Series: | BIT-GKS |
| Test probe installation type: | Screw-in |
| Tool for receptacle (KS): | No |
| Tool for test probe (GKS): | Yes |
| Tool version: | Rigid |
Login
Other products in this series:
Technical data
General data
- Screw-in torque min.: 10 cNm [.885 lbf·in]
- Screw-in torque max.: 20 cNm [1.77 lbf·in]
- Product group: Bit inserts (BIT)
- Compatible test probe(s) / receptacle(s): 013 GKS-103
- Compatible test probe(s) / receptacle(s): SKS-435
- Compatible test probe(s) / receptacle(s): GKS-803
- Compatible test probe(s) / receptacle(s): GKS-503
- Series: BIT-GKS
- Tool for receptacle (KS): No
- Tool for test probe (GKS): Yes
- Test probe installation type: Screw-in
- Min. tip diameter: 0 mm [0 in]
- Max. tip diameter: 4.1 mm [.161 in]
- Tool version: Rigid
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- RoHS-compliant: Yes
