Product information "BCP-671 368 290 A 5002 M"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3.5 mm [.137 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-150 M |
| Contacting from: | - |
| Current load capacity / rated current: | 30 A |
| Grid: | 4.5 mm [177 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.5 mm [.216 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | Battery Contacting, Standard BCP (screw-in) |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |
| Series: | BCP-671, BCP-671 M screw-in |
| Spring force at working stroke: | 5 N [17.9 ozf] |
| Spring pre-load: | 1.67 N [6 ozf] |
| Sub-product group: | Standard BCP (screw-in) |
| Tip diameter: | 2.9 mm [.114 in] |
| Tip style: | 68 expanding tip with front-facing pionts/cutting edges |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 43.1 mm [1.69 in] |
| Typical resistance (Ri): | 5 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
Login
Other products in this series:
Technical data
General data
- Screw-in torque min.: 10 cNm [.885 lbf·in]
- Screw-in torque max.: 20 cNm [1.77 lbf·in]
- Product group: Standard BCP (screw-in)
- Product group: Battery Contacting
- Sub-product group: Standard BCP (screw-in)
- Series: BCP-671 M screw-in
- Series: BCP-671
- Grid: 4.5 mm [177 mil]
- Contacting from: -
- Magnetic: Yes
- Installation type: Screw-in
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Compatible receptacle(s): KS-150 M
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data

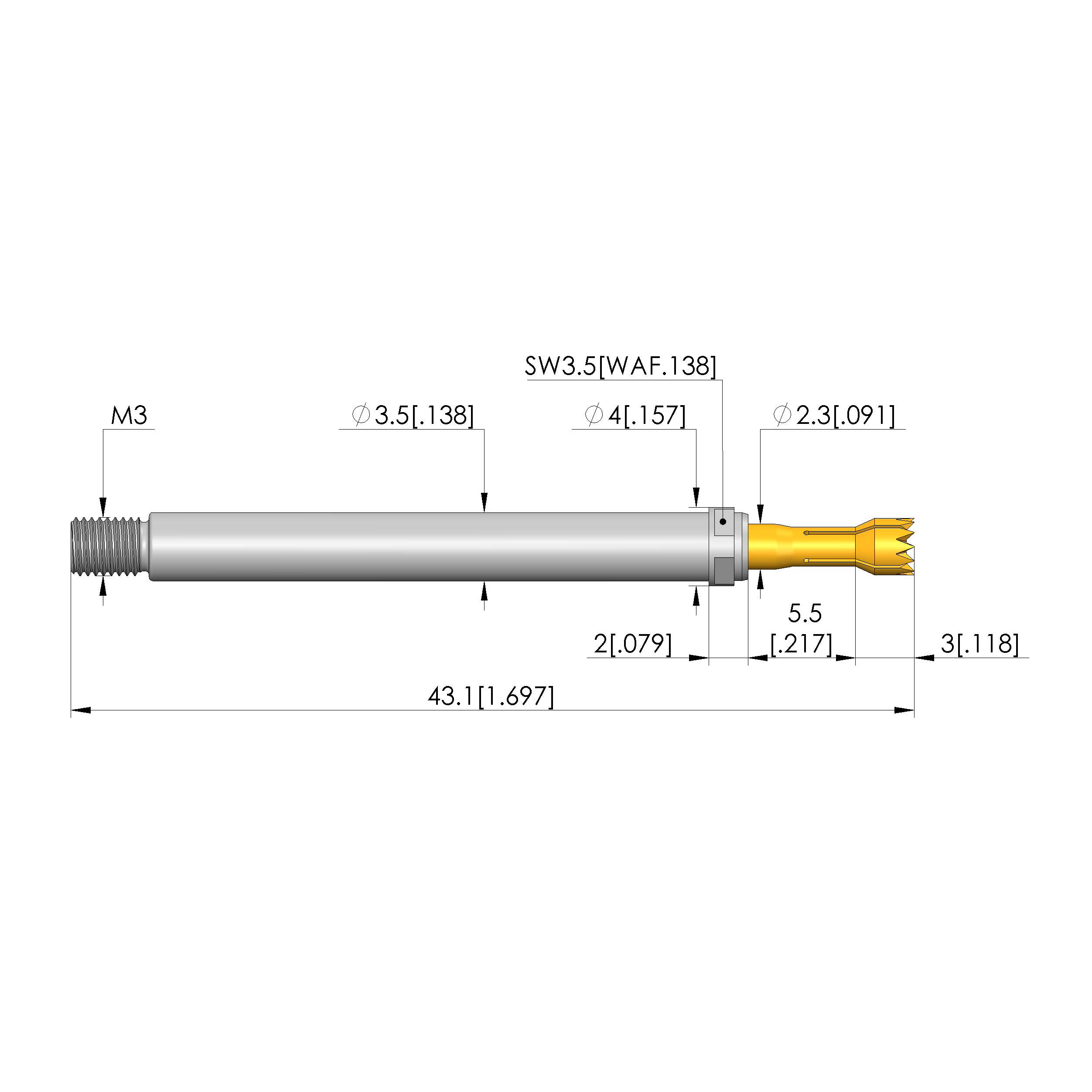

- Total length: 43.1 mm [1.69 in]
- Barrel diameter: 3.5 mm [.137 in]
- Maximum stroke: 5.5 mm [.216 in]
- Spring pre-load: 1.67 N [6 ozf]
- Collar height: 02

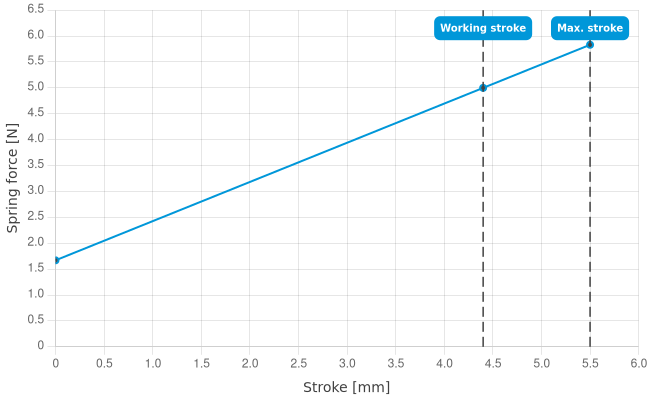

- Spring force at working stroke: 5 N [17.9 ozf]
- Working stroke: 4.4 mm [.173 in]
Tip style data

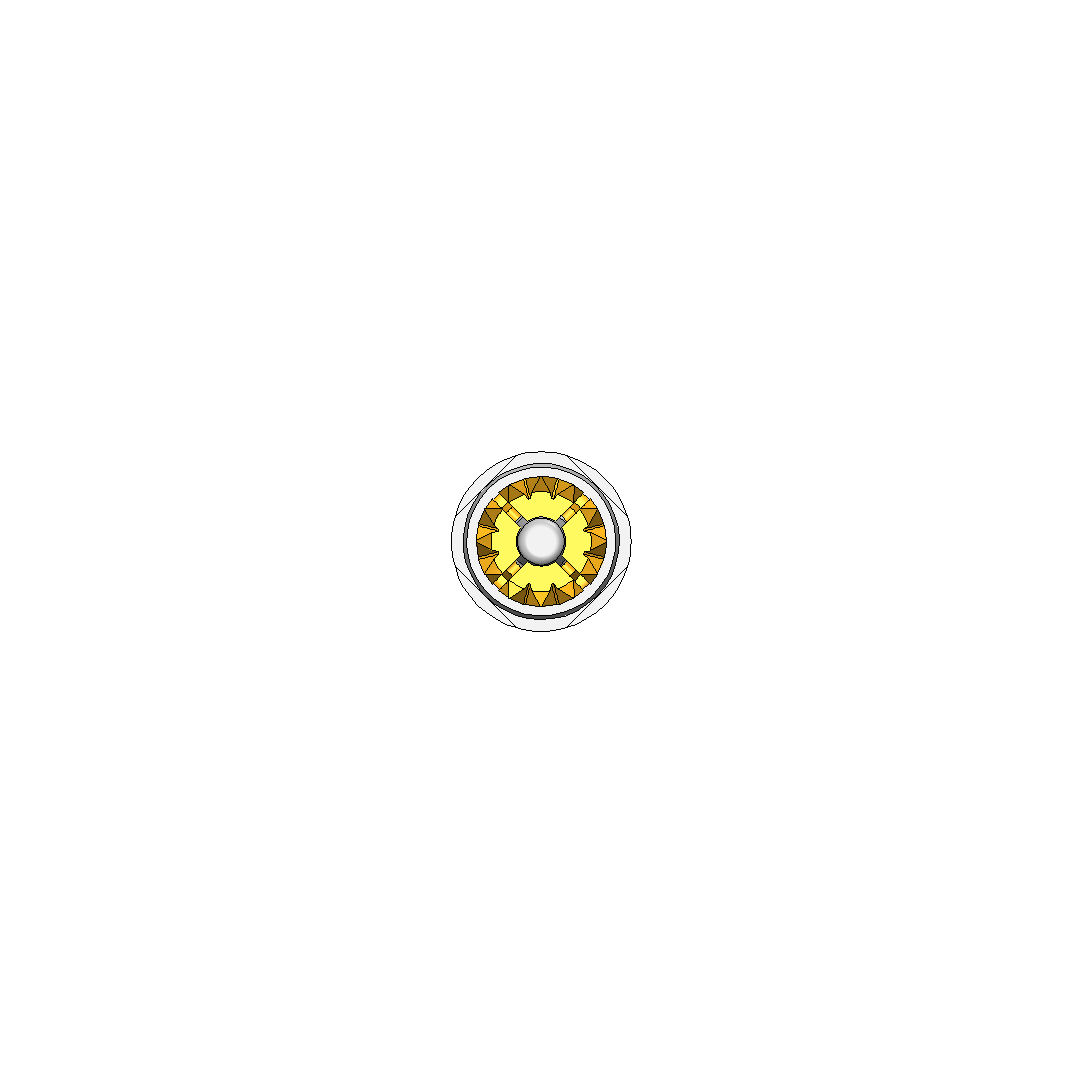

- Tip style: 68 expanding tip with front-facing pionts/cutting edges
- Tip diameter: 2.9 mm [.114 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 30 A
- Typical resistance (Ri): 5 mOhm
