Product details

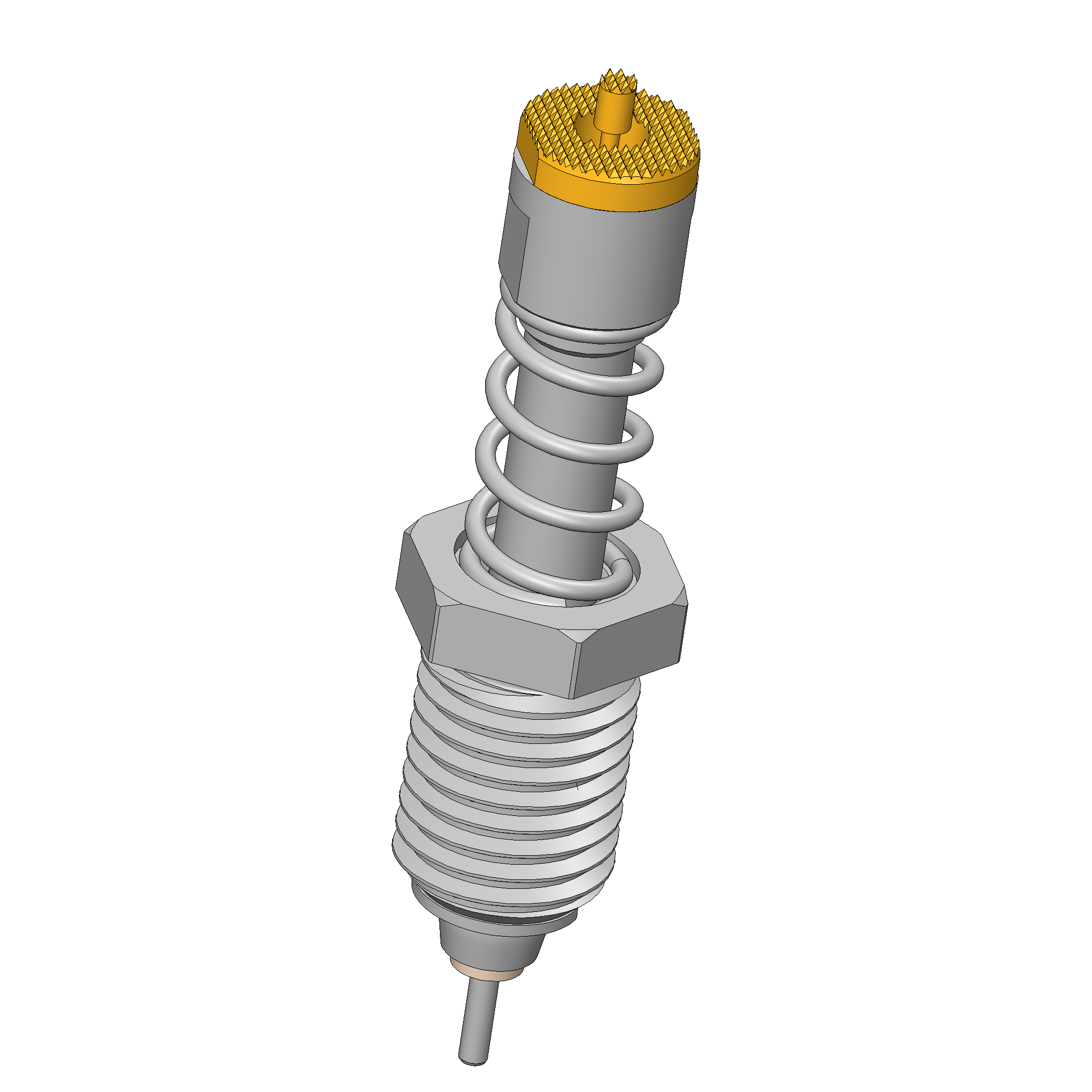

  • Contacting solution for cylindrical cells (46xx) and prismatic as well blade cells, Battery Modules and -Packs
  • Current rating upto 50 A on Al DUT with temperaturer rise dT ≤ 20 K ; max. current rating of 140 A on high conducting materials like copper alloys
  • Designed for a range of cell contacting applications such as Formation, Charging and DC-IR measurement
  • Low-resistance contact probe with Ri typical < 3 mΩ
  • Simple installation by screwing directly into the busbar; no wiring required.
  • Dipole Design provided with measuring contact for precise voltage measurements
  • Easy connection of the voltage sensor: both soldering and cable lug installation possible

Other products in this series:

product-description-image-test-probes_1
Technical data
  • Current load capacity / rated current: 140 A
  • Rated current on copper @ΔT ≤ 20 K: 65 A
  • Rated current on copper @ΔT ≤ 60 K: 140 A
  • Rated current on aluminium @ΔT ≤ 20 K: 50 A
  • Rated current on aluminium @ΔT ≤ 60 K: 80 A
  • Typical resistance (Ri): 3 mOhm

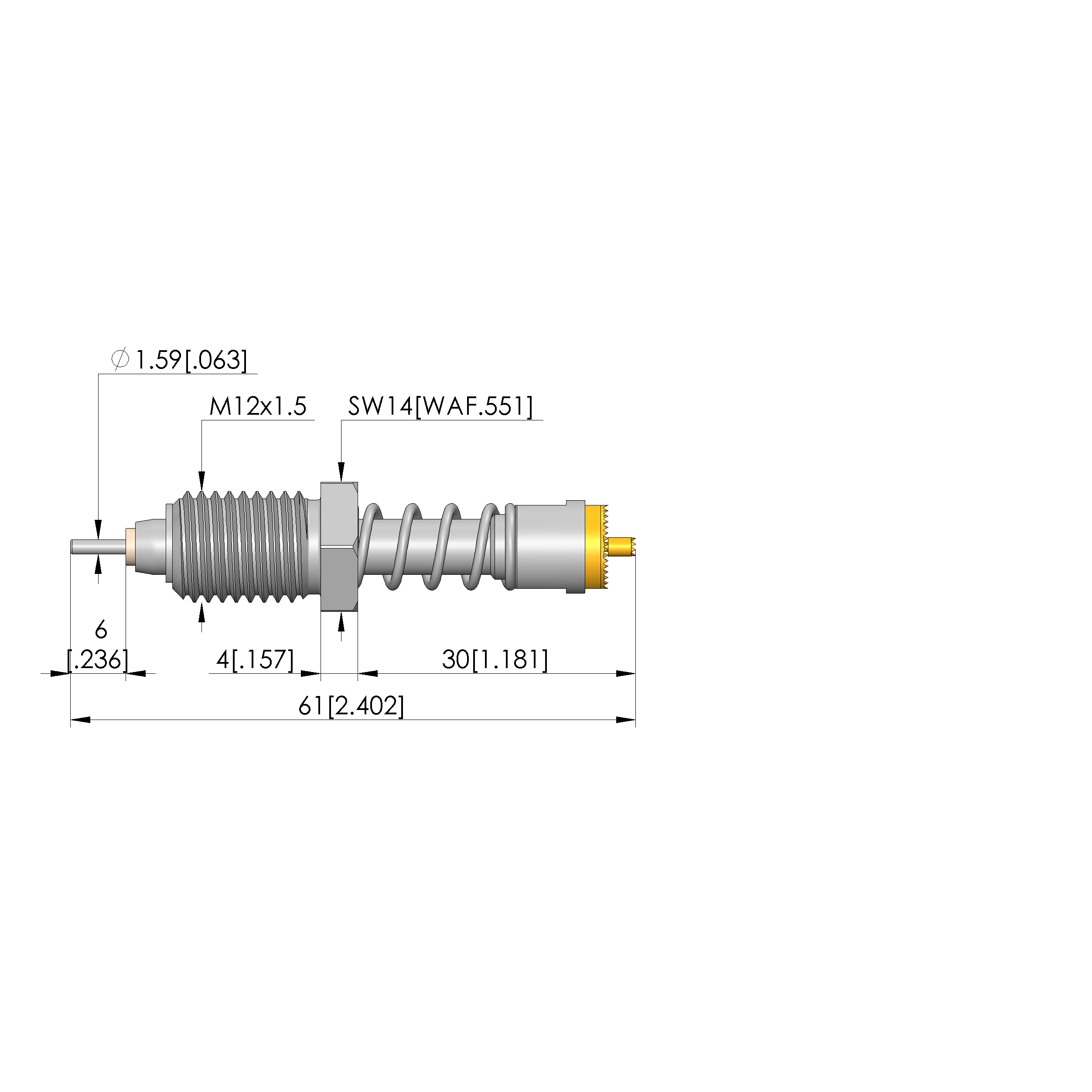

  • Total length: 61 mm [2.4 in]
  • Barrel diameter: 12 mm [.472 in]
  • Maximum stroke: 7 mm [.275 in]
  • Spring pre-load: 13.33 N [47.9 ozf]
  • Collar height: 04
  • Spring force at working stroke: 28 N [100 ozf]
  • Working stroke: 4.4 mm [.173 in]
  • Product group: Battery Contacting
  • Sub-product group: Dipole BCP / 4-wire clamp
  • Series: BCP-653 M
  • Application rec.: Fast Charging/High Current, DC-IR, Formation
  • Grid: 24 mm [944 mil]
  • DUT / contact: Prismatic cells, Cylindrical cells
  • Magnetic: yes
  • Installation type: Screw-in
  • Quick-exchange system: no
  • Type of test probe connection: Thread connection
  • Adjustable installation height: no
  • Non-rotating: no
  • Min. temperature: -40 °C [-40 °F]
  • Max. temperature: 80 °C [176 °F]
  • RoHS-compliant: yes

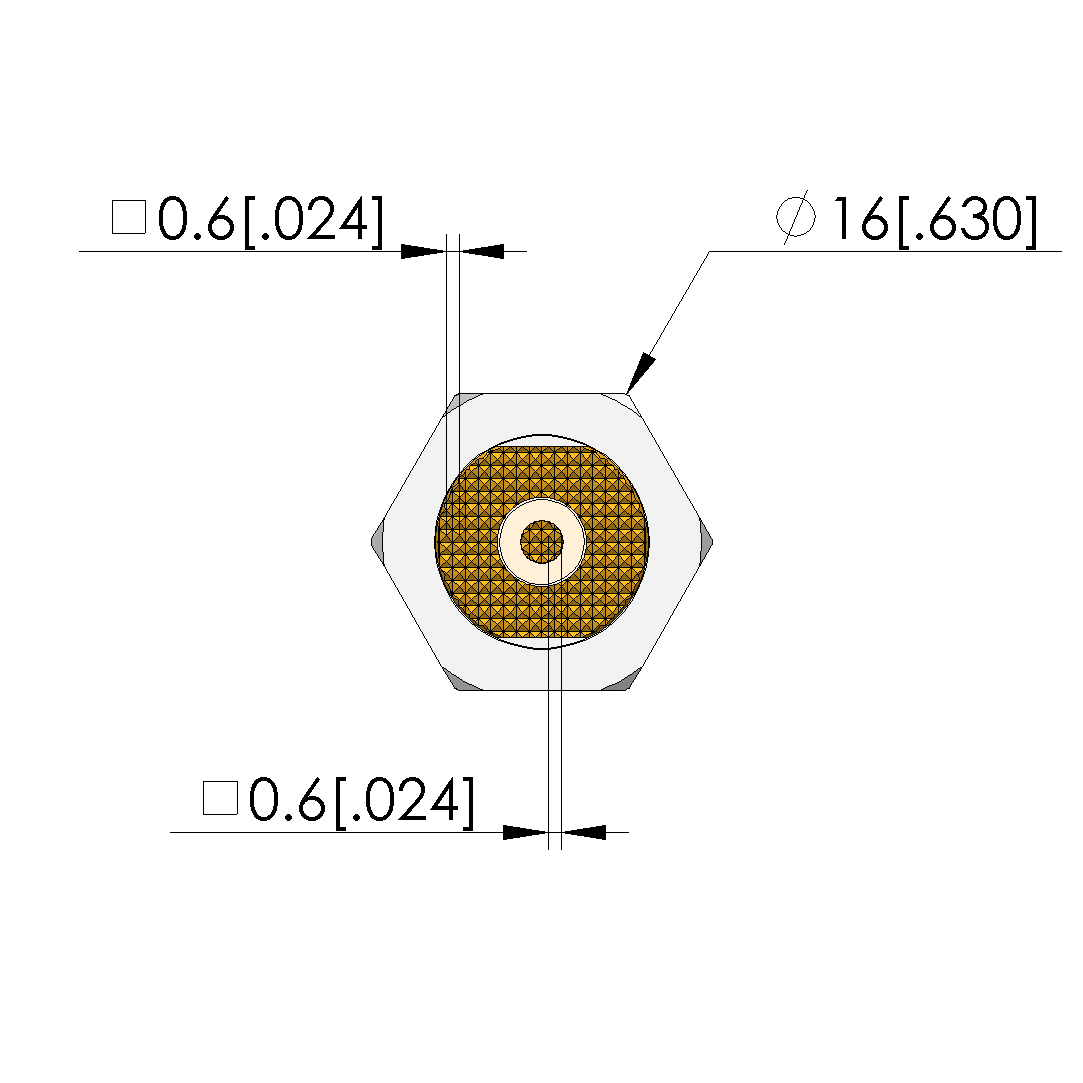

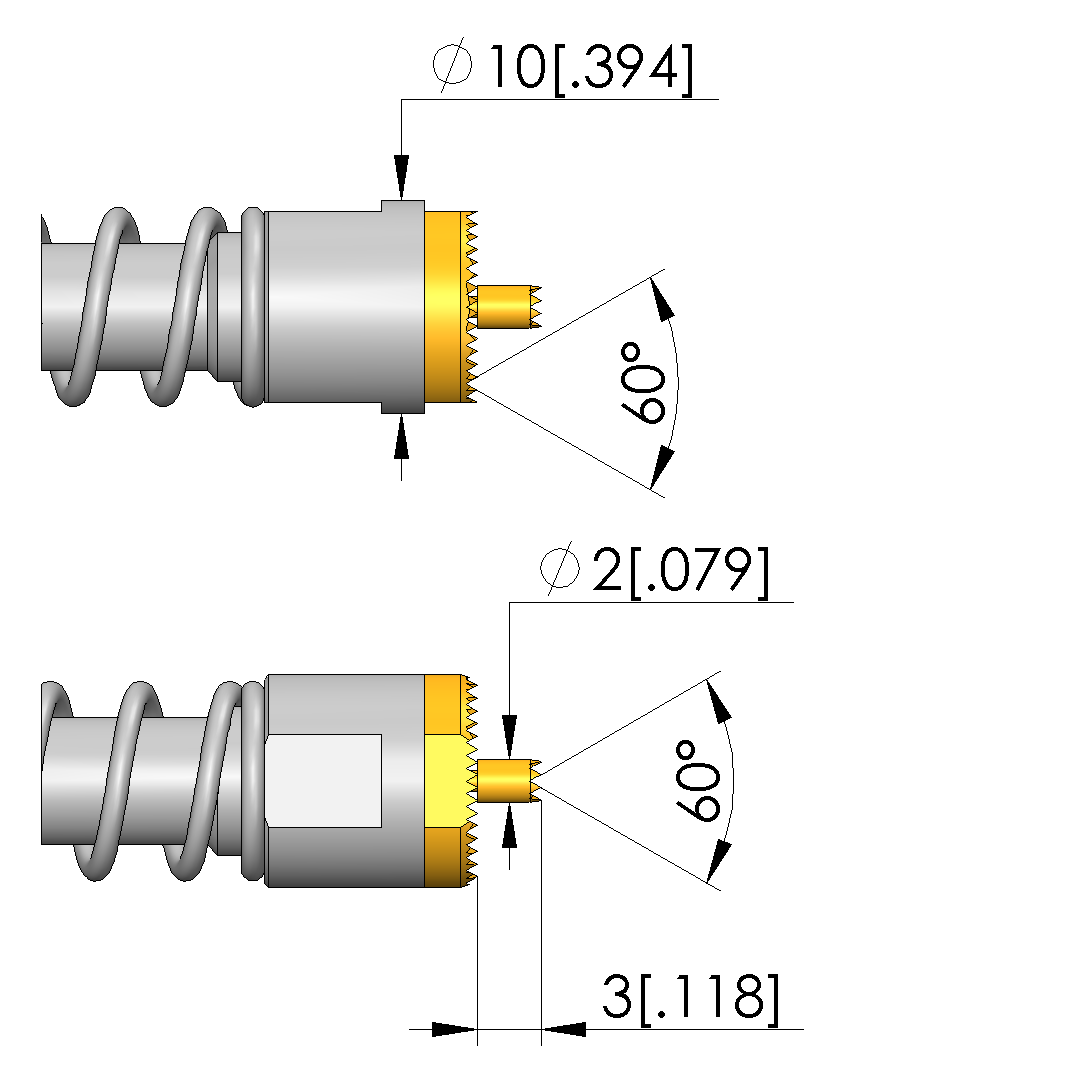

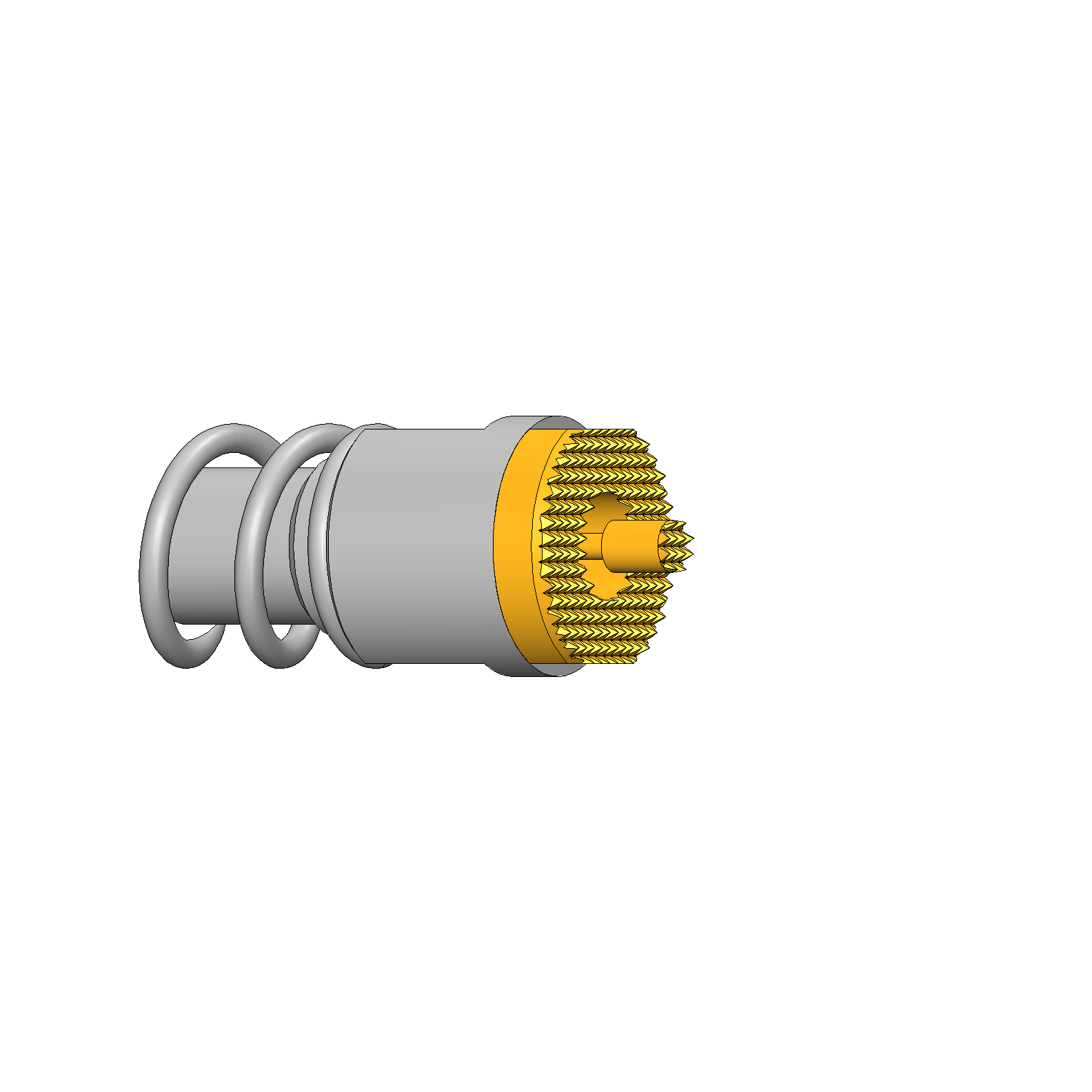

  • Tip style: 60 serrated, small grid
  • Tip diameter: 10 mm [.393 in]
  • Tip style surface: A gold
  • Tip style material: 3 CuBe
