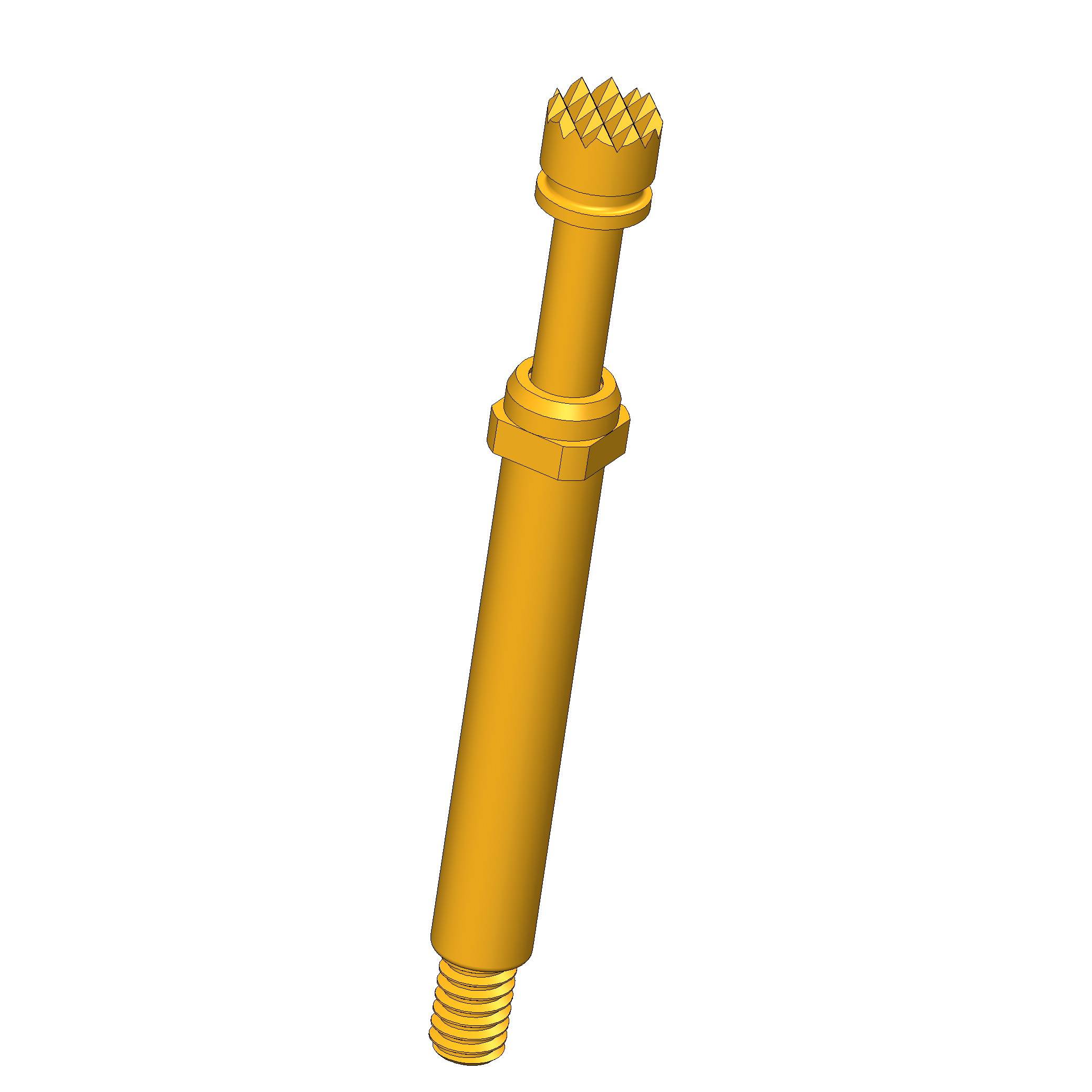

Product information "BCP-120 306 300 A 3002 M"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2.65 mm [.104 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-113 M |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 30 A |
| Grid: | 4 mm [157 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | Battery Contacting, Standard BCP (screw-in) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |
| Series: | BCP-120, BCP-120 M screw-in |
| Spring force at working stroke: | 3 N [10.7 ozf] |
| Spring pre-load: | 0.71 N [2.55 ozf] |
| Sub-product group: | Standard BCP (screw-in) |
| Tip diameter: | 3 mm [.118 in] |
| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 28.3 mm [1.11 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Other products in this series:
Technical data
General data
- Screw-in torque min.: 10 cNm [.885 lbf·in]
- Screw-in torque max.: 20 cNm [1.77 lbf·in]
- Product group: Standard BCP (screw-in)
- Product group: Battery Contacting
- Sub-product group: Standard BCP (screw-in)
- Series: BCP-120
- Series: BCP-120 M screw-in
- Grid: 4 mm [157 mil]
- Contacting from: Pin
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Compatible receptacle(s): KS-113 M
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes

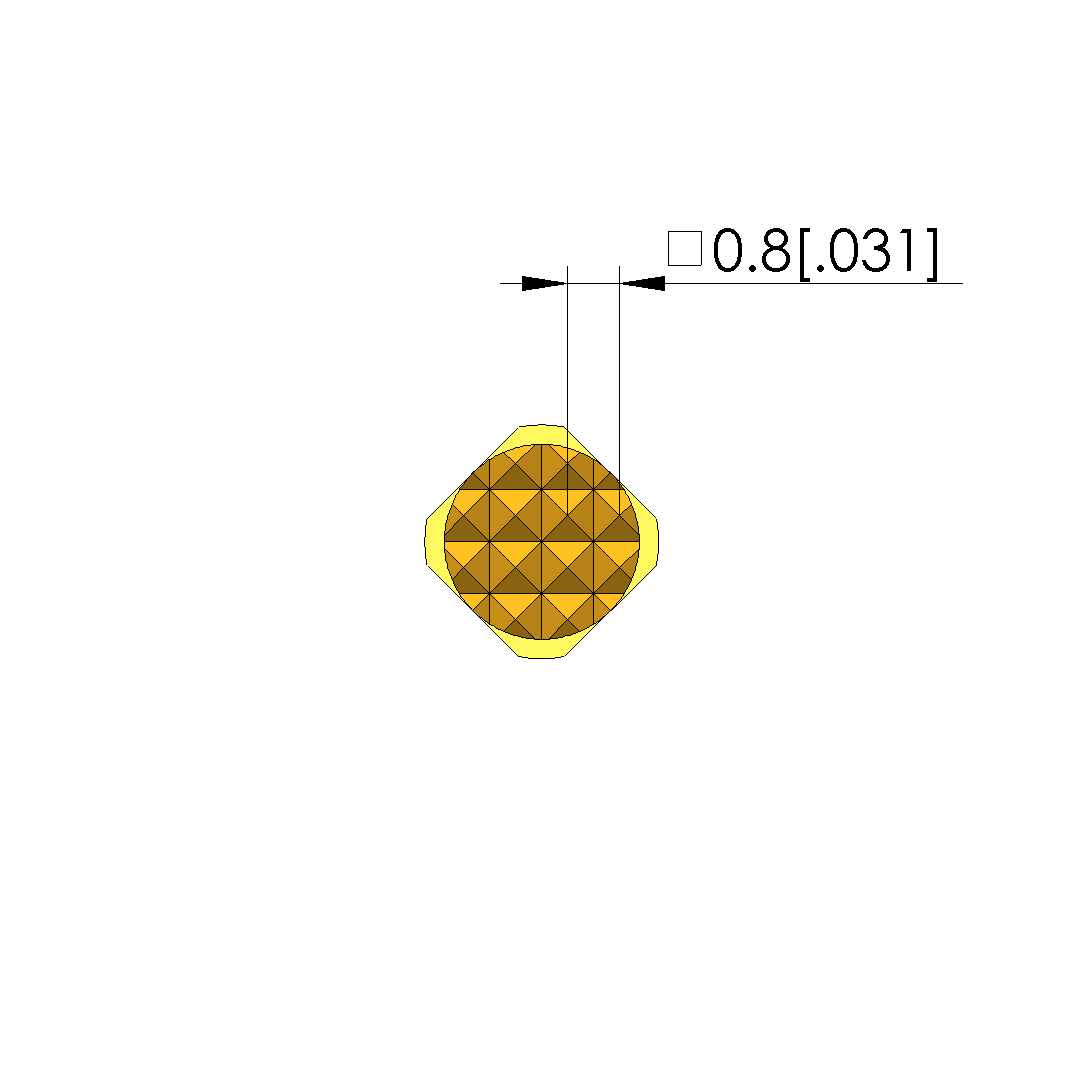

Tip style data

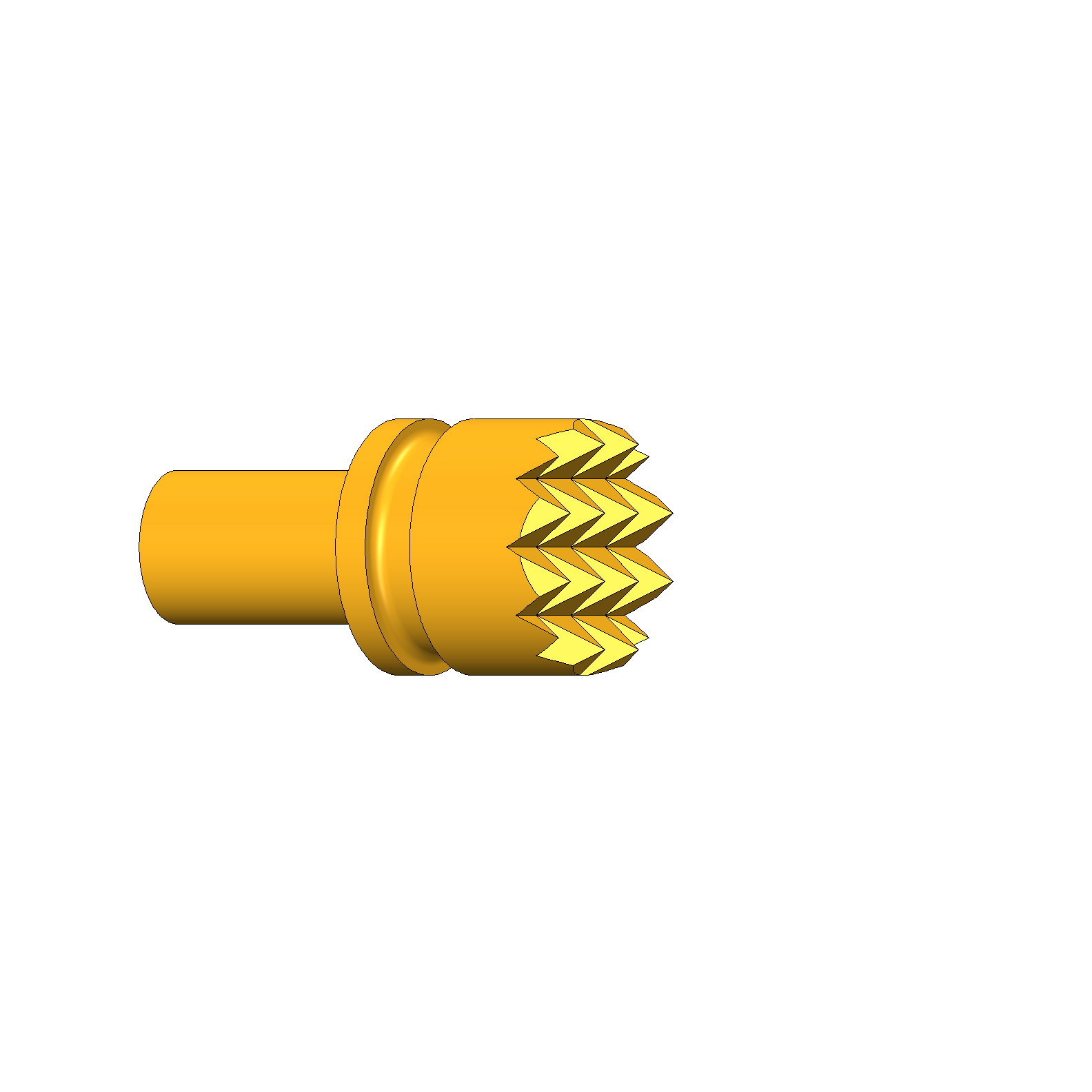

- Tip style: 06 serrated

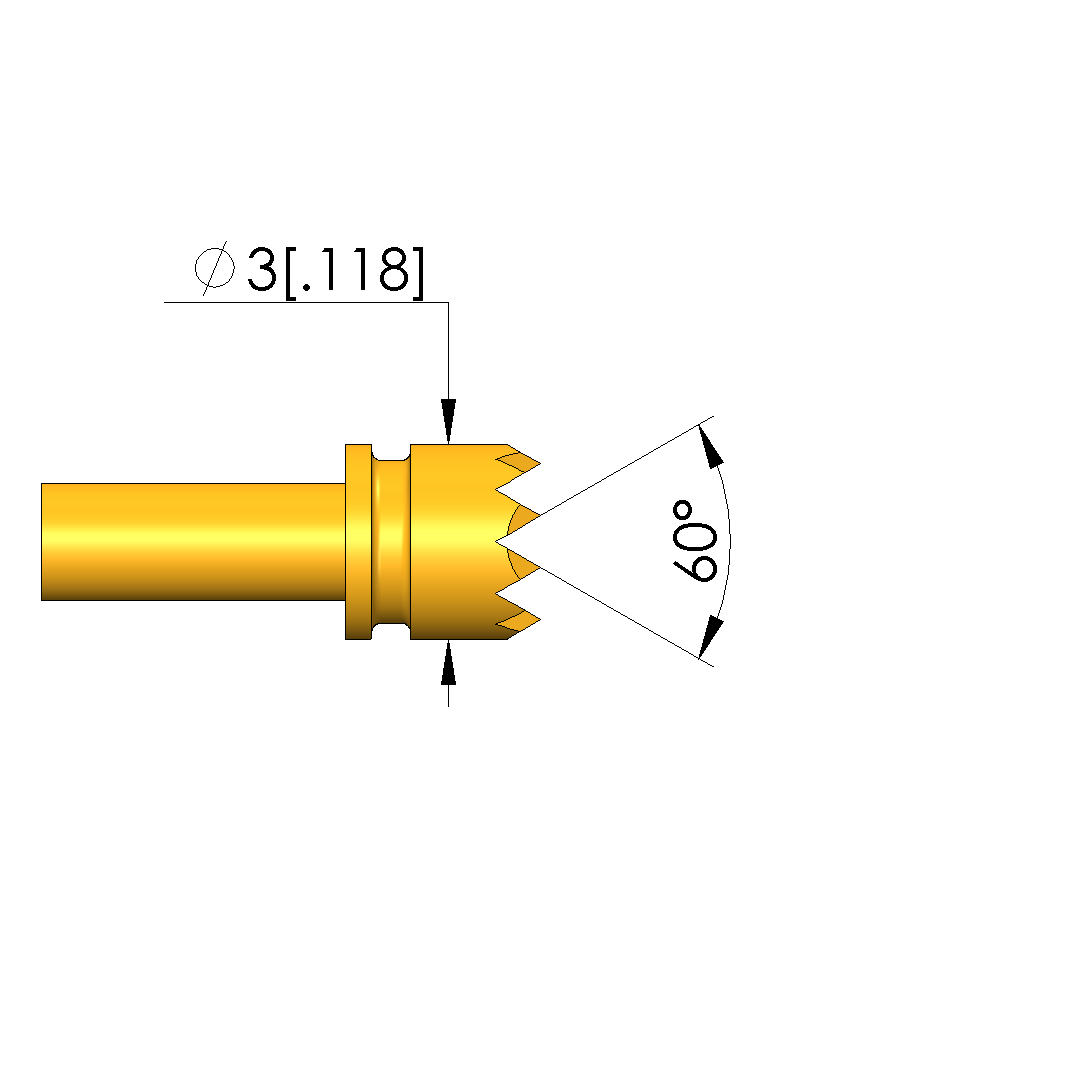

- Tip diameter: 3 mm [.118 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe

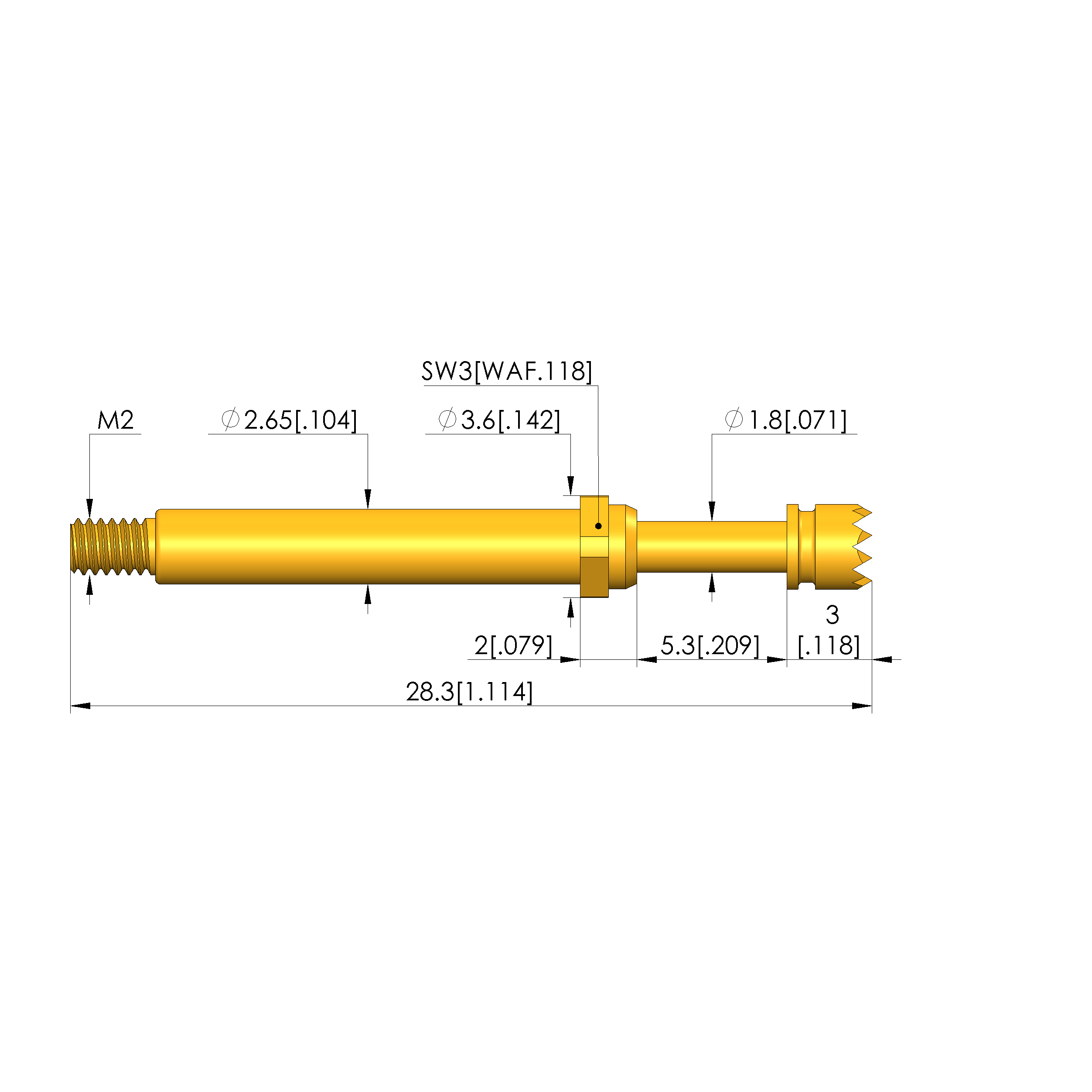

Mechanical data
- Total length: 28.3 mm [1.11 in]
- Barrel diameter: 2.65 mm [.104 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring pre-load: 0.71 N [2.55 ozf]
- Collar height: 02
- Spring force at working stroke: 3 N [10.7 ozf]
- Working stroke: 4 mm [.157 in]
Electrical data
- Current load capacity / rated current: 30 A
- Typical resistance (Ri): 10 mOhm
