Product information "BCP-118 306 200 A 2202"
- Contacting solution for cylindrical cells

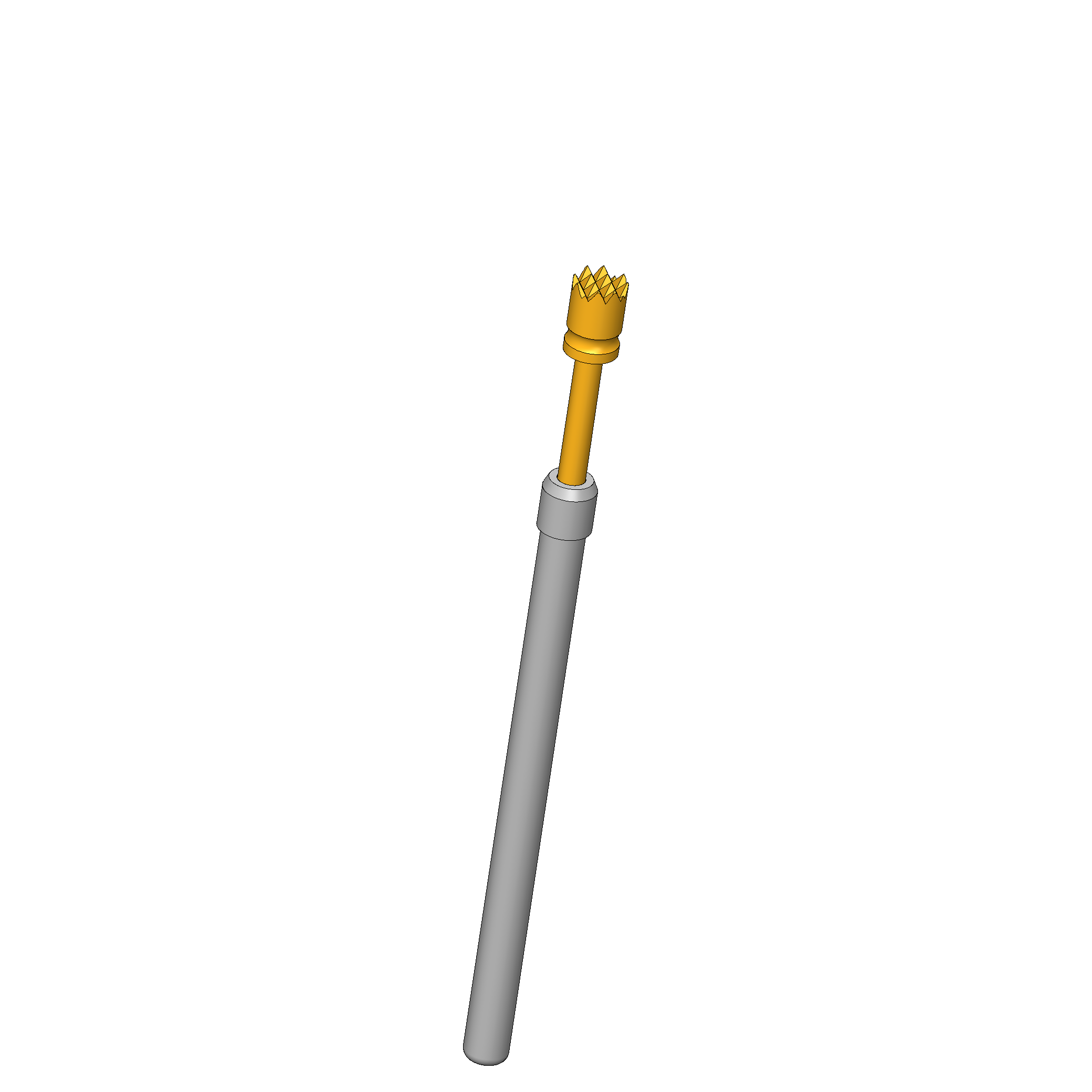

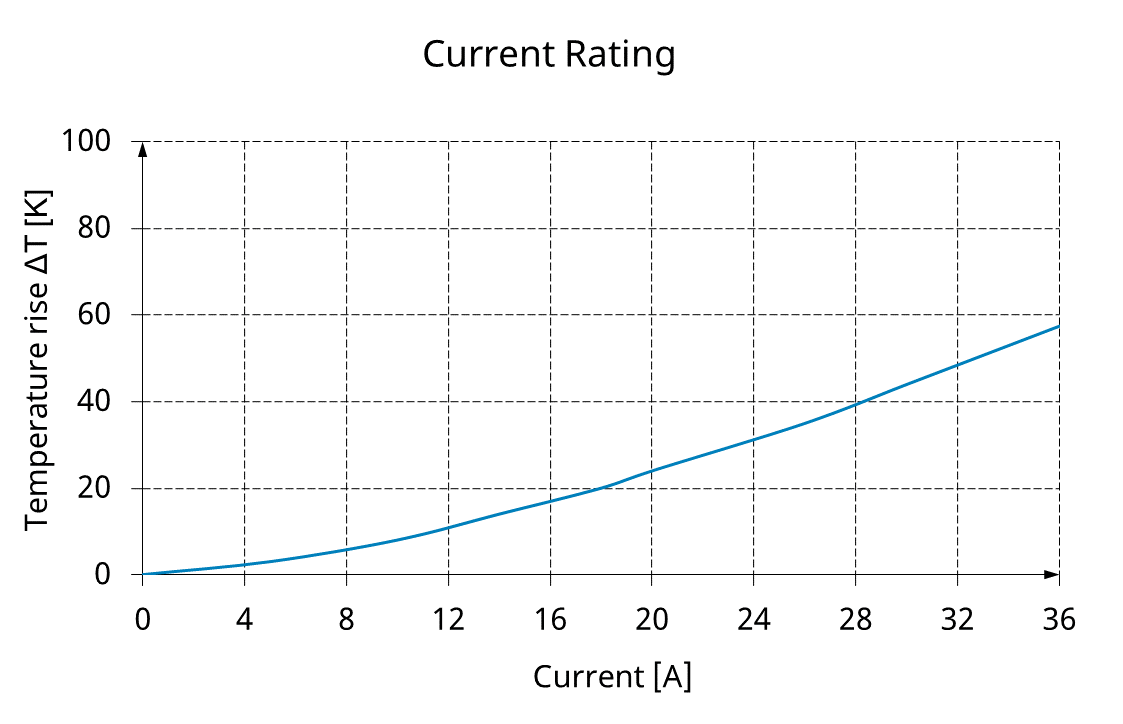

- Can be loaded with currents up to 18 A at DeltaT ≤ 20°K
- Low-Ohm probe with Ri typical: < 10 mOhm
- Developed for a range of applications including pre-charging, formation, measurement of internal resistance (IR), open-circuit voltage (OCV) assessment and end-of-life (EOL) testing
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.66 mm [.065 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-112 |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 20 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | Battery Contacting, Standard BCP (press-in) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | BCP-118 |
| Spring force at working stroke: | 2.25 N [8.09 ozf] |
| Spring pre-load: | 0.61 N [2.19 ozf] |
| Sub-product group: | Standard BCP (press-in) |
| Tip diameter: | 2 mm [.078 in] |
| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 32.3 mm [1.27 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- Contacting solution for cylindrical cells
- Can be loaded with currents up to 18 A at DeltaT ≤ 20°K
- Low-Ohm probe with Ri typical: < 10 mOhm
- Developed for a range of applications including pre-charging, formation, measurement of internal resistance (IR), open-circuit voltage (OCV) assessment and end-of-life (EOL) testing
Other products in this series:
Technical data
General data
- Product group: Standard BCP (press-in)
- Product group: Battery Contacting
- Sub-product group: Standard BCP (press-in)
- Series: BCP-118
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-112
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data

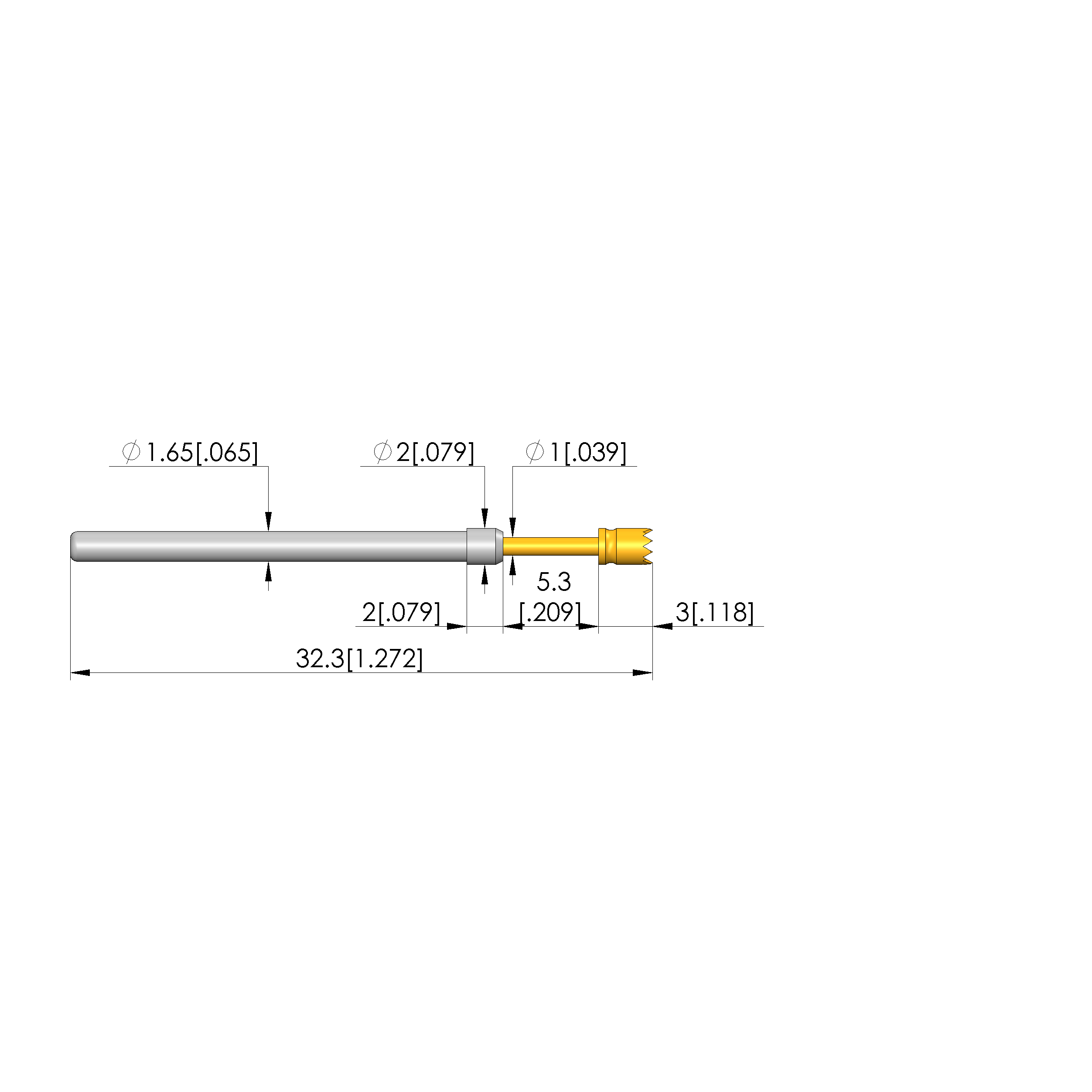

- Total length: 32.3 mm [1.27 in]
- Barrel diameter: 1.66 mm [.065 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring pre-load: 0.61 N [2.19 ozf]
- Collar height: 02
- Spring force at working stroke: 2.25 N [8.09 ozf]
- Working stroke: 4 mm [.157 in]
Tip style data

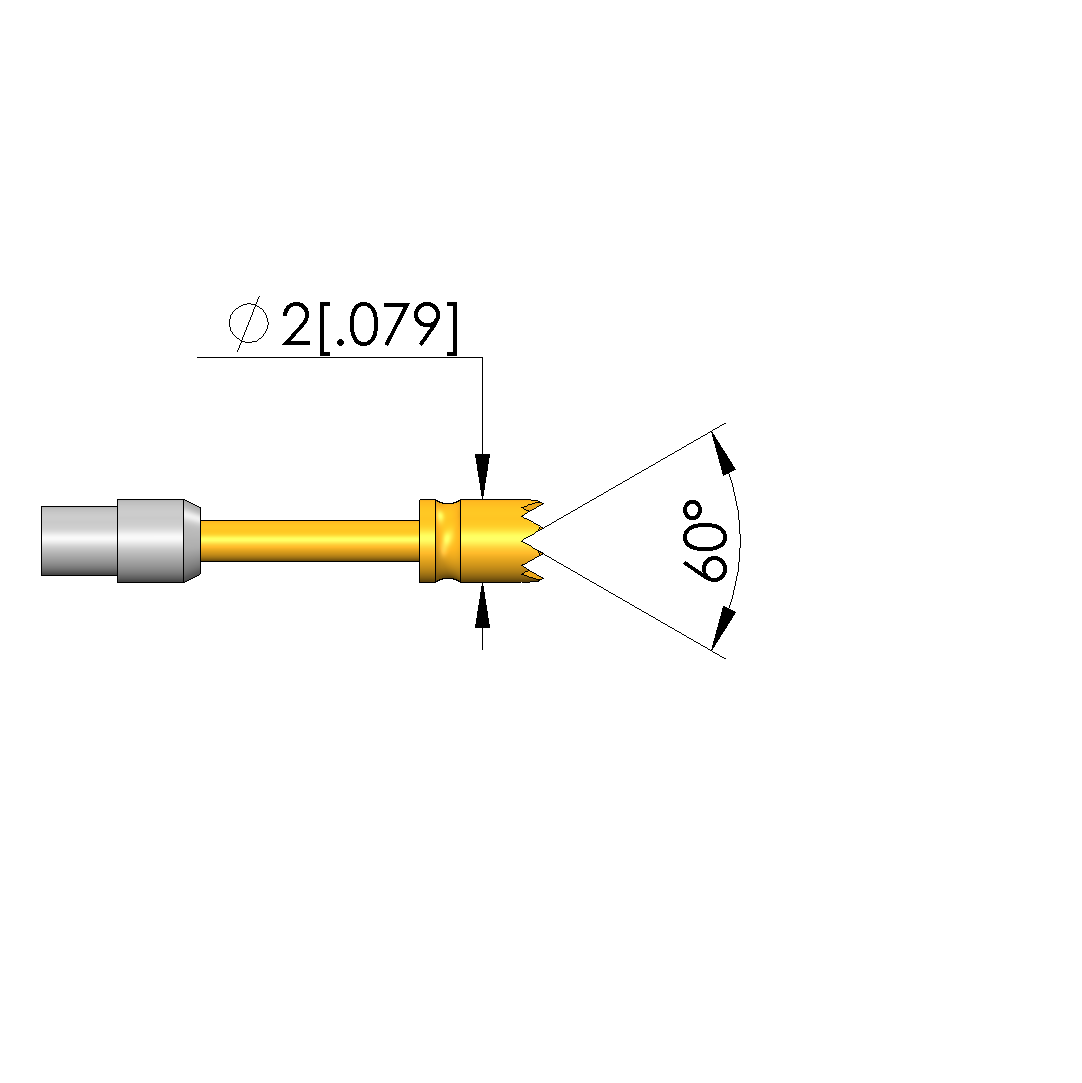

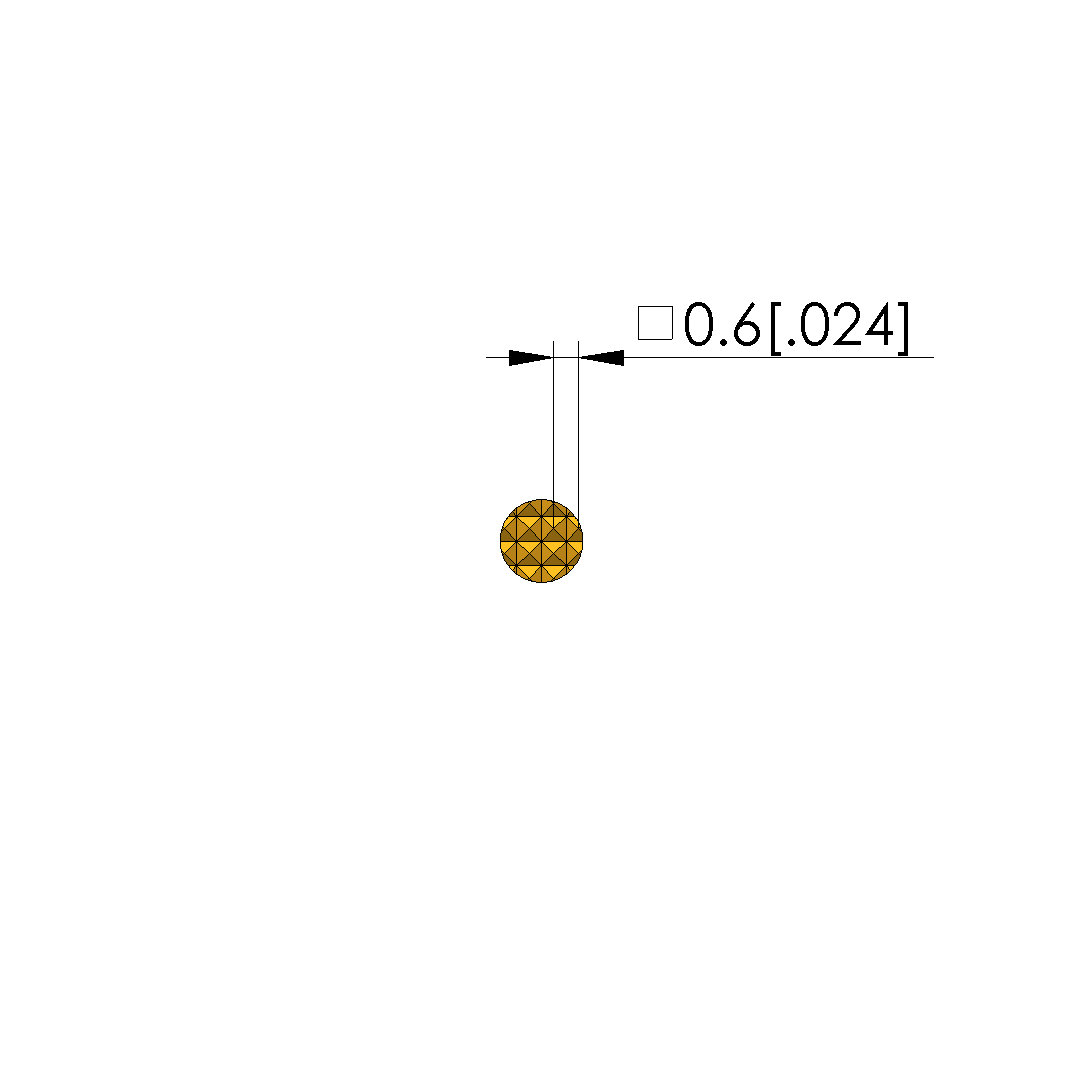

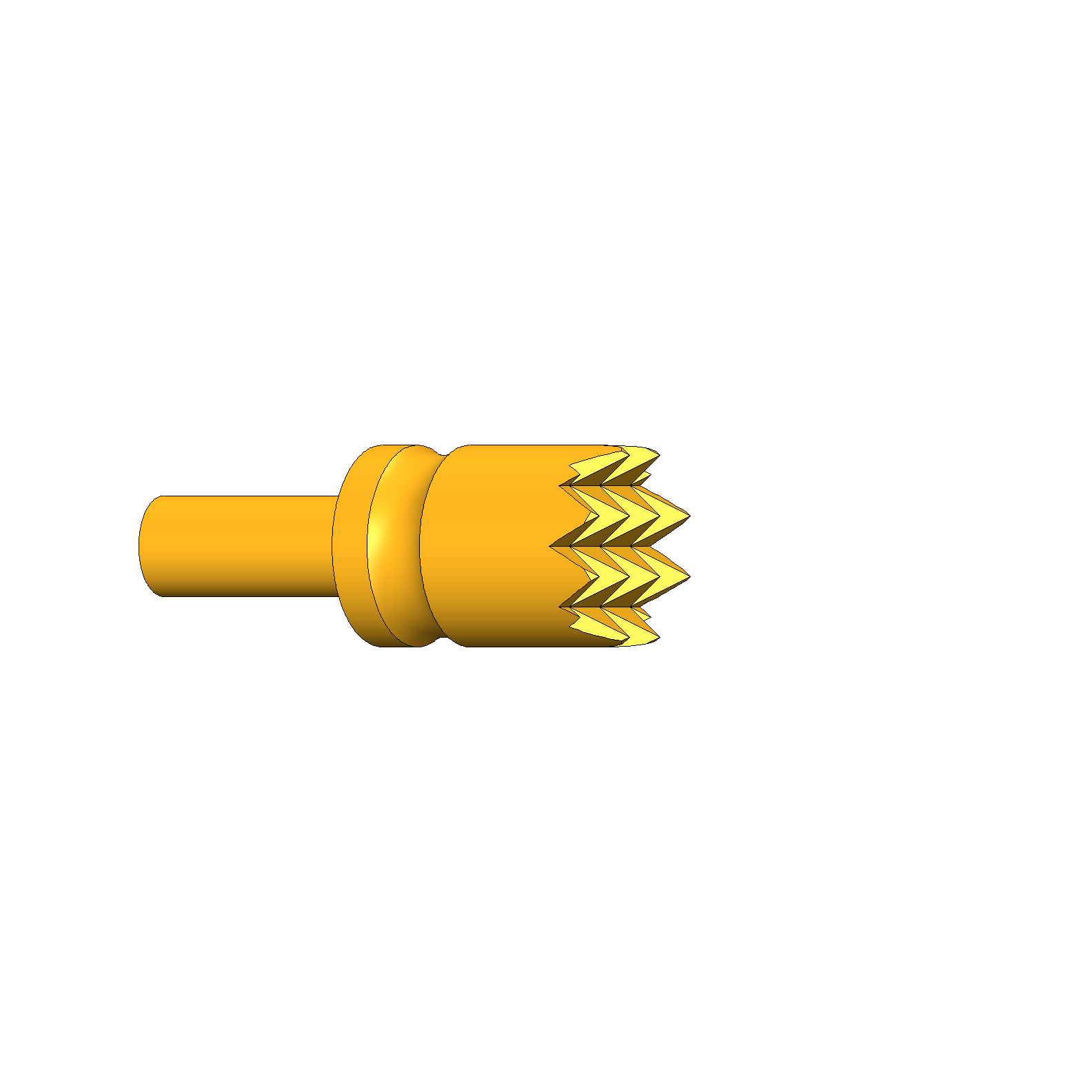

- Tip style: 06 serrated
- Tip diameter: 2 mm [.078 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data

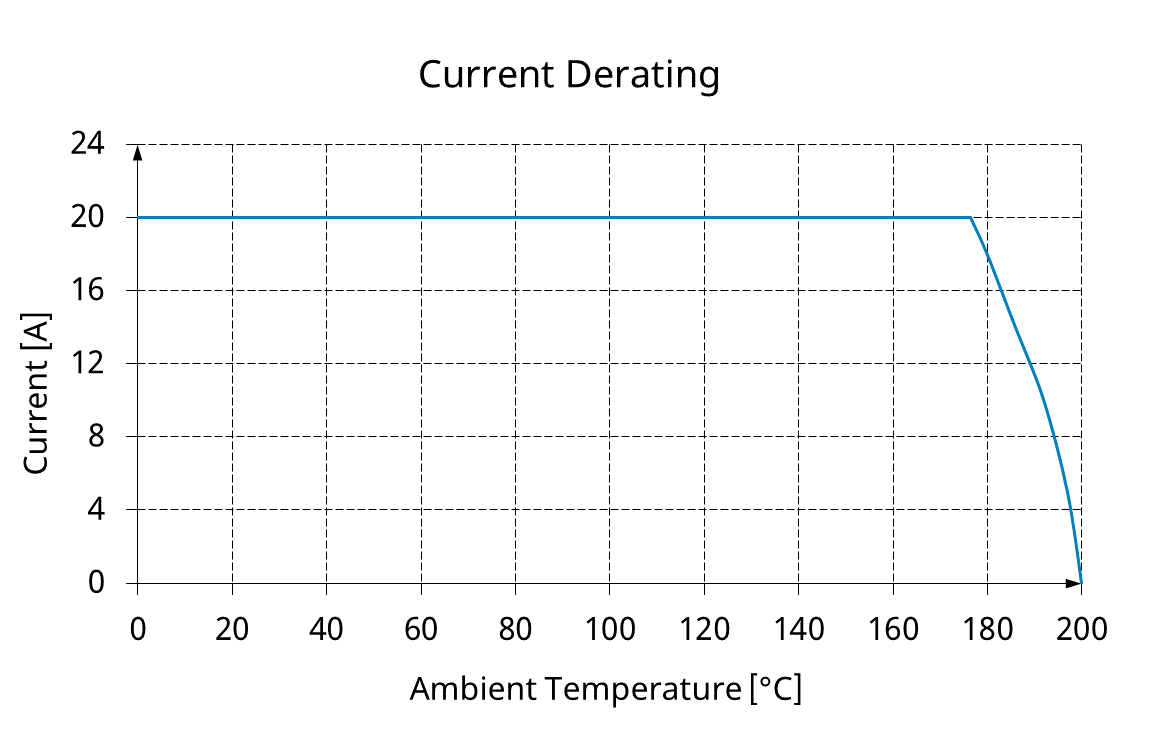

- Current load capacity / rated current: 20 A
- Typical resistance (Ri): 10 mOhm
