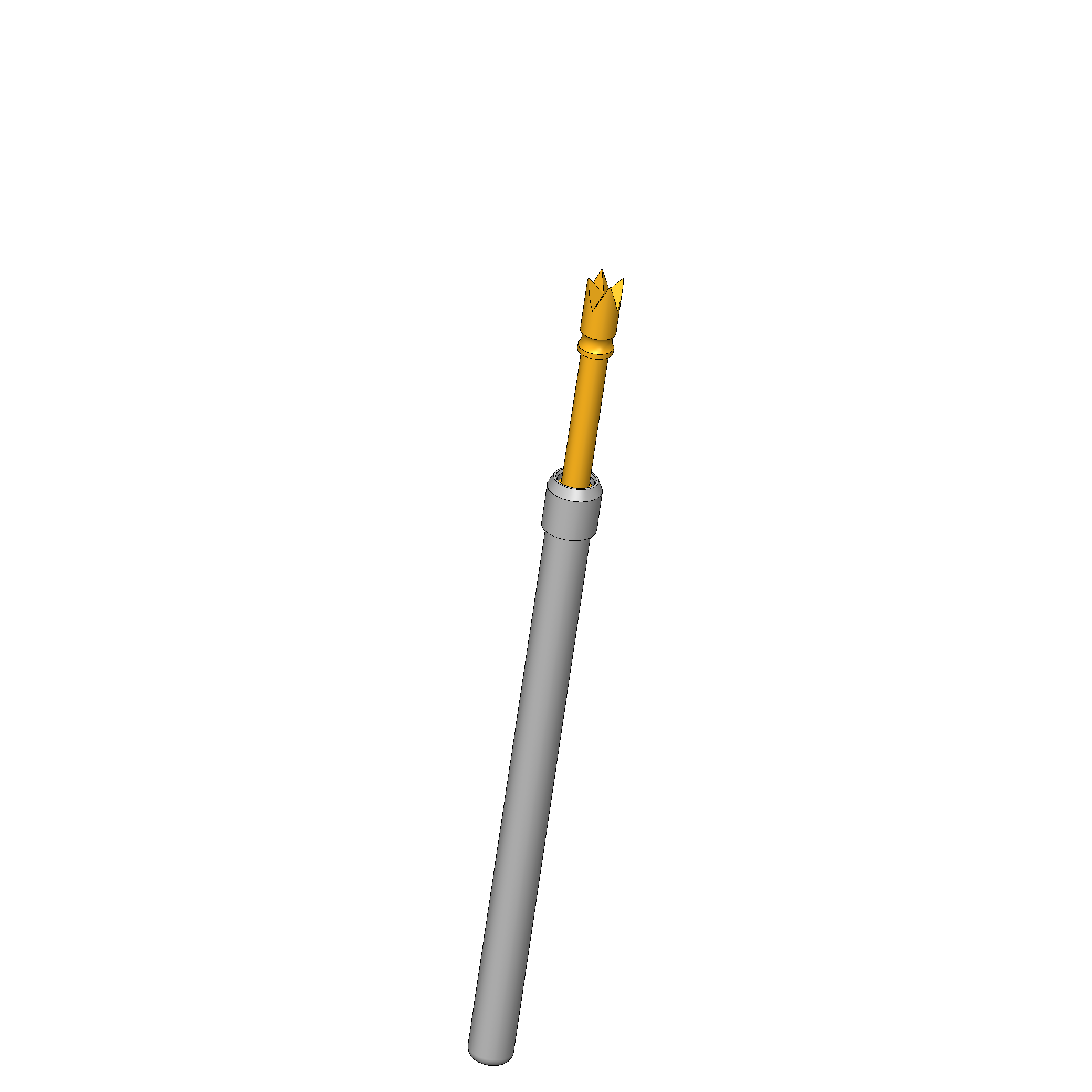

Product information "BCP-118 314 130 A 2202"
- Contacting solution for prismatic and cylindrical cells such as 18600, 21700 and 46xx as well as coin cells
- Current rating upto 6A on Al DUT with temperaturer rise dT ≤ 20 K ; max. current rating of 20A on high conducting materials like copper alloys
- Designed for a range of cell contacting applications such as formation, AC-IR, open circuit voltage (OCV) measurement and end-of-life (EOL) testing
- Low-resistance contact probe with Ri typical < 10 mΩ
| Adjustable installation height: | No |
|---|---|
| Application rec.: | EOL-Test, Formation, Hi-POT-Test/High voltage |
| Barrel diameter: | 1.66 mm [.065 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-112 |
| Current load capacity / rated current: | 20 A |
| DUT / contact: | Cylindrical cells, Prismatic cells |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | Battery Contacting, Standard BCP (press-in) |
| Quick-exchange system: | Yes |
| Rated current on aluminium @ΔT ≤ 20 K: | 6 A |
| Rated current on aluminium @ΔT ≤ 60 K: | 12 A |
| Rated current on copper @ΔT ≤ 20 K: | 10 A |
| Rated current on copper @ΔT ≤ 60 K: | 20 A |
| RoHS-compliant: | Yes |
| Series: | BCP-118 |
| Spring force at working stroke: | 2.25 N [8.09 ozf] |
| Spring pre-load: | 0.61 N [2.19 ozf] |
| Sub-product group: | Standard BCP (press-in) |
| Tip diameter: | 1.3 mm [.051 in] |
| Tip style: | 14 4-point crown, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 32.3 mm [1.27 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Product details
- Contacting solution for prismatic and cylindrical cells such as 18600, 21700 and 46xx as well as coin cells
- Current rating upto 6A on Al DUT with temperaturer rise dT ≤ 20 K ; max. current rating of 20A on high conducting materials like copper alloys
- Designed for a range of cell contacting applications such as formation, AC-IR, open circuit voltage (OCV) measurement and end-of-life (EOL) testing
- Low-resistance contact probe with Ri typical < 10 mΩ
Other products in this series:
Technical data
General data
- Product group: Standard BCP (press-in), Battery Contacting
- Sub-product group: Standard BCP (press-in)
- Series: BCP-118
- Application rec.: EOL-Test, Hi-POT-Test/High voltage, Formation
- Grid: 2.54 mm [100 mil]
- DUT / contact: Prismatic cells, Cylindrical cells
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-112
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data

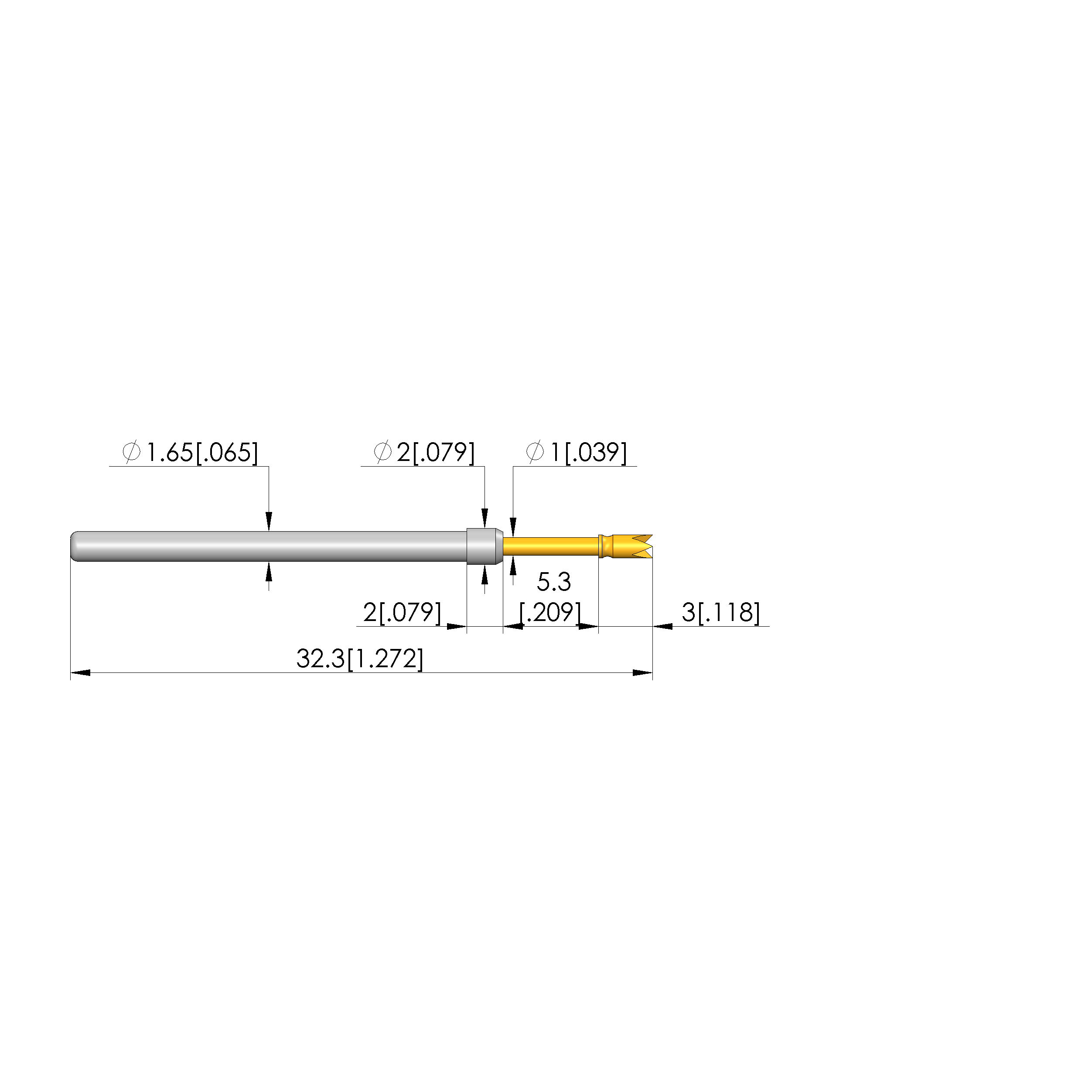

- Total length: 32.3 mm [1.27 in]
- Barrel diameter: 1.66 mm [.065 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring pre-load: 0.61 N [2.19 ozf]
- Collar height: 02
- Spring force at working stroke: 2.25 N [8.09 ozf]
- Working stroke: 4 mm [.157 in]
Electrical data

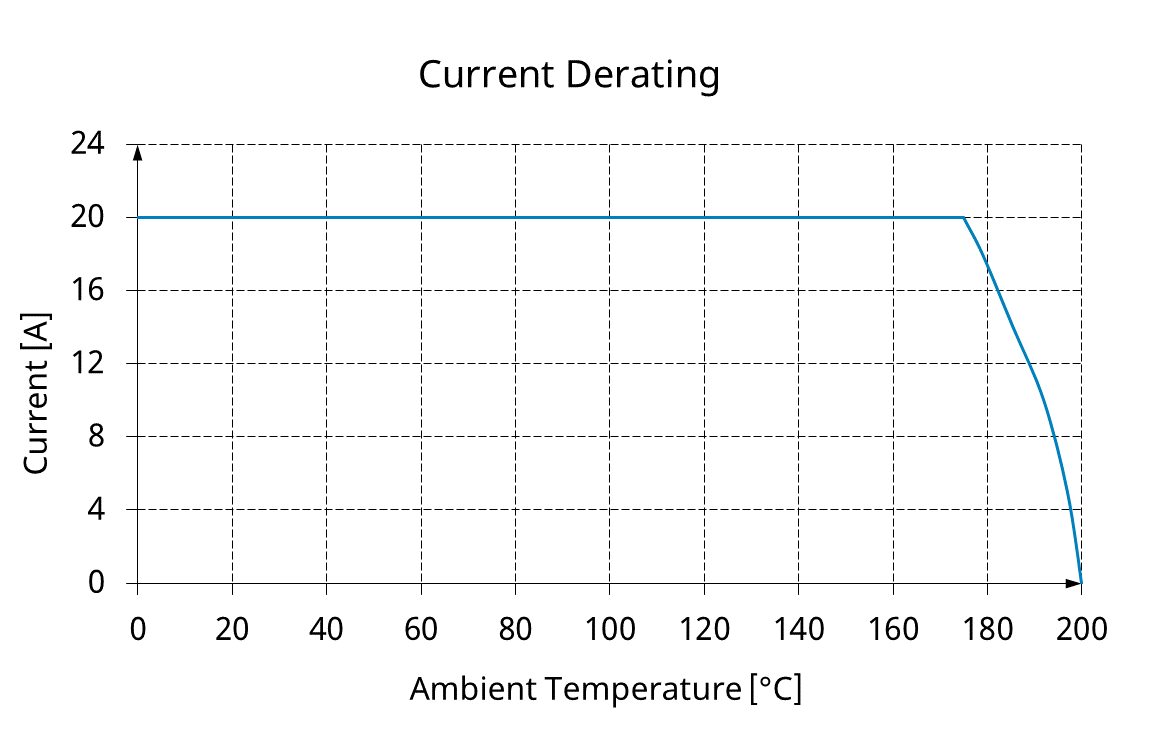

- Current load capacity / rated current: 20 A

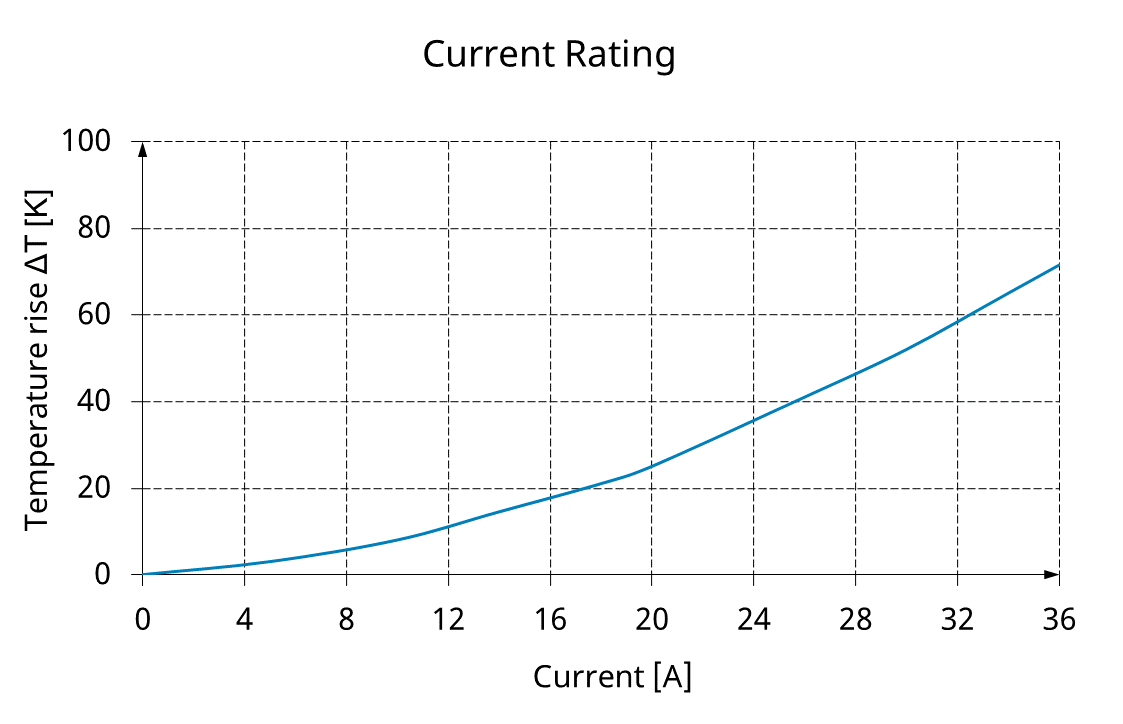

- Rated current on copper @ΔT ≤ 20 K: 10 A
- Rated current on copper @ΔT ≤ 60 K: 20 A
- Rated current on aluminium @ΔT ≤ 20 K: 6 A
- Rated current on aluminium @ΔT ≤ 60 K: 12 A
- Typical resistance (Ri): 10 mOhm
Tip style data

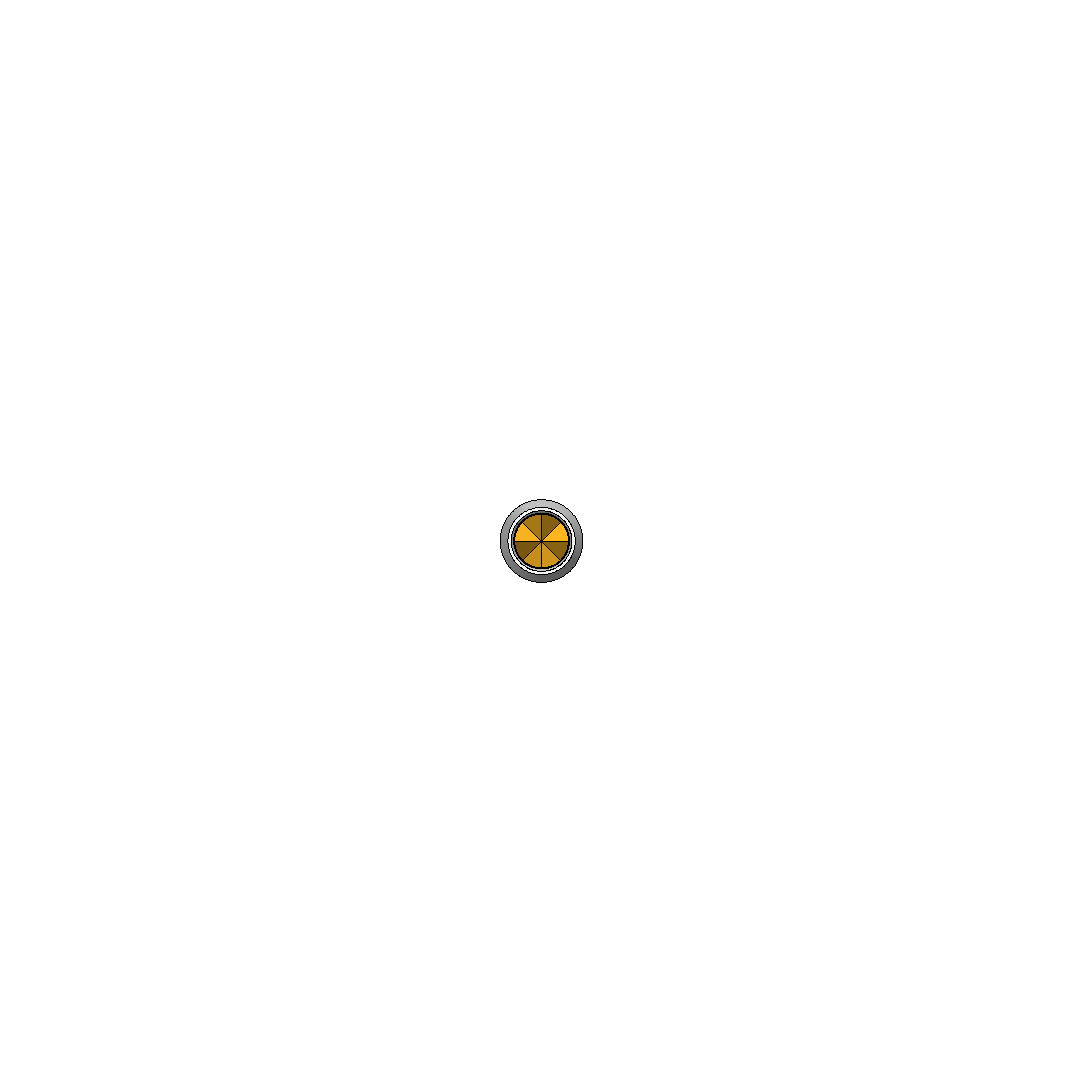

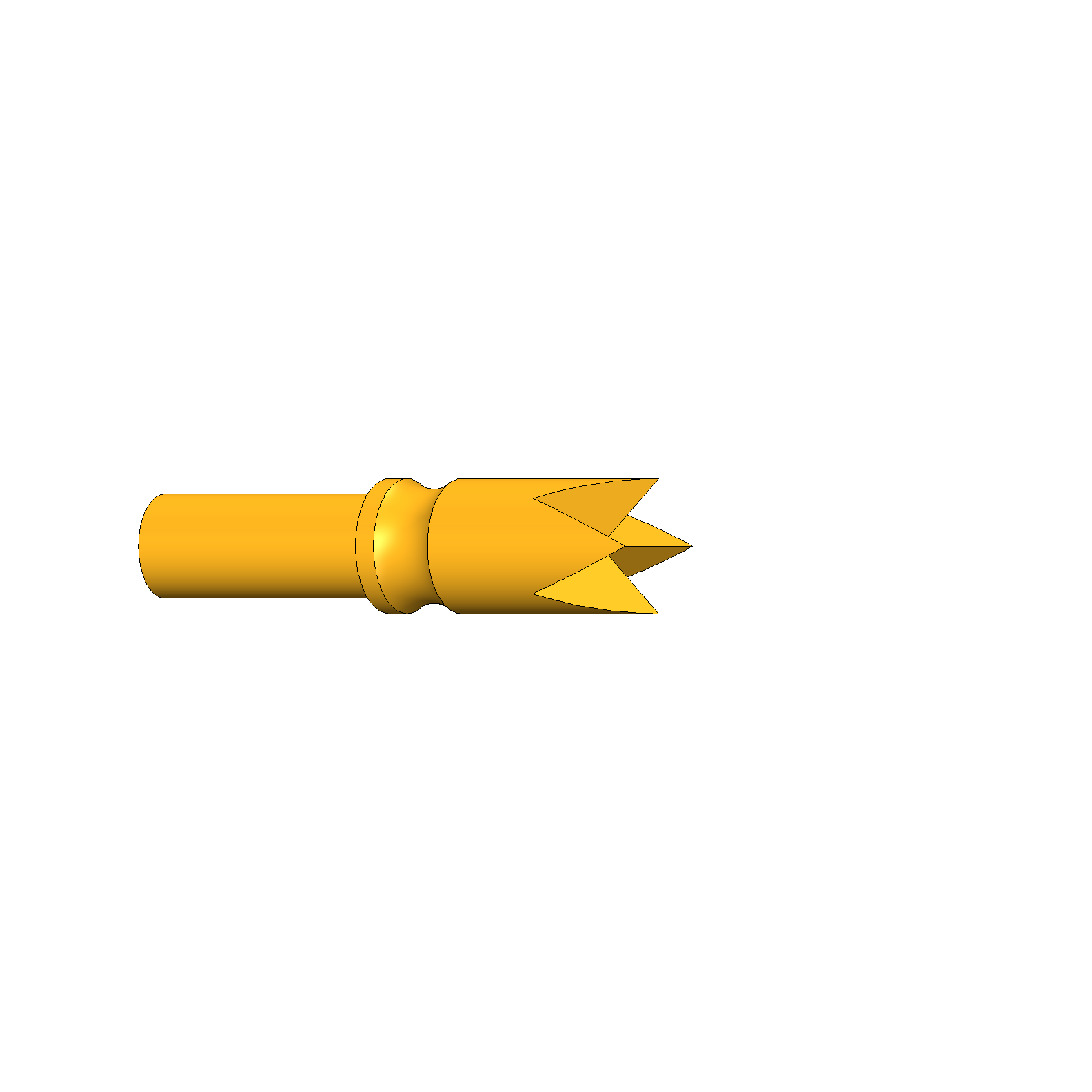

- Tip style: 14 4-point crown, self-cleaning

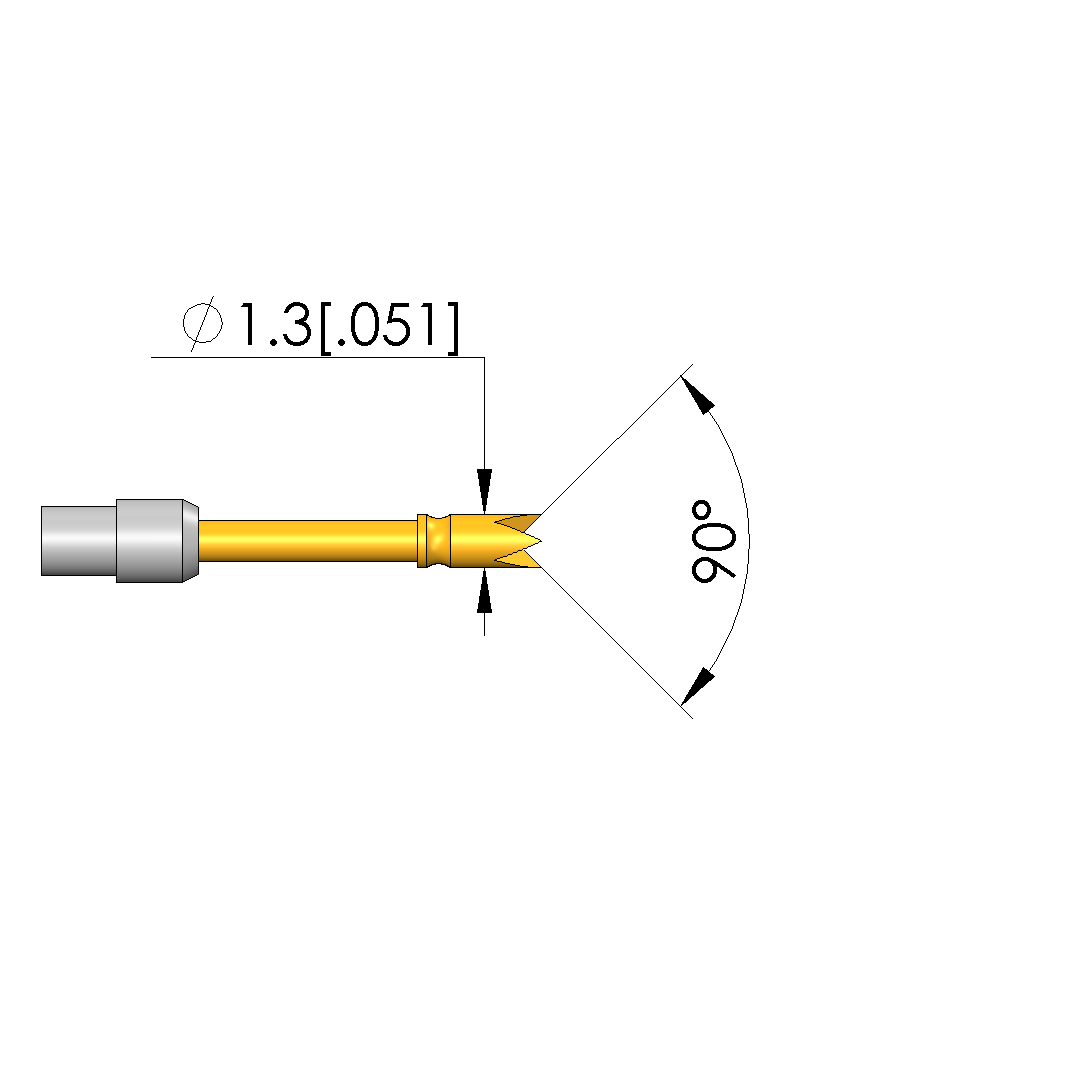

- Tip diameter: 1.3 mm [.051 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
