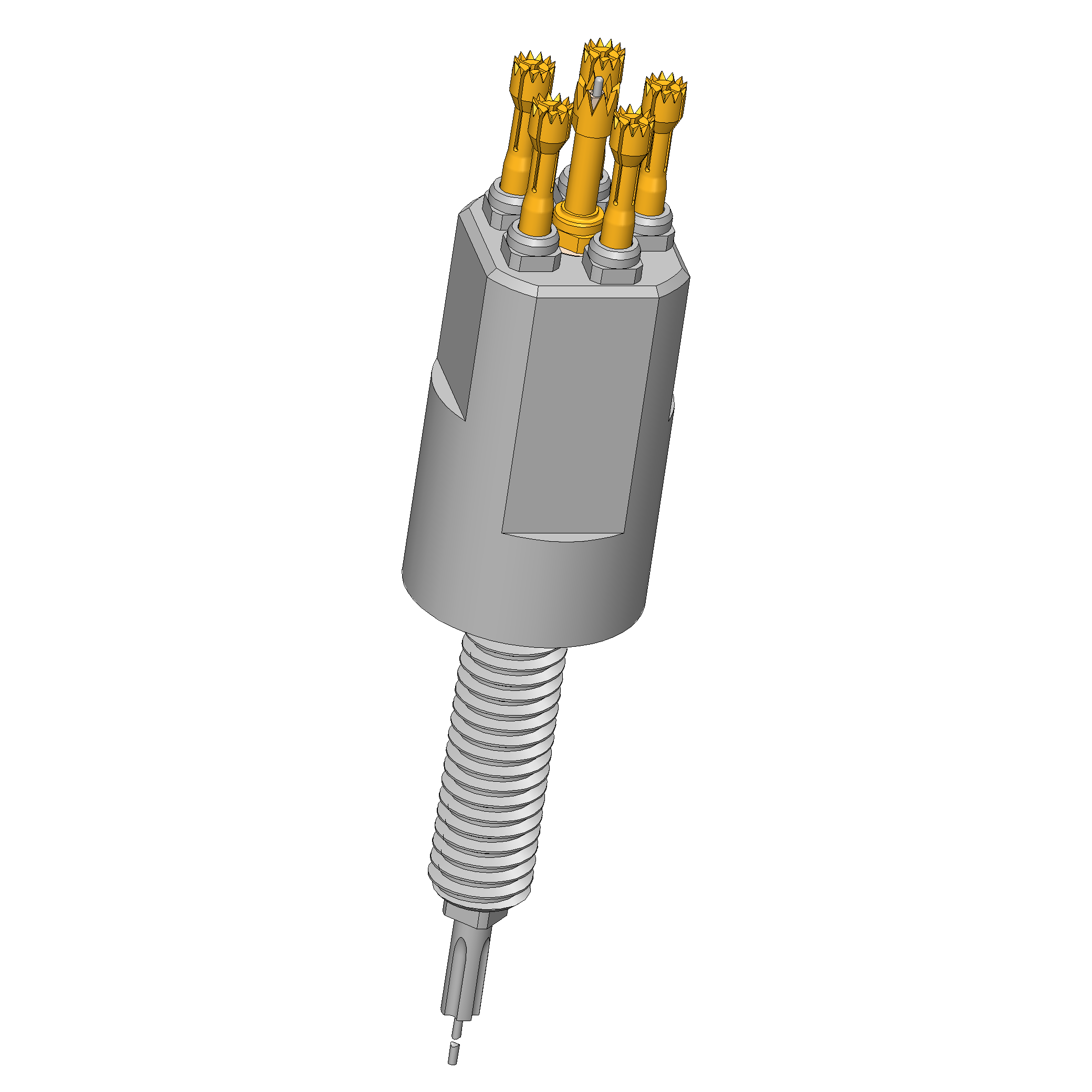

Product information "BCM-667-0001 C02-05-03"
- Reliable contact of battery cells
- Modular design enables scalability of current transmission using well-established INGUN products
- Voltage monitoring via a central sense contact probe possible
- TKS-667 integrated in the center for temperature and voltage measurement
- Easy installation in plate or busbar via the threaded connection
| Adjustable installation height: | No |
|---|---|
| Application rec.: | DC-IR, Fast Charging/High Current, Formation |
| Barrel diameter: | 14 mm [.551 in] |
| Contacting from: | - |
| Current load capacity / rated current: | 120 A |
| DUT / contact: | Cylindrical cells, Prismatic cells |
| Grid: | 15 mm [590 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | Yes |
| Product group: | Battery Contacting, Standard BCP (screw-in) |
| Quick-exchange system: | No |
| Rated current on aluminium @ΔT ≤ 20 K: | 50 A |
| Rated current on aluminium @ΔT ≤ 60 K: | 80 A |
| Rated current on copper @ΔT ≤ 20 K: | 60 A |
| Rated current on copper @ΔT ≤ 60 K: | 120 A |
| RoHS-compliant: | Yes |
| Screw-in torque: | 60 cNm [5.31 lbf·in] |
| Screw-in torque max.: | 60 cNm [5.31 lbf·in] |
| Series: | BCM-667, BCM-667 M einschraubbar |
| Spring force at working stroke: | 30.6 N [110 ozf] |
| Spring pre-load: | 8.88 N [31.9 ozf] |
| Sub-product group: | Standard BCP (screw-in) |
| Tip diameter: | 2.4 mm [.094 in] |
| Tip style: | 68 expanding tip with front-facing pionts/cutting edges |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 61.3 mm [2.41 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri), connection on plunger: | 1 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Product details
- Reliable contact of battery cells
- Modular design enables scalability of current transmission using well-established INGUN products
- Voltage monitoring via a central sense contact probe possible
- TKS-667 integrated in the center for temperature and voltage measurement
- Easy installation in plate or busbar via the threaded connection
Other products in this series:
Technical data
General data
- Screw-in torque max.: 60 cNm [5.31 lbf·in]
- Product group: Standard BCP (screw-in), Battery Contacting
- Sub-product group: Standard BCP (screw-in)
- Series: BCM-667, BCM-667 M einschraubbar
- Application rec.: Fast Charging/High Current, DC-IR, Formation
- Grid: 15 mm [590 mil]
- DUT / contact: Prismatic cells, Cylindrical cells
- Contacting from: -
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: No
- Type of test probe connection: Thread connection
- Adjustable installation height: No
- Non-rotating: Yes
- Screw-in torque: 60 cNm [5.31 lbf·in]
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data

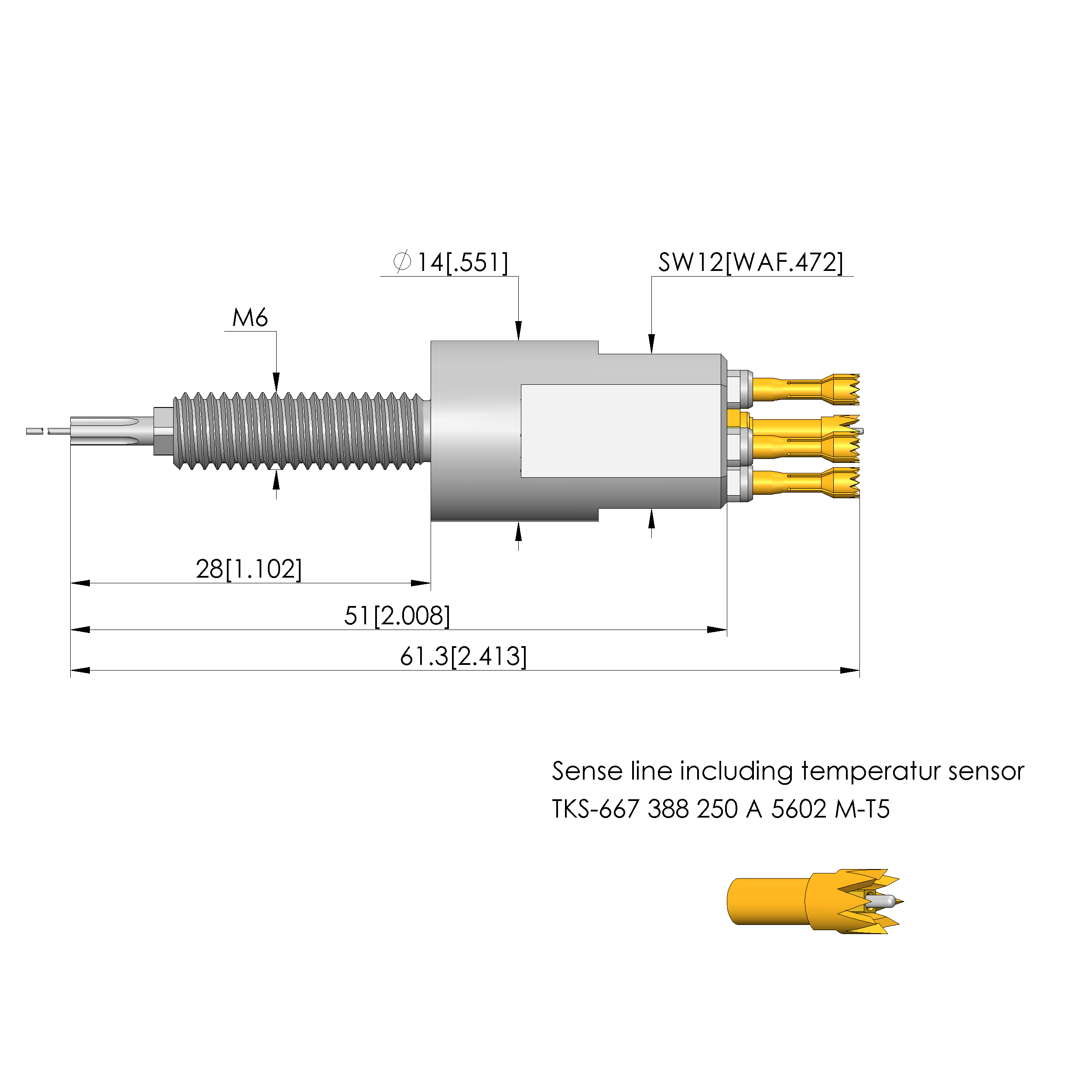

- Total length: 61.3 mm [2.41 in]
- Barrel diameter: 14 mm [.551 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring pre-load: 8.88 N [31.9 ozf]

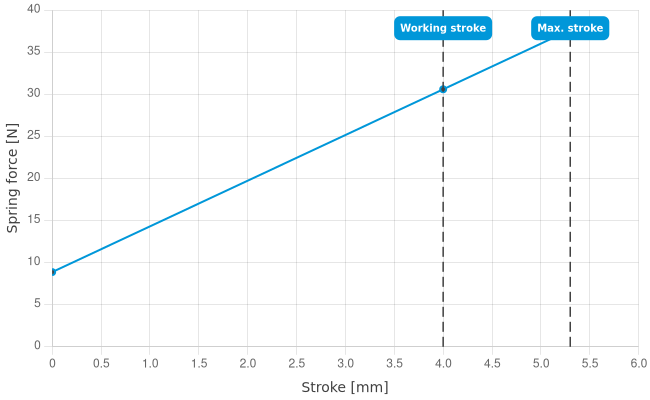

- Spring force at working stroke: 30.6 N [110 ozf]
- Working stroke: 4 mm [.157 in]
Electrical data
- Current load capacity / rated current: 120 A
- Rated current on copper @ΔT ≤ 20 K: 60 A
- Rated current on copper @ΔT ≤ 60 K: 120 A
- Rated current on aluminium @ΔT ≤ 20 K: 50 A
- Rated current on aluminium @ΔT ≤ 60 K: 80 A
- Typical resistance (Ri), connection on plunger: 1 mOhm

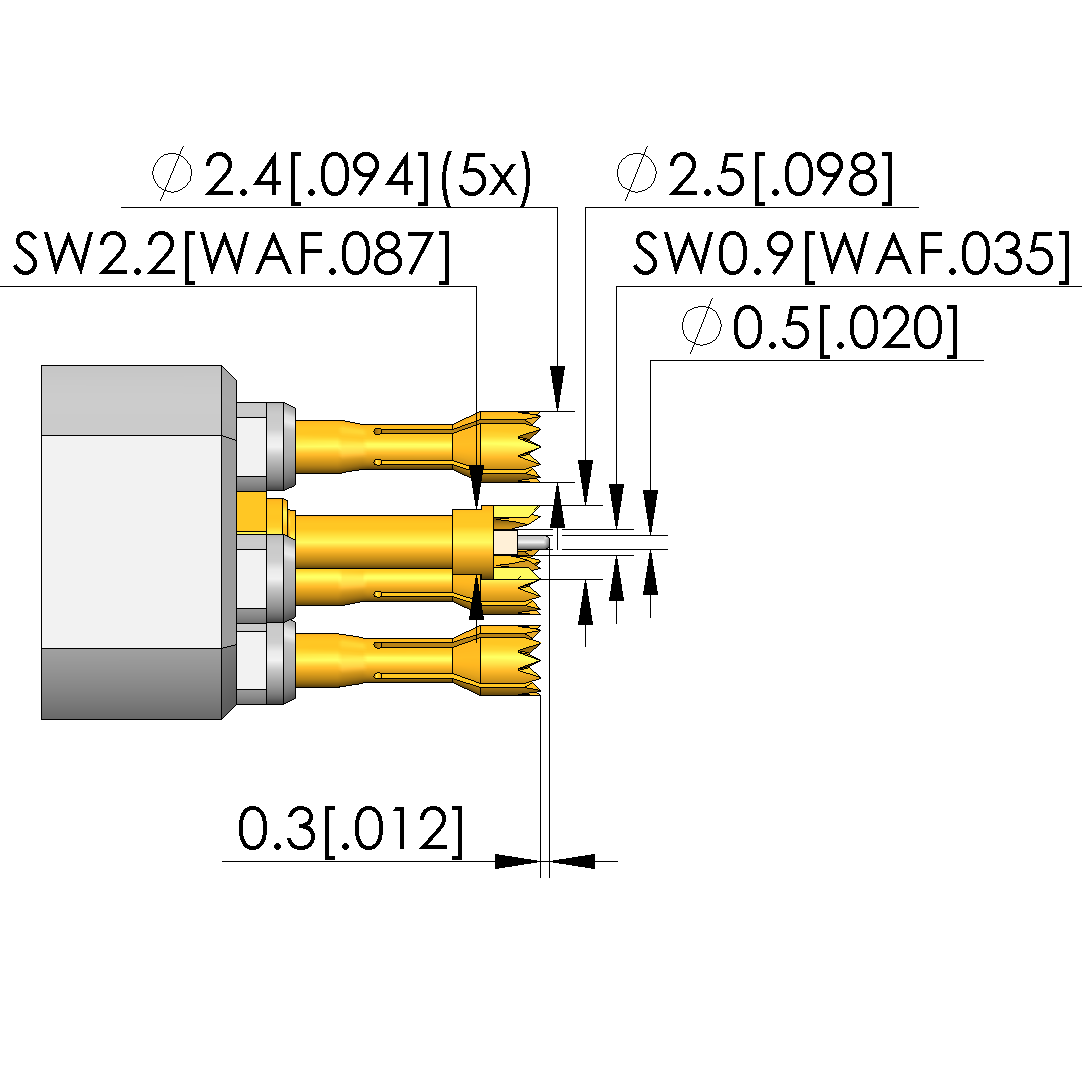

Tip style data

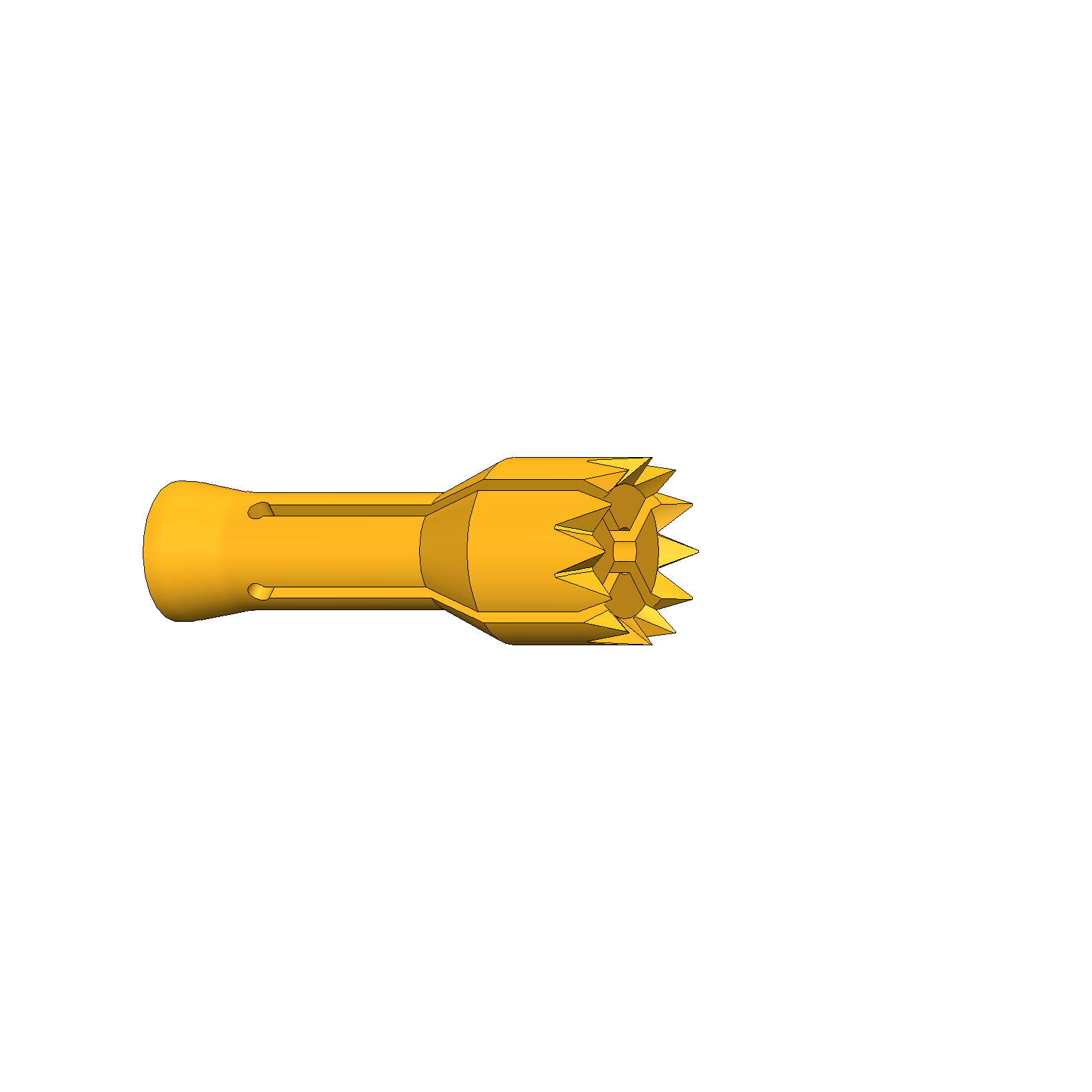

- Tip style: 68 expanding tip with front-facing pionts/cutting edges
- Tip diameter: 2.4 mm [.094 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
