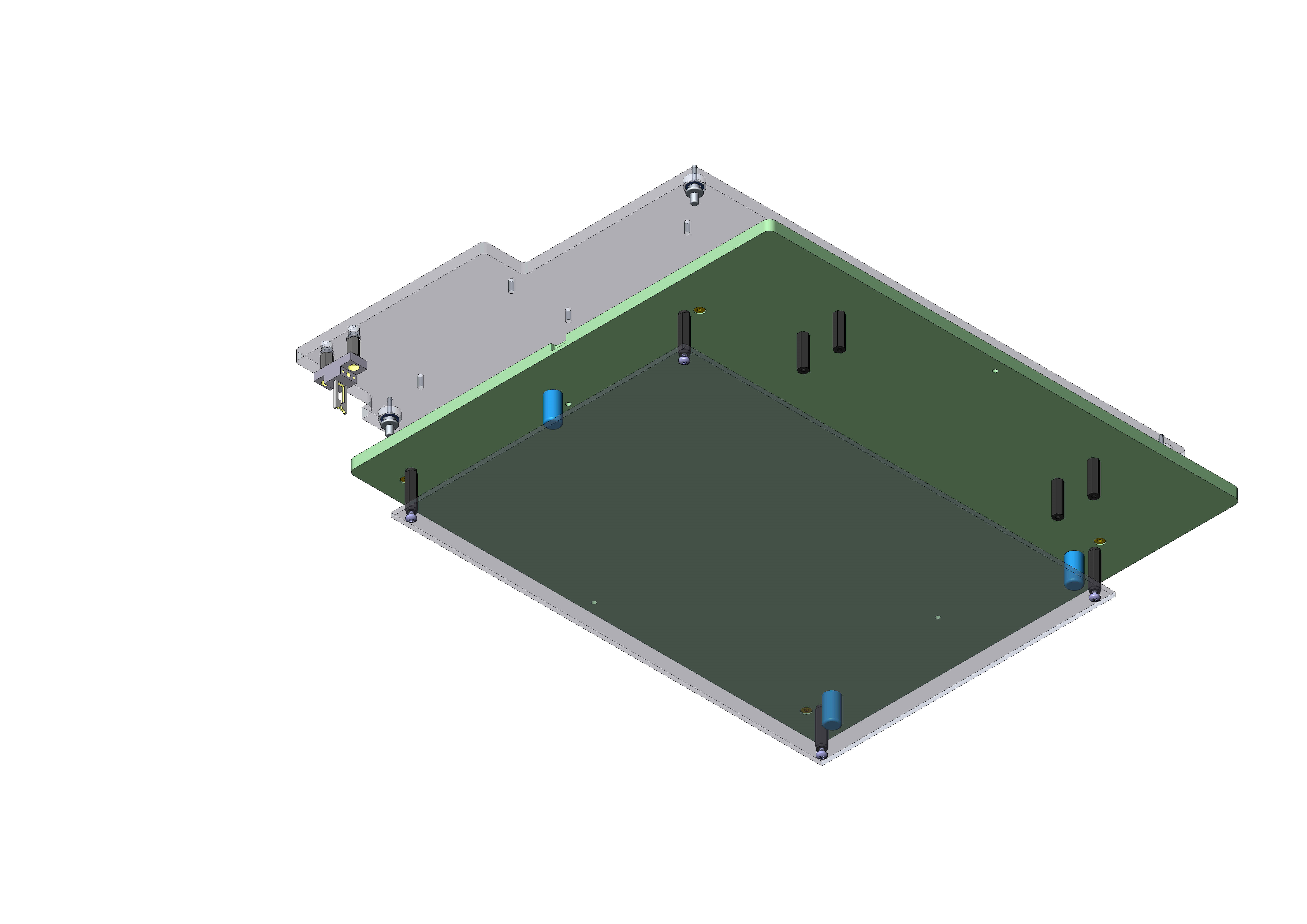

Product information "ATS PAZ400"
- Quick, tool-free set-up, can be used without readjustment
- Available in standard and ESD versions, with or without internal interface
- Signal transmission using VG multipoint connectors or contact terminals for individual configurations
| Double-sided contact: | No |
|---|---|
| Dual-stage contacting: | No |
| For tandem fixtures: | No |
| Free space above PCB: | 36 mm [1.41 in] |
| Interface blocks required: | No |
| Internal interface: | Not available |
| Low voltage: | No |
| Max. interface signals: | 750 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 558 x 429 x 164 mm [21.9 x 16.8 x 6.45 in] |
| Permissible test voltage: | 25 VAC / 60 VAC |
| Pneumatic test fixtures (PA): | PAZ 400 |
| Product group: | ATS pneumatic test fixture (PA) |
| Pushrod length: | 36.4 mm [1.43 in] |
| RoHS-compliant: | Yes |
| Scope of delivery: | Assembled |
| Series: | ATS PAZ400 |
| Subseries: | ATS PAZxxx |
| Test probe installation height, bottom: | 10.5 mm [.413 in] |
| Useable area (WxD): | 350 x 250 mm [13.7 x 9.84 in] |
| Version: | With interface |
| Weight: | 7.9 kg [17.4 lbs] |
Login
Product Details
- Quick, tool-free set-up, can be used without readjustment
- Available in standard and ESD versions, with or without internal interface
- Signal transmission using VG multipoint connectors or contact terminals for individual configurations
Other products in this series:
Technical data
General data
- Product group: ATS pneumatic test fixture (PA)
- Subseries: ATS PAZxxx
- Series: ATS PAZ400
- Version: With interface
- Scope of delivery: Assembled
- For tandem fixtures: No
- Max. interface signals: 750
- Interface blocks required: No
- Internal interface: Not available
- Dual-stage contacting: No
- Double-sided contact: No
- Weight: 7.9 kg [17.4 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- Low voltage: No
- RoHS-compliant: Yes
Technical data
- Pushrod length: 36.4 mm [1.43 in]
- Test probe installation height, bottom: 10.5 mm [.413 in]
- Free space above PCB: 36 mm [1.41 in]
- Permissible test voltage: 25 VAC / 60 VAC
- Useable area (WxD): 350 x 250 mm [13.7 x 9.84 in]
- Outer dimensionS (WxDxH): 558 x 429 x 164 mm [21.9 x 16.8 x 6.45 in]
Compatible with
- Pneumatic test fixtures (PA): PAZ 400
