Product information "ATS MA14/S-10/HF/AL/ESD"
- Reliable, interference-free radio frequency contacting and measurement of radio frequency signals

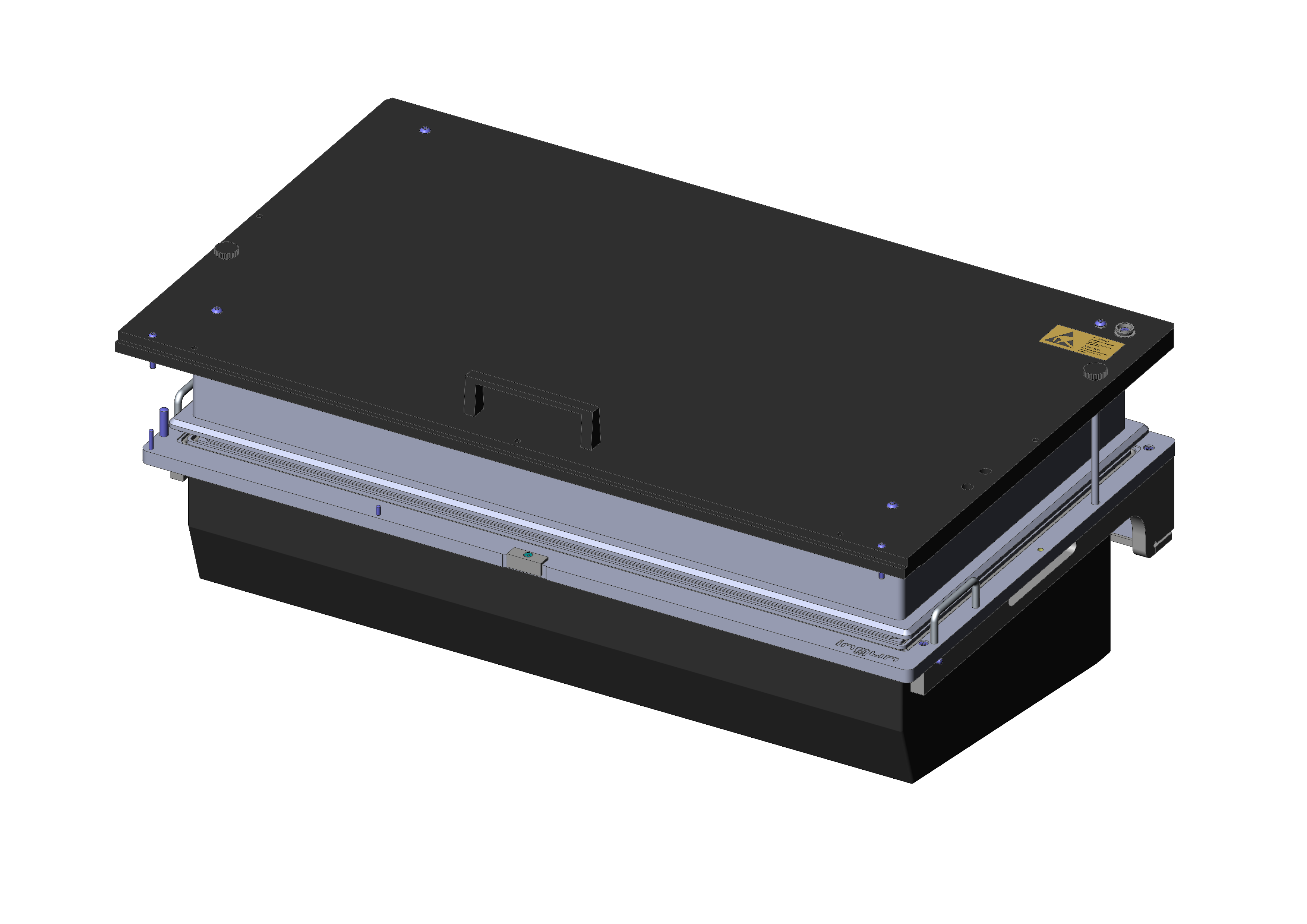

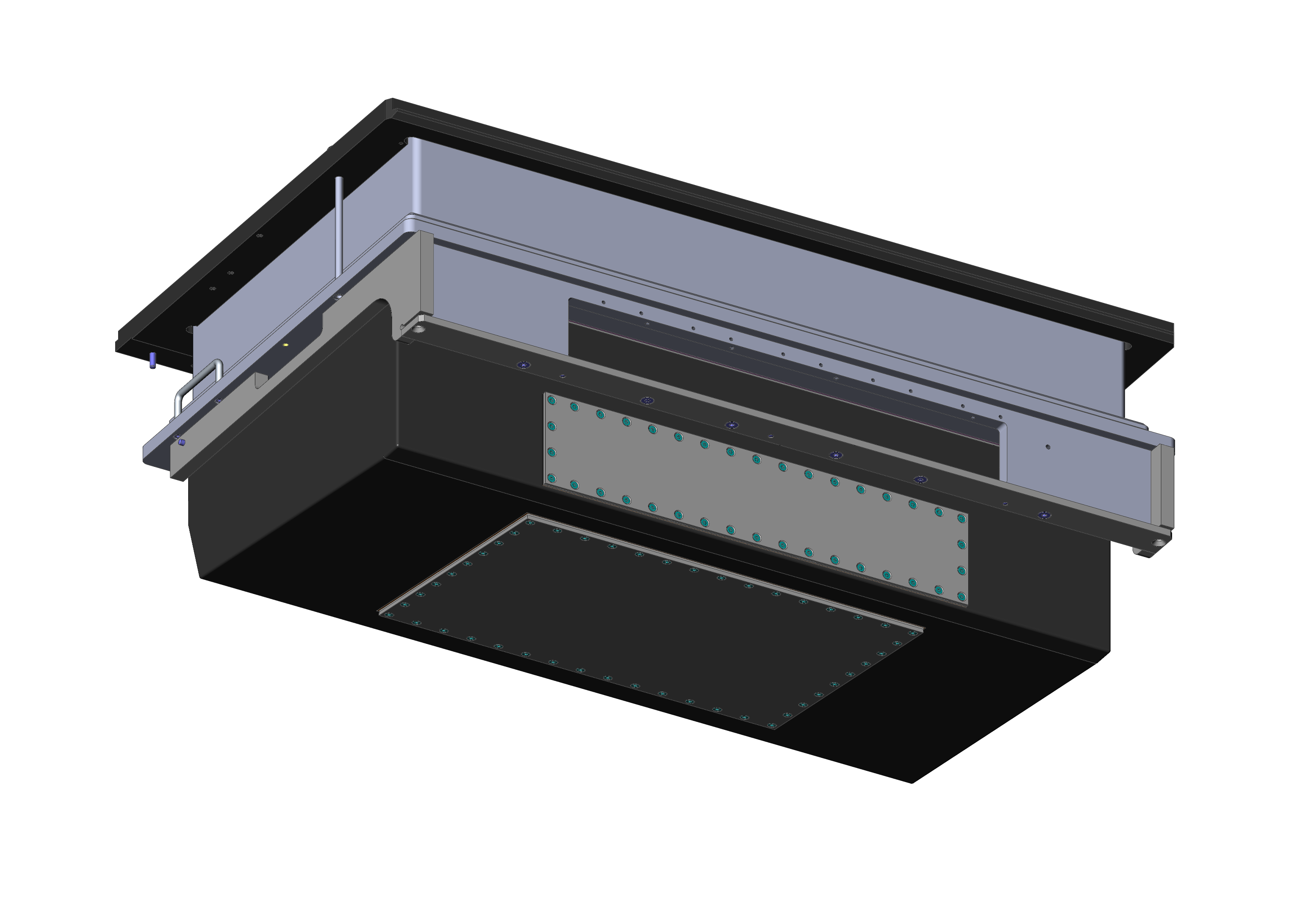

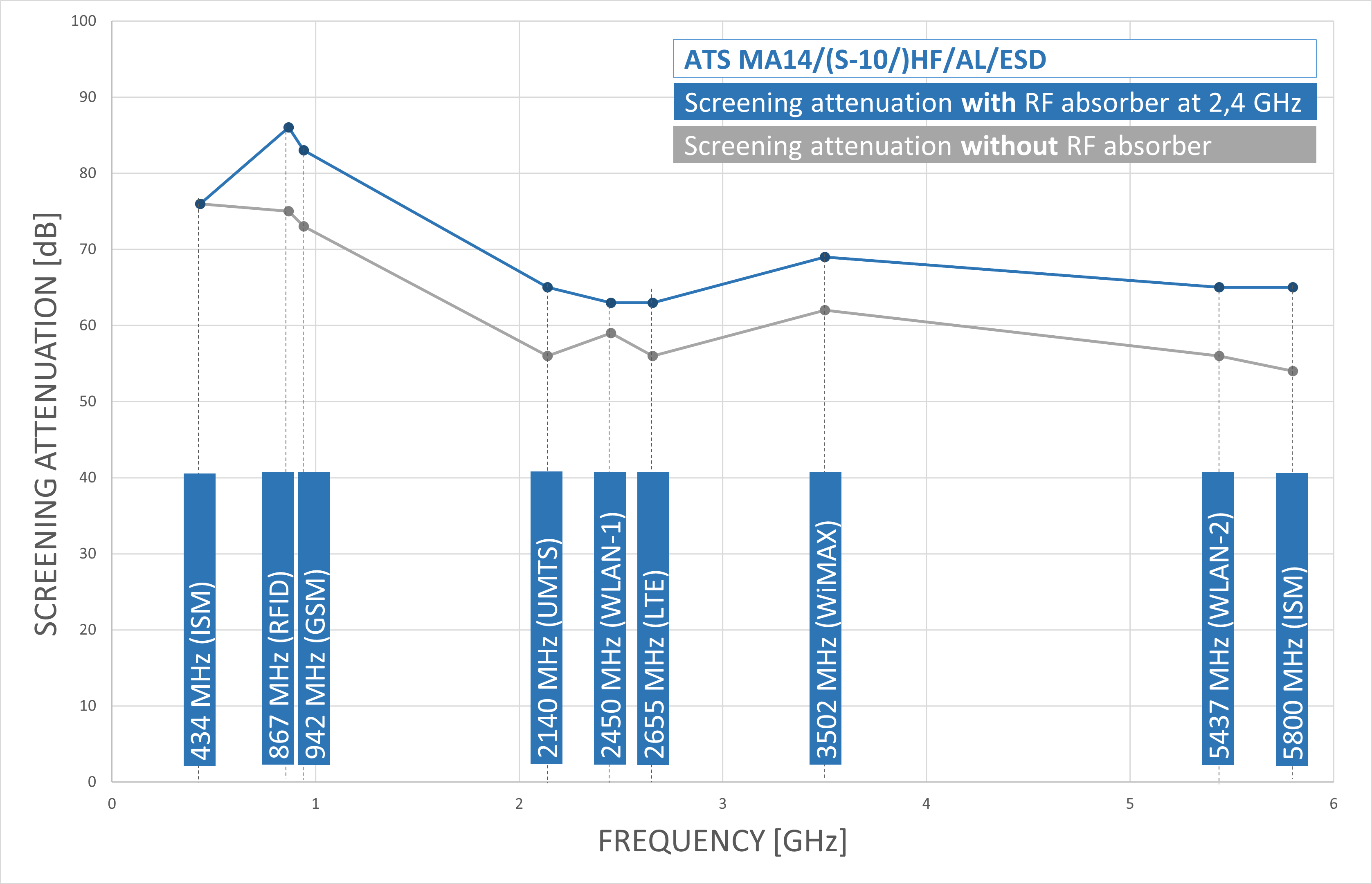

- Outstanding shielding attenuation > 60 dB in the frequency range up to 6 GHz
- Radio-frequency and RF-compatible shielding from external and internal interference signals
- Safe to use in MA xxxx basic units
- Quick, tool-free set-up - ready for use without readjustment
| Double-sided contact: | Yes, with compatible additional option |
|---|---|
| Dual-stage contacting: | No |
| For tandem fixtures: | No |
| Free space above PCB: | 58 mm [2.28 in] |
| Interface blocks required: | Device under test (DUT) side |
| Internal interface: | Available |
| Low voltage: | No |
| Manual test fixtures (MA): | MA 2x14, MA 3214 |
| Max. interface signals: | 10, 1700 |
| Max. internal interface blocks: | 10 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 606 x 383 x 263 mm [23.8 x 15 x 10.3 in] |
| Product group: | ATS manual test fixture (MA) |
| Pushrod length: | 60 mm [2.36 in] |
| RoHS-compliant: | Yes |
| Scope of delivery: | Partially assembled |
| Series: | ATS MA14 |
| Subseries: | ATS MAxx |
| Test probe installation height, bottom: | 10.5 mm [.413 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Useable area (WxD): | 476 x 240 mm [18.7 x 9.44 in] |
| Version: | HFS-410 kurz Version |
| Weight: | 19.9 kg [43.8 lbs] |
Login
Product Details
- Reliable, interference-free radio frequency contacting and measurement of radio frequency signals
- Outstanding shielding attenuation > 60 dB in the frequency range up to 6 GHz
- Radio-frequency and RF-compatible shielding from external and internal interference signals
- Safe to use in MA xxxx basic units
- Quick, tool-free set-up - ready for use without readjustment
Other products in this series:
Technical data
General data
- Product group: ATS manual test fixture (MA)
- Subseries: ATS MAxx
- Series: ATS MA14
- Version: HFS-410 kurz Version
- Scope of delivery: Partially assembled
- For tandem fixtures: No
- Max. interface signals: 10
- Max. interface signals: 1700
- Interface blocks required: Device under test (DUT) side
- Max. internal interface blocks: 10
- Internal interface: Available
- Dual-stage contacting: No
- Double-sided contact: Yes, with compatible additional option
- Weight: 19.9 kg [43.8 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- Low voltage: No
- RoHS-compliant: Yes
Technical data
- Pushrod length: 60 mm [2.36 in]
- Test probe installation height, top: 16 mm [.629 in]
- Test probe installation height, bottom: 10.5 mm [.413 in]
- Free space above PCB: 58 mm [2.28 in]
- Useable area (WxD): 476 x 240 mm [18.7 x 9.44 in]
- Outer dimensionS (WxDxH): 606 x 383 x 263 mm [23.8 x 15 x 10.3 in]
Compatible with
- Manual test fixtures (MA): MA 2x14
- Manual test fixtures (MA): MA 3214
