Product information "ATS MA13"
- Quick, tool-free set-up, can be used without readjustment
- Available in standard, ESD, and RF versions, with or without internal interface
- Modularly configurable signal transmission with internal interfaces

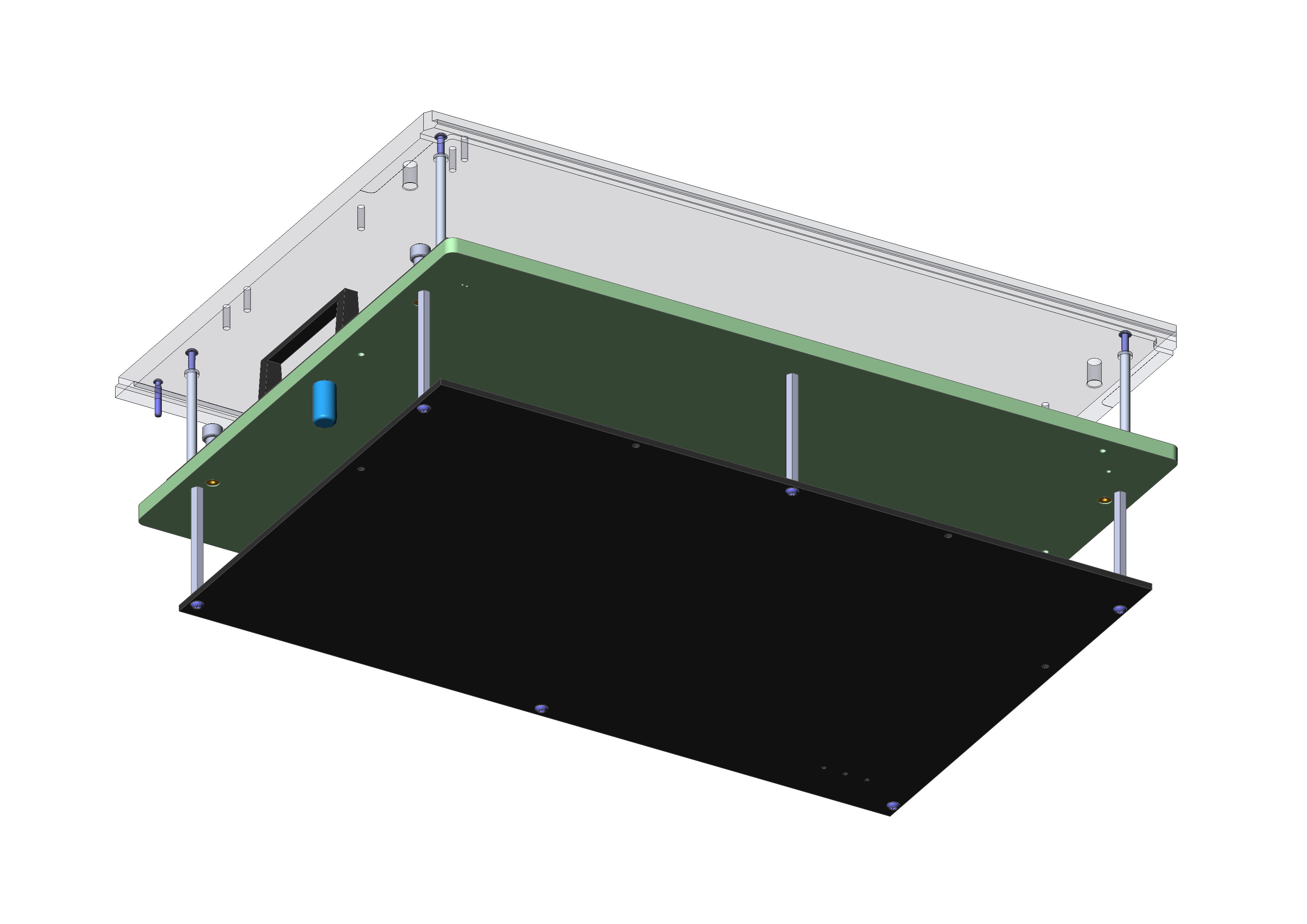

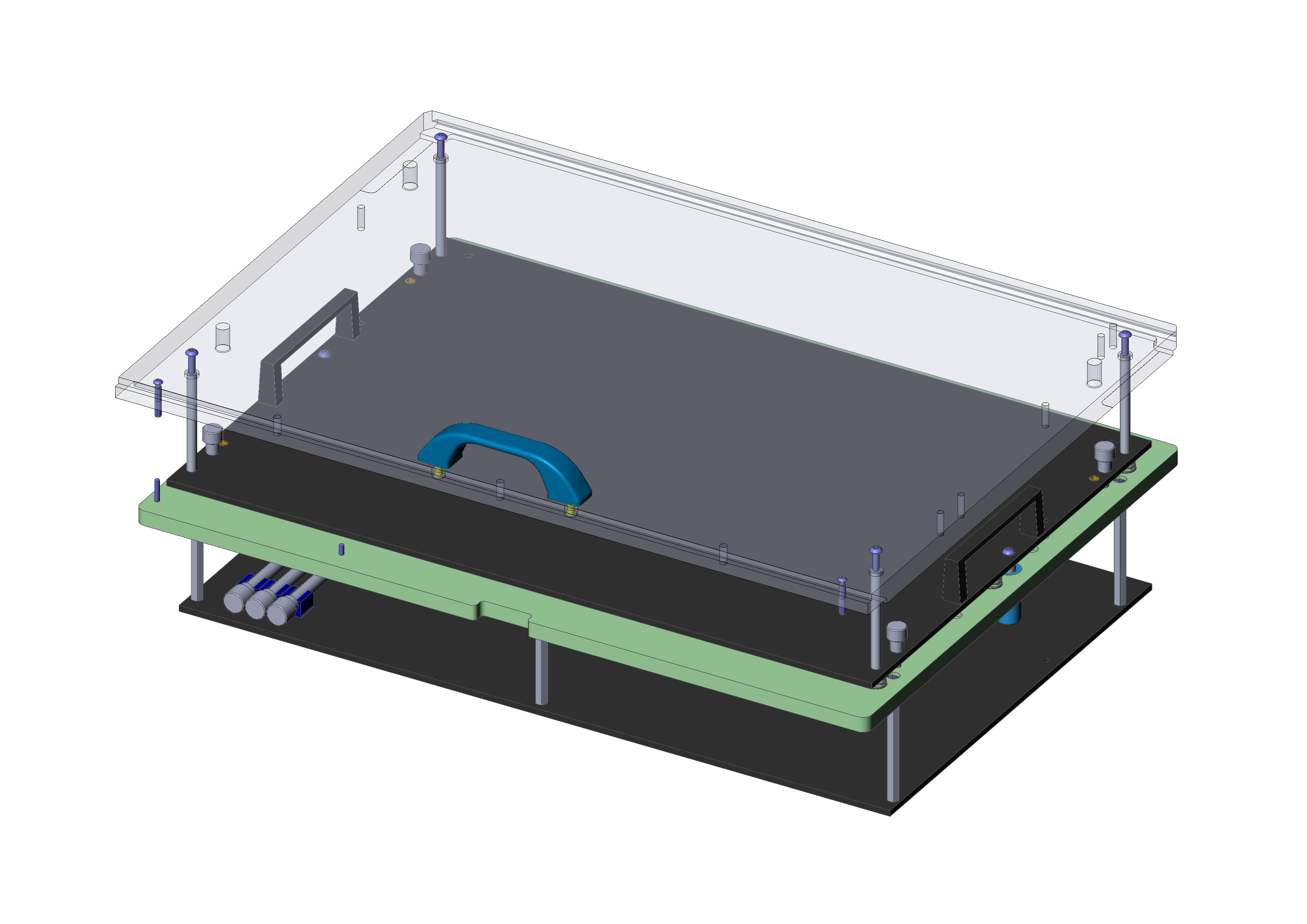

- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Robust, durable design
- Can be customised using functional units for individual configurations
- Detailed accompanying documents (e.g., customising guidelines)
| Double-sided contact: | Yes, with compatible additional option |
|---|---|
| Dual-stage contacting: | Yes, with compatible additional option |
| For tandem fixtures: | No |
| Free space above PCB: | 58 mm [2.28 in] |
| Interface blocks required: | No |
| Internal interface: | Not available |
| Low voltage: | Yes, with suitable additional option |
| Manual test fixtures (MA): | MA x113, MA x213 |
| Max. interface signals: | no name, 1700 |
| Max. internal interface blocks: | no name |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 506 x 377 x 205 mm [19.9 x 14.8 x 8.07 in] |
| Product group: | ATS manual test fixture (MA) |
| Pushrod length: | 60 mm [2.36 in] |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | ATS MA13 |
| Subseries: | ATS MAxx |
| Test probe installation height, bottom: | 10.5 mm [.413 in] |
| Test probe installation height, dual-stage, bottom: | 16 mm [.629 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Useable area (WxD): | 440 x 310 mm [17.3 x 12.2 in] |
| Version: | Without interface |
| Weight: | 8.75 kg [19.2 lbs] |
Login
Product Details
- Quick, tool-free set-up, can be used without readjustment
- Available in standard, ESD, and RF versions, with or without internal interface
- Modularly configurable signal transmission with internal interfaces
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Robust, durable design
- Can be customised using functional units for individual configurations
- Detailed accompanying documents (e.g., customising guidelines)
Other products in this series:
Technical data
General data
- Product group: ATS manual test fixture (MA)
- Subseries: ATS MAxx
- Series: ATS MA13
- Version: Without interface
- Scope of delivery: Unassembled
- For tandem fixtures: No
- Max. interface signals: no name
- Max. interface signals: 1700
- Interface blocks required: No
- Max. internal interface blocks: no name
- Internal interface: Not available
- Dual-stage contacting: Yes, with compatible additional option
- Double-sided contact: Yes, with compatible additional option
- Weight: 8.75 kg [19.2 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- Low voltage: Yes, with suitable additional option
- RoHS-compliant: Yes
Compatible with
- Manual test fixtures (MA): MA x213
- Manual test fixtures (MA): MA x113
Technical data
- Pushrod length: 60 mm [2.36 in]
- Test probe installation height, top: 16 mm [.629 in]
- Test probe installation height, bottom: 10.5 mm [.413 in]
- Test probe installation height, dual-stage, bottom: 16 mm [.629 in]
- Free space above PCB: 58 mm [2.28 in]
- Useable area (WxD): 440 x 310 mm [17.3 x 12.2 in]
- Outer dimensionS (WxDxH): 506 x 377 x 205 mm [19.9 x 14.8 x 8.07 in]
