Product information "ATS MA11/S-5/HF/AL/ESD"
- Reliable, interference-free radio frequency contacting and measurement of radio frequency signals

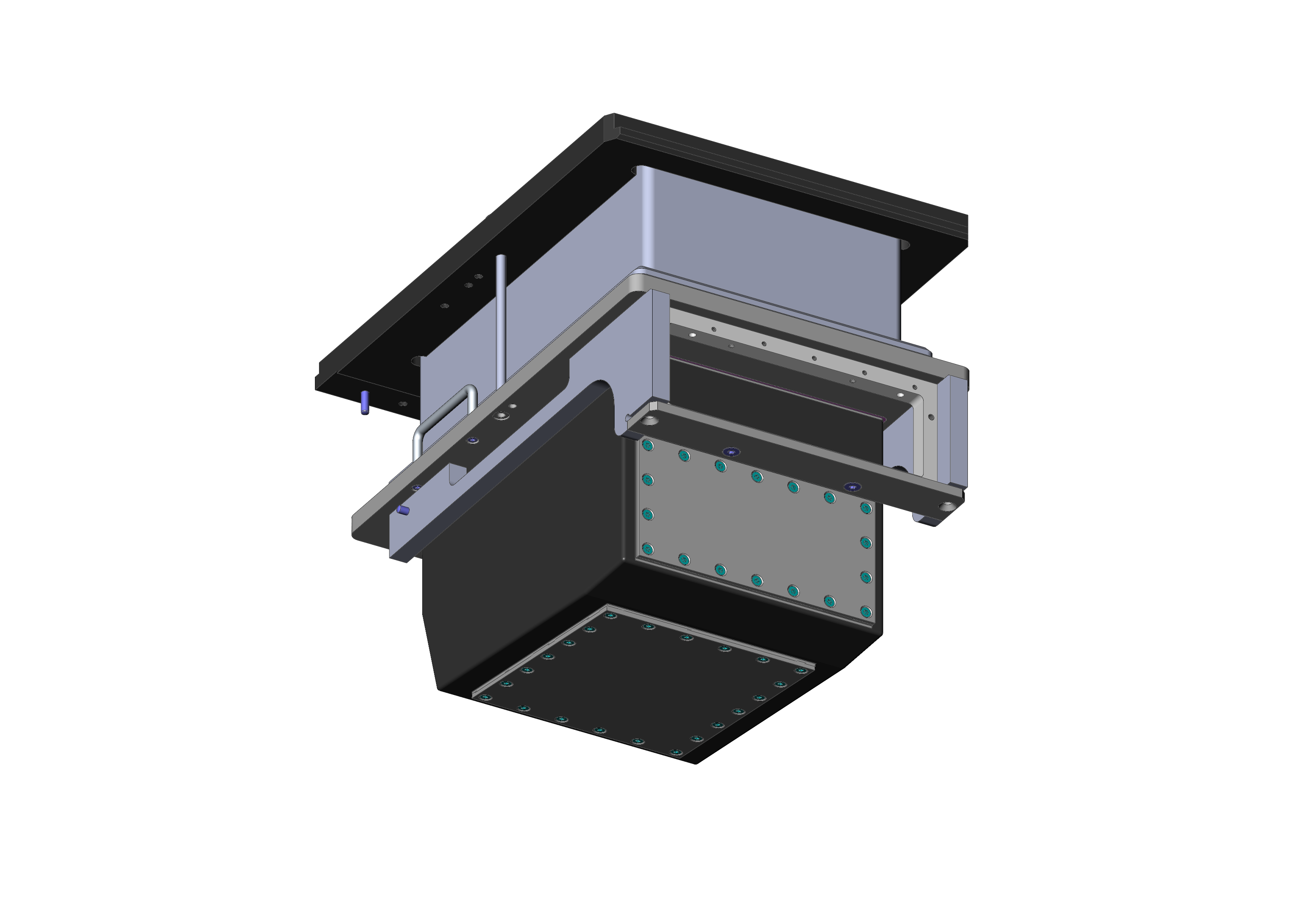

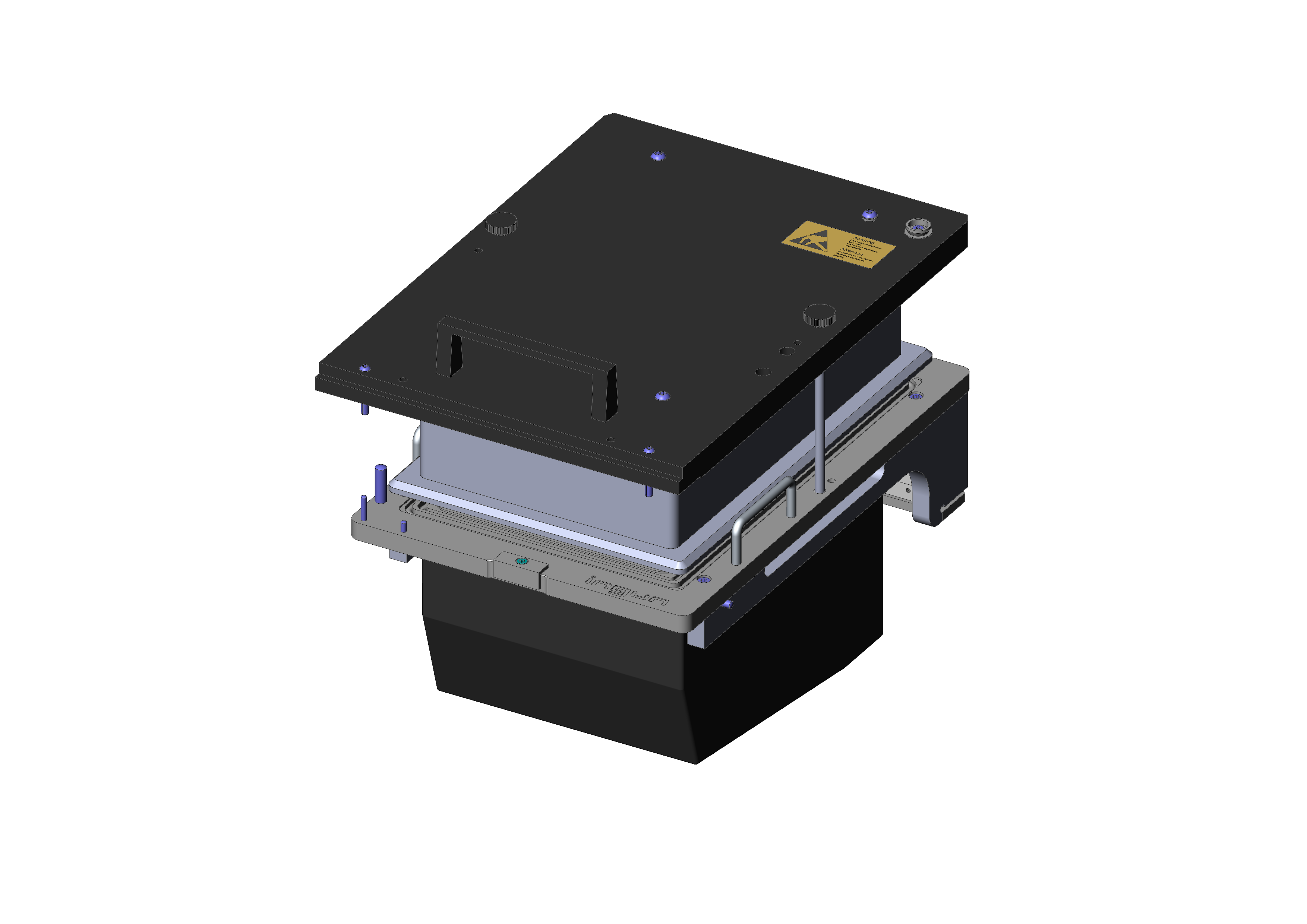

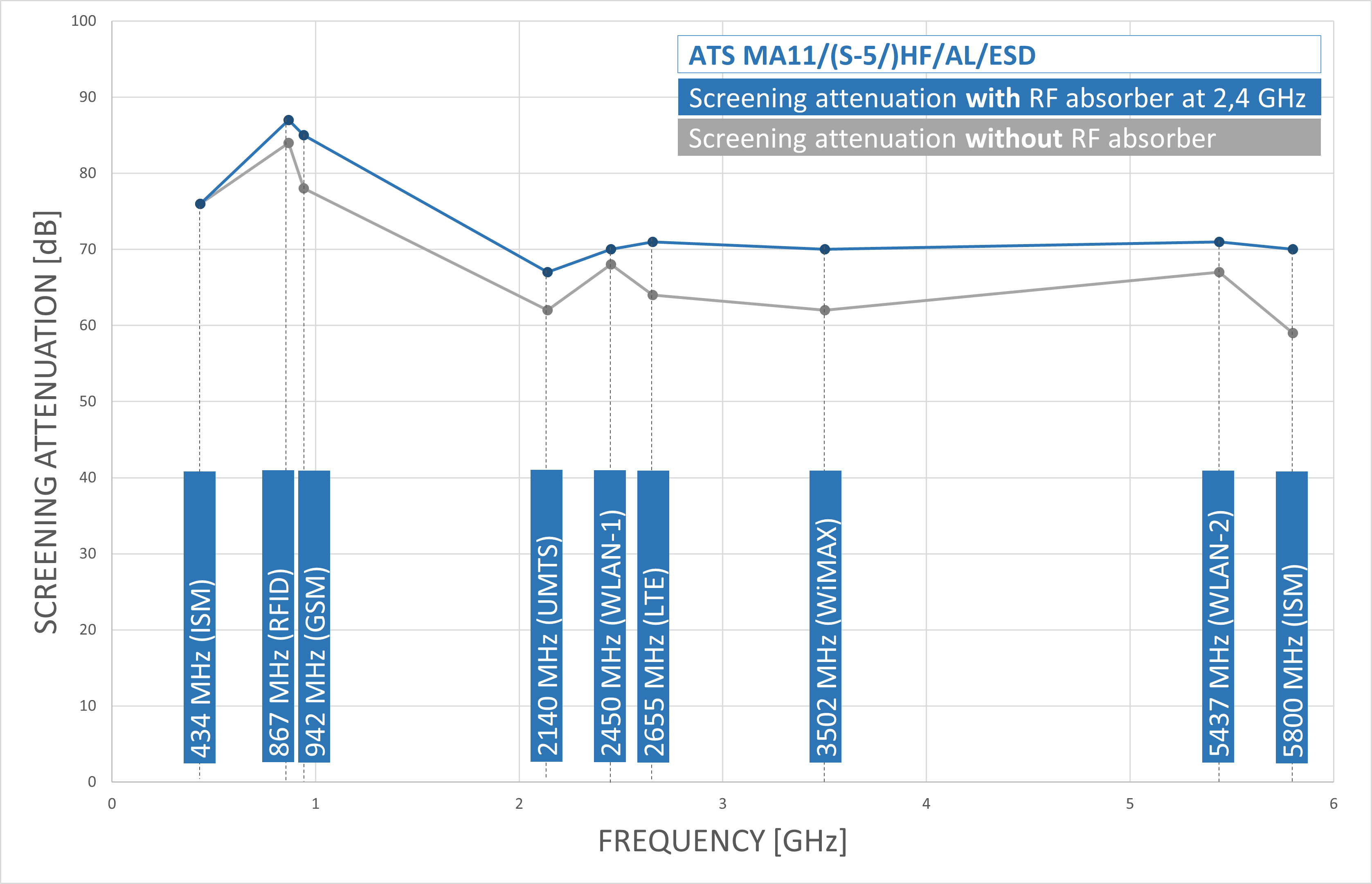

- Outstanding shielding attenuation > 60 dB in the frequency range up to 6 GHz
- Radio-frequency and RF-compatible shielding from external and internal interference signals
- Safe to use in MA xxxx basic units
- Quick, tool-free set-up - ready for use without readjustment
| Double-sided contact: | Yes, with compatible additional option |
|---|---|
| Dual-stage contacting: | No |
| For tandem fixtures: | Yes |
| Free space above PCB: | 58 mm [2.28 in] |
| Interface blocks required: | Device under test (DUT) side |
| Internal interface: | Available |
| Low voltage: | No |
| Manual test fixtures (MA): | MA 2x11, MA 2x13T, MA 3211, MA 3213T |
| Max. interface signals: | 5, 850 |
| Max. internal interface blocks: | 5 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 210 x 313 x 255 mm [8.26 x 12.3 x 10 in] |
| Product group: | ATS manual test fixture (MA) |
| Pushrod length: | 60 mm [2.36 in] |
| RoHS-compliant: | Yes |
| Scope of delivery: | Partially assembled |
| Series: | ATS MA11 |
| Subseries: | ATS MAxx |
| Test probe installation height, bottom: | 10.5 mm [.413 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Useable area (WxD): | 110 x 160 mm [4.33 x 6.29 in] |
| Version: | HFS-410 kurz Version |
| Weight: | 6.24 kg [13.7 lbs] |
Login
Product Details
- Reliable, interference-free radio frequency contacting and measurement of radio frequency signals
- Outstanding shielding attenuation > 60 dB in the frequency range up to 6 GHz
- Radio-frequency and RF-compatible shielding from external and internal interference signals
- Safe to use in MA xxxx basic units
- Quick, tool-free set-up - ready for use without readjustment
Other products in this series:
Technical data
General data
- Product group: ATS manual test fixture (MA)
- Subseries: ATS MAxx
- Series: ATS MA11
- Version: HFS-410 kurz Version
- Scope of delivery: Partially assembled
- For tandem fixtures: Yes
- Max. interface signals: 850
- Max. interface signals: 5
- Interface blocks required: Device under test (DUT) side
- Max. internal interface blocks: 5
- Internal interface: Available
- Dual-stage contacting: No
- Double-sided contact: Yes, with compatible additional option
- Weight: 6.24 kg [13.7 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- Low voltage: No
- RoHS-compliant: Yes
Compatible with
- Manual test fixtures (MA): MA 3213T
- Manual test fixtures (MA): MA 2x13T
- Manual test fixtures (MA): MA 2x11
- Manual test fixtures (MA): MA 3211
Technical data
- Pushrod length: 60 mm [2.36 in]
- Test probe installation height, top: 16 mm [.629 in]
- Test probe installation height, bottom: 10.5 mm [.413 in]
- Free space above PCB: 58 mm [2.28 in]
- Useable area (WxD): 110 x 160 mm [4.33 x 6.29 in]
- Outer dimensionS (WxDxH): 210 x 313 x 255 mm [8.26 x 12.3 x 10 in]
