Product details

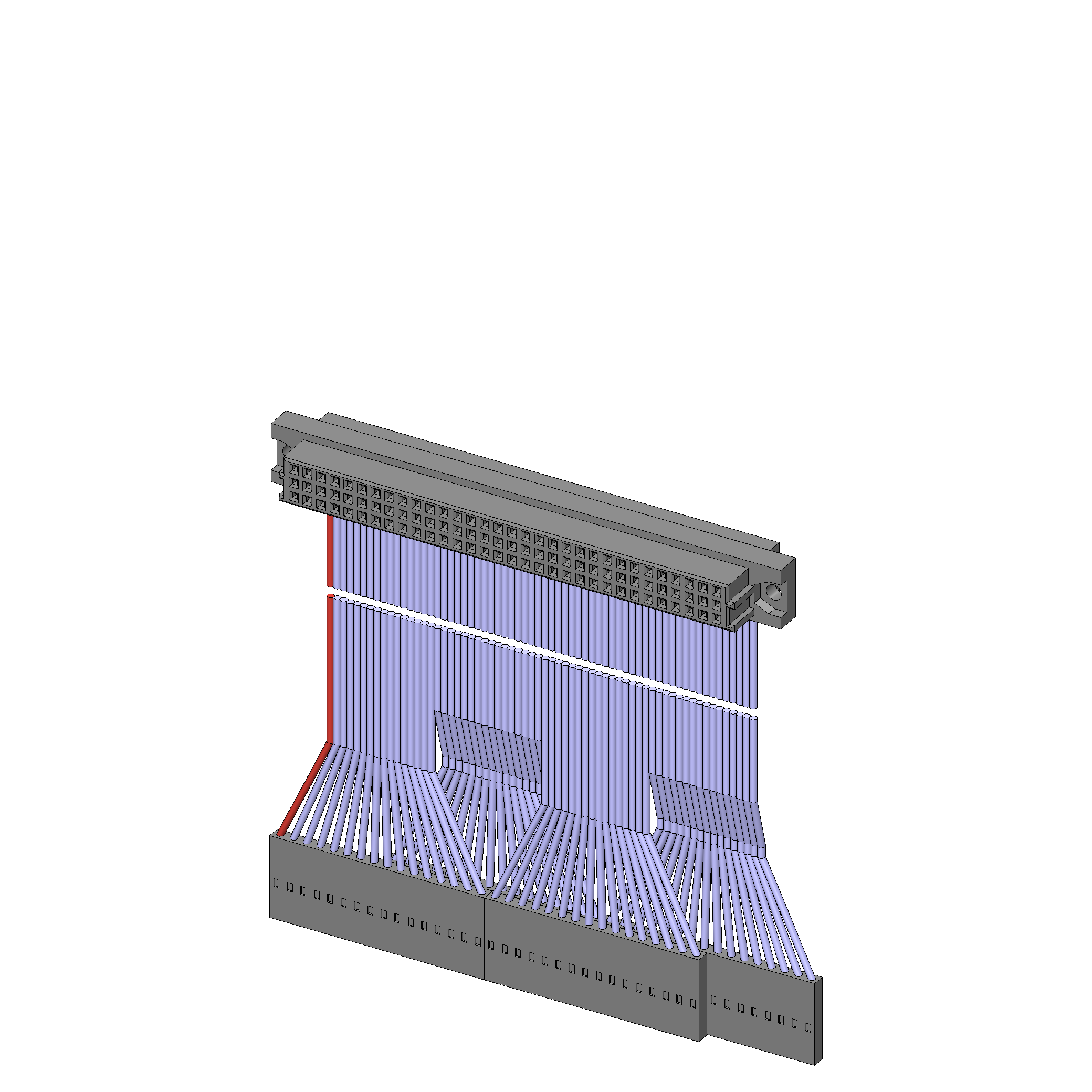

  • Connection cable for 170-pole signal interface blocks (test system/DUT side)
  • Alternative connection to classic wire-wrap wiring
  • Low-wear, quick-release plug-in connection without tools

Other products in this series:

Technical data

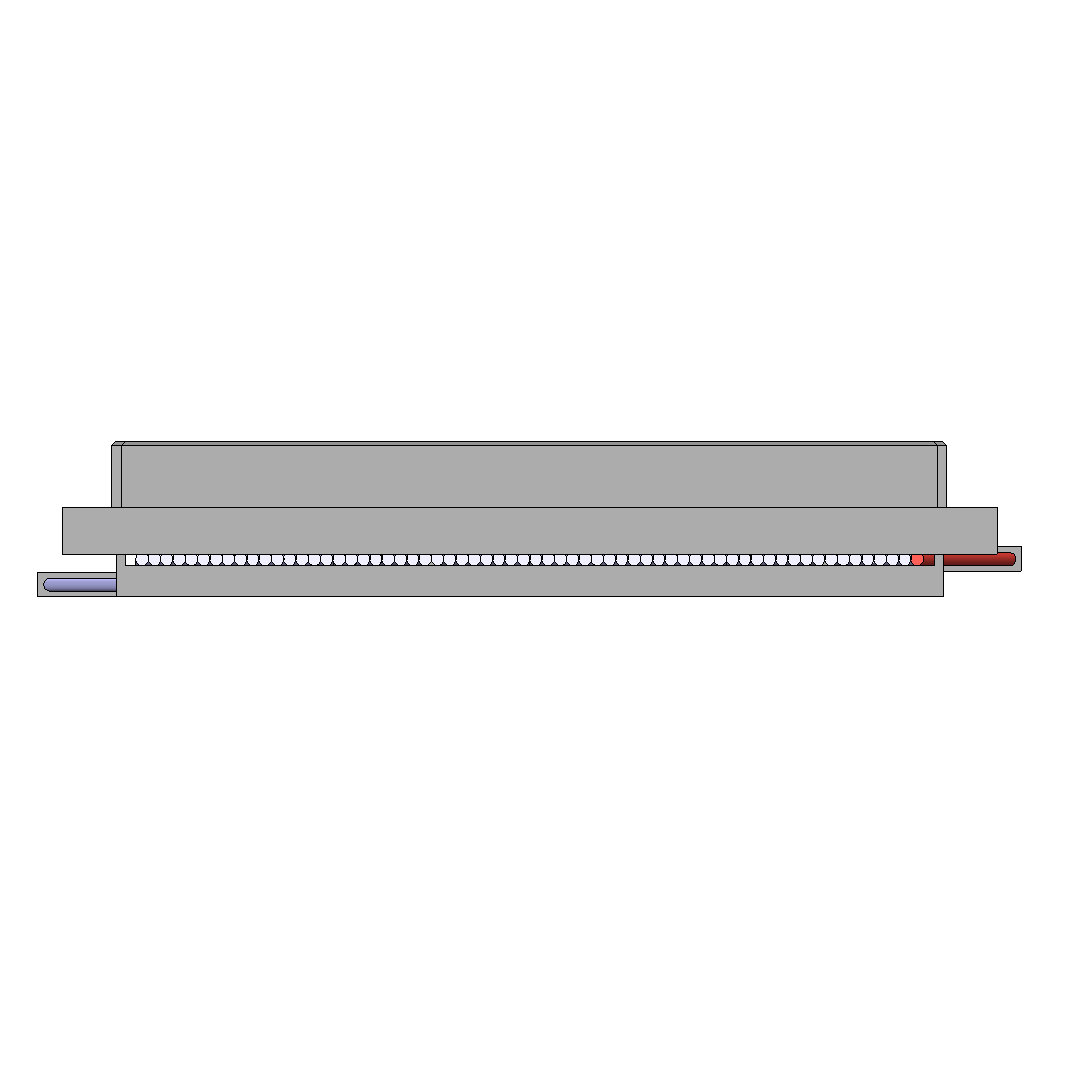

  • Connection: 96-pole multipoint connector
  • Max. current: 1.5 A
  • Installation: Plug connector
  • Number of poles: 64

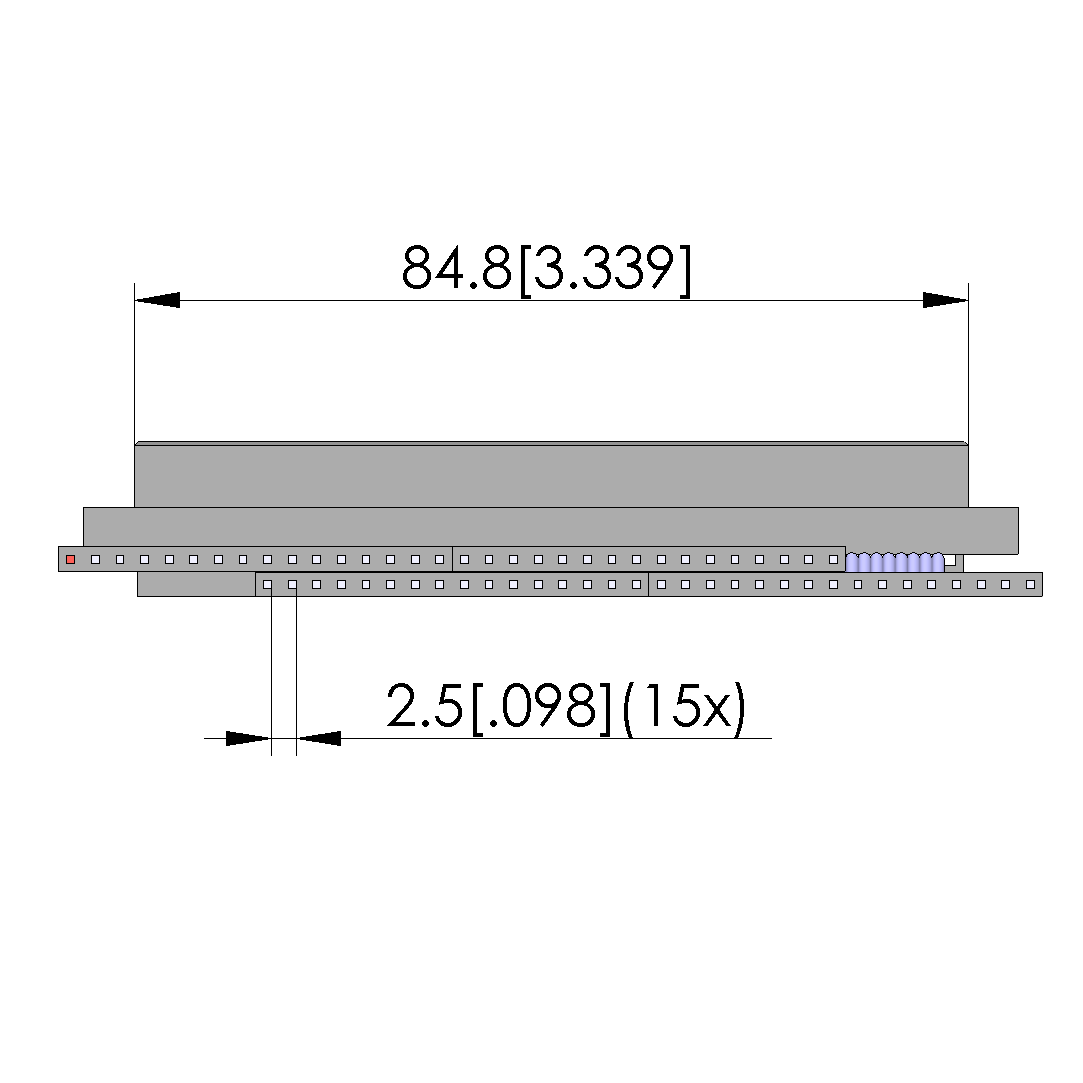

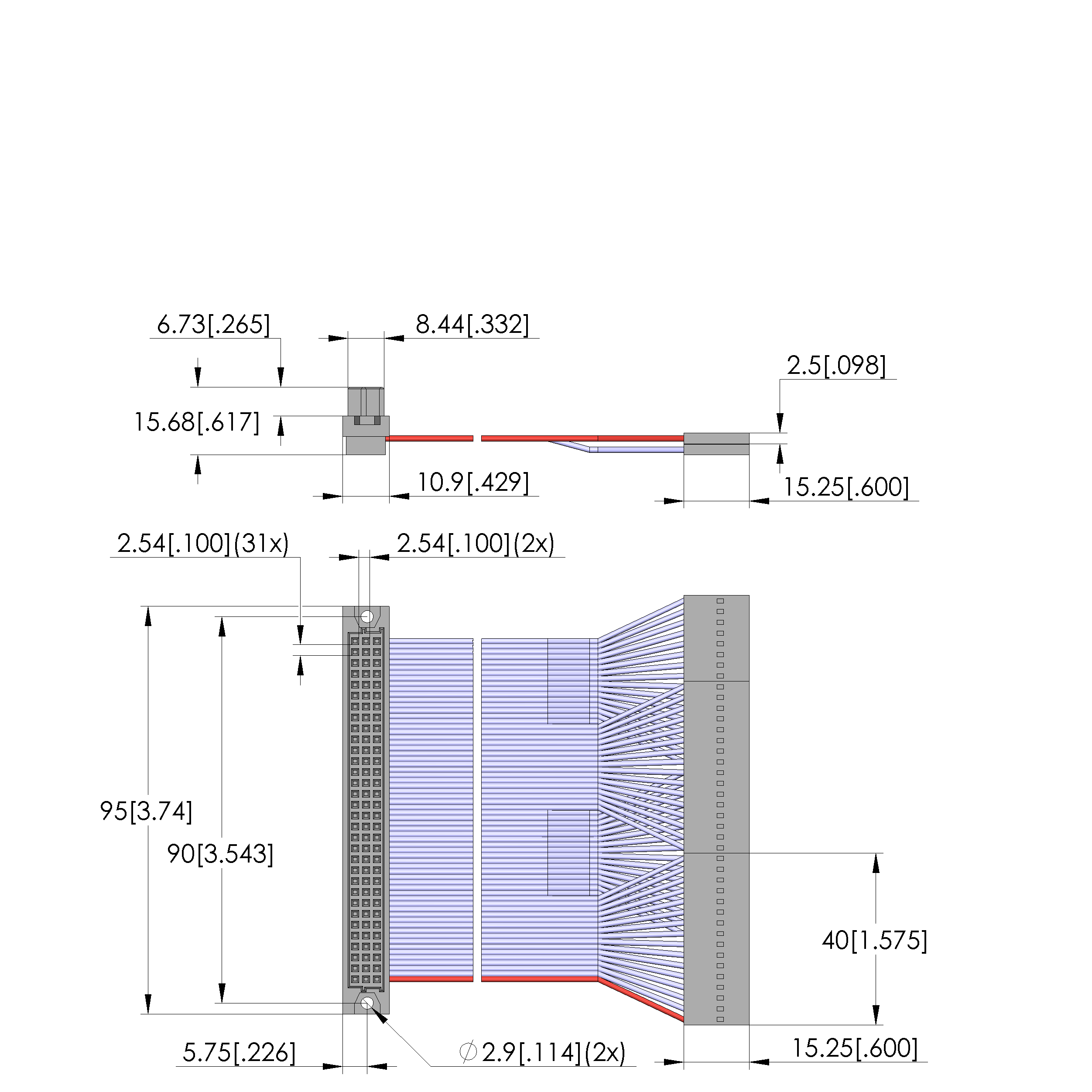

  • Installation grid: 2.54 mm [0.1 in]
  • Diameter: AWG28 mm
  • Cable length: 700 mm [27.5 in]
  • Product group: Electric accessory
  • Series: ASK

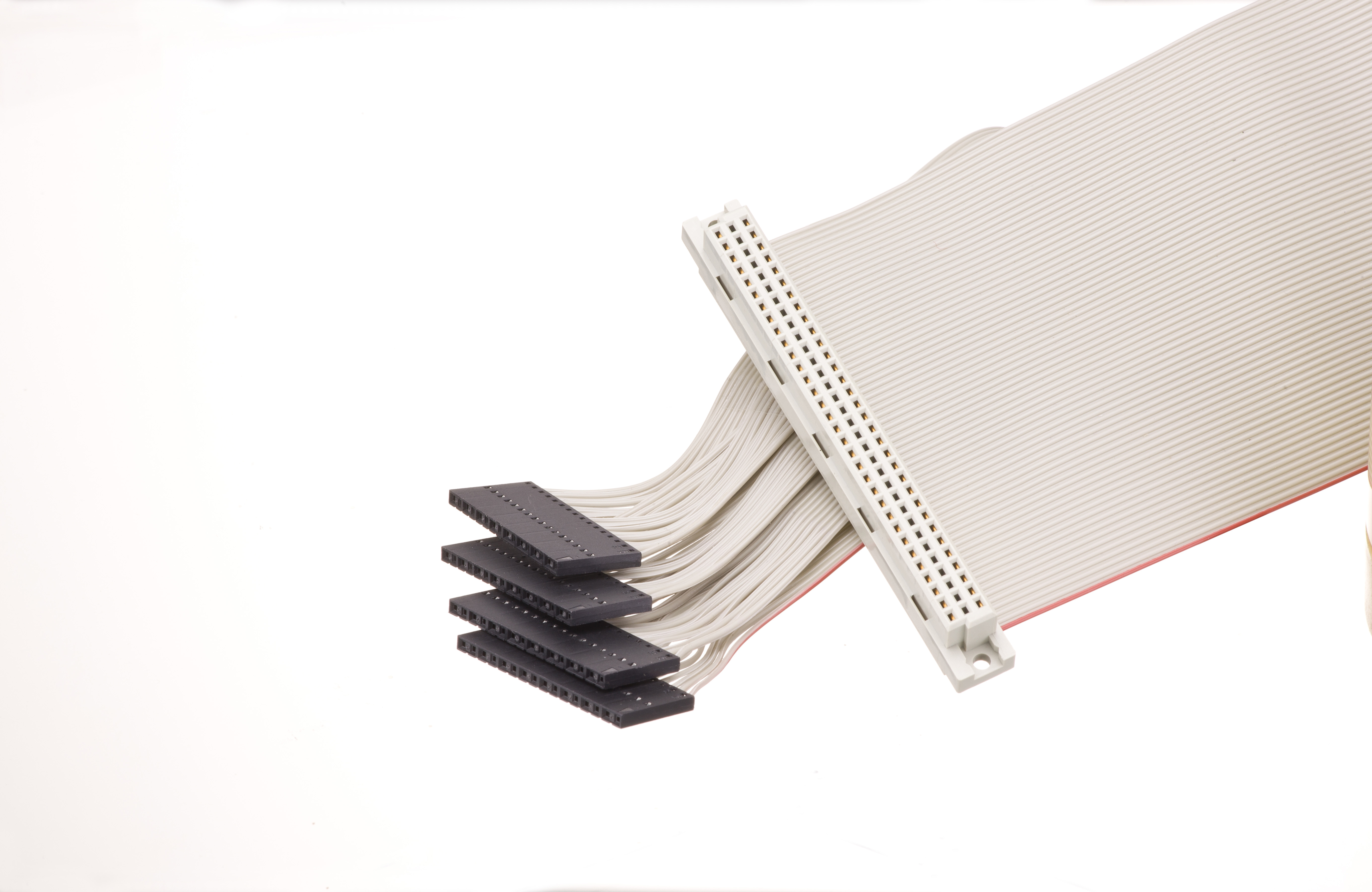

  • Type: Flat ribbon cable
  • Version: 16-pole connector housing (x4)
  • Accessory type: Customising accessories
  • Scope of delivery: Pre-wired
  • Bestückung: ac
  • Colour: Grey, pin 1 red
  • Min. temperature: -5 °C [23 °F]
  • Max. temperature: 105 °C [221 °F]
  • RoHS-compliant: yes

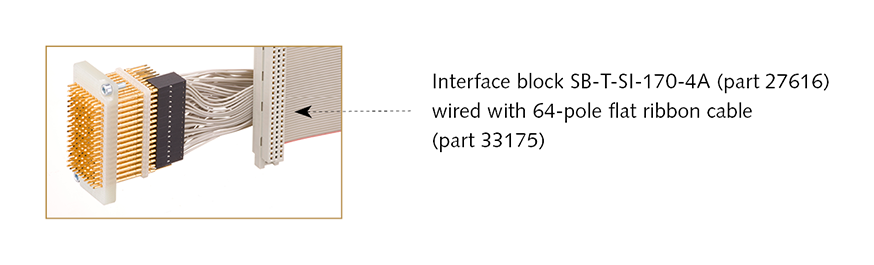

  • Interface blocks (SB): SB-SI-170/136/085/040
  • Accessories: VG-M-096-abc-WW-G13
