Product details

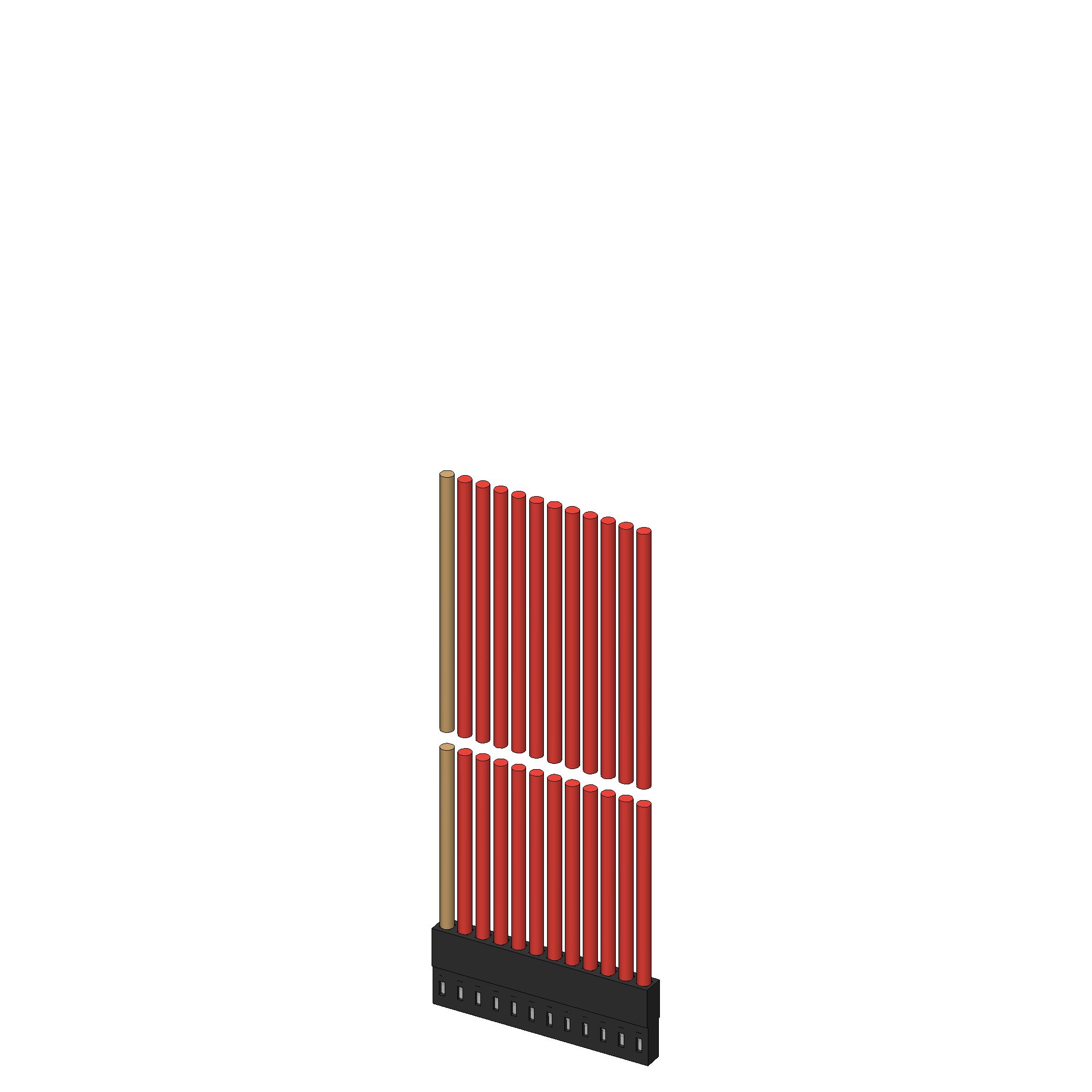

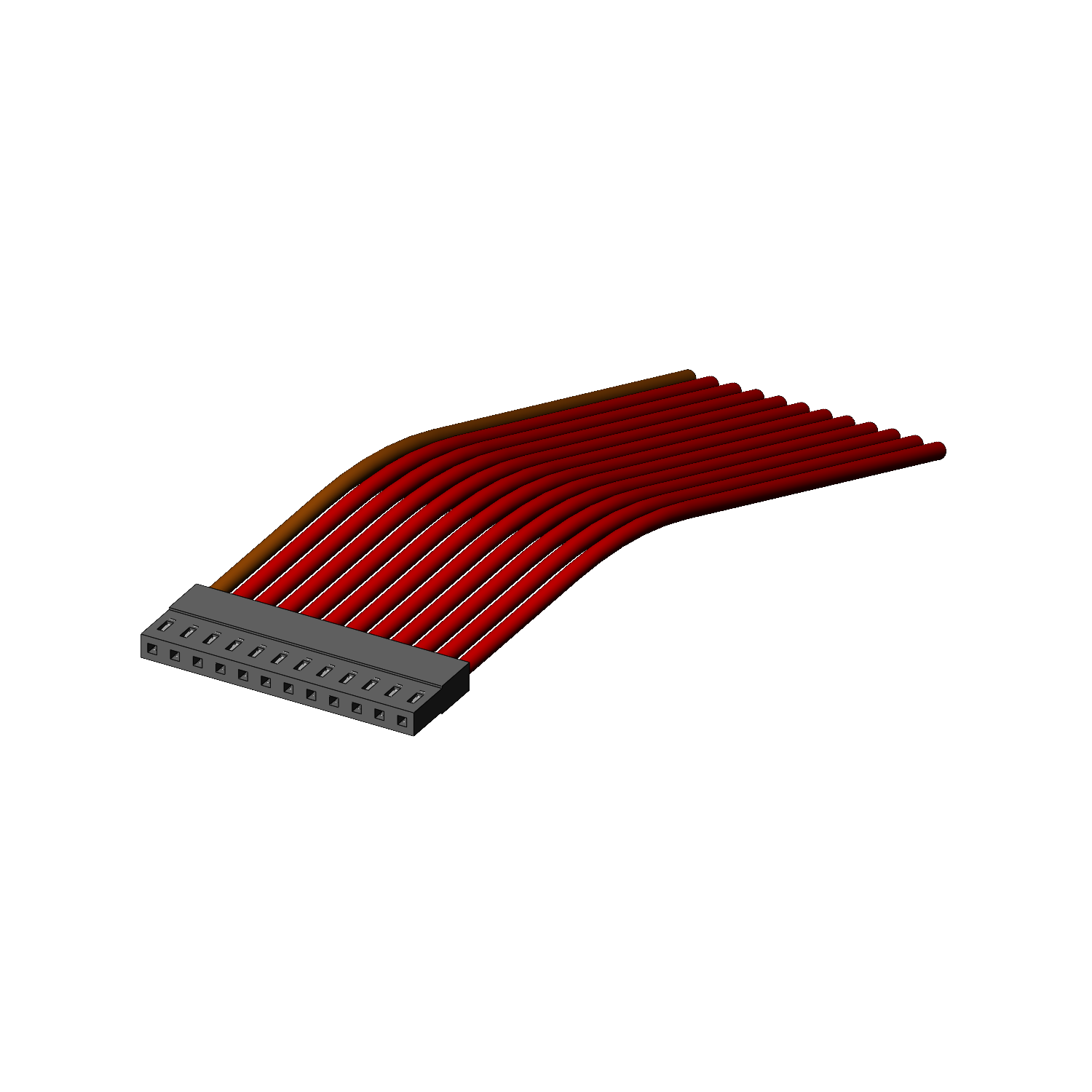

  • Connection cable for signal interface blocks (SB-T/P-SI-216)
  • Low-wear connection that can be quickly plugged and unplugged without tools
  • Consistently stable signal quality throughout
  • Flexible stranded wires for the greatest possible freedom of movement
  • Crimp connection with contact blade which ensures secure clamping with high retention force

Other products in this series:

Technical data
  • Product group: Electric accessory
  • Series: ASK
  • Type: Stranded cable
  • Version: Connector housing, single row
  • Accessory type: Customising accessories
  • Scope of delivery: Pre-wired
  • Bestückung: 1 x plug housing
  • Material: Copper stranded wire, zinc plated
  • Colour: Red, pin 1 brown
  • Min. temperature: -20 °C [-4 °F]
  • Max. temperature: 80 °C [176 °F]
  • RoHS-compliant: yes
  • Connection: Plug / solder /crimp connection
  • Force: 20 N [71.9 ozf]
  • Max. current: 3.6 A
  • Installation: Plug connector
  • Max. voltage: 250 V
  • Number of poles: 12

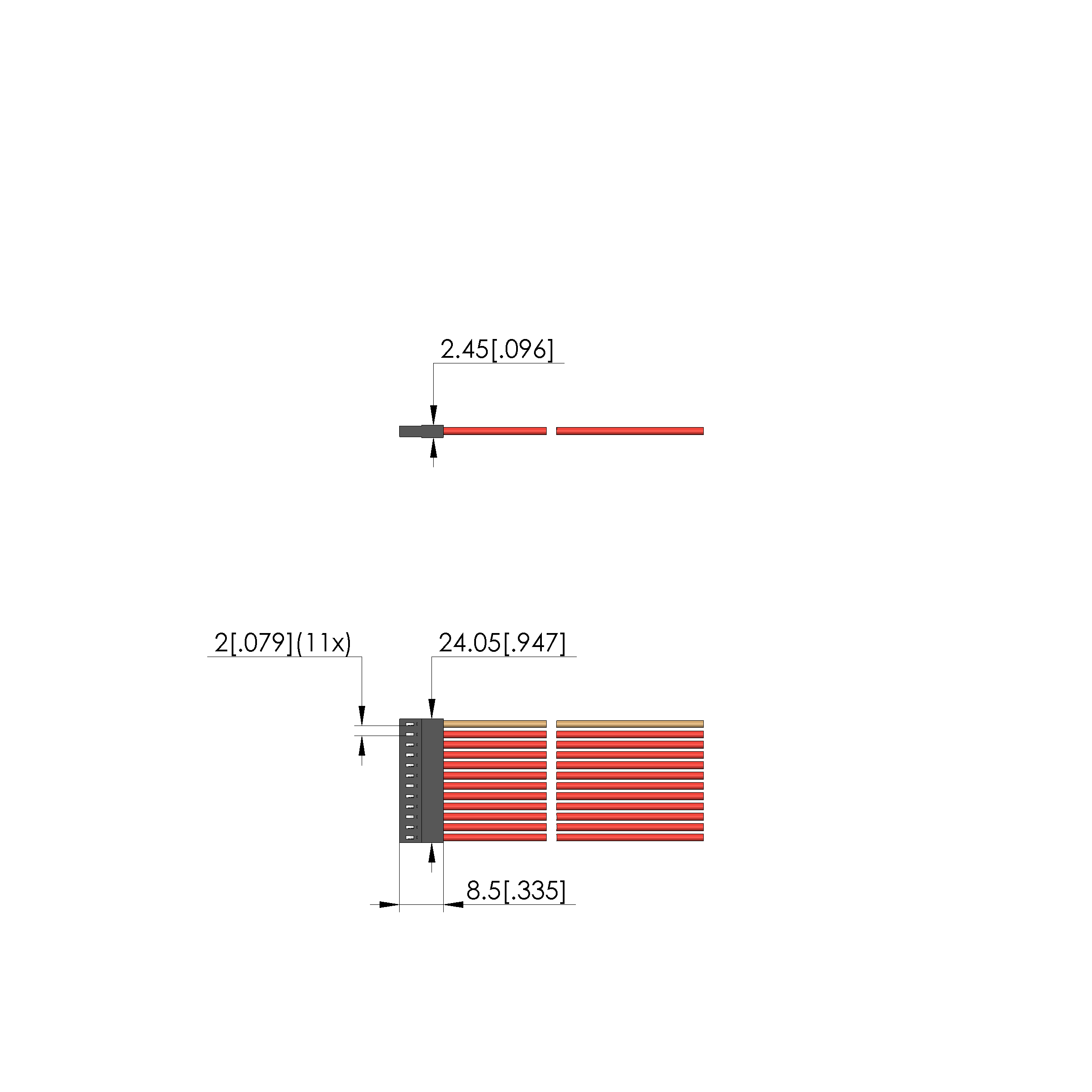

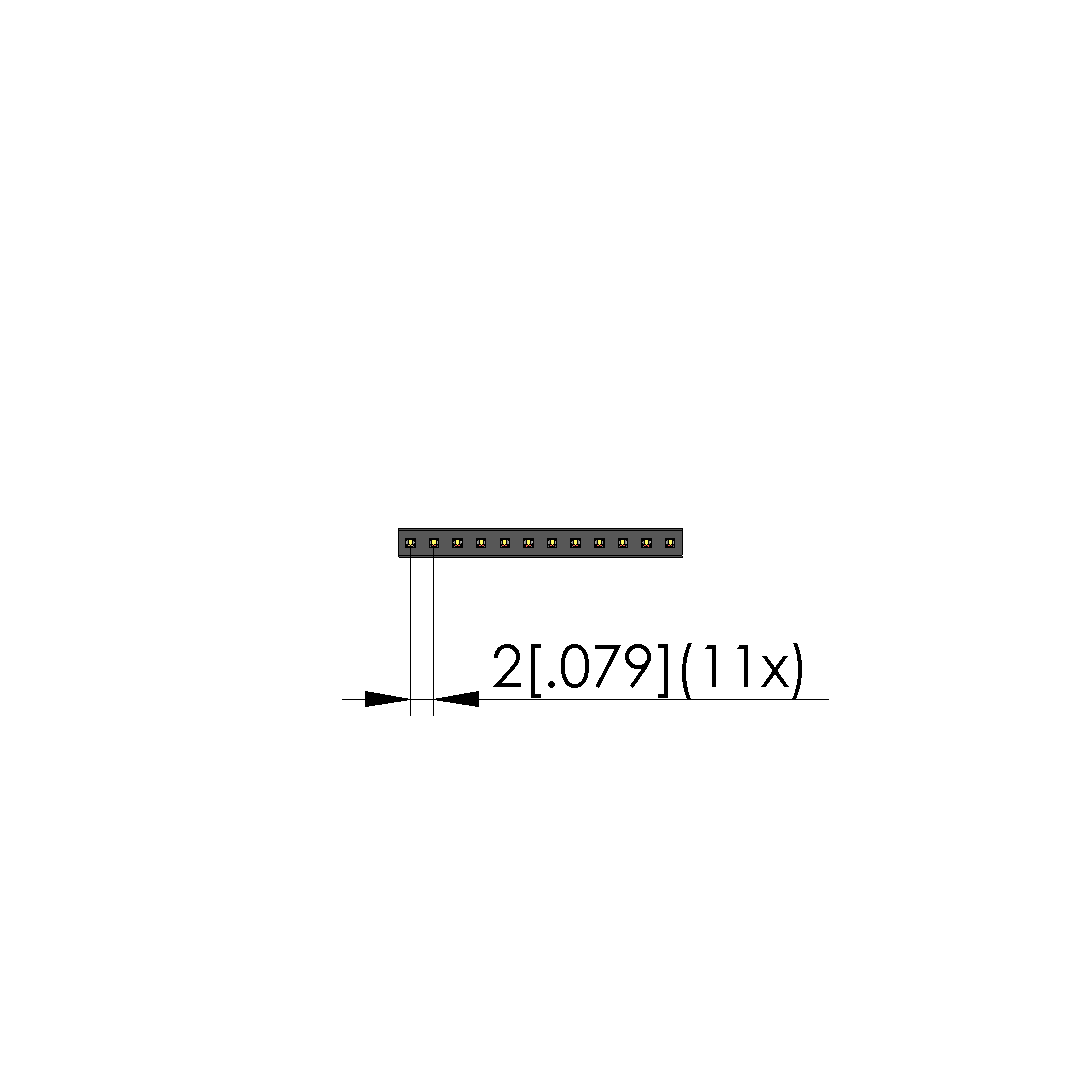

  • Installation grid: 2 mm [.078 in]
  • Diameter: AWG26 mm
  • Cable length: 700 mm [27.5 in]
  • Typical resistance (Ri) of one GKS: 85 mOhm

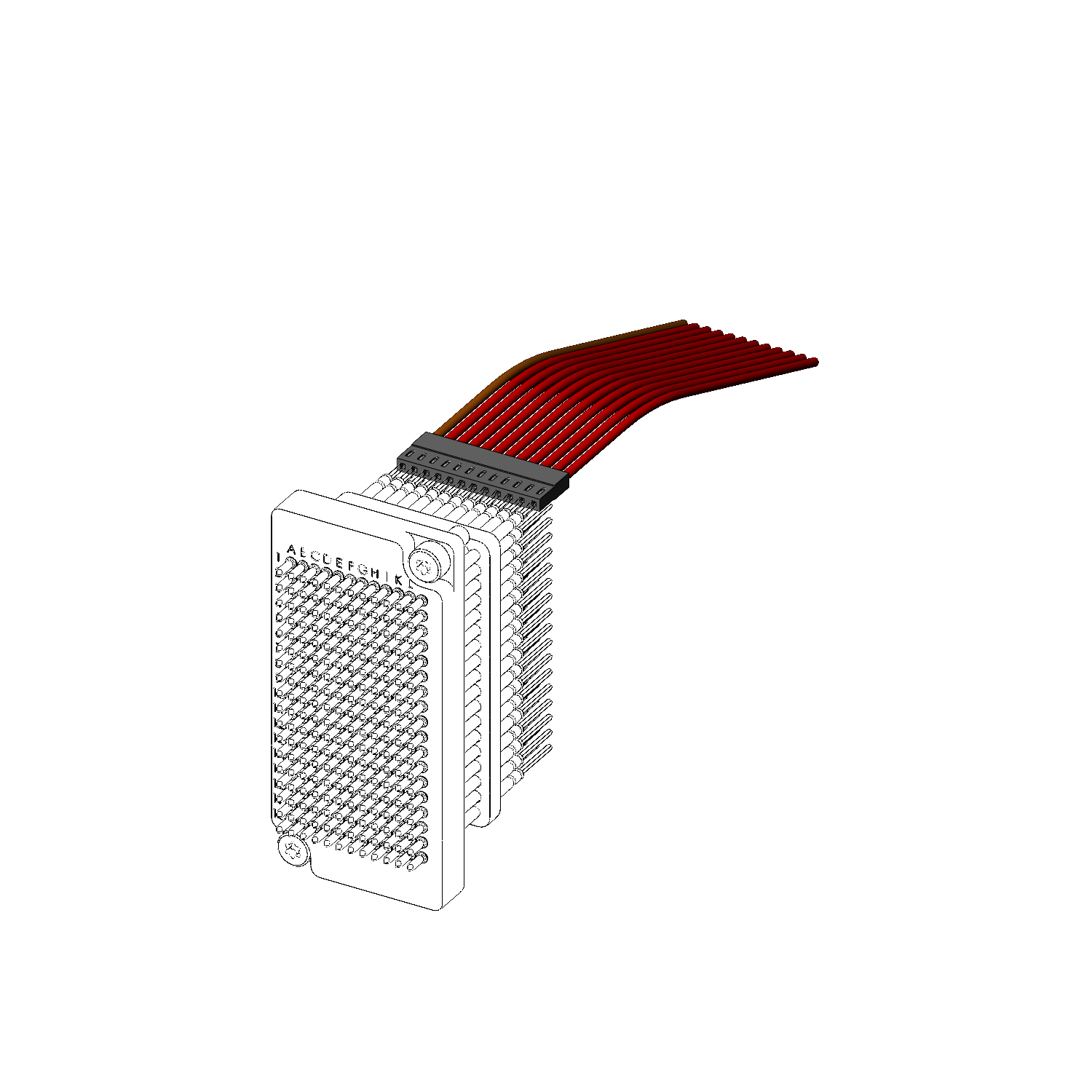

  • Interface blocks (SB): SB-T-SI-216
  • Interface blocks (SB) 2: SB-P-SI-216
