Product information "ADH-ME-M8-M12-SW14"
- For quick, easy installation in a M12x1 threaded bore
- In customised test fixtures, large board marker probes (external thread M12x1) can be replaced by small board marker probes (external thread M8x0.5)
| Accessory type: | Customising accessories |
|---|---|
| Board marker probe (ME): | ME-E-R2,0-08-053-2S-BL6V-42V |
| Diameter: | M12x1 mm |

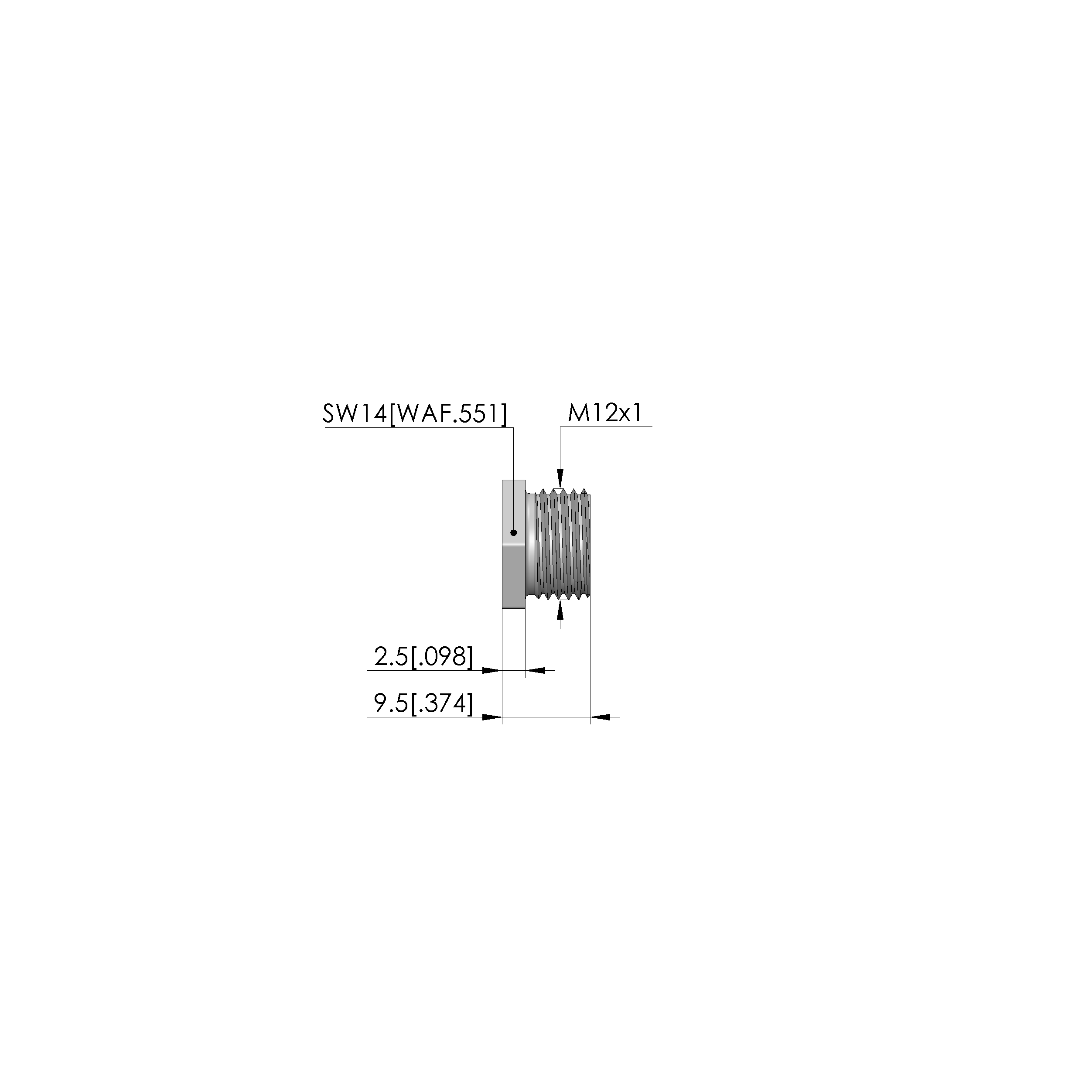

| Height: | 9.5 mm [.374 in] |

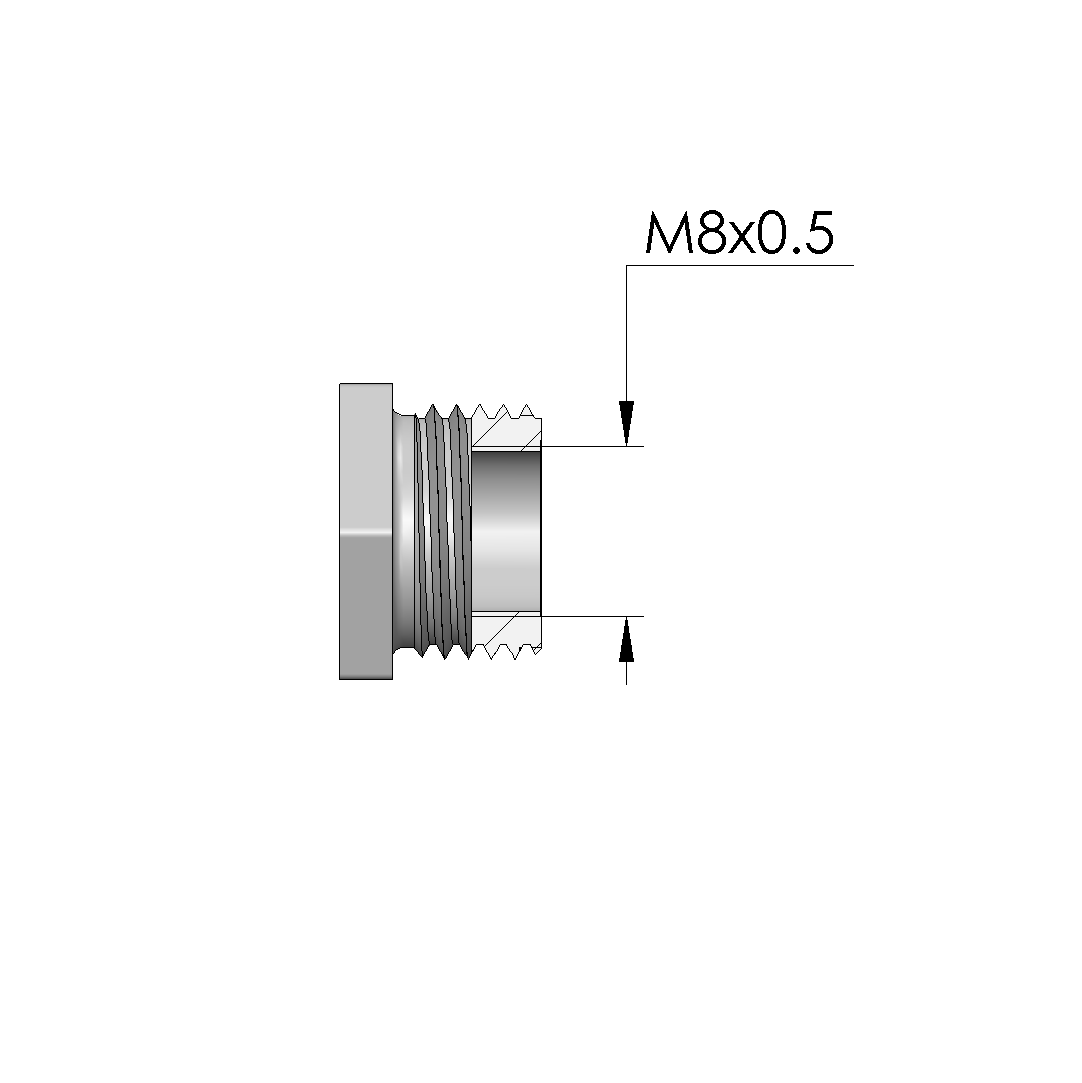

| Inner diameter: | M8x0,5 mm |
| Installation: | Thread M12 x 1 (WAF14) |
| Material: | 1,43 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Mechanical accessory |
| RoHS-compliant: | Yes |
| Series: | ADH |
| Type: | Adpater sleeve |
| Version: | Threaded nut with collar |
| Weight: | 0.02 kg [.044 lbs] |
Login
Product Details
- For quick, easy installation in a M12x1 threaded bore
- In customised test fixtures, large board marker probes (external thread M12x1) can be replaced by small board marker probes (external thread M8x0.5)
Other products in this series:
Technical data
General data
- Type: Adpater sleeve
- Max. temperature: 60 °C [140 °F]
- Accessory type: Customising accessories
- Height: 9.5 mm [.374 in]
- Version: Threaded nut with collar
- Product group: Mechanical accessory
- Min. temperature: 10 °C [50 °F]
- RoHS-compliant: Yes
- Weight: 0.02 kg [.044 lbs]
- Material: 1,43
- Series: ADH
Technical data
- Diameter: M12x1 mm
- Inner diameter: M8x0,5 mm
- Installation: Thread M12 x 1 (WAF14)
Compatible with
- Board marker probe (ME): ME-E-R2,0-08-053-2S-BL6V-42V
