Whether for a new setup or an existing test fixture, S-Line enables the use of more stable test probes in ICT/FCT and series testing with high test point density.
As S-Line does not require an additional receptacle, the grid is determined solely by the diameter of the test probe. This allows you to use more stable test probes in areas with high test point density.
Our socketless test probes and terminals were developed for direct integration into X-Probe®-based test fixtures. This gives you a readily available alternative without complex redesigns or long retrofit times.
To prevent supply bottlenecks from slowing down your test processes, S-Line enables the fast replacement of common socketless test probes – without redesigning your setup.
Find compatible solution
Define test requirements
Select suitable S-Line variant
Integrate and continue testing
| X-Probe® series | S-Line series |
|---|---|

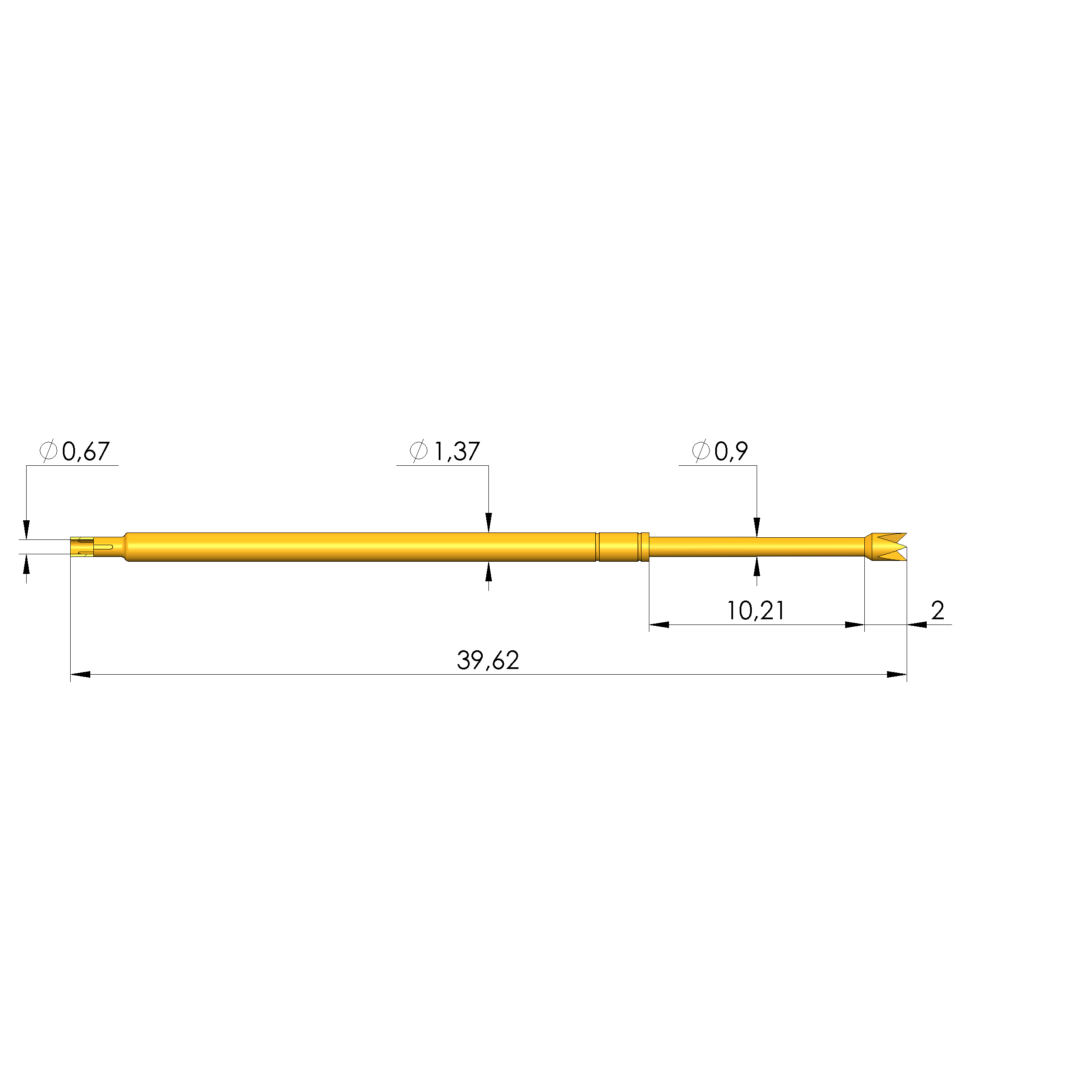

| X75 → | S-075 |
| X50 → | S-050 |

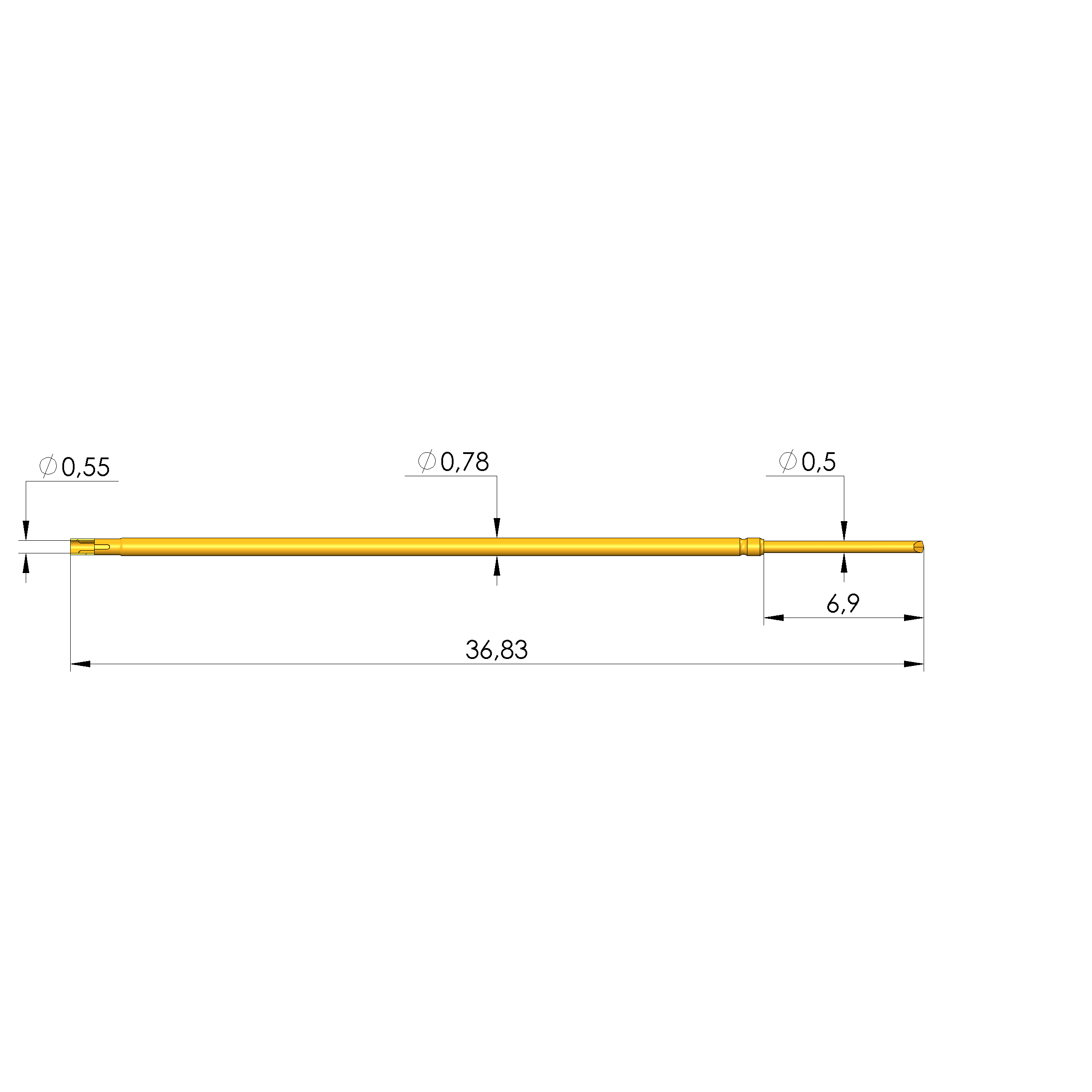

| X39 → | S-039 |

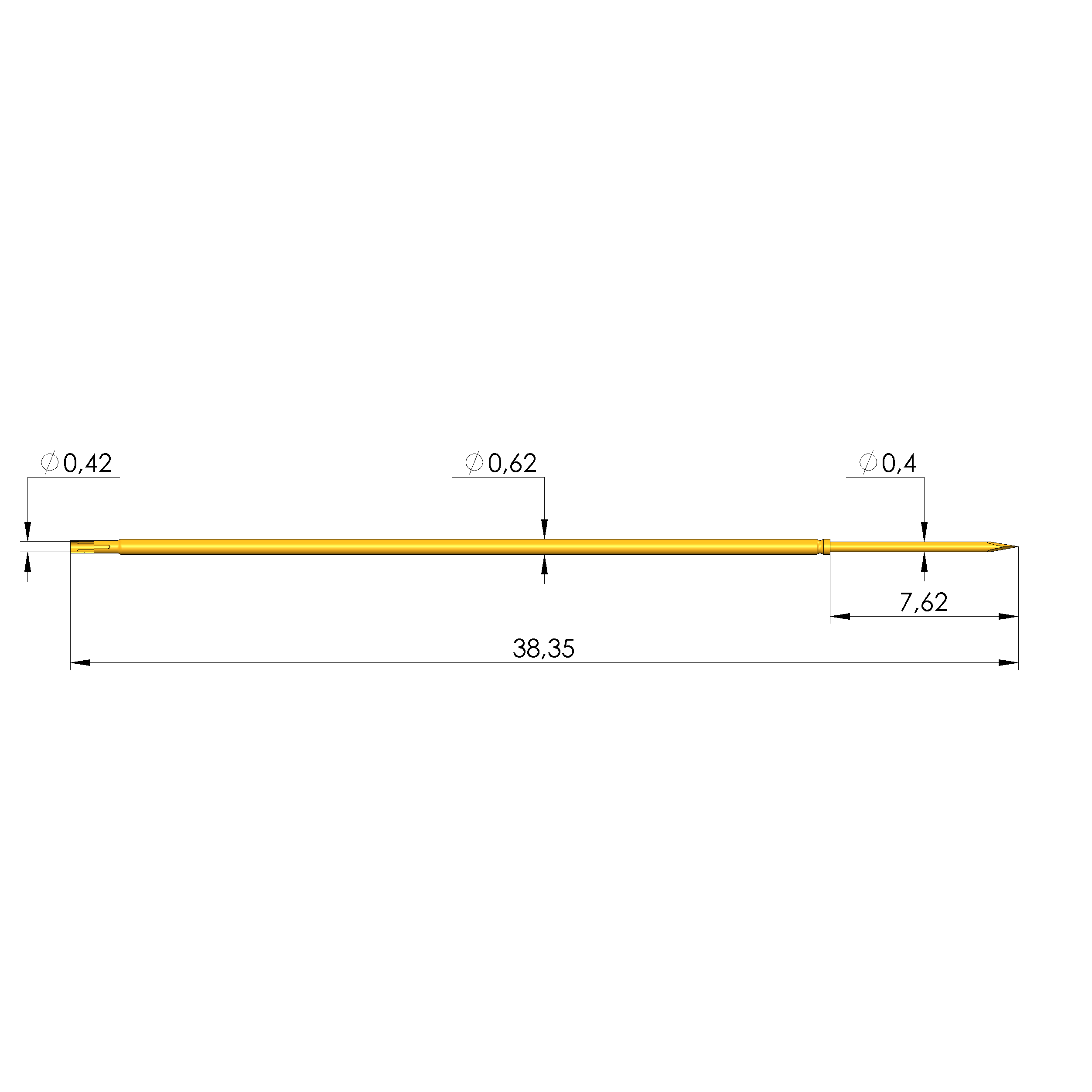

| X31 → | S-031 |
All relevant information for selecting compatible S-Line variants and integrating them into your setup.

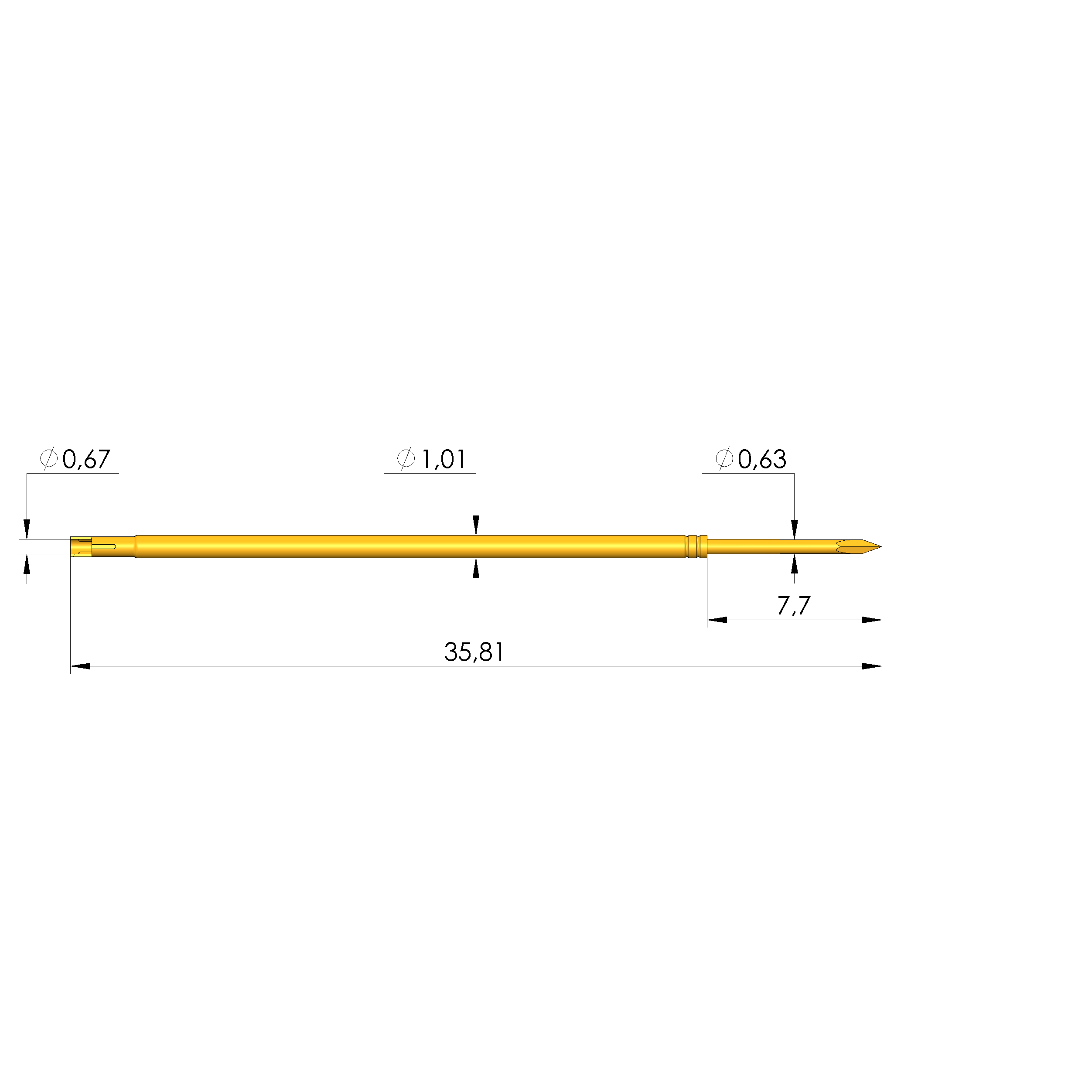

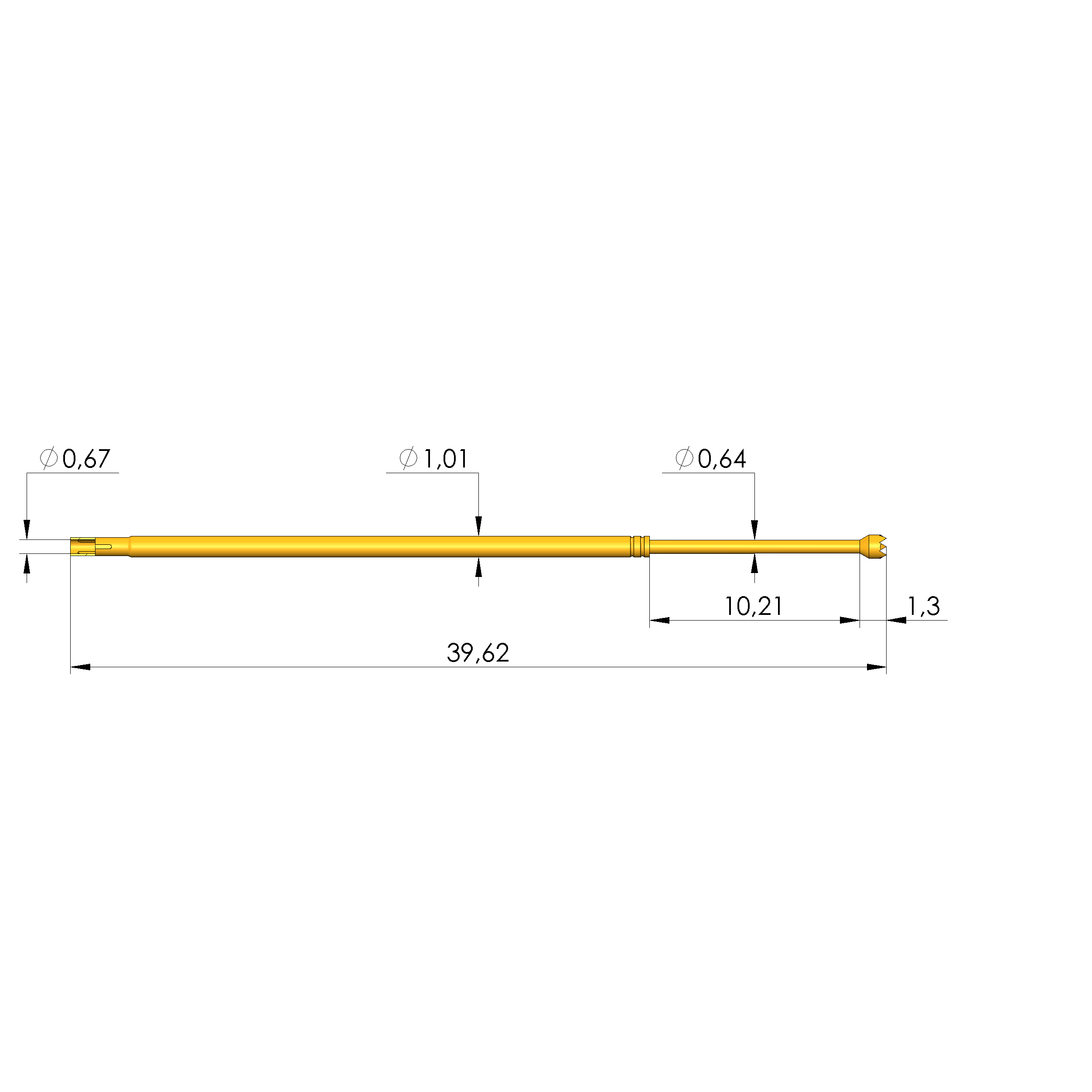

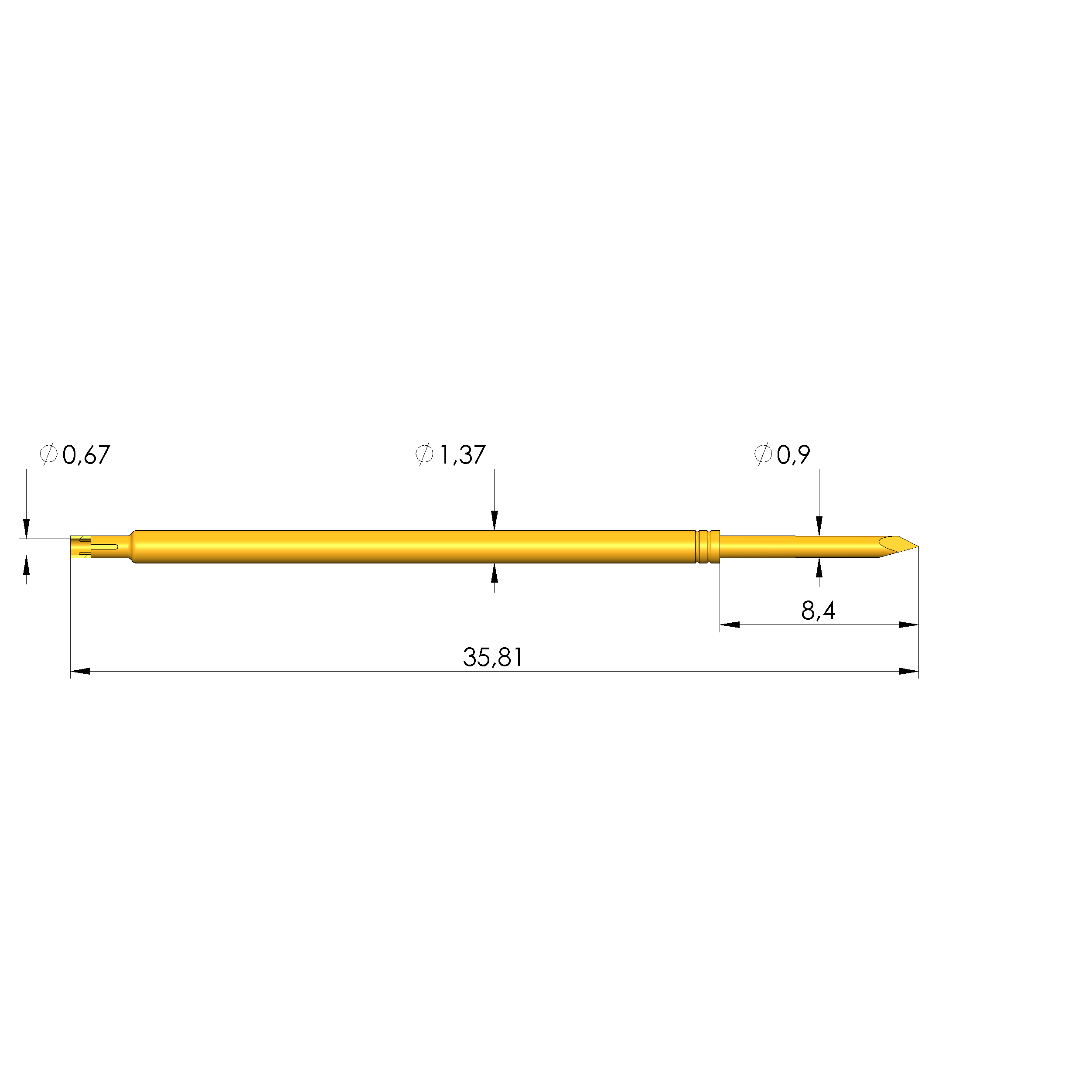

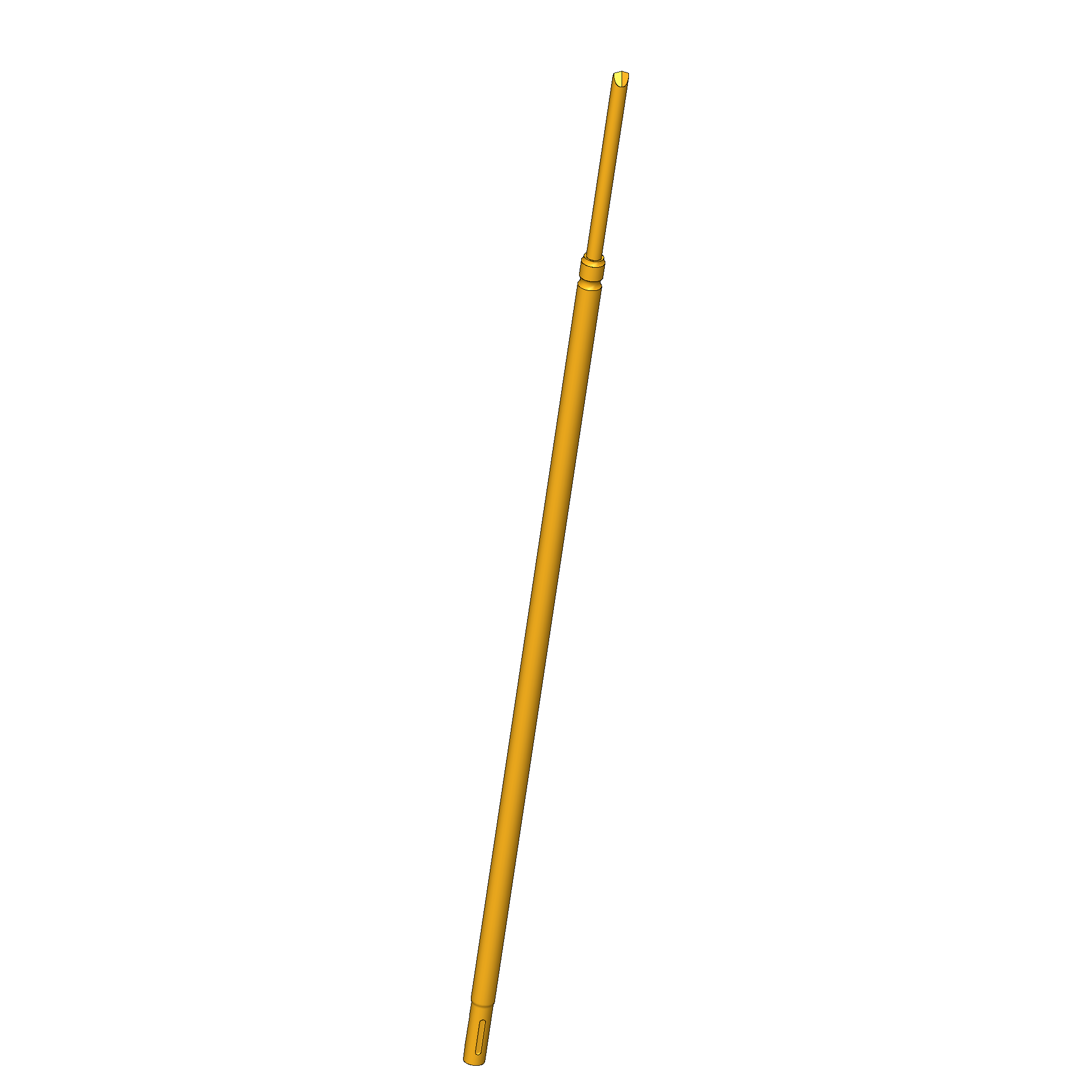

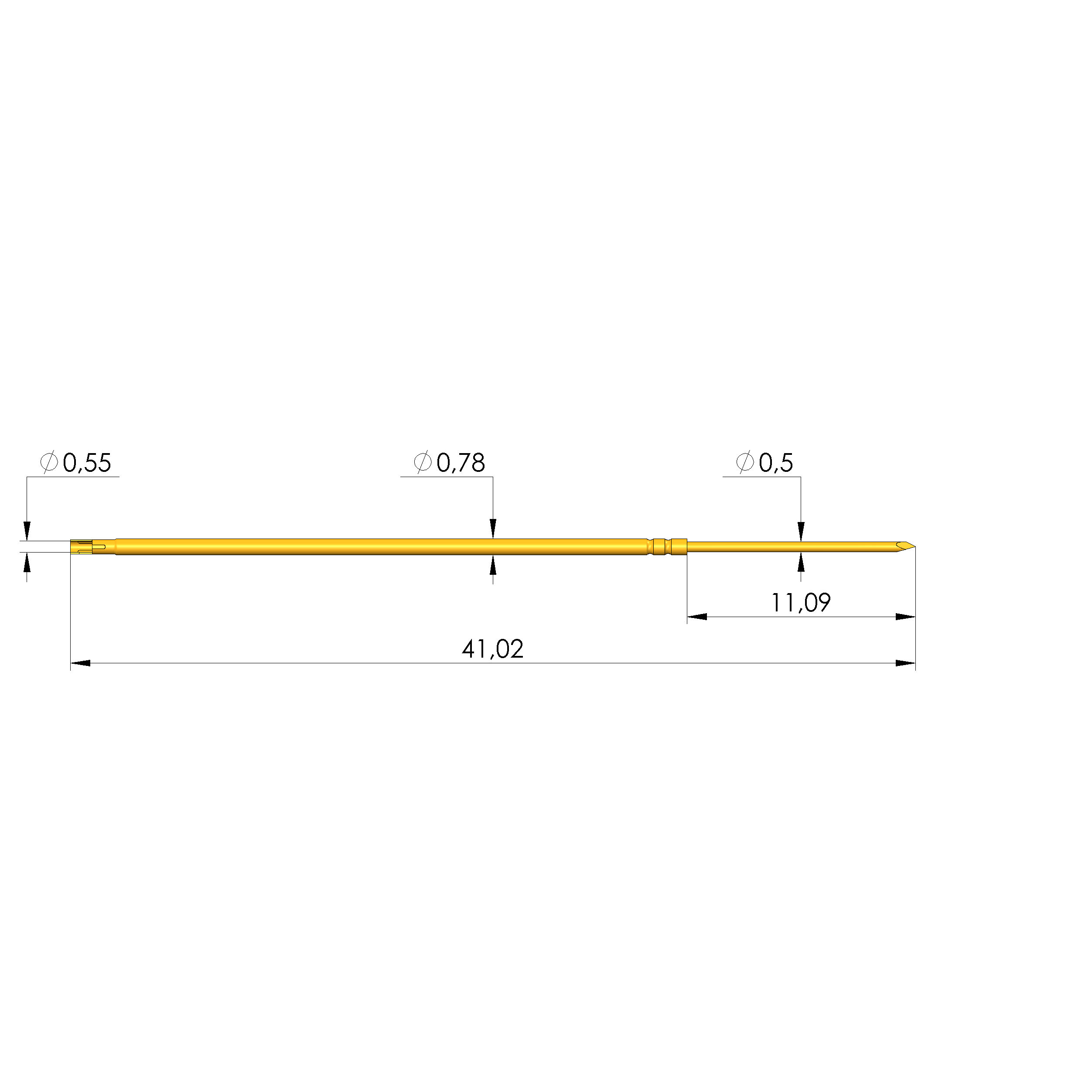

S-Line is designed for small grid sizes such as 075, 050, 039 and 031 mil, as well as applications with high test point density.
Different tip styles and spring forces are available to ensure optimal contact with the test point.
In addition, E variants with increased spring preload are available for reliably penetrating oxidation and contamination.
S-Line test probes and terminals can be integrated into all common test fixtures. They were developed for direct integration into X-Probe®-based systems and do not require fixture modifications.

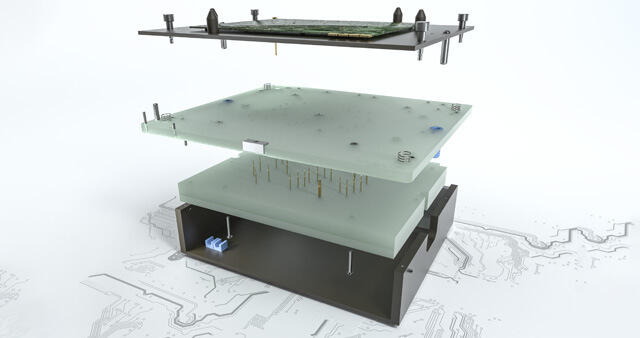

For INGUN test fixtures equipped with standard probes, dedicated S-Line kits are also available. These kits allow existing test fixtures to be converted to socketless technology without requiring a complete fixture redesign.
Depending on the application, the kits consist of two to four fixture plates mounted below the probe plate.
Benefits:
INGUN offers a suitable S-Line alternative for all common QA X-Probes®, providing 1:1 compatibility and proven comparable performance.
On request, we are happy to provide further information and support you in selecting the most suitable variant.
For more than 50 years, INGUN has supported companies worldwide with reliable testing and contacting solutions.
Our technical experts help you find the right S-Line variant for your setup.
✔ Personal consultation
✔ Support with variant selection
✔ Integration support
