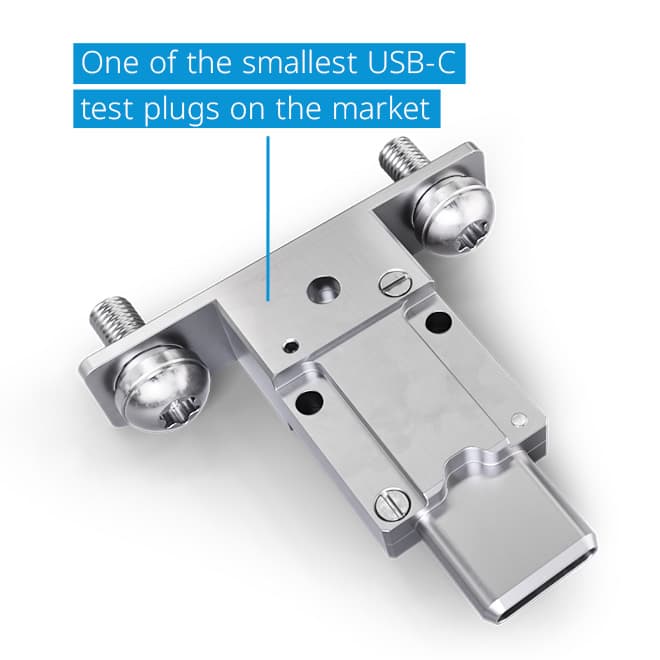

Optimised tolerance compensation, compact housing dimensions and flexible installation options - the new INGUN test plug for USB-C sockets offers a powerful solution for demanding test applications in the field of quality testing. At 27 mm long and 12 mm wide, it is one of the smallest solutions on the market for the electronics and automotive industries.
Wide range of applications with minimal space requirements

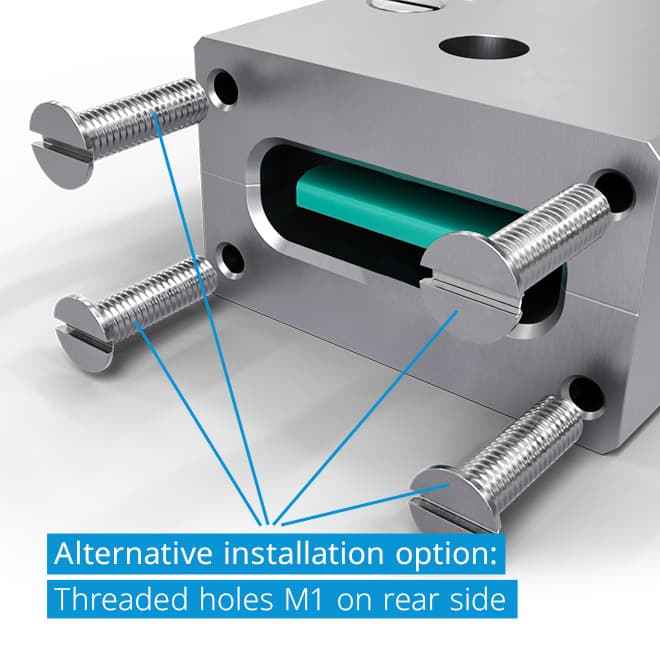

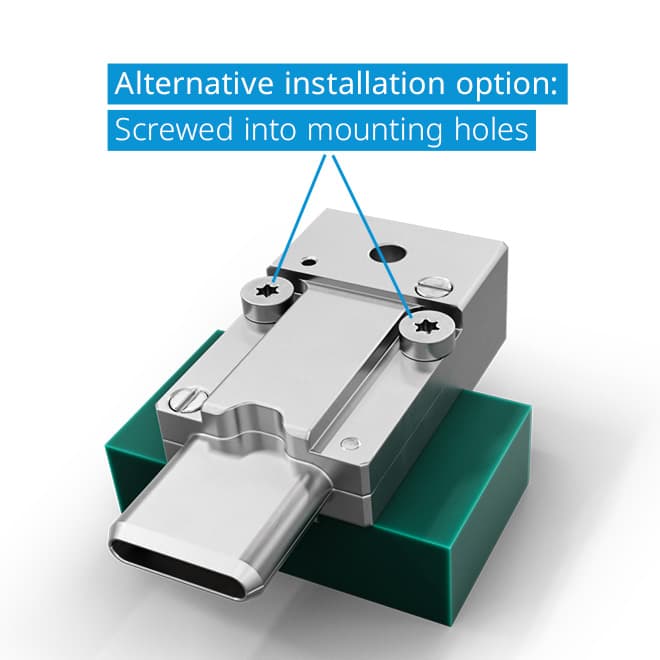

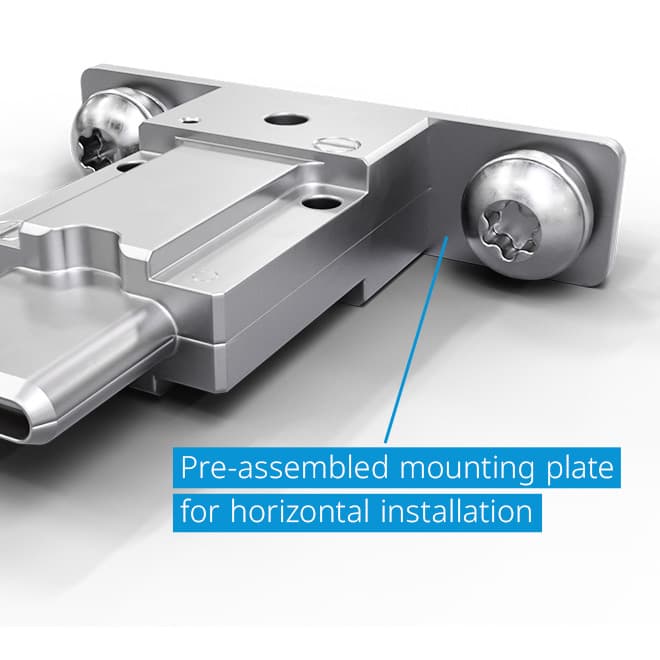

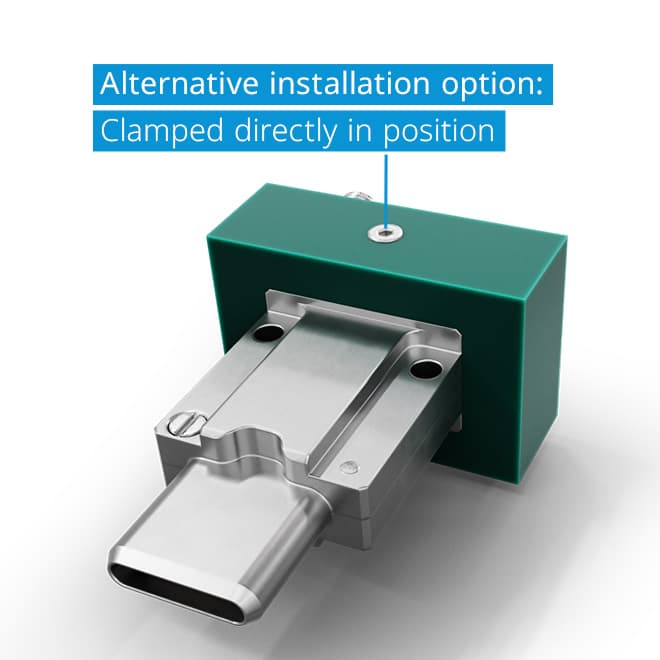

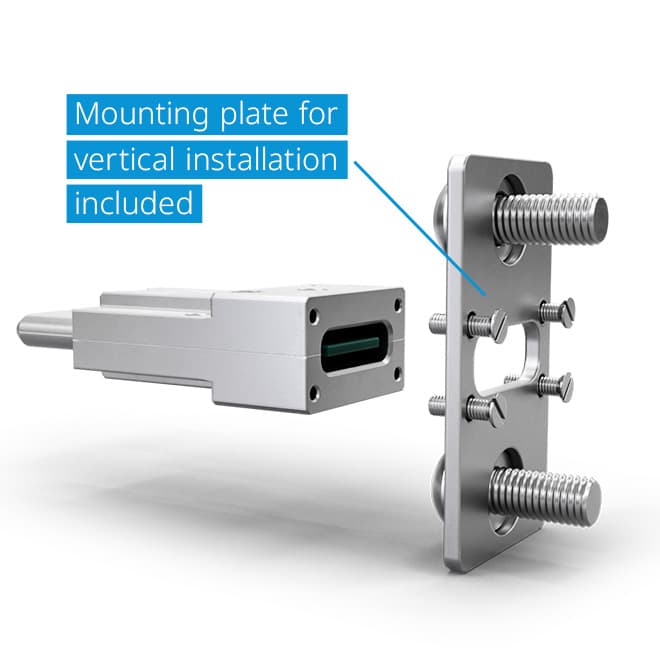

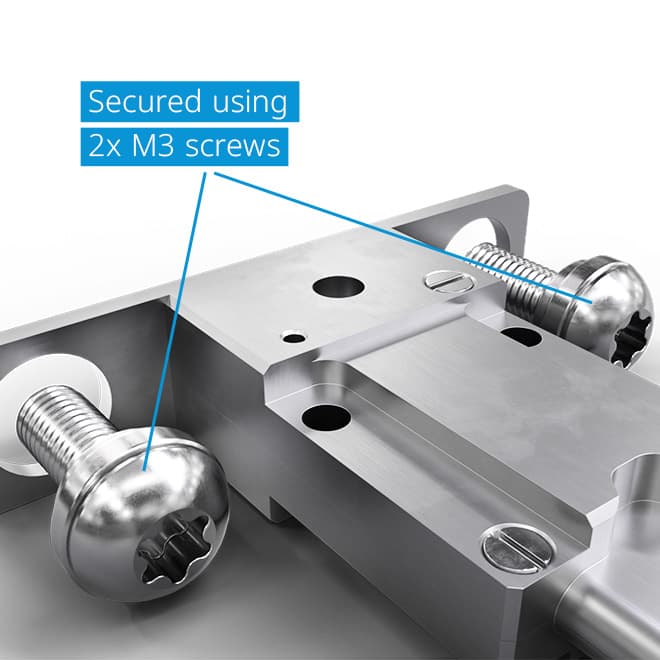

Thanks to the extremely compact design, installation is even possible in test fixtures with the smallest housing dimensions and is ideal for applications with limited space. Various installation options allow you maximum flexibility – the test plug can be screwed in or clamped in position.

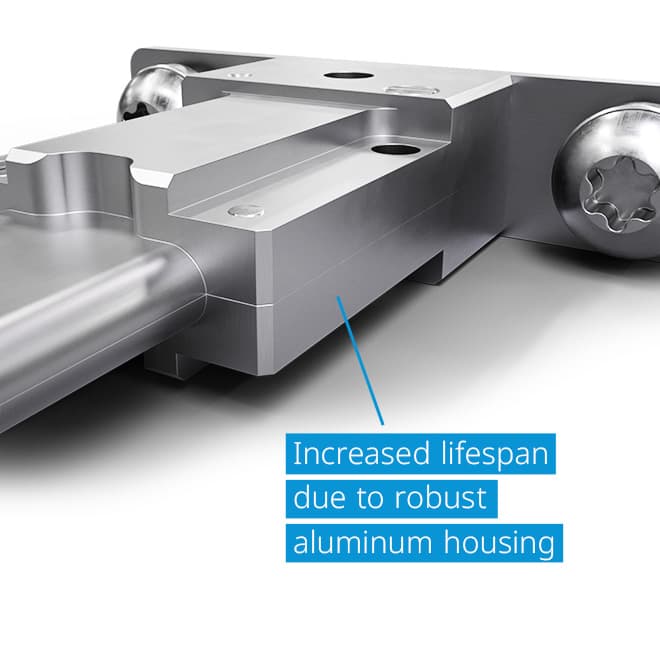

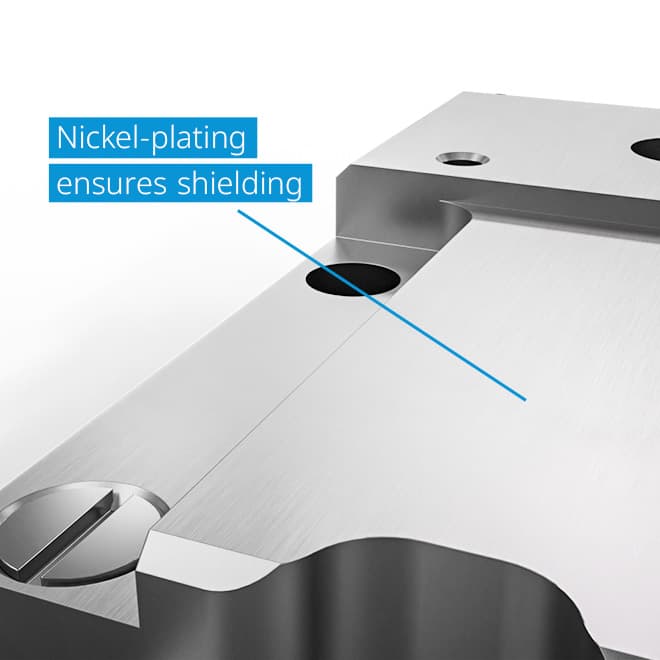

The robust aluminium housing is specifically designed for intensive use in the testing industry and offers maximum durability. It ensures long-lasting and reliable performance for maximum efficiency and reduced downtime. The nickel coating optimises the shielding properties and resistance to electromagnetic interference.
Tolerance compensation for maximum precision

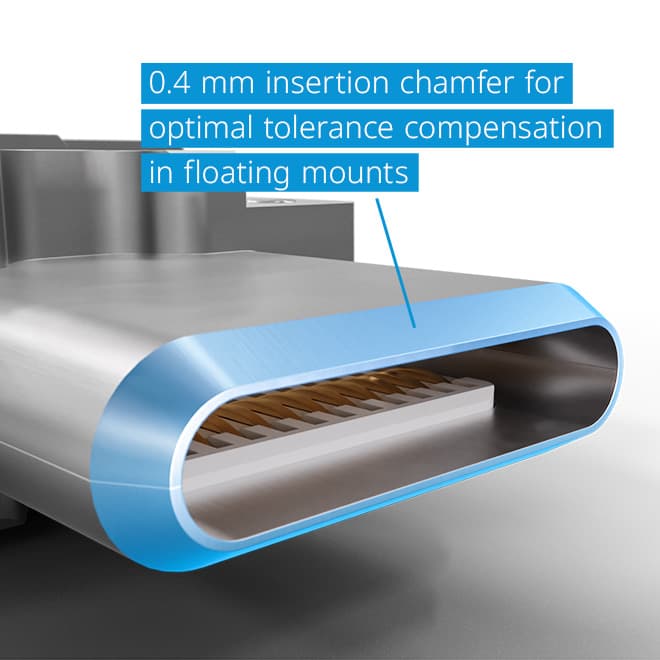

The new 0.4 mm insertion chamfer offers you optimum tolerance compensation. Optional available spring elements can be integrated for floating mounting to effortlessly compensate for angular errors.
Simple integration thanks to plug & play

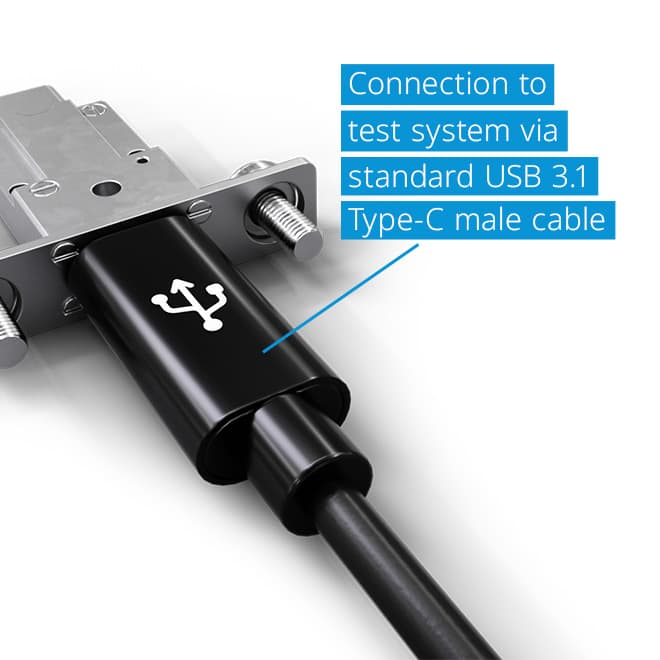

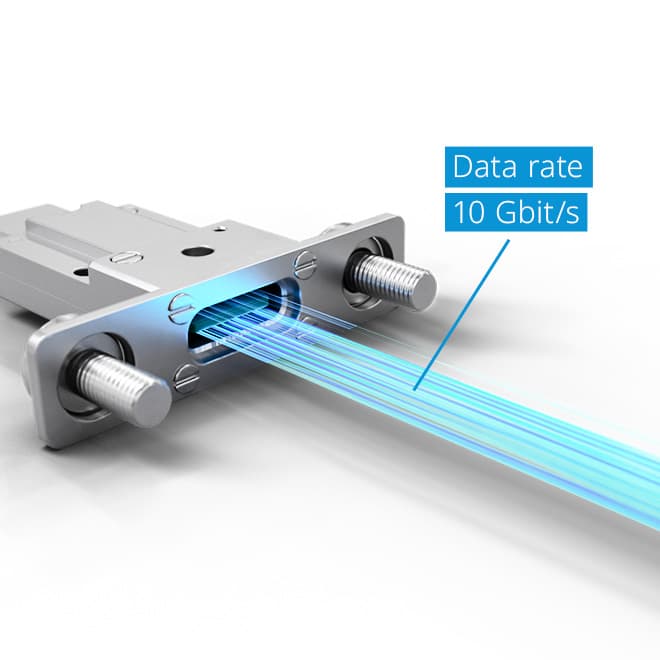

The signal is transmitted reliably via the USB-C connection, which enables a simple plug & play connection to the test system - for fast, secure integration. Data rates of up to 10 Gbit/s and current carrying capacity of up to 3 A are therefore possible.
Features at a glance
- Enlarged insertion chamfer, up to 0.4 mm tolerance compensation with floating mounting
- One of the smallest test plugs for USB3.1 C in the tightest applications, also suitable for USB-C in automotive application
- Precise, low wear contacting of USB connectors with an outstanding service life of up to 100,000 mating cycles

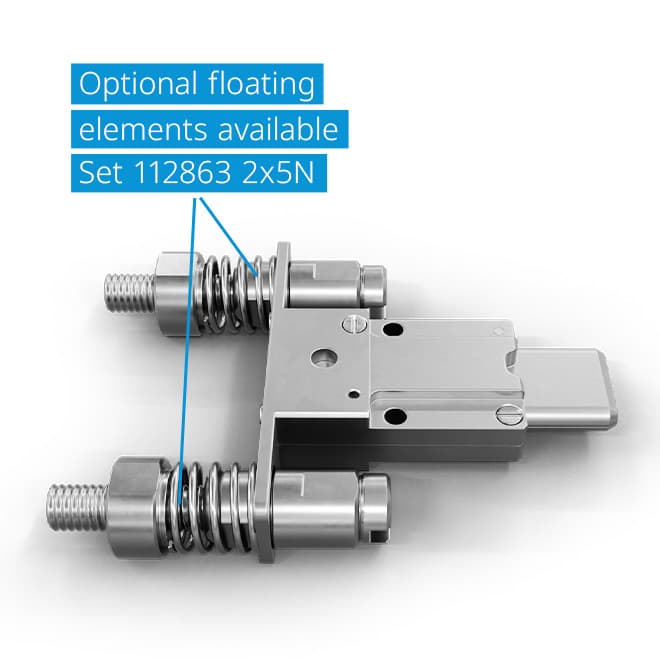

- Various installation options and optionally available spring elements (112863: set 2x - 5N) allow tolerances of ± 0.4 mm and angular errors to be compensated.
- Signal transmission to the test system via original USB-C connector for reliable data transmission up to 10 Gbit/s and a current carrying capacity of up to 3 A and 15 W
- Larger insertion chamfers, up to 0.4 mm tolerance compensation
- One of the smallest test plugs for USB3.1C for the most compact applications, also suitable for USB3.1C automotive
- Outstanding service life: over 50,000 mating cycles (under laboratory conditions) depending on the version
- Precise, low-wear contacting of USB plug connectors
- Reliable data transmission
- Optional spring elements (112863: set of 2x5 N) can compensate for tolerances of ±0.4 mm and positioning inaccuracies.
- Interface: Signal transmission to the test system via original USB3.1C connector plug
- Precise, low-wear contacting
- Outstanding service life
- Reliable data transmission
- Installation via floating mount
- Signal transmission via original connector plug or solder connection
