High-speed data transmission for all INGUN test fixtures
Optimum signal quality, maximum flexibility and easy integration - the new HSD interface blocks from INGUN enable independent testing of USB-A, USB-C and RJ-45 connectors on PCBs. With a gross data rate of up to 5 Gbit/s and consistently stable signal quality, they fulfil the requirements of modern high-speed digital tests.
Flexible configuration for specific test requirements
The interface blocks boast five high-speed channels which are freely configurable and can be customised for various types of signals using USB-A or USB-C HSD plug connectors.
- USB-C plug connector with two independent USB-C channels
- USB-A plug connector with one USB-A channel
Using USB-C connectors, you can fit these interface blocks with up to ten independent test channels.
Simple integration without specialised cables
Thanks to compatibility with standard USB-A and USB-C cables, there is no need for specialised test cables. This enables independent, cost-effective procurement as well as easy integration into existing test systems.
Compatibility with existing test systems
The interface blocks are designed for use in all test fixtures with an internal or external Pylon interface and can be easily integrated into existing test processes.
Features at a glance:
- Compatible with all test fixtures fitted with an internal/external Pylon interface
- Five high-speed channels for USB-A or USB-C plug connectors
- Five USB-A or ten USB-C channels, freely configurable
- Gross data rate of up to 5 Gbit/s
- Consistently stable signal quality
- Signal connection with standard HSD cables
- HSD interface block for reliable transmission of HSD signals (high-speed digital) with high contact quality for reliable measurements in the test field
- Five high-speed channels for customised configuration
- Can be customised with HSD connectors (STV-HSD-SB-...), to which commercially available HSD cables are connected
- Farbcodierte Zuordnung der HSD-Steckverbinder, grün für testsystemseitigen HSD-Schnittstellenblock
- Suitable for all test fixtures wth internal and/or external Plyon interface
- High contact reliability and transmission quality
- Consistently low contact resistances and replicable measured values
- Quick, easy installation for efficient, time-saving customisation
- HSD interface block for reliable transmission of HSD signals (high-speed digital) with high contact quality for reliable measurements in the test field
- Five high-speed channels for customised configuration
- Can be customised with HSD connectors (STV-HSD-SB-...), to which commercially available HSD cables are connected
- Farbcodierte Zuordnung der HSD-Steckverbinder, blau für prüflingsseitigen HSD-Schnittstellenblock
- Suitable for all test fixtures wth internal and/or external Plyon interface
- High contact reliability and transmission quality
- Consistently low contact resistances and replicable measured values
- Quick, easy installation for efficient, time-saving customisation

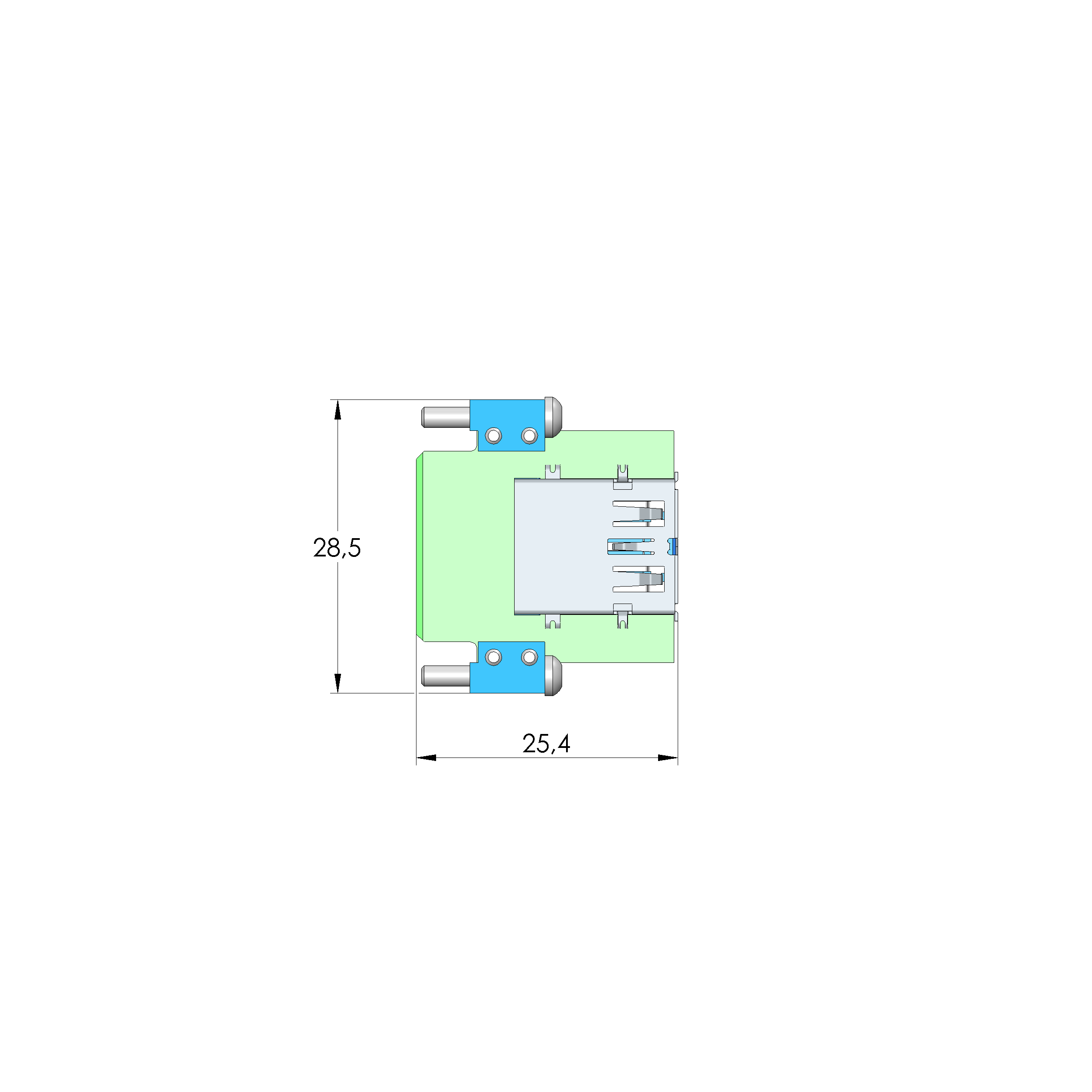

- USB-A HSD connector for HSD interface block SB-T-HSD-005 on the test-system side
- Reliable transmission of USB-A 3.1 signals
- A USB-A 3.1 channel for signal transmission
- Signal connection with commercially available USB-A cables (e.g. USB-A to USB-A, USB-A to RJ45)
- Farbcodierte Zuordnung der HSD-Steckverbinder, grün für testsystemseitigen HSD-Schnittstellenblock
- Consistently stable signal quality throughout
- Gross data rate up to 5 Gbits/s
- PoE (power over Ethernet) compatible, in accordance with IEEE 802.3

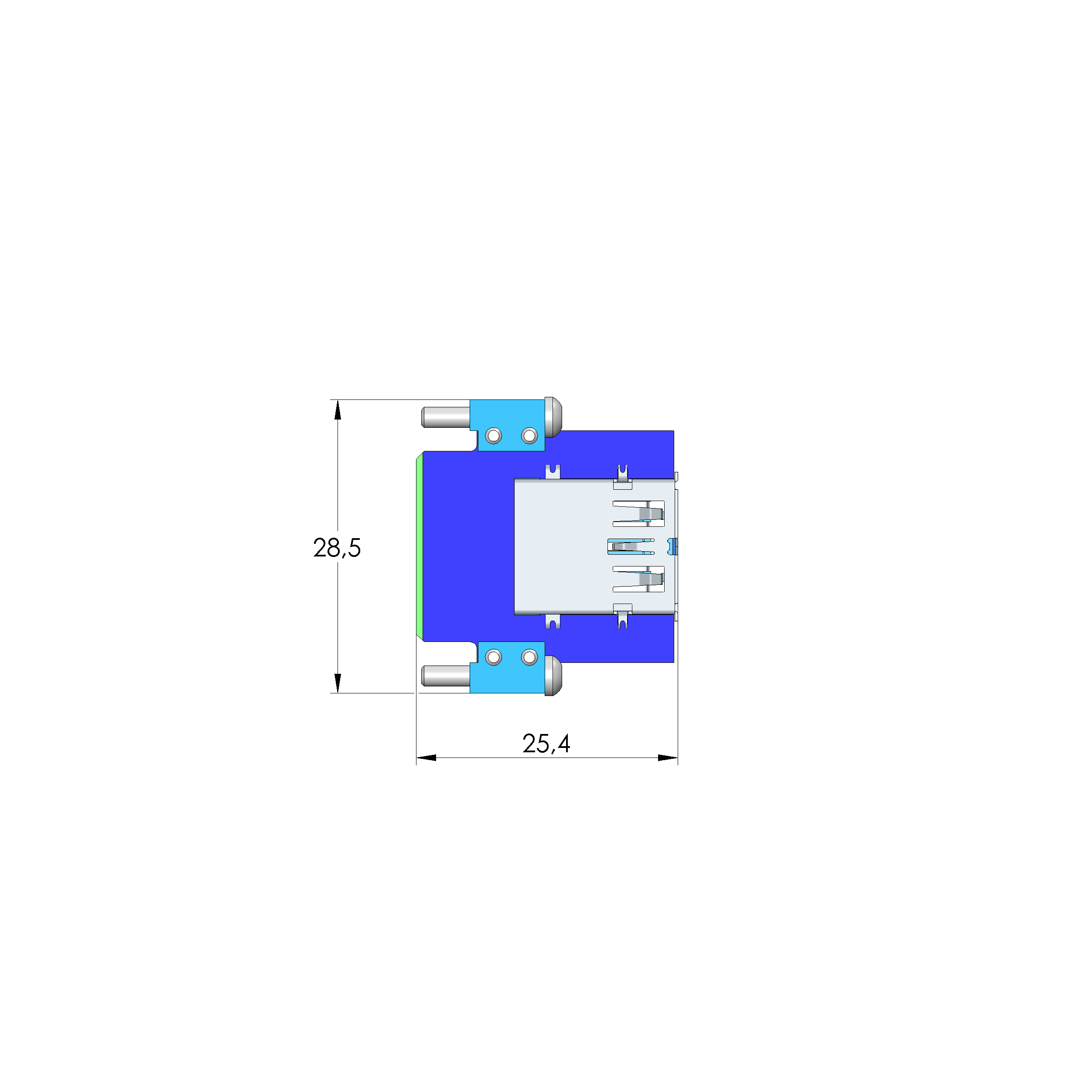

- USB-A HSD connector for HSD interface block SB-P-HSD-005 on the DUT side
- Reliable transmission of USB-A 3.1 signals
- A USB-A 3.1 channel for signal transmission
- Signal connection with commercially available USB-A cables (e.g. USB-A to USB-A, USB-A to RJ45)
- Farbcodierte Zuordnung der HSD-Steckverbinder, blau für prüflingsseitigen HSD-Schnittstellenblock
- Consistently stable signal quality throughout
- Gross data rate up to 5 Gbits/s
- PoE (power over Ethernet) compatible, in accordance with IEEE 802.3

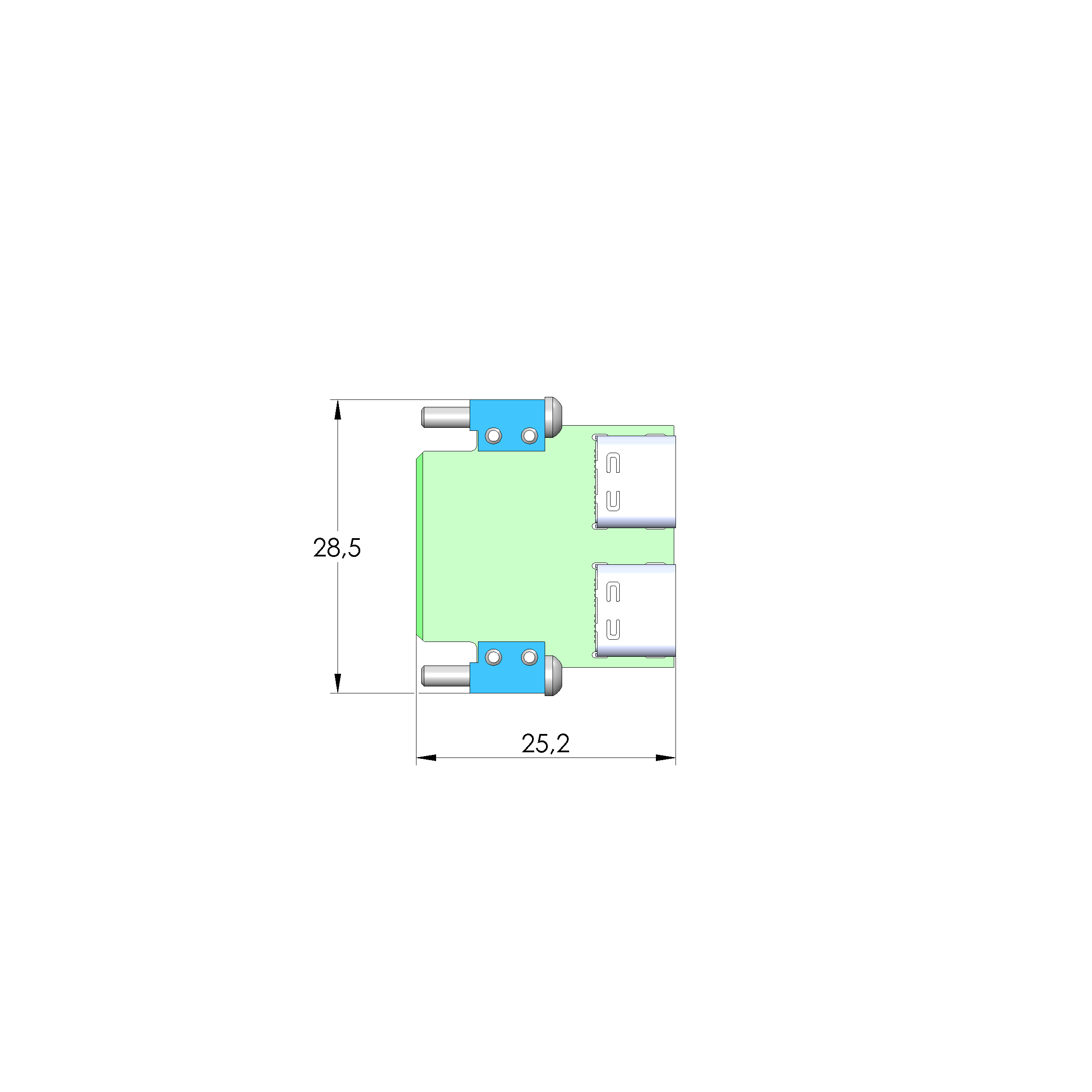

- USB-C HSD connector for HSD interface block SB-T-HSD-005 on the test-system side
- Reliable transmission of USB-C 3.1 signals
- Two independent USB-C 3.1 channels for signal transmission
- Signal connection with commercially available UCB-C cables (e.g. USB-C to USB-C)
- Farbcodierte Zuordnung der HSD-Steckverbinder, grün für testsystemseitigen HSD-Schnittstellenblock
- Consistently stable signal quality throughout
- Gross data rate up to 5 Gbits/s
- PoE (power over Ethernet) compatible, in accordance with IEEE 802.3

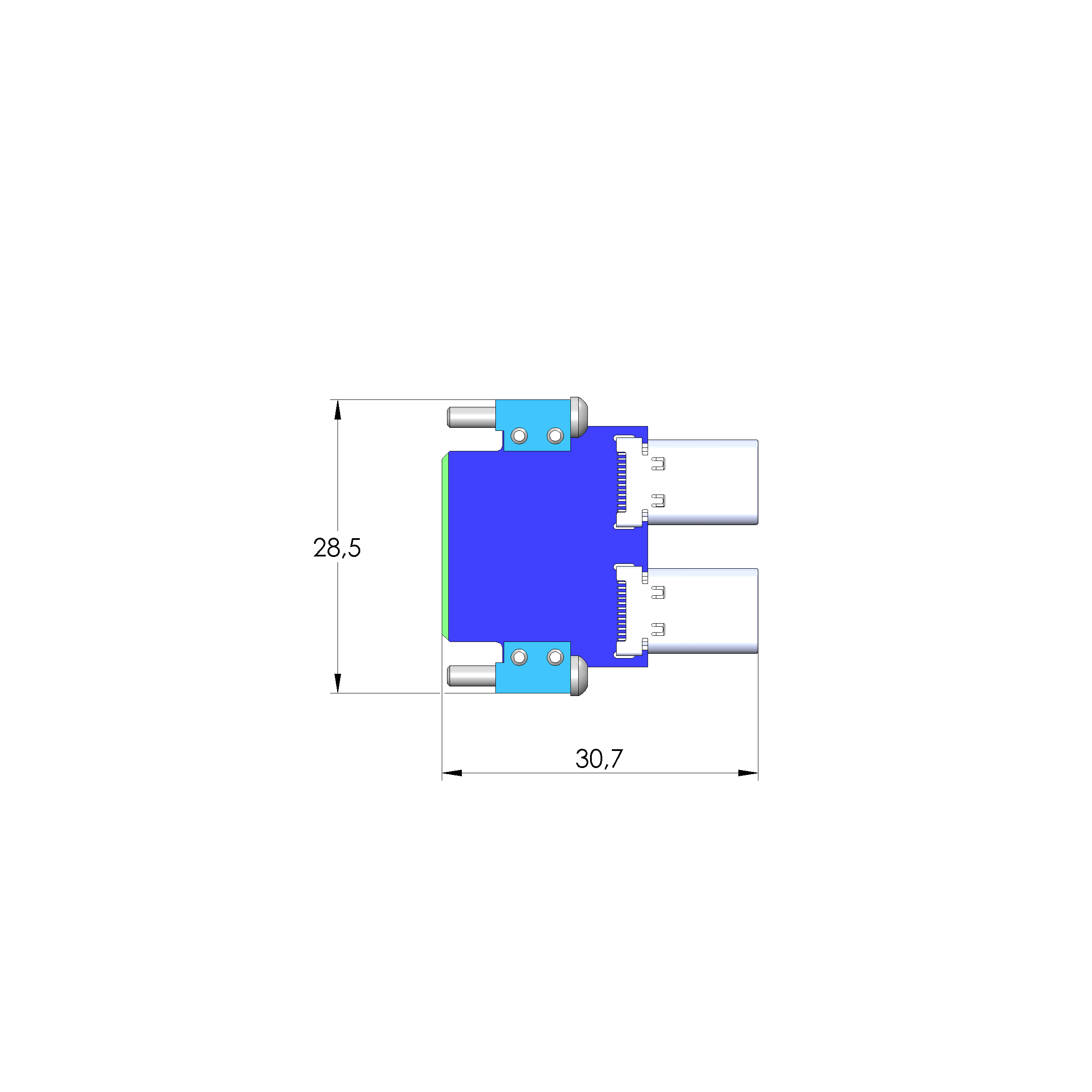

- USB-C HSD connector for HSD interface block SB-P-HSD-005 on the DUT side
- Reliable transmission of USB-C 3.1 signals
- Two independent USB-C 3.1 channels for signal transmission
- Signal connection with commercially available UCB-C cables (e.g. USB-C to USB-C)
- Farbcodierte Zuordnung der HSD-Steckverbinder, blau für prüflingsseitigen HSD-Schnittstellenblock
- Consistently stable signal quality throughout
- Gross data rate up to 5 Gbits/s
- PoE (power over Ethernet) compatible, in accordance with IEEE 802.3
