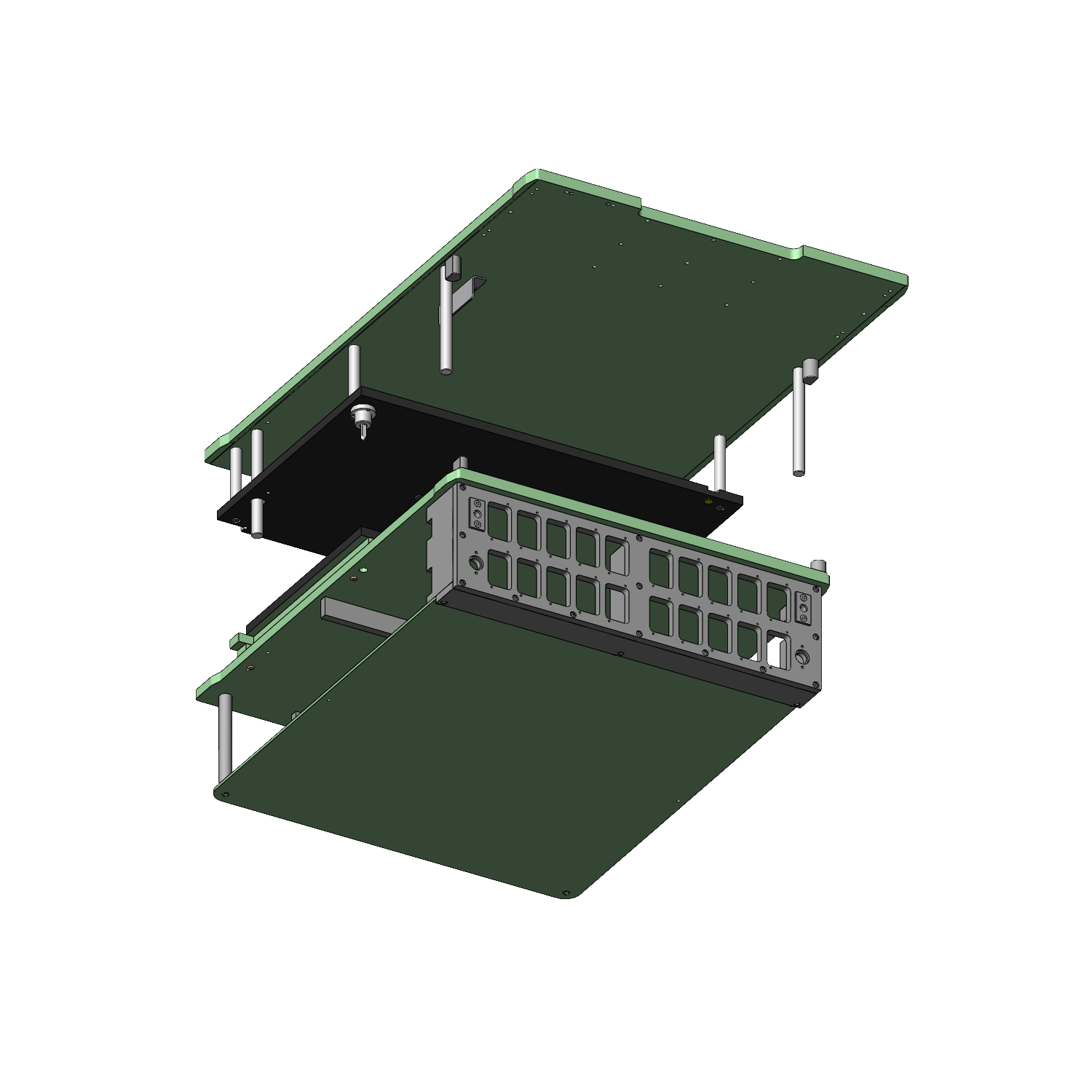

Interchangeable kit WS ASYS/ATH01/173,5 Item 116630
New
- Inline interchageable kit for ASYS handler ATH01/173,5
- Precise, reliable contacting with peRFectly configured guides
- 2-stufig ausgeführte Zentrierung im Wechselsatz-Oberteil (1. FS/PCB - 2. WSO/WSU)
- Modular design with bottom interchangeable kit (WSU) and top interchangeable kit (WSO)
- Robust, durable design with outstanding service life
- For the assembly of items delivered unassembled, Refer to the drawings of the items specified in the parts list to assemble items
Interchangeable kit WS ASYS/ATH01/173,5 Item 116630
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.
Choose version
WS ASYS/ATH01/173,5 (116630)
Here you can optionally configure a new variant:
Technical data
| Product group : | Inline interchangeable kit (WS) |
|---|---|
| Subseries : | WS ASYS |
| Series : | WS Asys |
| Version : | With interface |
| Scope of delivery : | Unassembled |
| Max. interface signals : | 3400 |
| Interface blocks required : | Device under test (DUT) side |
| Max. internal interface blocks : | 20 |
| Dual-stage contacting : | Yes |
| Double-sided contact : | Yes |
| Weight : | 38.4 kg |
| Min. temperature : | + 10 °C |
| Max. temperature : | + 60 °C |
| Low voltage : | yes |
| RoHS-compliant : | RoHS-3;6a;6c |
| Pushrod length : | 20 mm |
|---|---|
| Test probe installation height, top : | 16 mm |
| Test probe installation height, bottom : | 16 mm |
| Test probe installation height, dual-stage, top : | 16 mm |
| Test probe installation height, dual-stage, bottom : | 19.8 mm |
| Free space above PCB : | 70 mm |
| Useable area (WxD) : | 445 x 345 mm |
| Outer dimensionS (WxDxH) : | 520 x 830 x 314 mm |
| Test systems : | ASYS ATH01 (173,5) |
|---|
