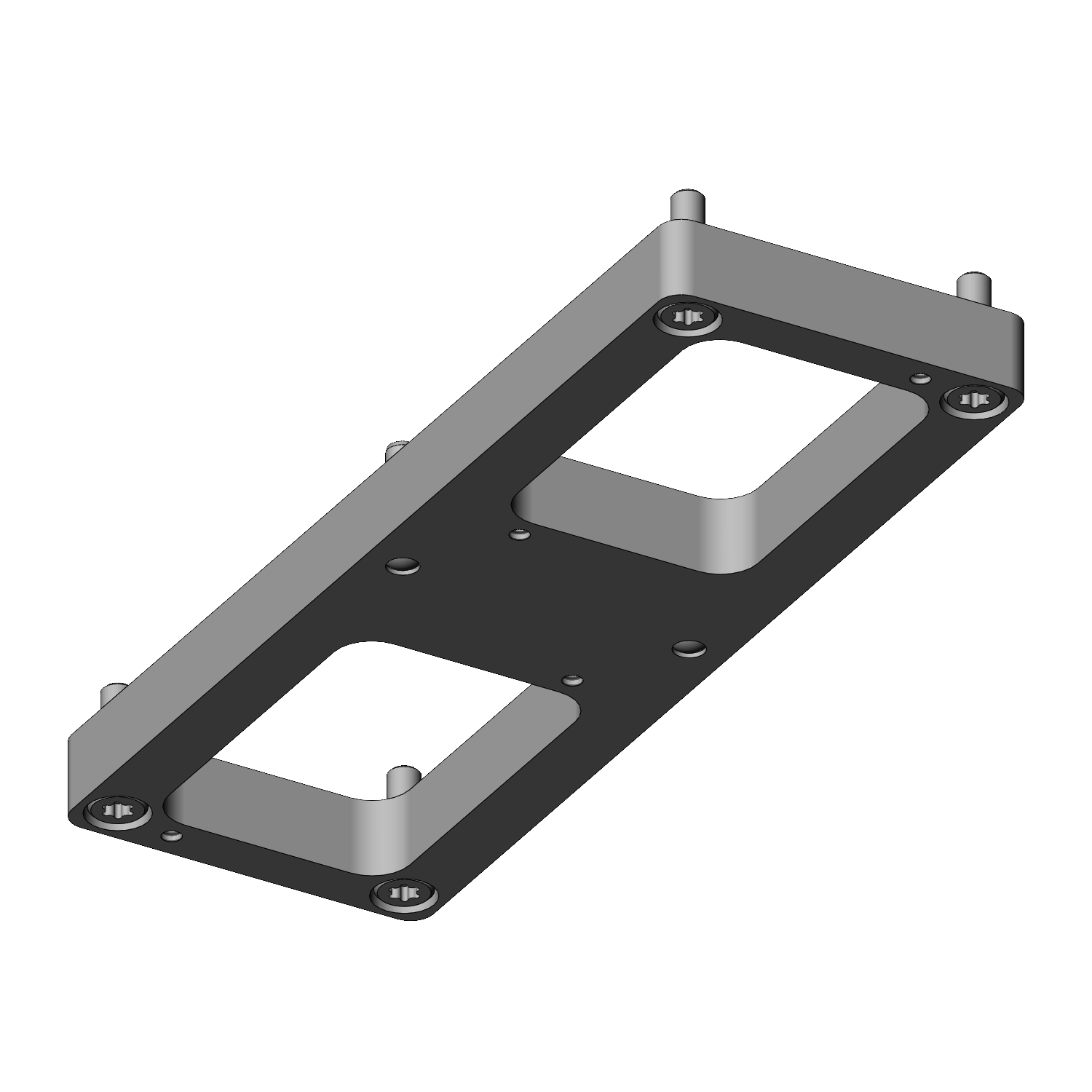

Transfer field  TF-P-SI-340-ASYS Item 116652

  • Contact module for reliable transmission of signals wheen contacting from the top side
  • Unpopoulated, to be populated with DUT-side (SB-P-...) interface blocks
  • Suitable for inline interchageable kits WS ASYS/ATH01/173,5 and WS ASYS/ATH01/210,5
  • Quick, easy installation
Show more Show less

Transfer field  TF-P-SI-340-ASYS Item 116652

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
Document (116652__Kundenzeichnung.PDF)
CAD file (INGUN_116652.STEP)
Choose version
TF-P-SI-340-ASYS (116652)
TF-P-SI-010-WW (48733) TF-P-SI-020-L (48738) TF-X-SI-020 (55431) TF-P-SI-030-WW (48741) TF-P-SI-040-WW (48743) TF-X-SI-010 (55430) TF-P-SI-040-L (48742) TF-X-SI-040 (55433) TF-X-SI-030 (55432) TF-P-SI-030-L (48740) TF-P-SI-010-L (48737) TF-P-SI-020-WW (48739) TF-P-SI-340-ASYS (116652)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Transfer fields
Series : TF-SI
Type : Pylon-WSO-ASYS
Version : Interface blocks (SB)
Accessory type : Additional function
Scope of delivery : Unpopulated, max. 2 interface blocks
Max. interface signals : 340
Width : 48 mm
Height : 10 mm
Weight : 0.07 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3
Technical data
Number of poles : 2
Length : 141 mm
Outer dimensionS (WxDxH) : 141 x 48 x 10 mm
Compatible with
Interchangeable kits (WS) : Interchangeable kit (WS) ASYS/ATH01/...
