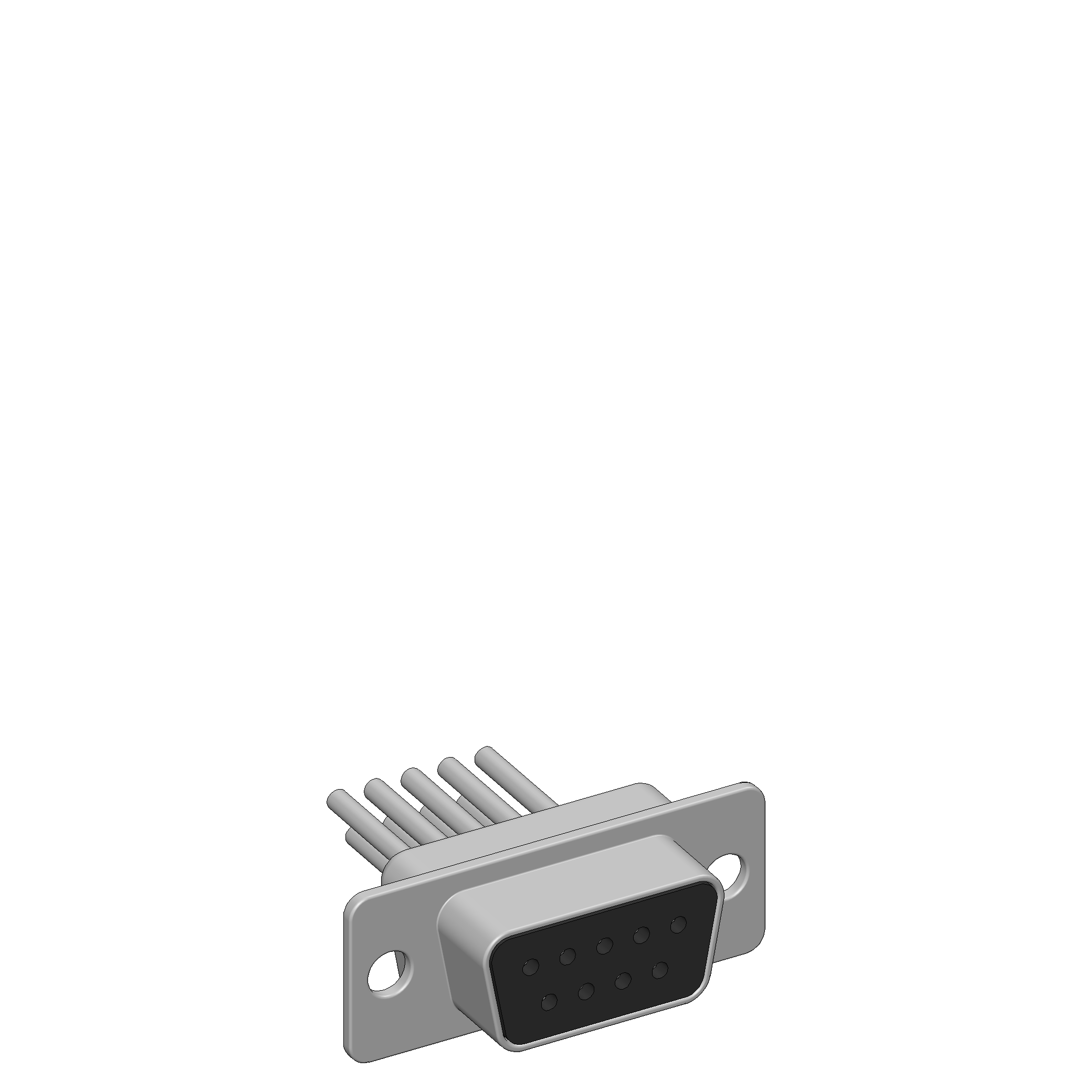

Connector - SUBD STV-SUBD-F-009-WW-G13 Item 29629

  • Sub-D Steckverbinder Buchse
  • Tafelmontage möglich
  • 9-polig / Raster 2,74mm / Wire Wrap-Anschluss
Show more Show less

Connector - SUBD STV-SUBD-F-009-WW-G13 Item 29629

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
Document (29629__Kundenzeichnung.PDF)
CAD file (INGUN_29629.STEP)
Choose version
STV-SUBD-F-009-WW-G13 (29629)
STV-2,54STL-M-072-PS-WW-G13 (24685) STV-USB2.0A-F-EB-SR (54751) STV-HSD-SB-P-USBC (116166) STV-HSD-SB-P-USBA3.1 (116356) STV-HSD-SB-T-USBC (116167) STV-HSD-SB-T-USBA3.1 (116352) STV-USB2.0A/B-F-EB-SR-REV (27418) STV-BL17-F-C (115189) SBZ-B-SI (115476) STV-BMA/SMA-M/F-18GHz-50OHM-FS (37065) STV-PK4-M4-SW (3645) STV-BL12-F-C (116059) STV-2,54STL-M-072-T-WW-G13 (28078) STV-BL10-F-C (43377) STV-BMA/SMA-F/F-18GHz-50OHM-FL (35533) STV-PK4-M4-RT (8847) STV-RJ45CAT05-F-EB-SR (54750) STV-SUBD-F-009-WW-G13 (29629)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Electric accessory
Series : STV
Type : Mounting socket
Version : SUB-D
Accessory type : Customising accessory
Component assembly : female
Material : Metal
Width : 25 mm
Height : 12.4 mm
Weight : 0.01 kg
Min. temperature : - 55 °C
Max. temperature : + 125 °C
RoHS-compliant : RoHS-3
Technical data
Connection : Wire-wrap posts
Current rating : 7 A

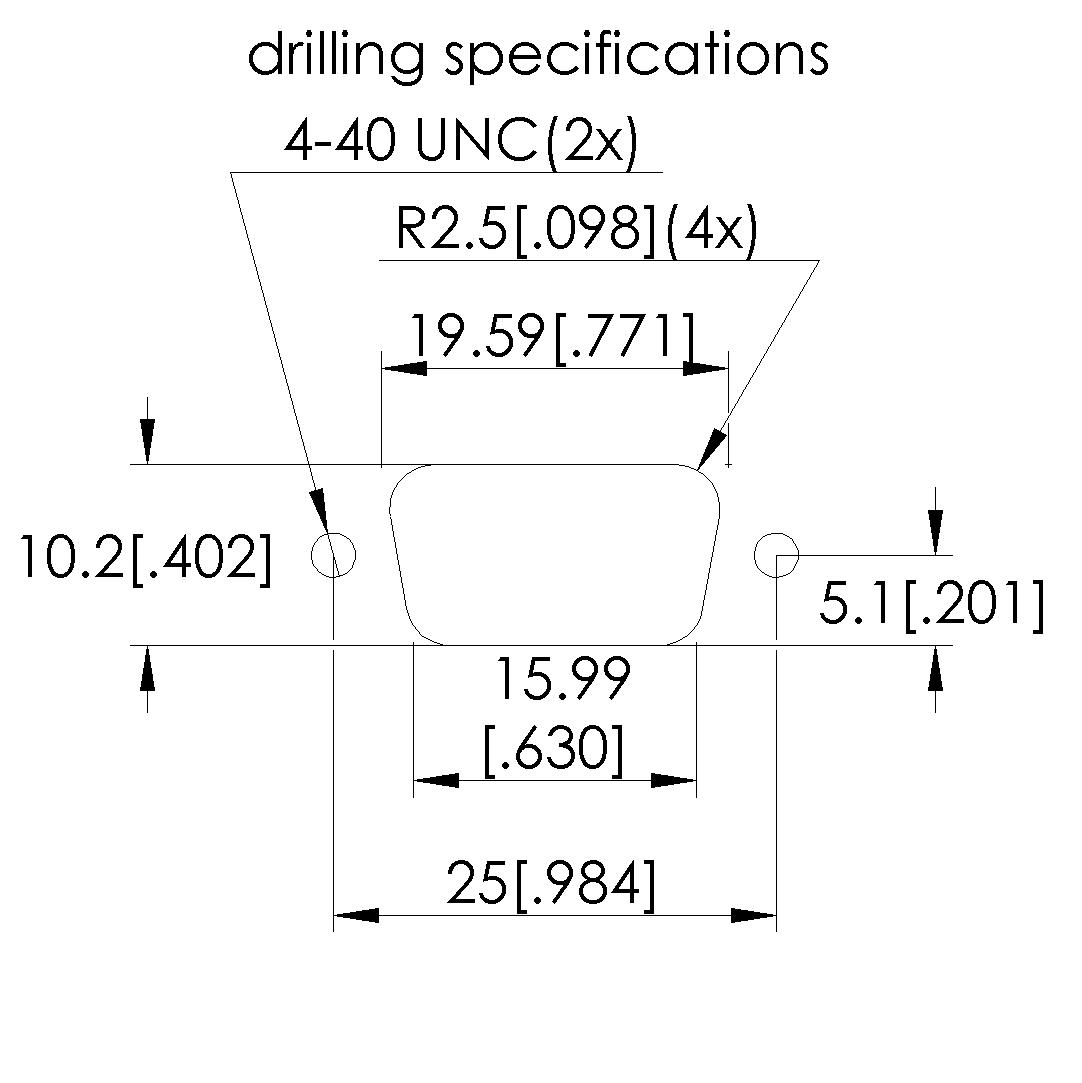

Installation : Bore D = 3.1 mm
Max. voltage : 1,0 kV
Number of poles : 9
Installation grid : 2.74 mm
Length : 31 mm

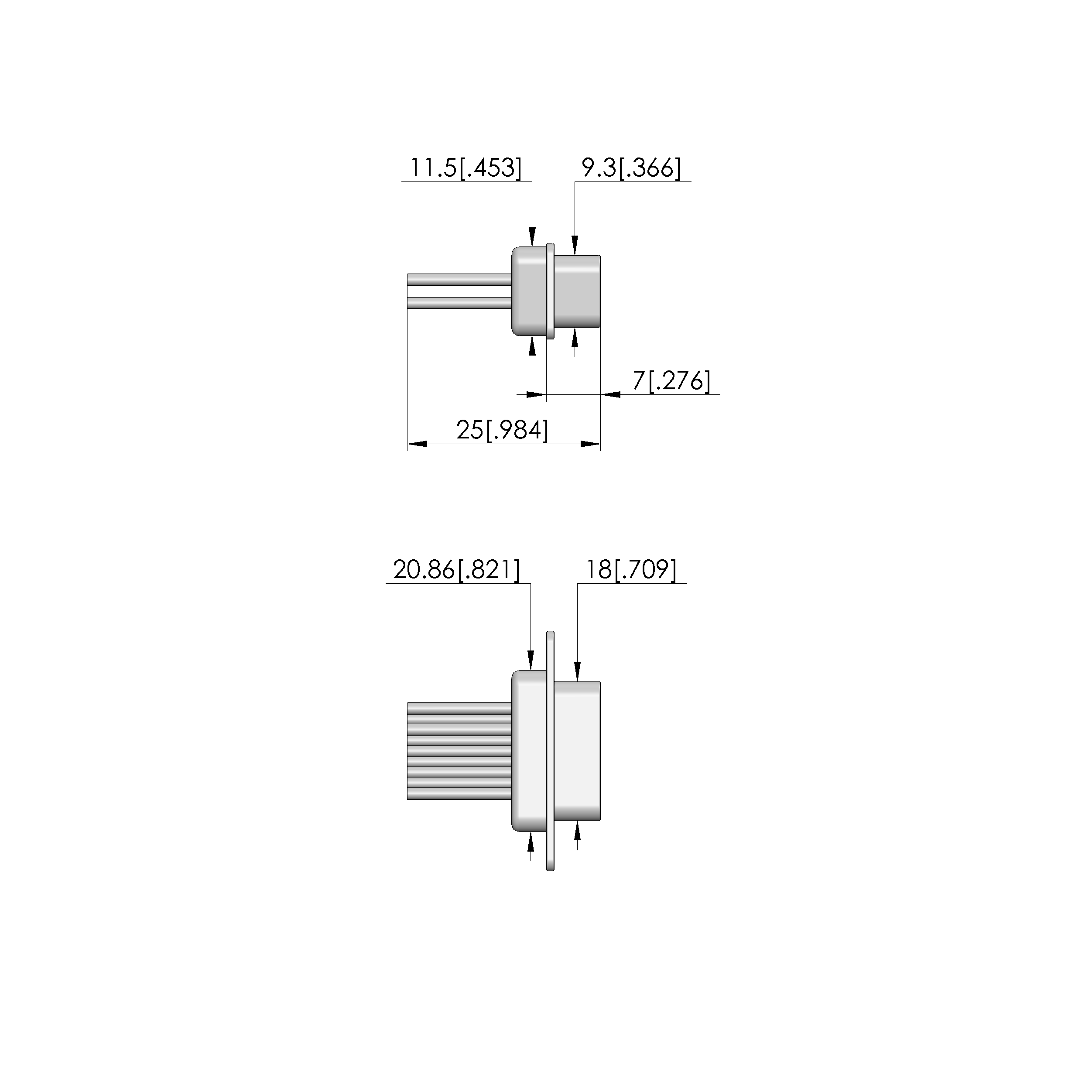

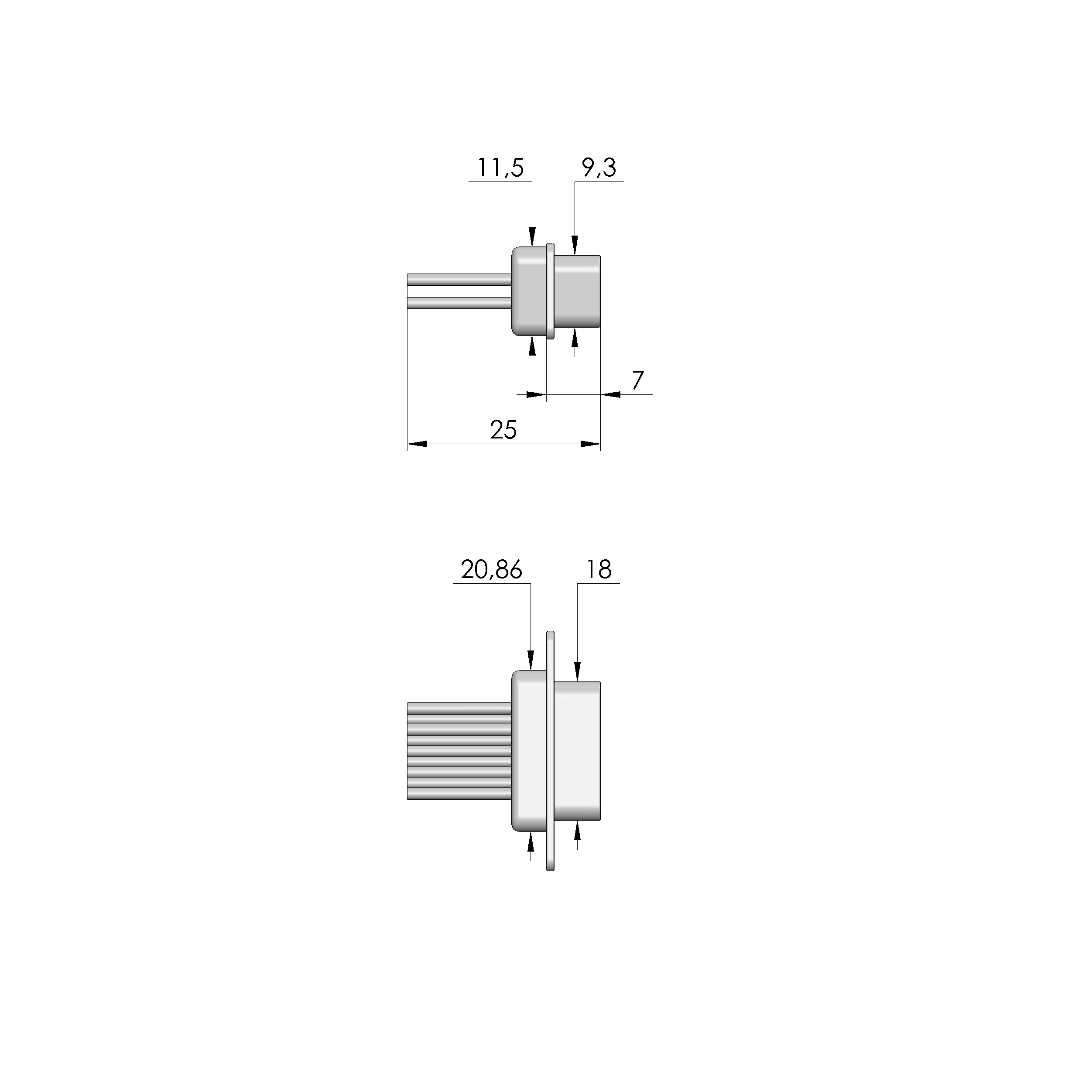

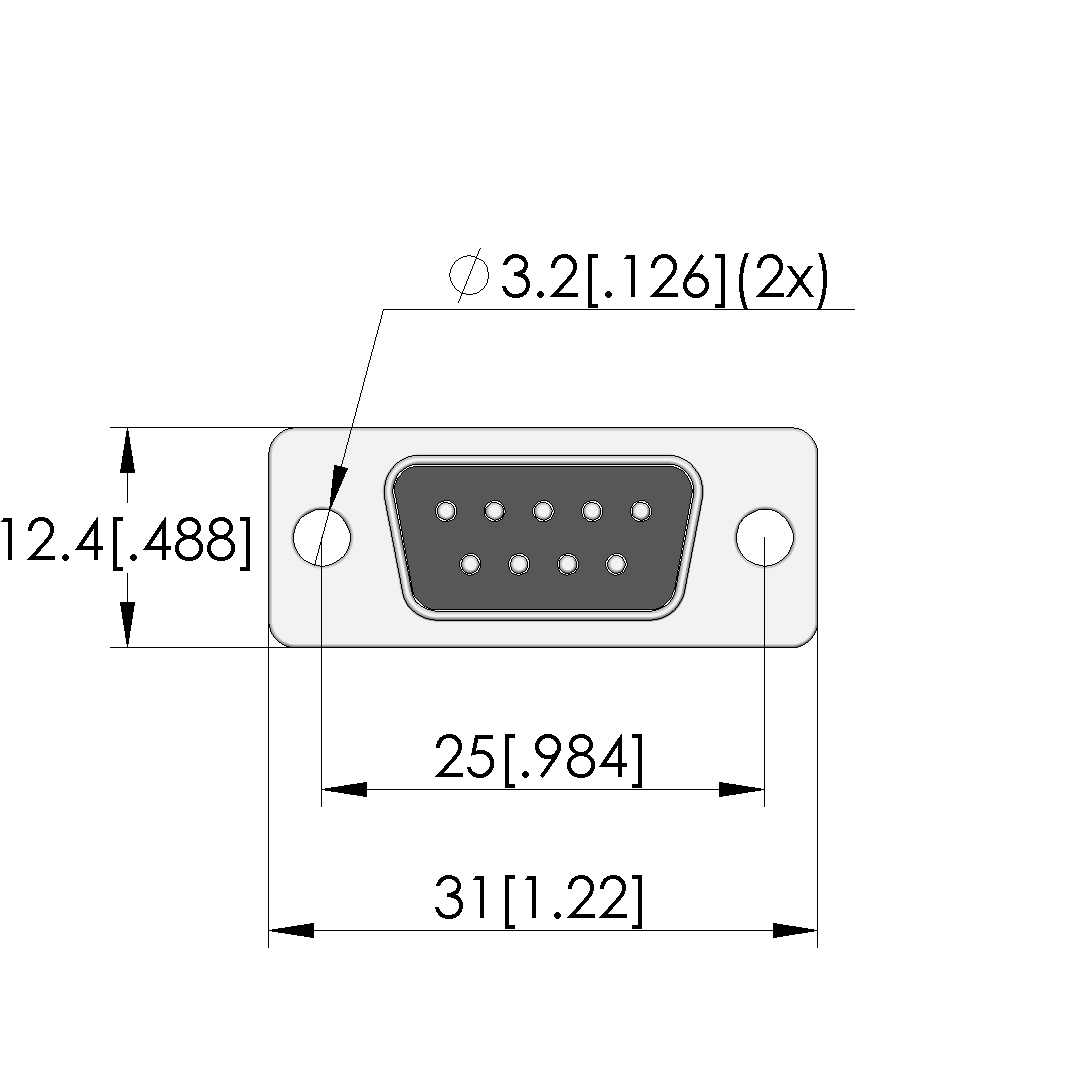

Outer dimensionS (WxDxH) : 31.0 x 12.4 x 25.0 mm
Compatible with
Interface blocks (SB) : SB-P-SO-009-SUB-D
