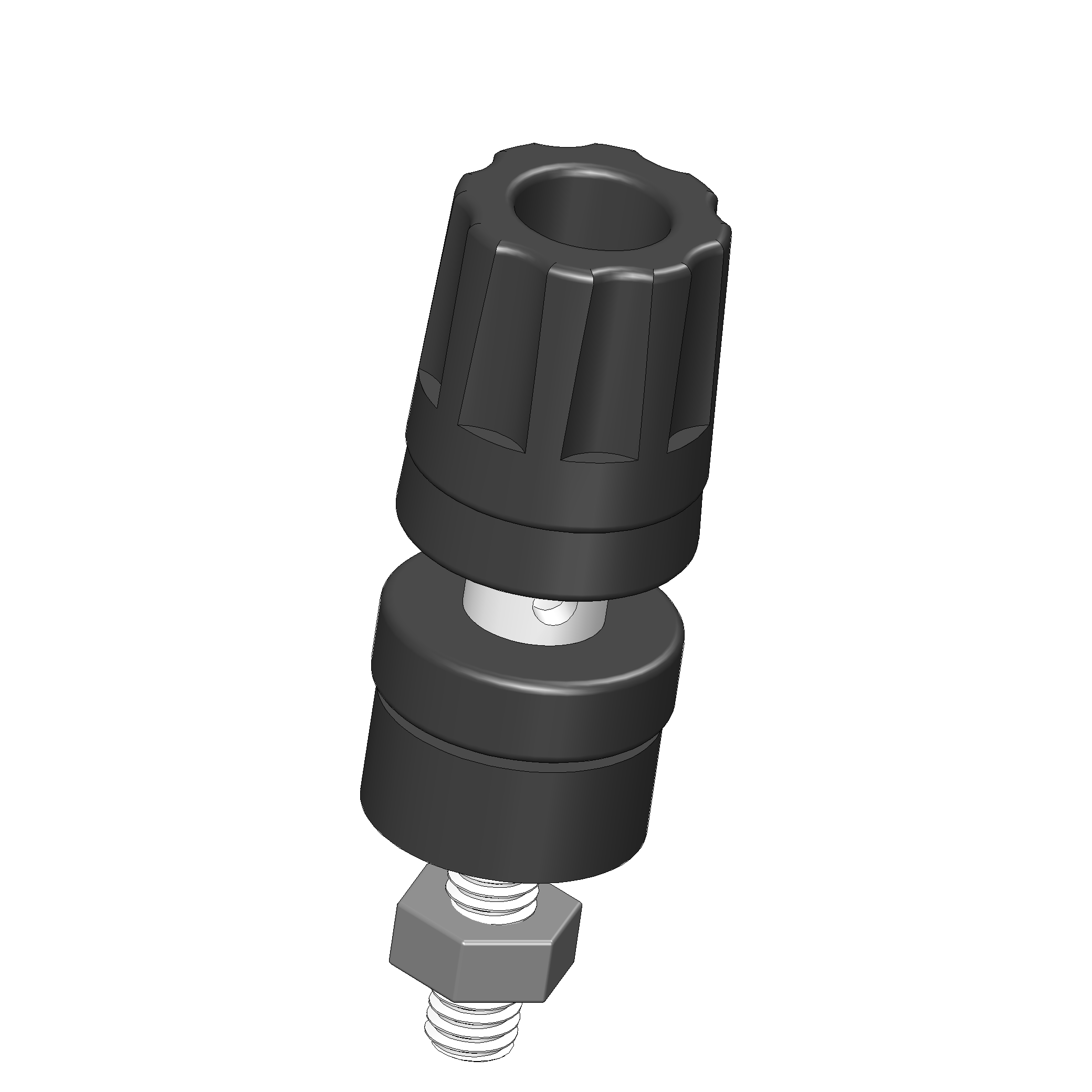

Pole clamp plug connector STV-PK4-M4-SW Item 3645

Please log in to show the price Login

The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.

Downloads

Conformation of RoHS compliance (EN|PDF)

Product datasheet (EN|pdf)

Choose version

STV-PK4-M4-SW (3645)

STV-2,54STL-M-072-PS-WW-G13 (24685) STV-USB2.0A-F-EB-SR (54751) STV-BL17-F-C (115189) SBZ-B-SI (115476) STV-USB2.0A/B-F-EB-SR-REV (27418) STV-BL12-F-C (116059) STV-BMA/SMA-M/F-18GHz-50OHM-FS (37065) STV-PK4-M4-SW (3645) STV-PK4-M4-RT (8847) STV-RJ45CAT05-F-EB-SR (54750) STV-SUBD-F-009-WW-G13 (29629) STV-2,54STL-M-072-T-WW-G13 (28078) STV-BL10-F-C (43377) STV-BMA/SMA-F/F-18GHz-50OHM-FL (35533)

Here you can optionally configure a new variant:

Technical data

General data
Product group :	Electric accessory
Series :	STV
Type :	Socket D4, radial bore D2
Version :	Pole clamp
Accessory type :	Customising accessory
Component assembly :	female
Material :	Brass, nickel-plated
Colour :	Schwarz
Min. temperature :	- 25 °C
Max. temperature :	+ 100 °C
RoHS-compliant :	RoHS-3

Technical data
Connection :	Threaded connection
Max. current :	35 A
Installation :	Thread M4
Max. voltage :	30 VAC / 60 VDC
Number of poles :	1

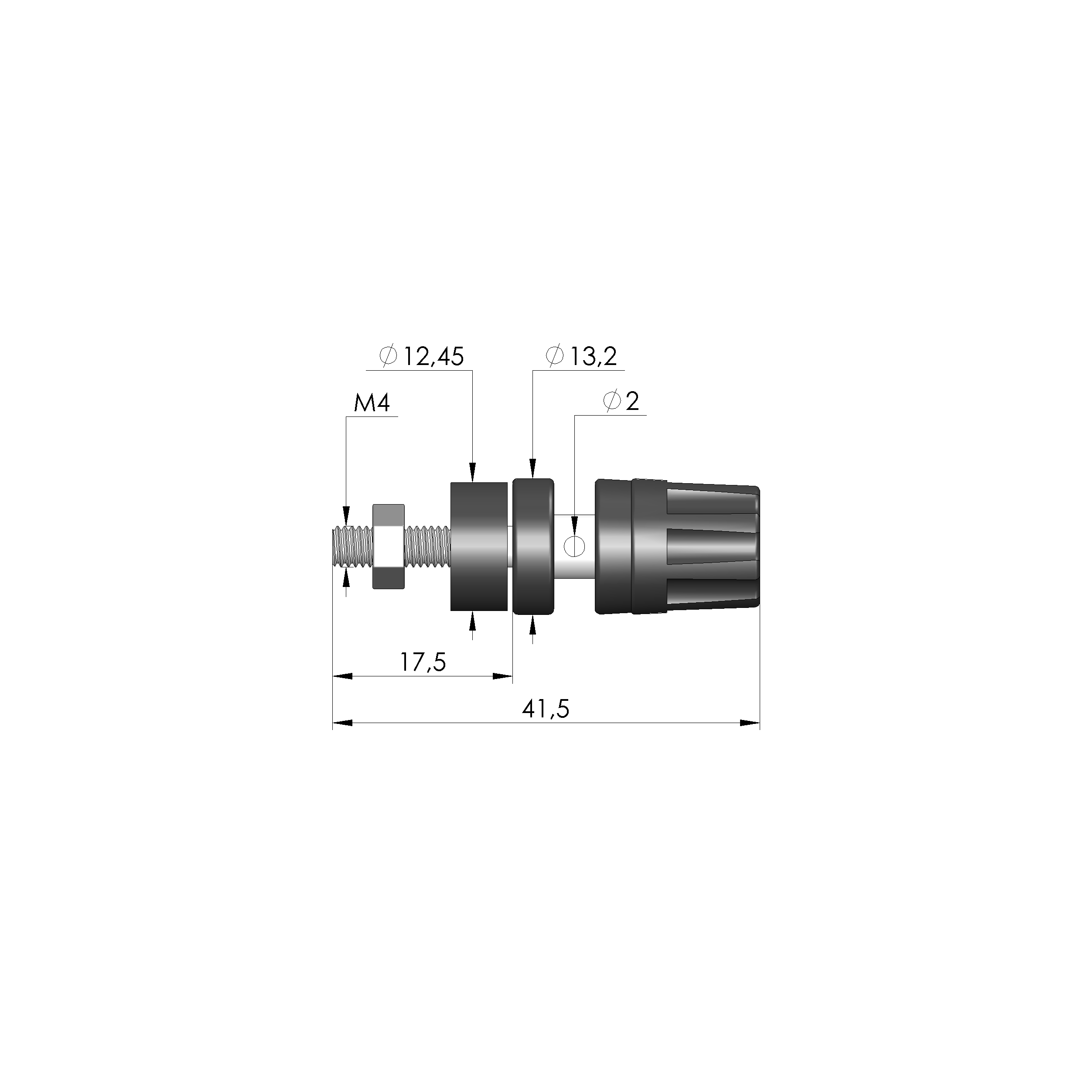

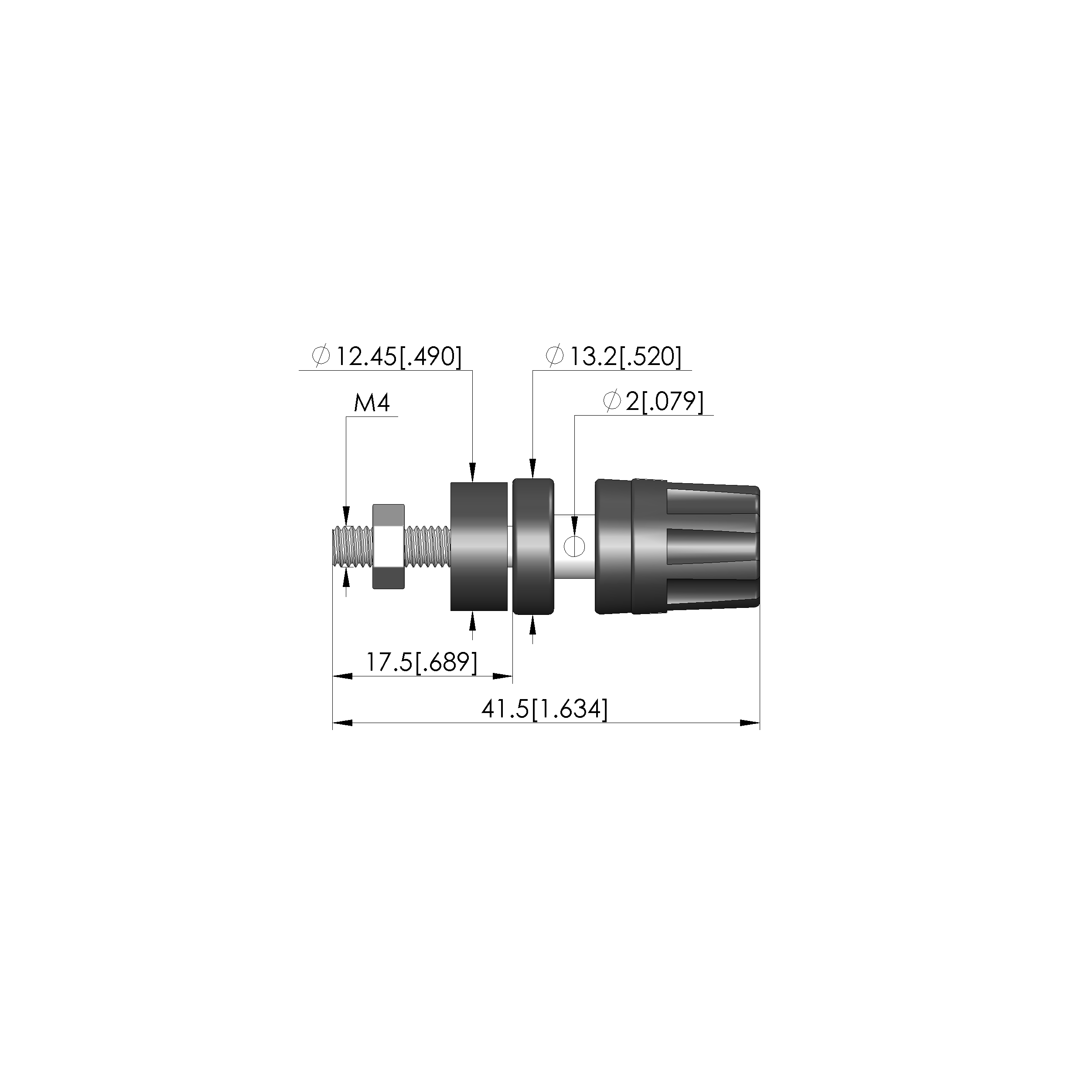

Length :	41.5 mm
Diameter :	4.0 mm

Compatible with
Interface blocks (SB) :	SB-P-SO-002-Polklemme
