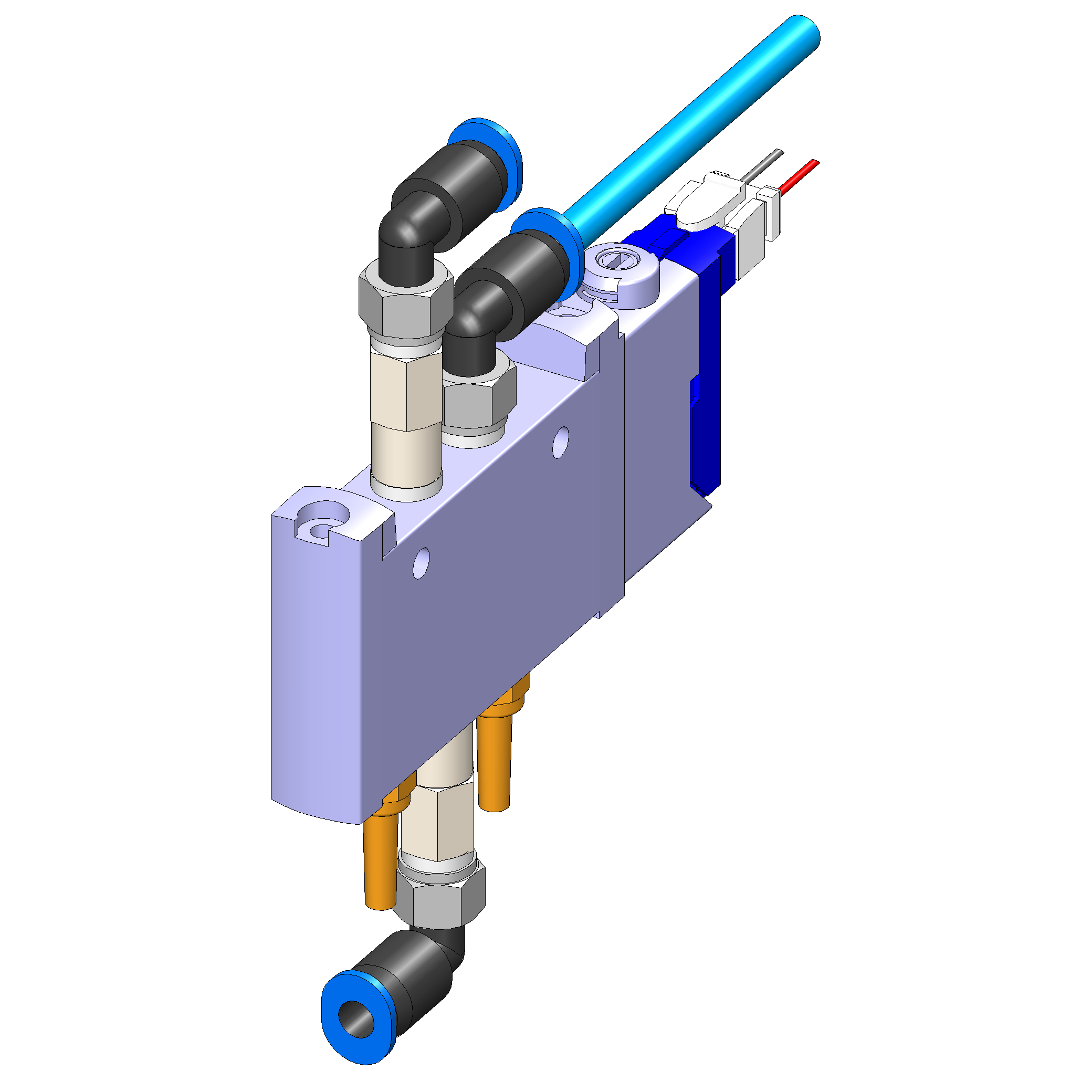

Pneumatic magnet valve PMV-MO5/2-QS4-24V-SET Item 42702

Please log in to show the price Login

The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.

Downloads

Conformation of RoHS compliance (EN|PDF)

CAD file (INGUN_42702.STEP)

Product datasheet (EN|pdf)

Document (42702__Kundenzeichnung.PDF)

Document (42702__Kundenzeichnung.pdf)

Choose version

PMV-MO5/2-QS4-24V-SET (42702)

PMV-MG3/2-QS4-24V-100L (32680) PMV-MO5/2-QS4-24V-SET (42702)

Here you can optionally configure a new variant:

Technical data

General data
Product group :	Pneumatic accessory
Series :	PMV
Type :	Magnet valve, set
Version :	5/2 monostable, open
Accessory type :	Customising accessory
Scope of delivery :	Incl. connector accessories
Material :	Aluminium alloy

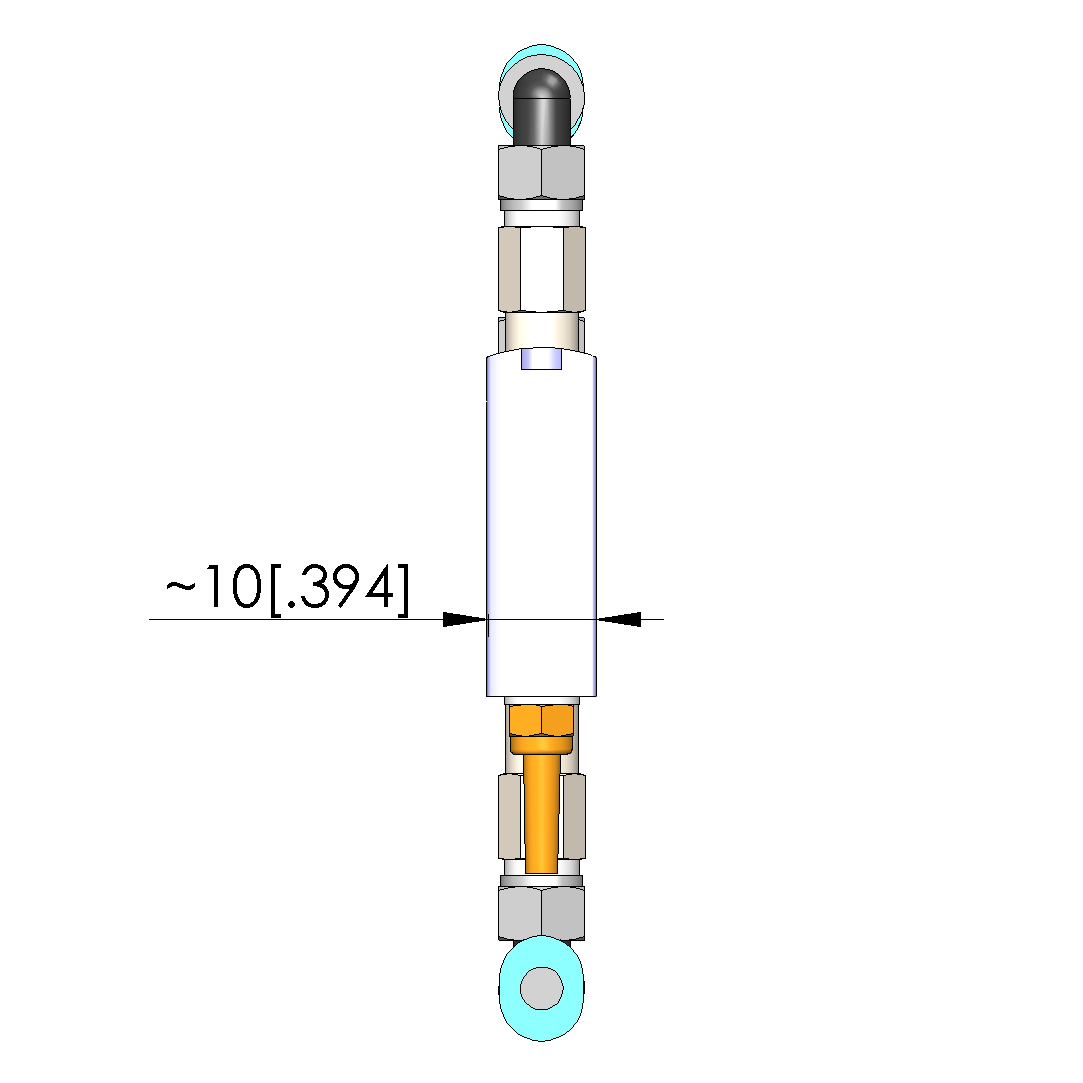

Width :	10 mm
Height :	91 mm
Weight :	0.04 kg
Min. temperature :	- 5 °C
Max. temperature :	+ 60 °C
RoHS-compliant :	RoHS-3

Technical data
Installation :	Bore D3,2
Max. voltage :	24 VDC
Number of poles :	5
Compressed air connection :	QS-4
Rated flow :	90 l/min
Length :	85 mm
Cable length :	500 mm

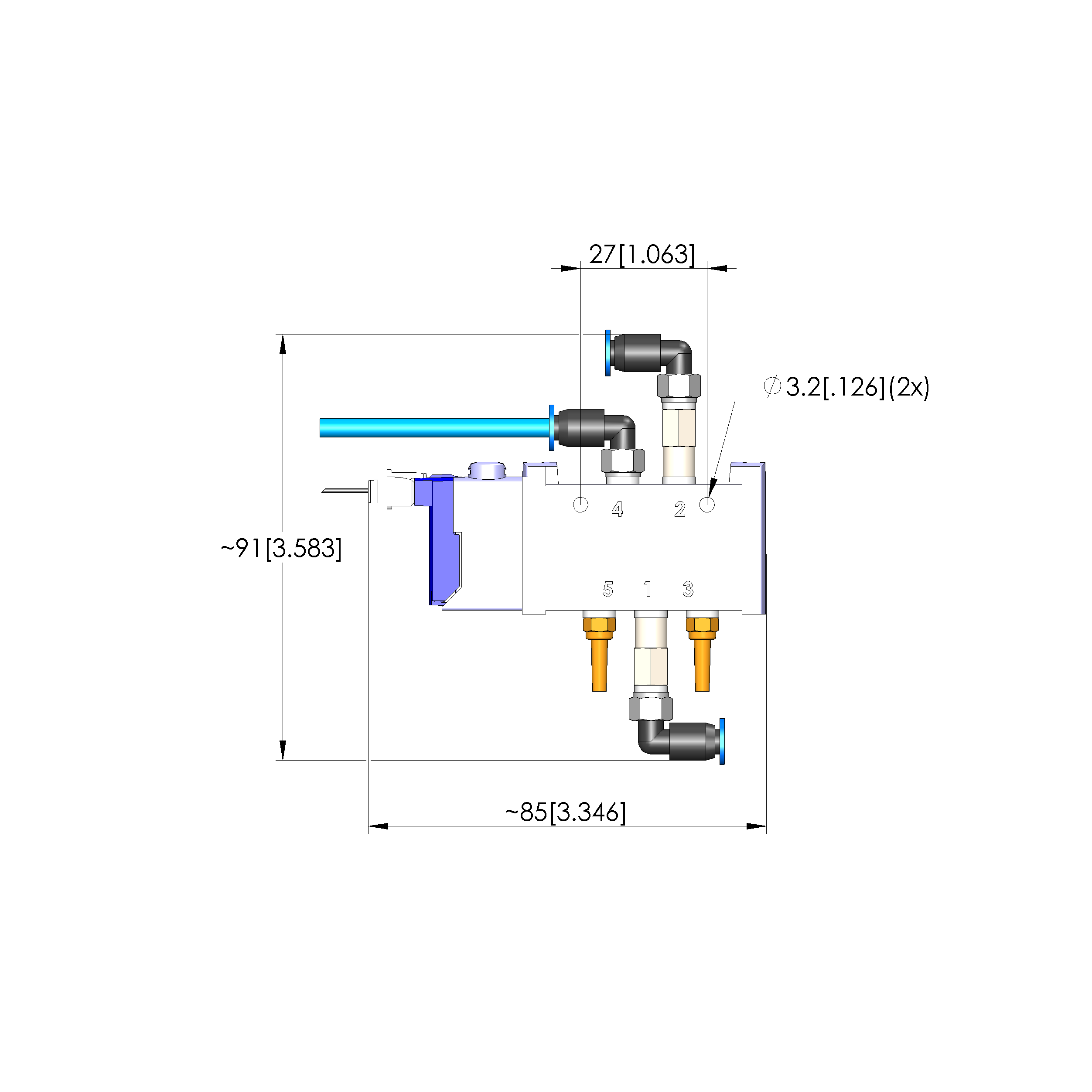

Outer dimensionS (WxDxH) :	85.0 x 10.0 x 91.0 mm

Compatible with
Accessories :	FB-SOP, FB-VER, SAM-P
