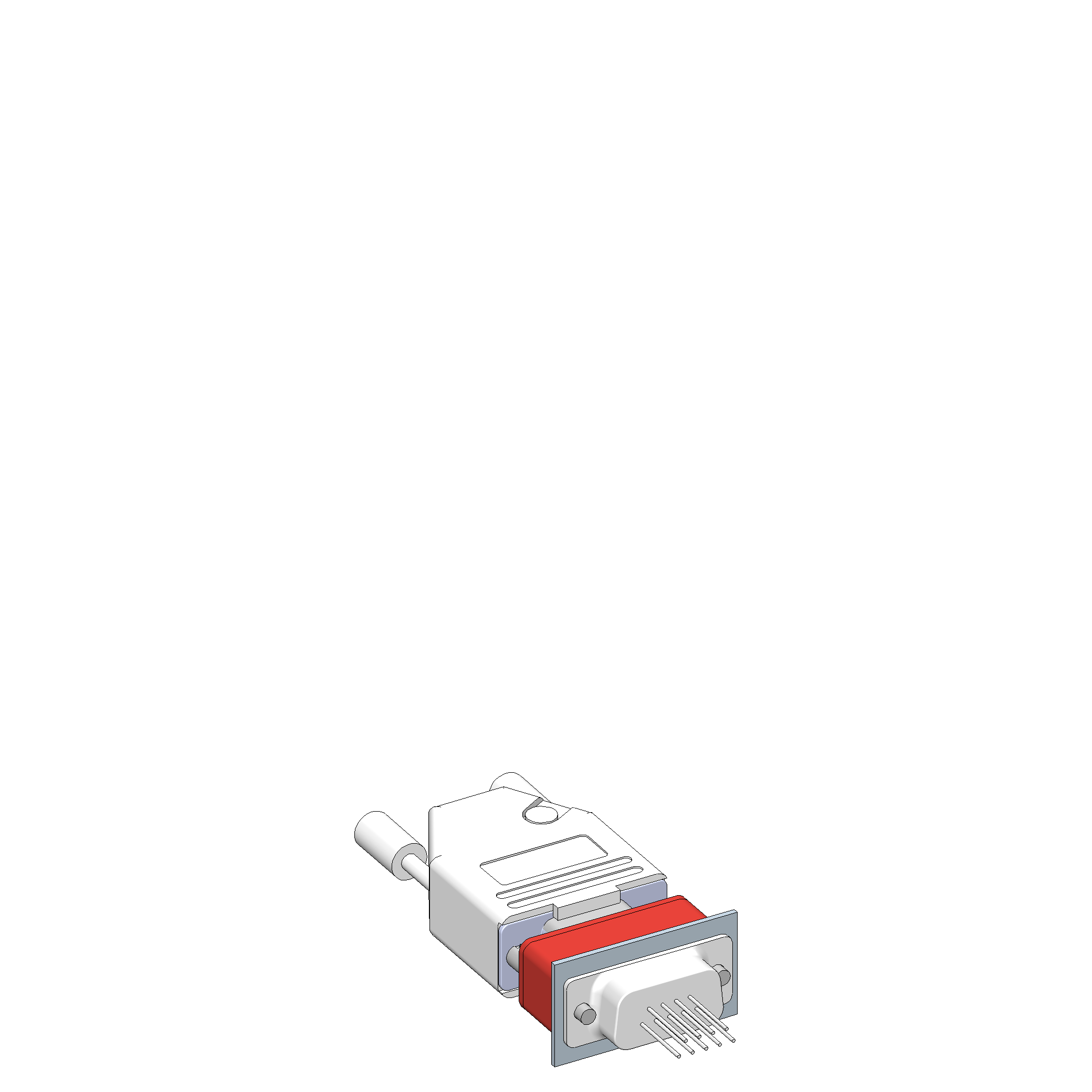

RF transfer HF-U-SUBD-09-100pF-WW Item 51358

  • EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
  • Interference-free transmission of bus and HSD signals up to 150 Mbps
  • Capacity 100 pF
  • 200 mating cycles
Show more Show less

RF transfer HF-U-SUBD-09-100pF-WW Item 51358

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_51358.STEP)
Product datasheet (EN|pdf)
Document (51358__Kundenzeichnung.PDF)
Choose version
HF-U-SUBD-09-100pF-WW (51358)
HF-U-SUBD-09-100pF-WW (51358) HF-U-SUBD-09-830pF-WW (53087) HF-U-SUBD-37-830pF-WW (53085) HF-U-SUBD-50-830pF-WW (53086) HF-U-USB2.0-AF-AF-2-SF (43488) INGUN SELECTION HF-U-MCX-06GHz-50OHM-F-F (33800) HF-U-SUBD-25-100pF-WW (112198) HF-U-USB3.0-AF-AF-2 (43489) HF-U-BNC-03GHz-75OHM-F-F (43461) HF-U-BNC-04GHz-50OHM-F-F (43460) HF-U-D-8,5 (43490) HF-U-RJ45-LAN1000-F-F-SF (48392) HF-U-SMA-18GHz-50OHM-F-F (41661) HF-U-SUBD-25-1000pF-WW (116855) HF-U-D-8,5-QS4 (43665) HF-U-N-18GHz-50OHM-F-F (43462) HF-U-SUBD-15-820pF-WW (116388)
Here you can optionally configure a new variant:
Technical data
General data
Product group : RF accessories
Series : HF-U
Type : RF transfer
Version : D-sub plug connector
Accessory type : Customising accessories
Scope of delivery : Unassembled
Weight : 0.02 kg
Min. temperature : - 55 °C
Max. temperature : + 125 °C
RoHS-compliant : RoHS-3
Technical data
Connection : Wire-wrap posts
Max. current : 7.5 A
Max. voltage : 100 VDC
Contact resistance : 10 mOhm
Number of poles : 9
Capacity : 100 pF
Compatible with
Exchangeable kits version : HF
MA exchangeable kits (ATS MA) : ATS MAxx/HF/AL/ESD
