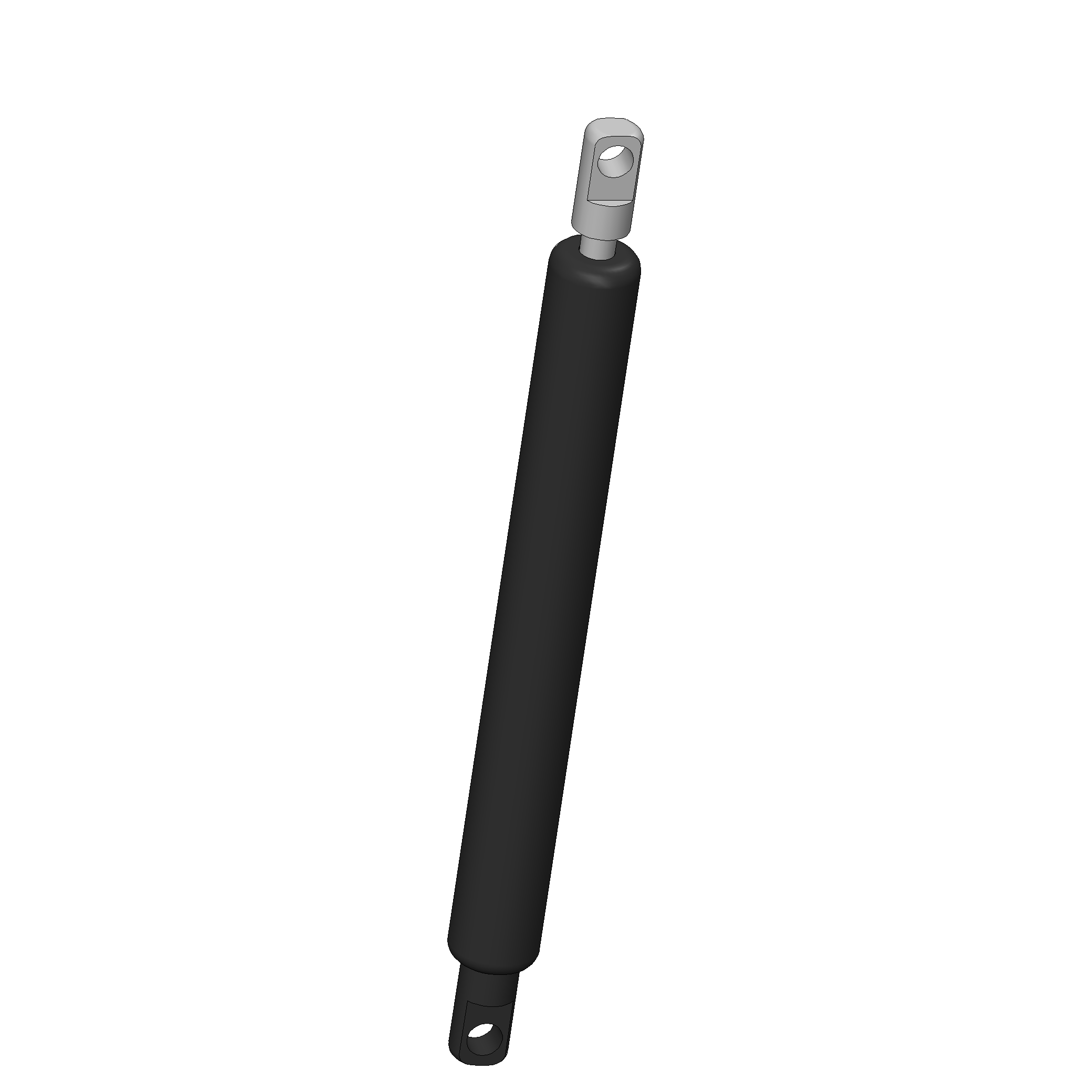

Gas spring GDF-220-50-050N-A6-A6 Item 25695

  • Trusted gas springs from the market leader
  • Store with the piston rod facing downwards
Show more Show less

Gas spring GDF-220-50-050N-A6-A6 Item 25695

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Document (25695__Kundenzeichnung.PDF)
Product datasheet (EN|pdf)
Choose version
GDF-220-50-050N-A6-A6 (25695)
GDF-145-40-100N-A6-A6 (2504) GDF-185-60-075N-A6-A6 (16548) GDF-185-60-100N-A6-A6 (11536) GDF-185-60-200N-A6-A6 (31788) GDF-185-60-300N-A6-A6 (35469) GDF-305-120-050N-A6-A6 (2500) GDF-305-120-100N-A6-A6 (2502) GDF-305-120-300N-A6-A6 (9991) GDF-145-40-050N-A6-A6 (2499) GDF-185-60-150N-A6-A6 (34848) GDF-185-60-200N-A6-A6-D (37967) GDF-185-60-300N-A6-A6-D (49316) GDF-220-50-050N-A6-A6 (25695) GDF-270-100-075N-A6-A6 (25696) GDF-305-120-150N-A6-A6 (10770) GDF-305-120-75N-A6-A6 (2501) GDF-185-60-050N-A6-A6 (2497) GDF-185-60-100N-A6-A6-D (38786) GDF-270-100-150N-A6-A6 (26716) GDF-305-120-200N-A6-A6 (8078)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Gas springs
Series : GDF
Type : Gas spring
Version : Standard, attenuated
Accessory type : Spare parts
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3
Technical data
Stroke : 50 mm
Force : 50 N

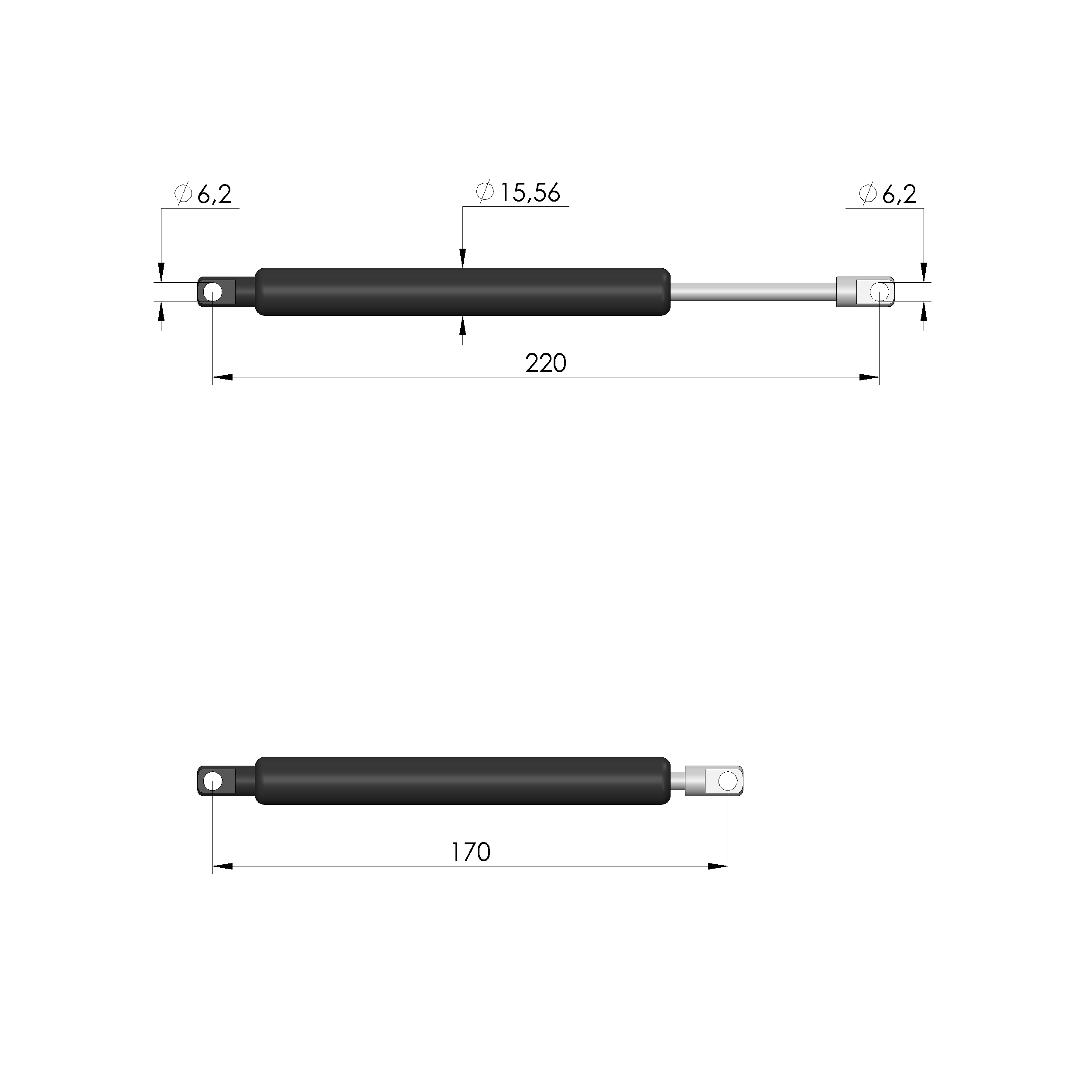

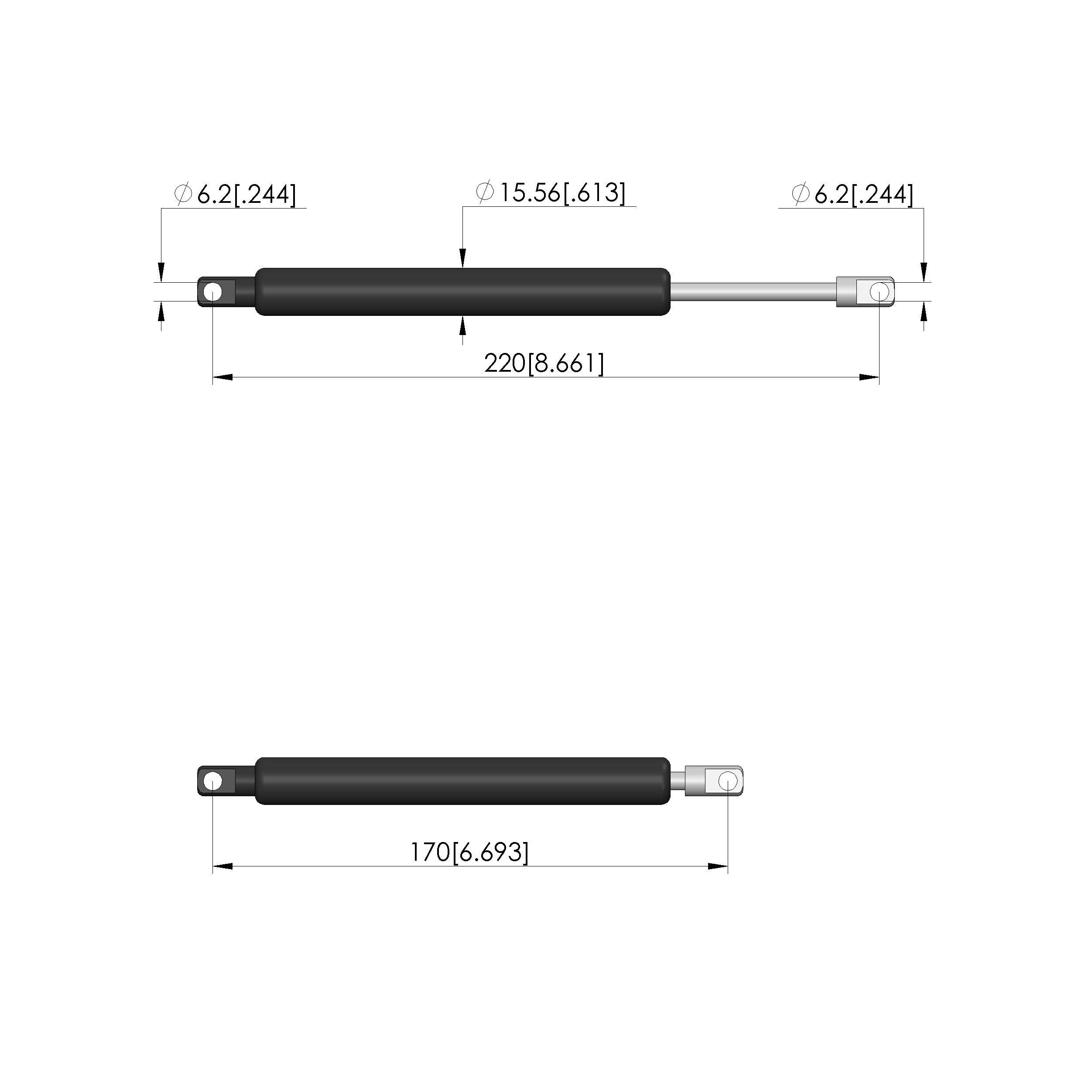

Length : 220 mm
Gas pressure spring length, home position : 170 mm
Plunger length, home position : 50 mm
Installation 1 diameter : 6.2 mm
Installation 2 diameter : 6.2 mm
Compatible with
Exchangeable kits version : No limitations
